Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Cruise Control >> Distance Sensor >> Diagrams

Distance Sensor: Diagrams

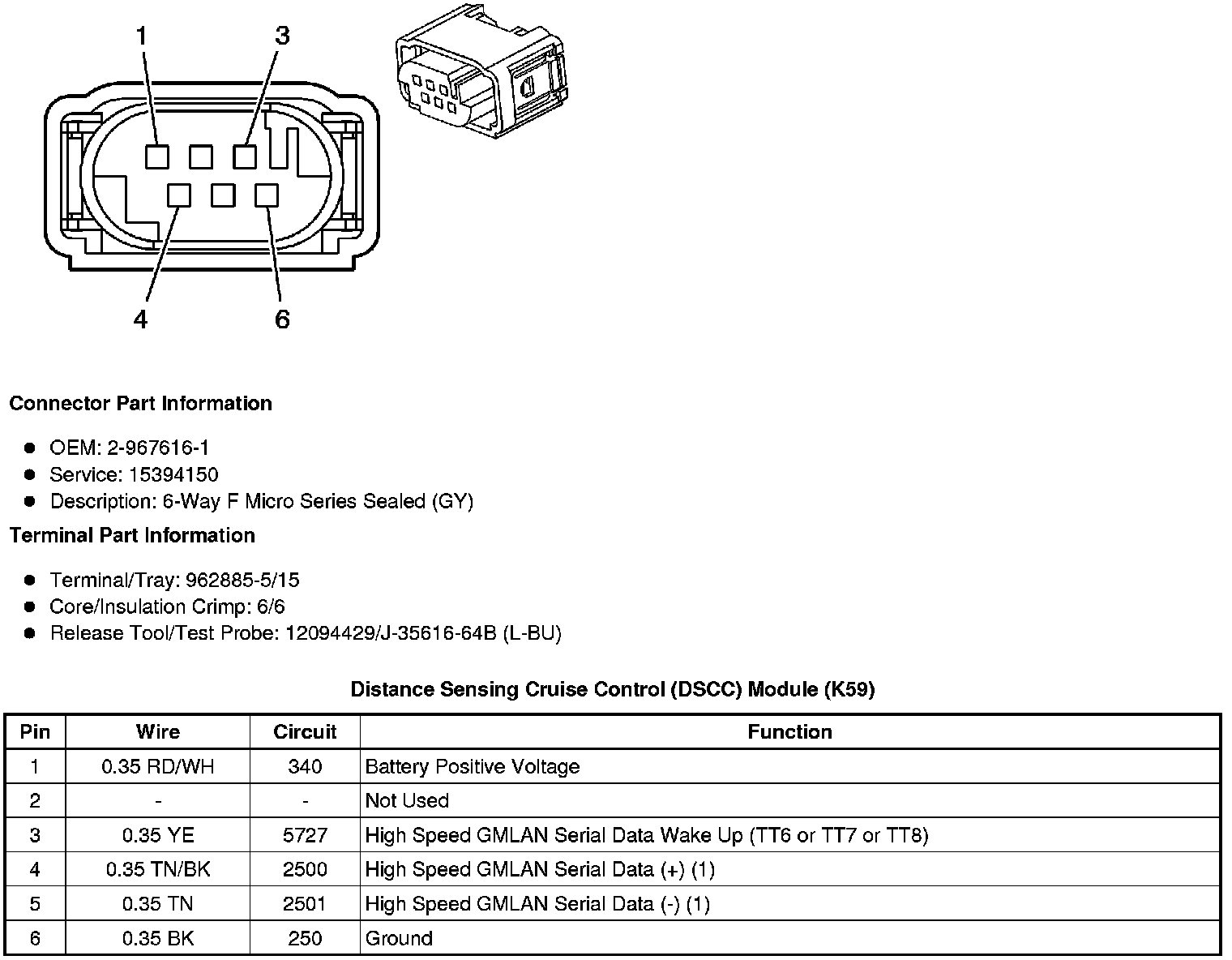

Component Connector End Views

Distance Sensing Cruise Control (DSCC) Module (K59)
