Air Flow Meter/Sensor: Locations




Front of Vehicle/Engine Compartment Component Views

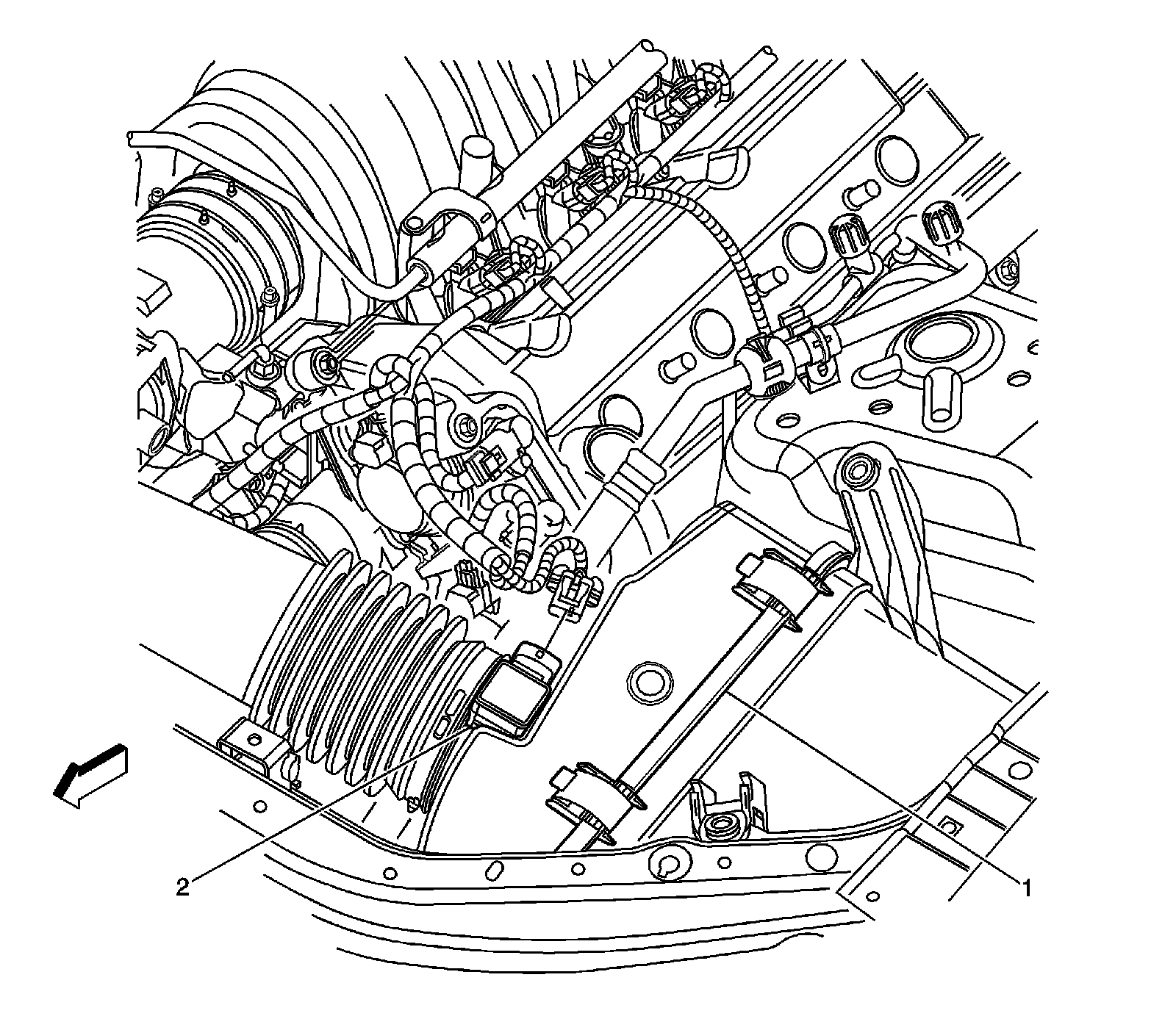

Mass Air Flow (MAF) Sensor and Air Cleaner




1 - Air Cleaner
2 - Mass Air Flow (MAF) Sensor
