Power Trunk / Liftgate Control Module
Component Connector End Views

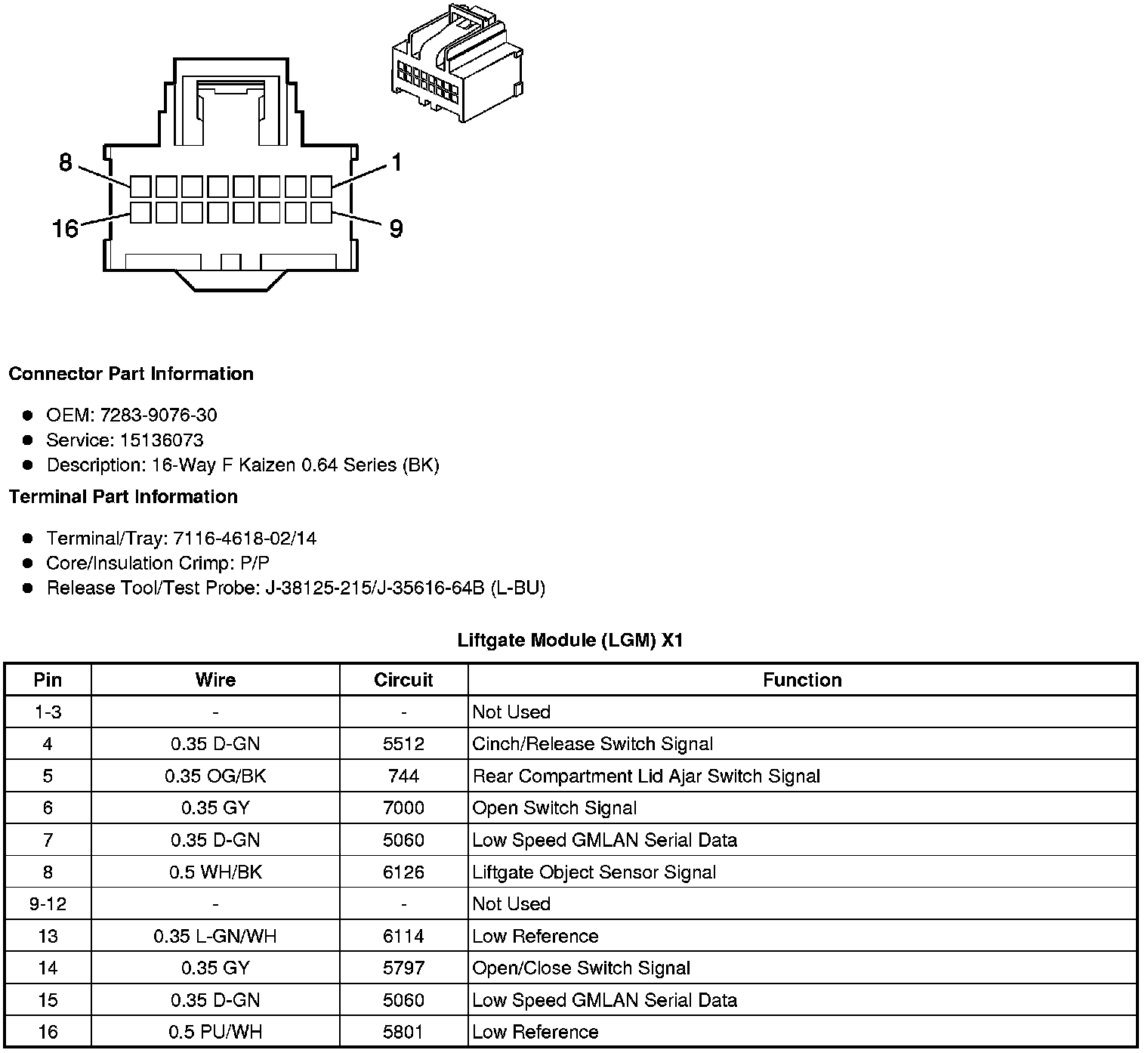

Liftgate Module (LGM) X1

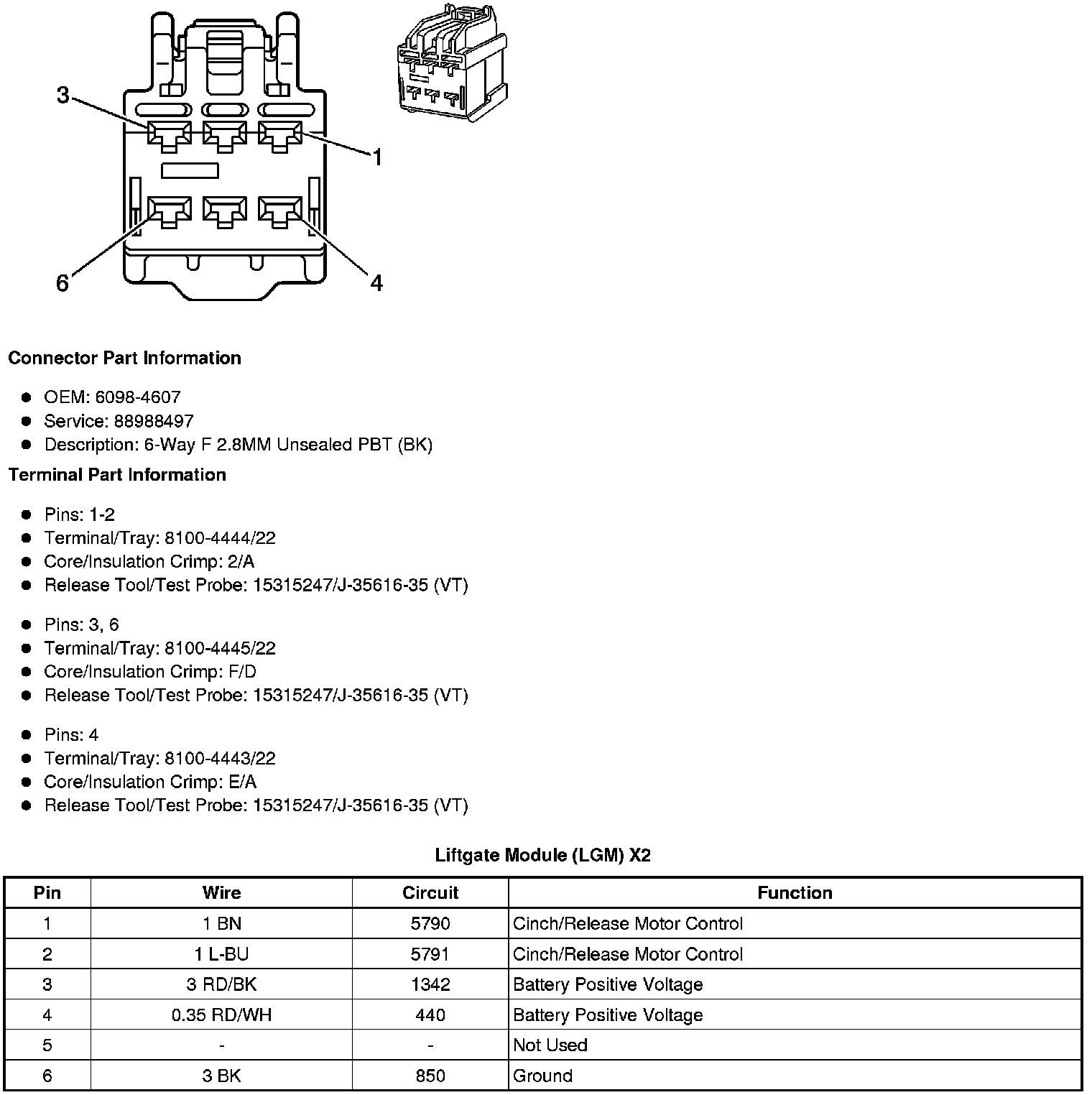

Liftgate Module (LGM) X2

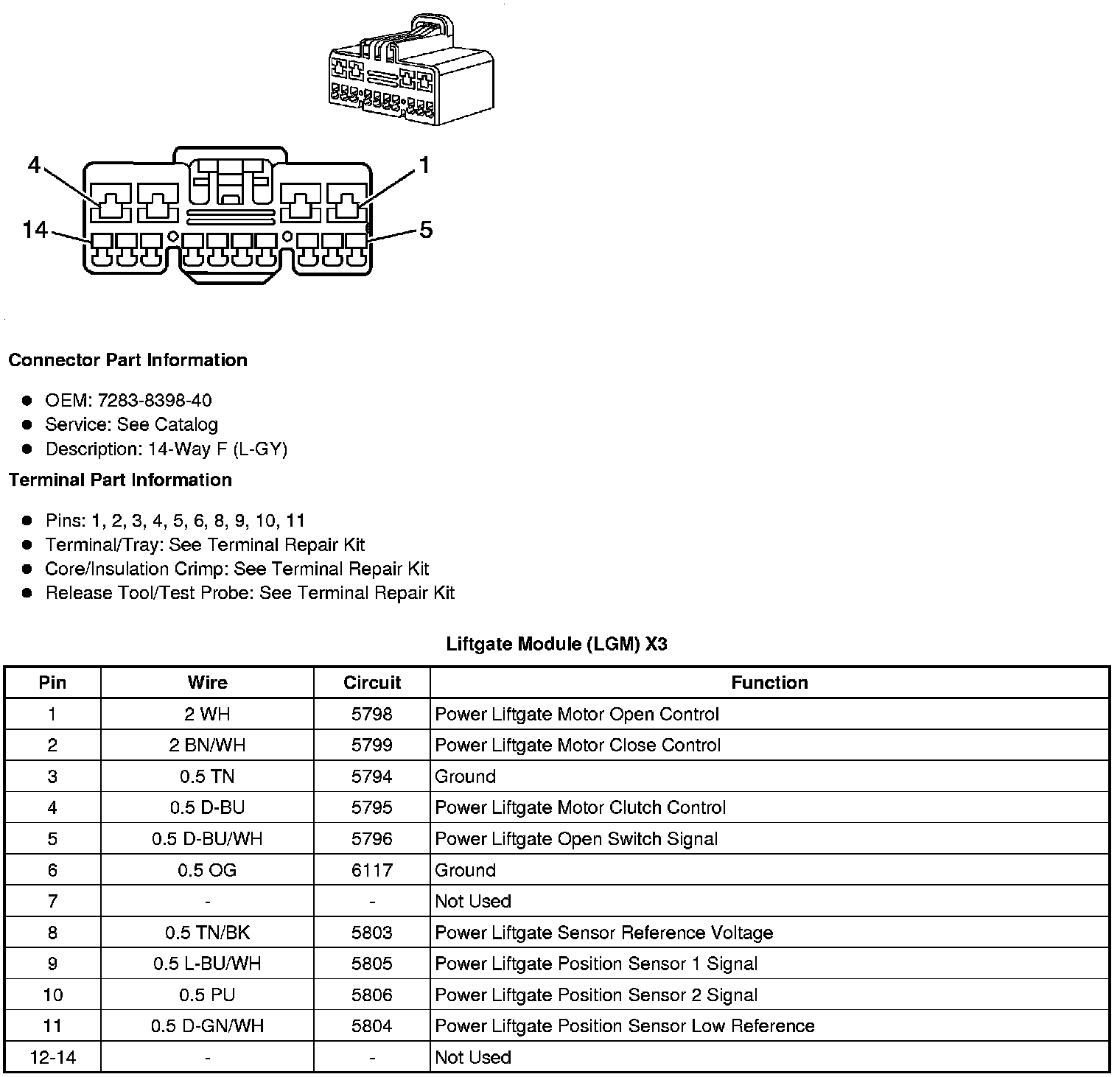

Liftgate Module (LGM) X3
