Antenna Control Module
Antenna Control Module

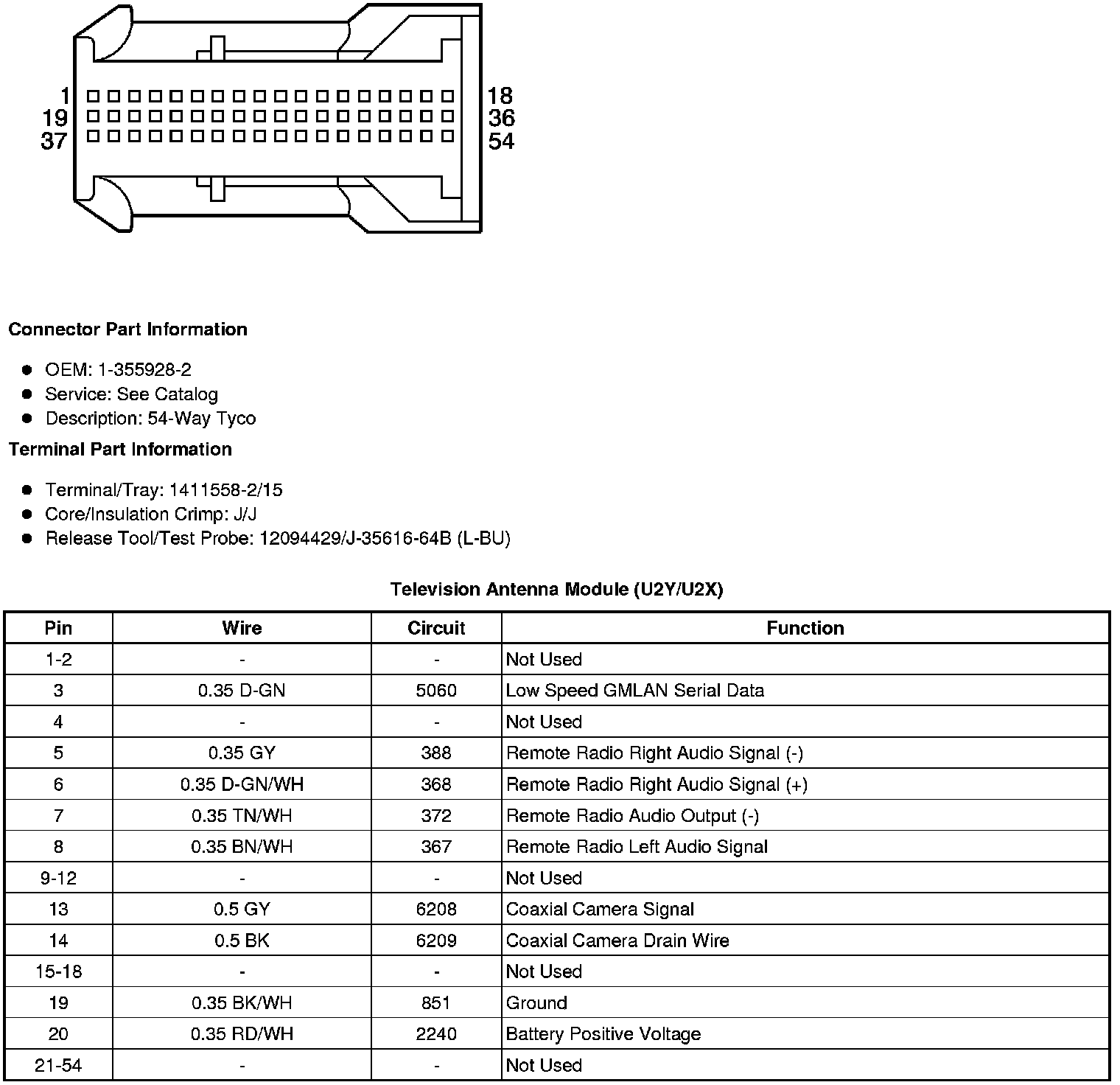

Component Connector End Views
Television Antenna Module (U2Y/U2X)
