Number One Cylinder: Locations

NUMBER ONE CYLINDER

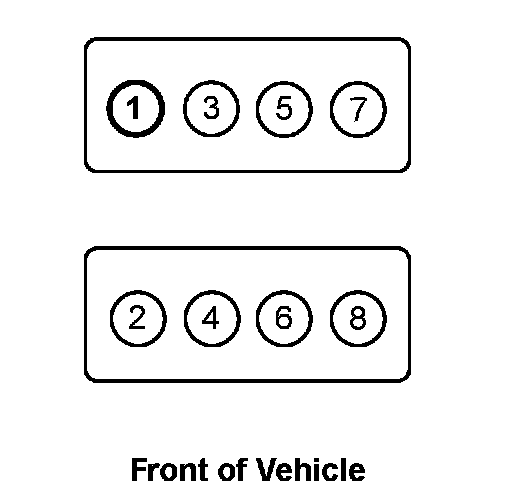

The left bank of cylinders are number 2-4-6-8 and the right bank cylinders are 1-3-5-7.

NOTE: Right hand (RH) and Left hand (LH) designations are viewed from the rear of the engine.

For ignition system firing order, Firing Order
