Map Light
Map Light
Component Connector End Views

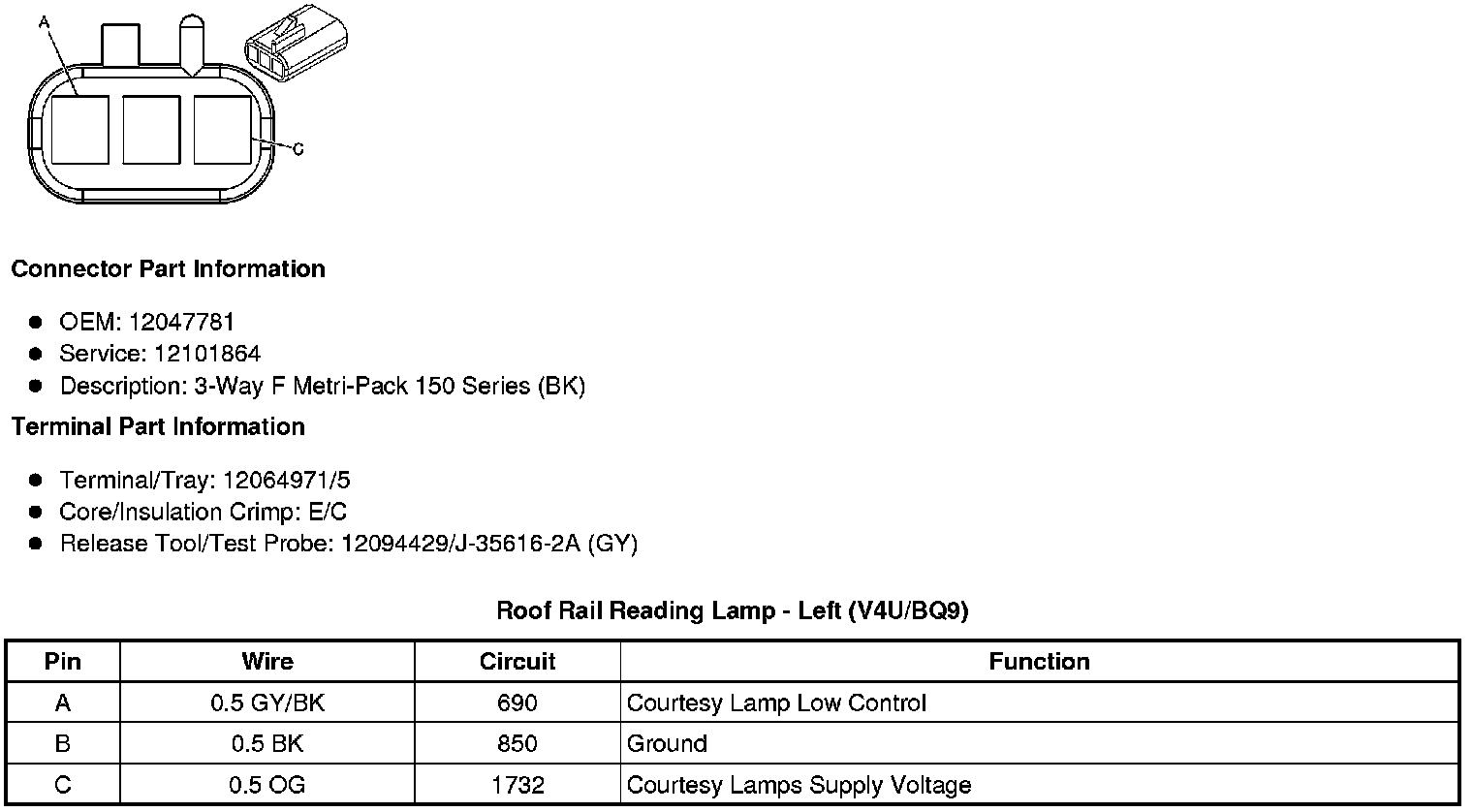

Roof Rail Reading Lamp - Left (V4U/BQ9)

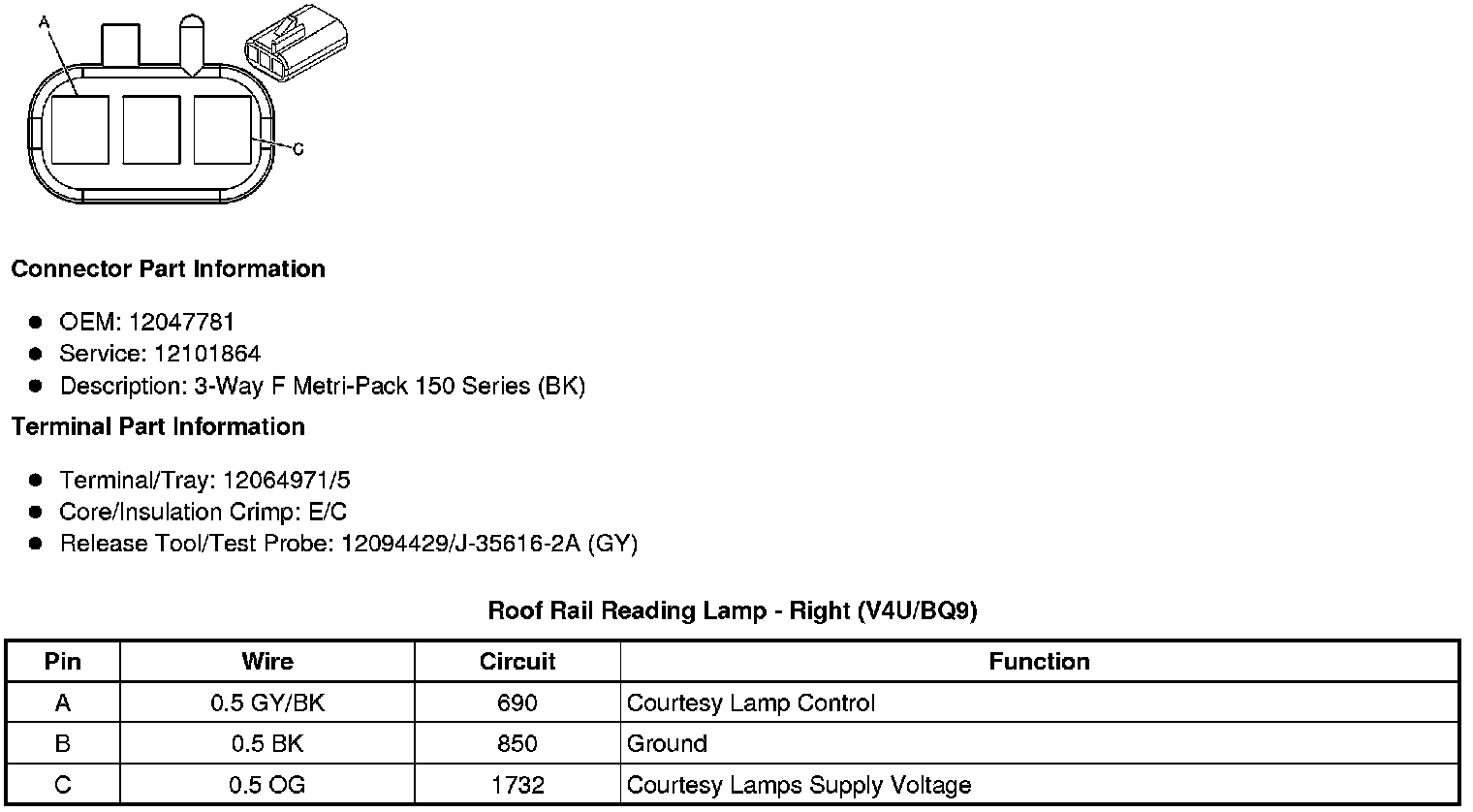

Roof Rail Reading Lamp - Right (V4U/BQ9)
