Engine Control Module




Component Connector End Views

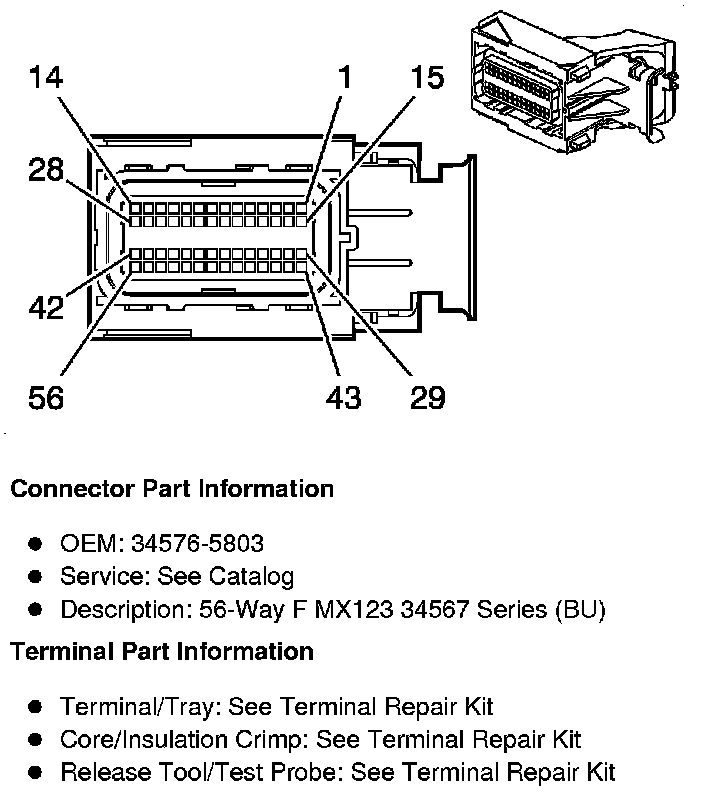

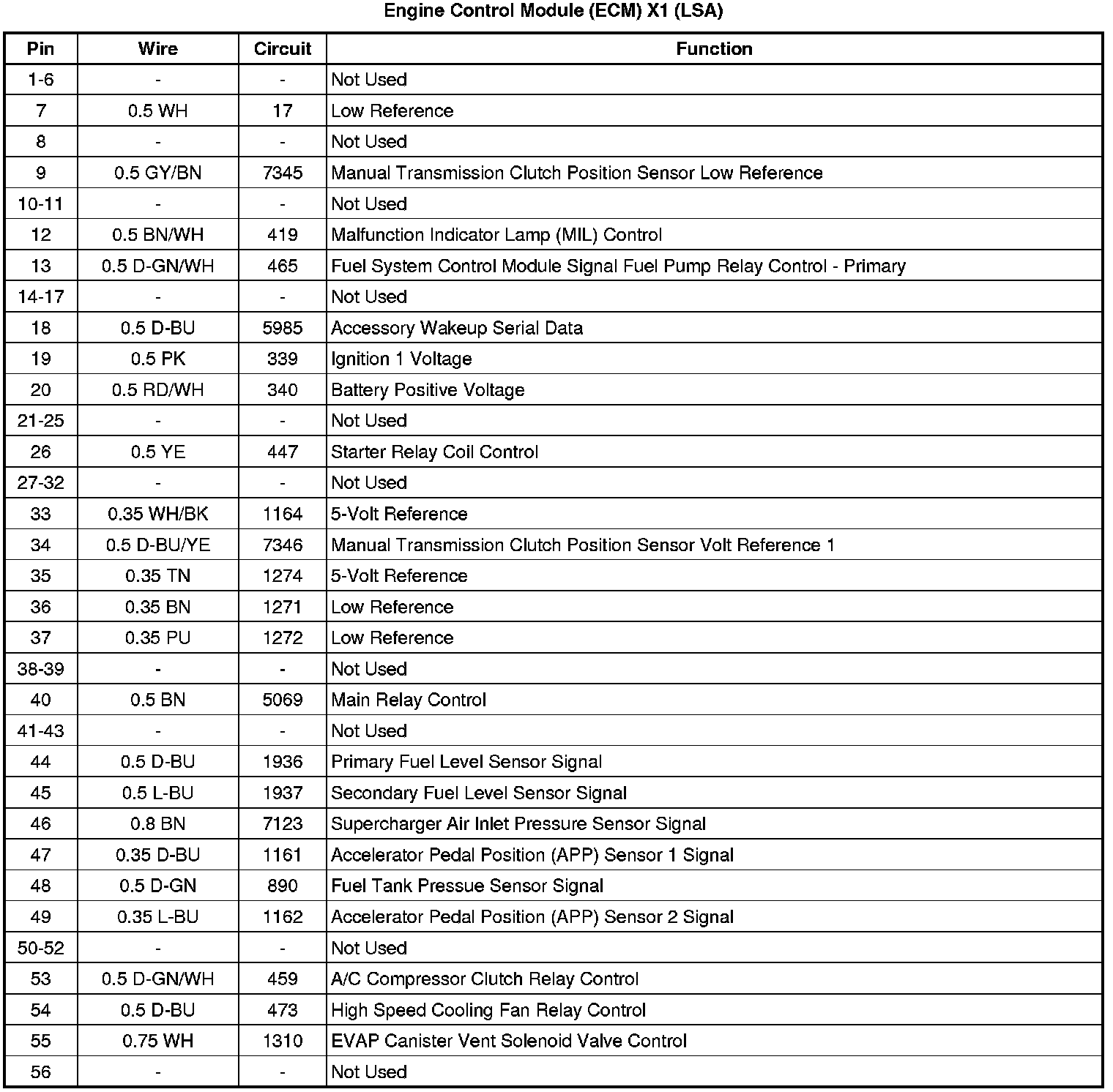

Engine Control Module (ECM) X1 (LSA)

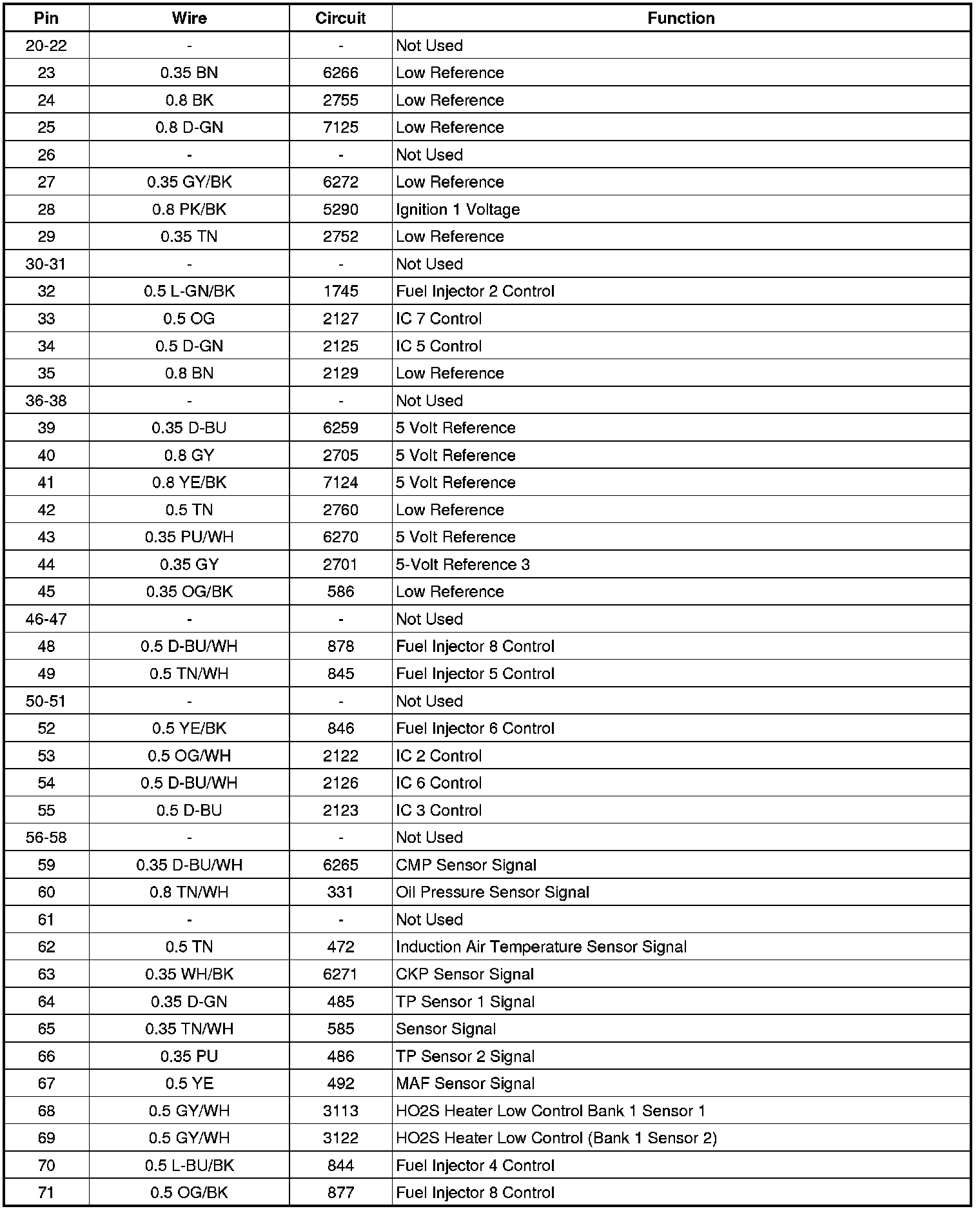

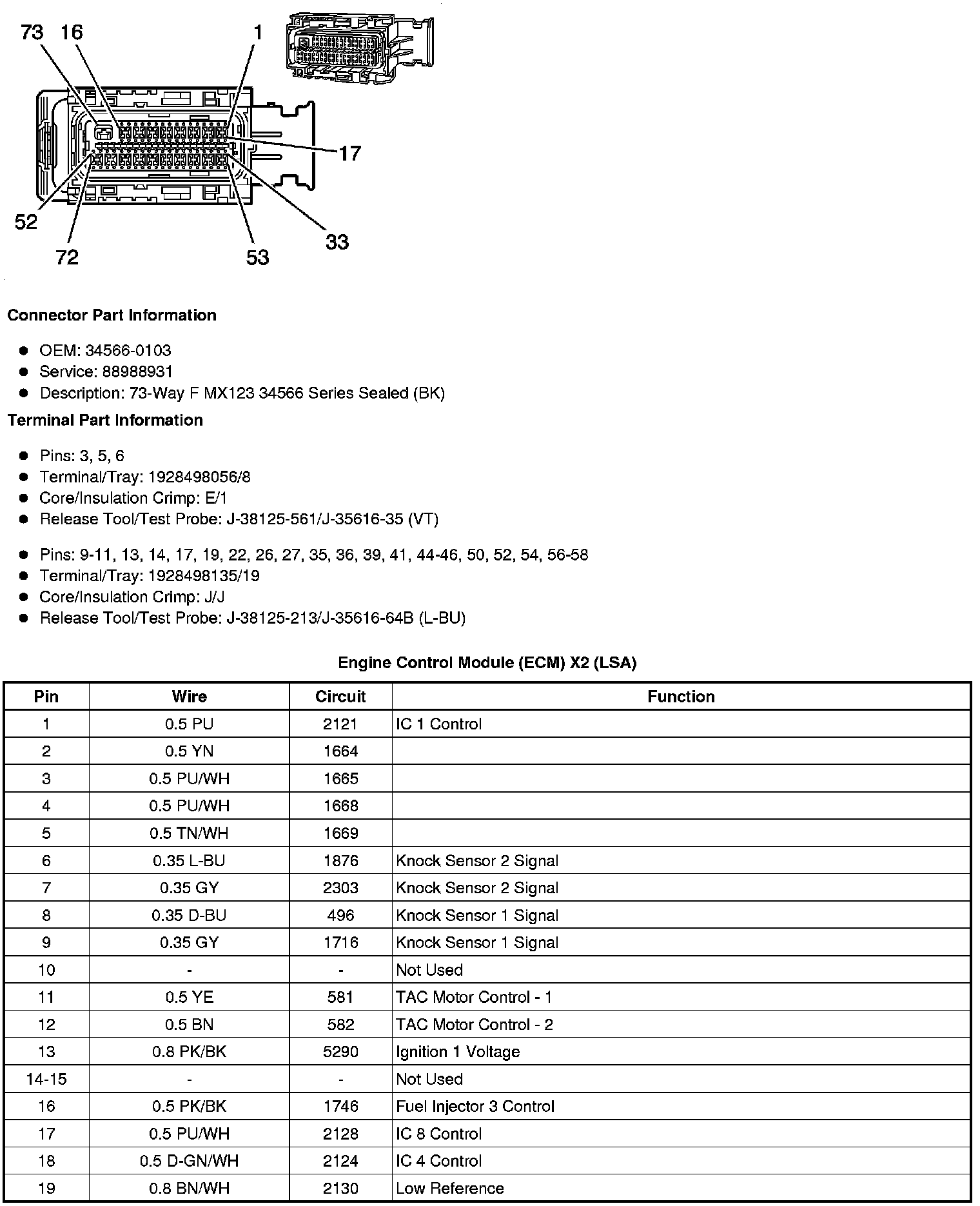

Engine Control Module (ECM) X2 (LSA)

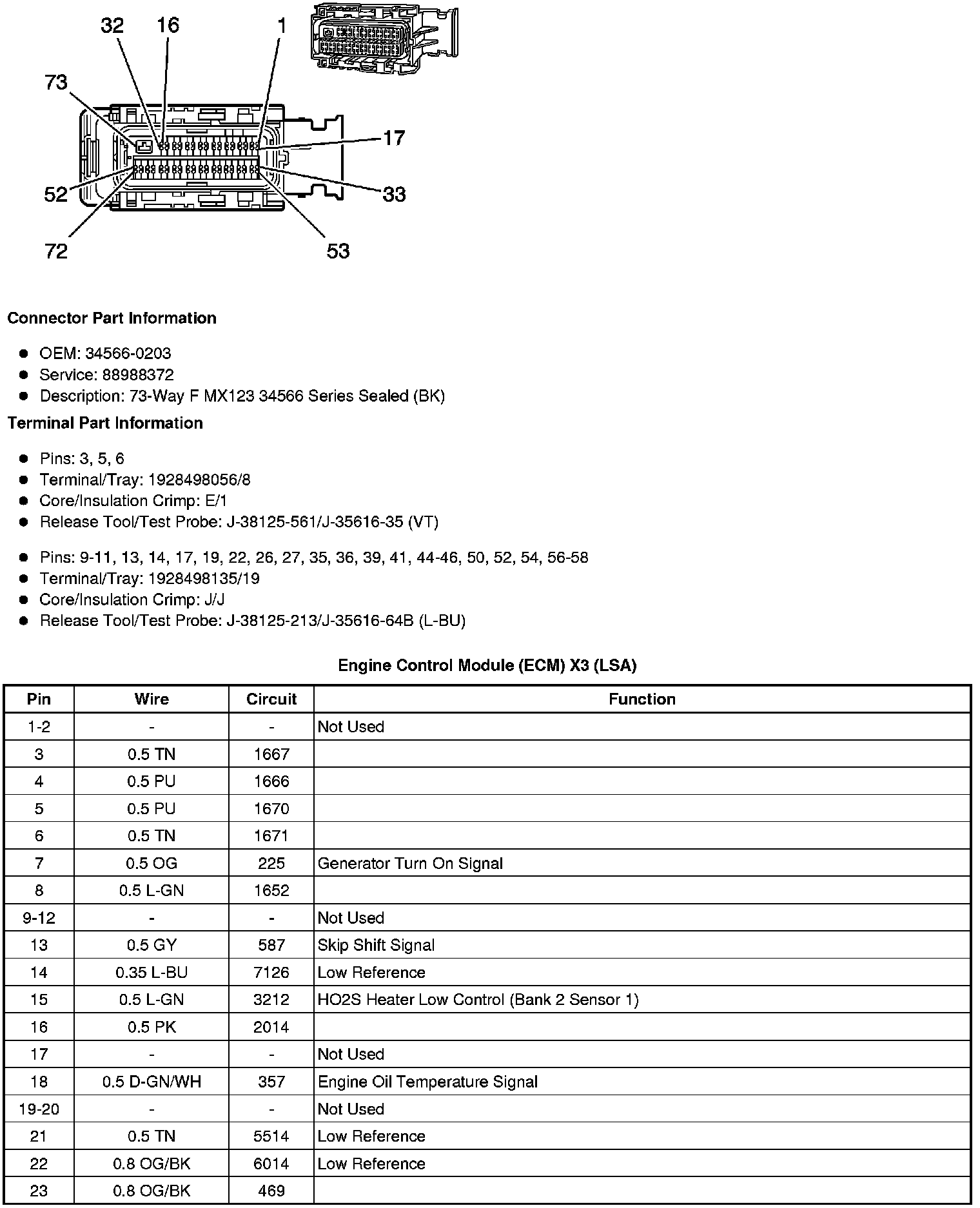

Engine Control Module (ECM) X3 (LSA)
