Keyless Entry Module




Component Connector End Views

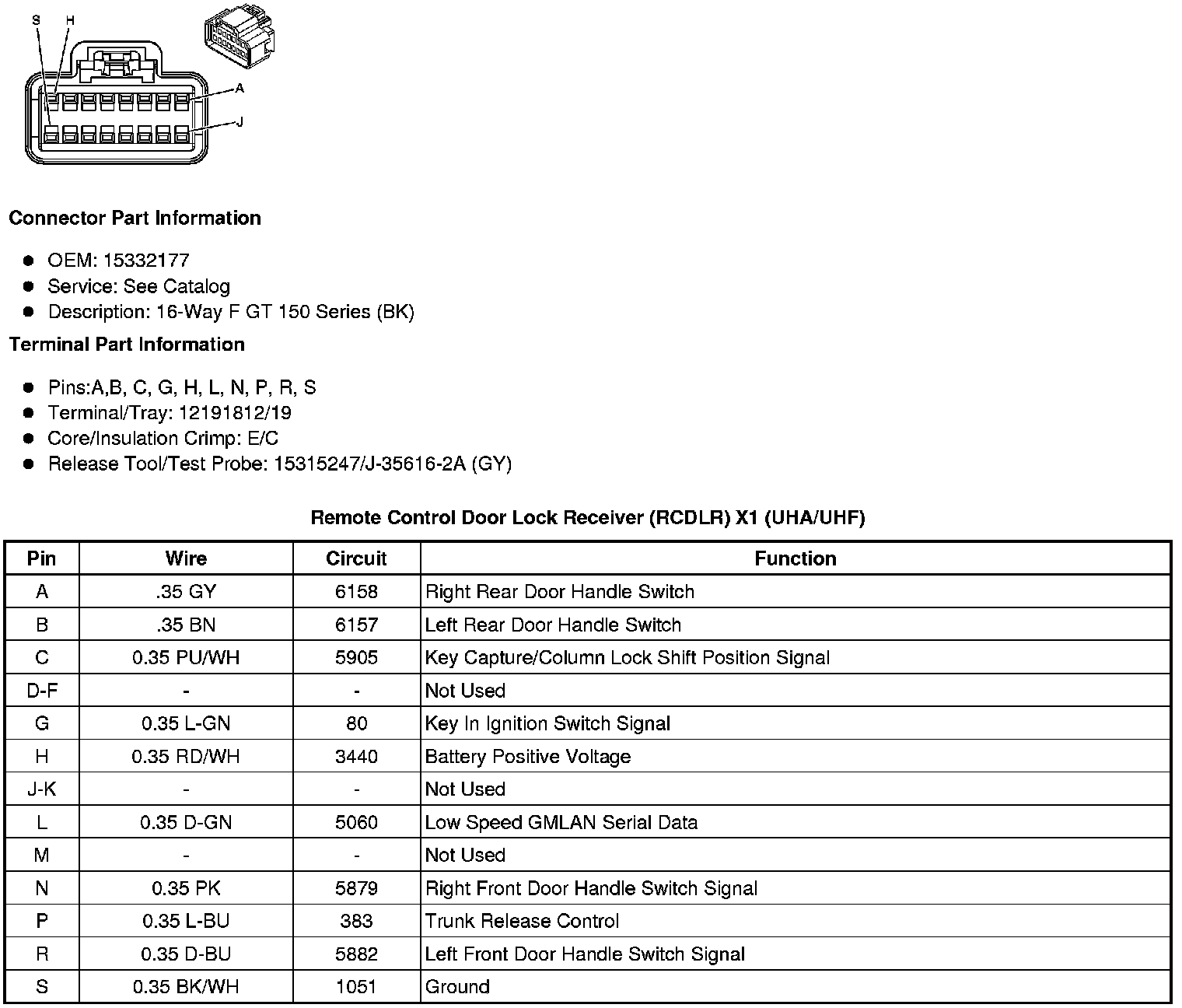

Remote Control Door Lock Receiver (RCDLR) X1 (UHA/UHF)

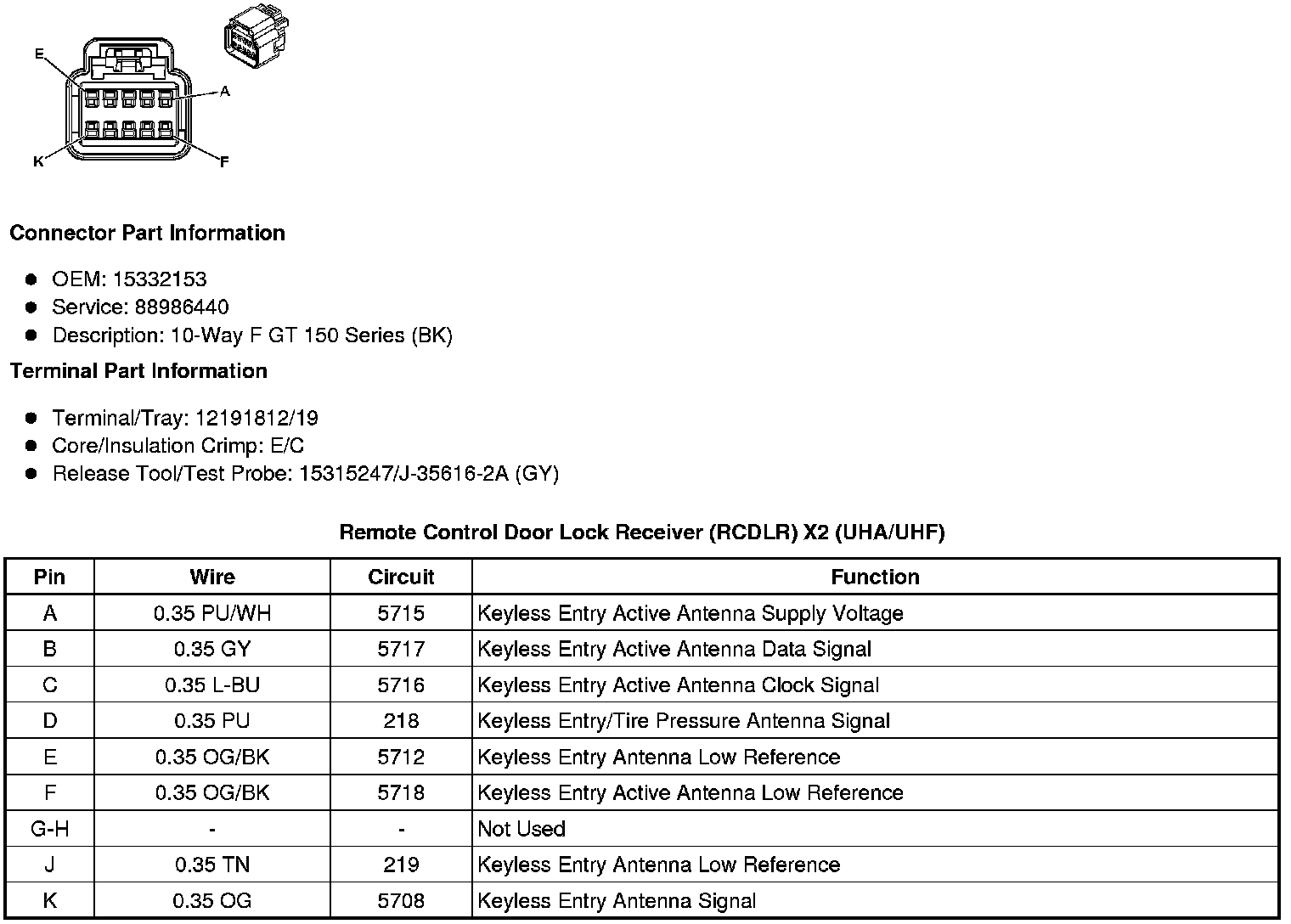

Remote Control Door Lock Receiver (RCDLR) X2 (UHA/UHF)

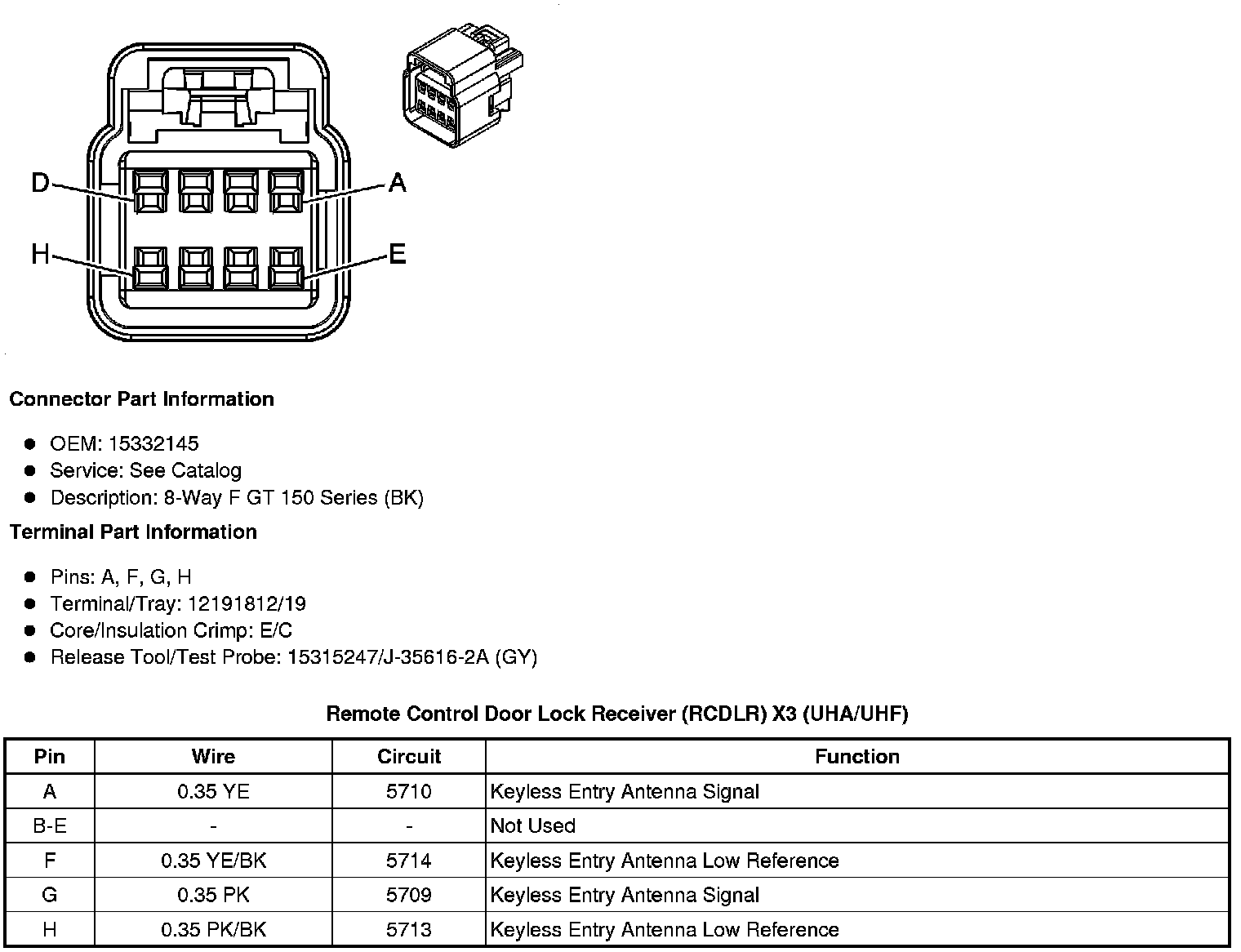

Remote Control Door Lock Receiver (RCDLR) X3 (UHA/UHF)

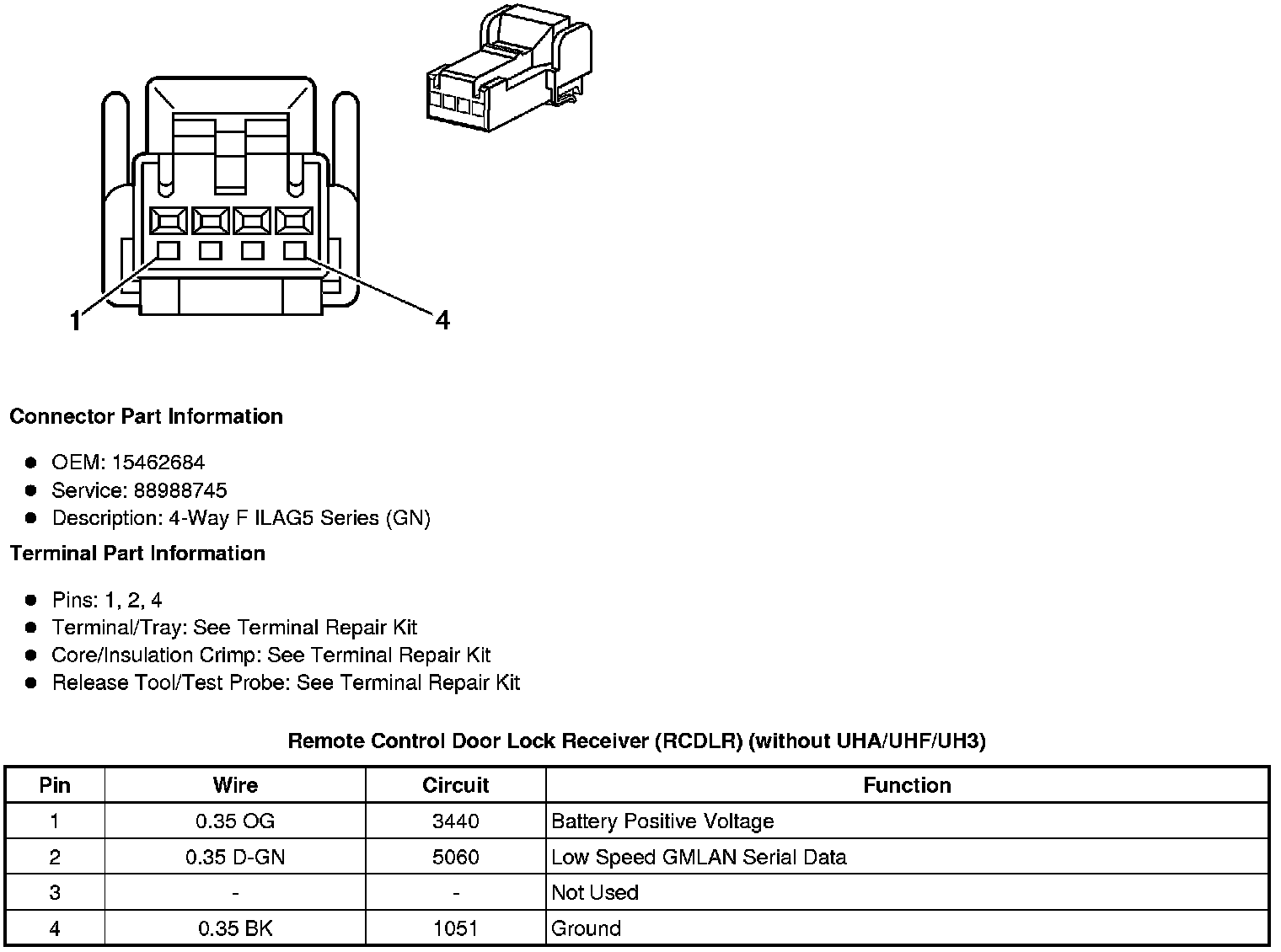

Remote Control Door Lock Receiver (RCDLR)(without UHA/UHF/UH3)
