Antenna Control Module
Antenna Control Module
Component Connector End Views

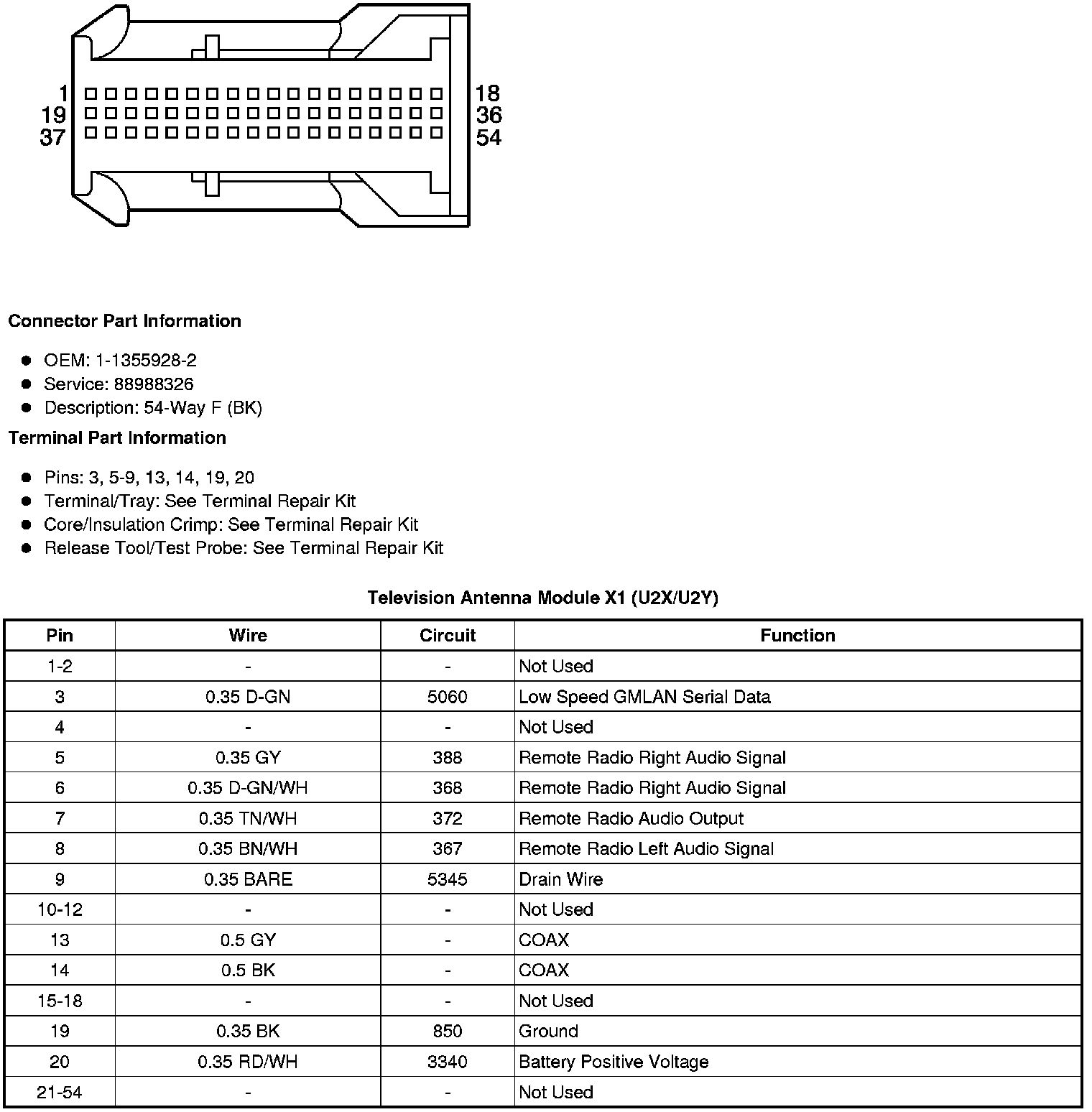

Television Antenna Module X1 (U2X/U2Y)
