Home >> Cadillac >> 2009 >> CTS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case

Control Module, Transfer Case




Component Connector End Views

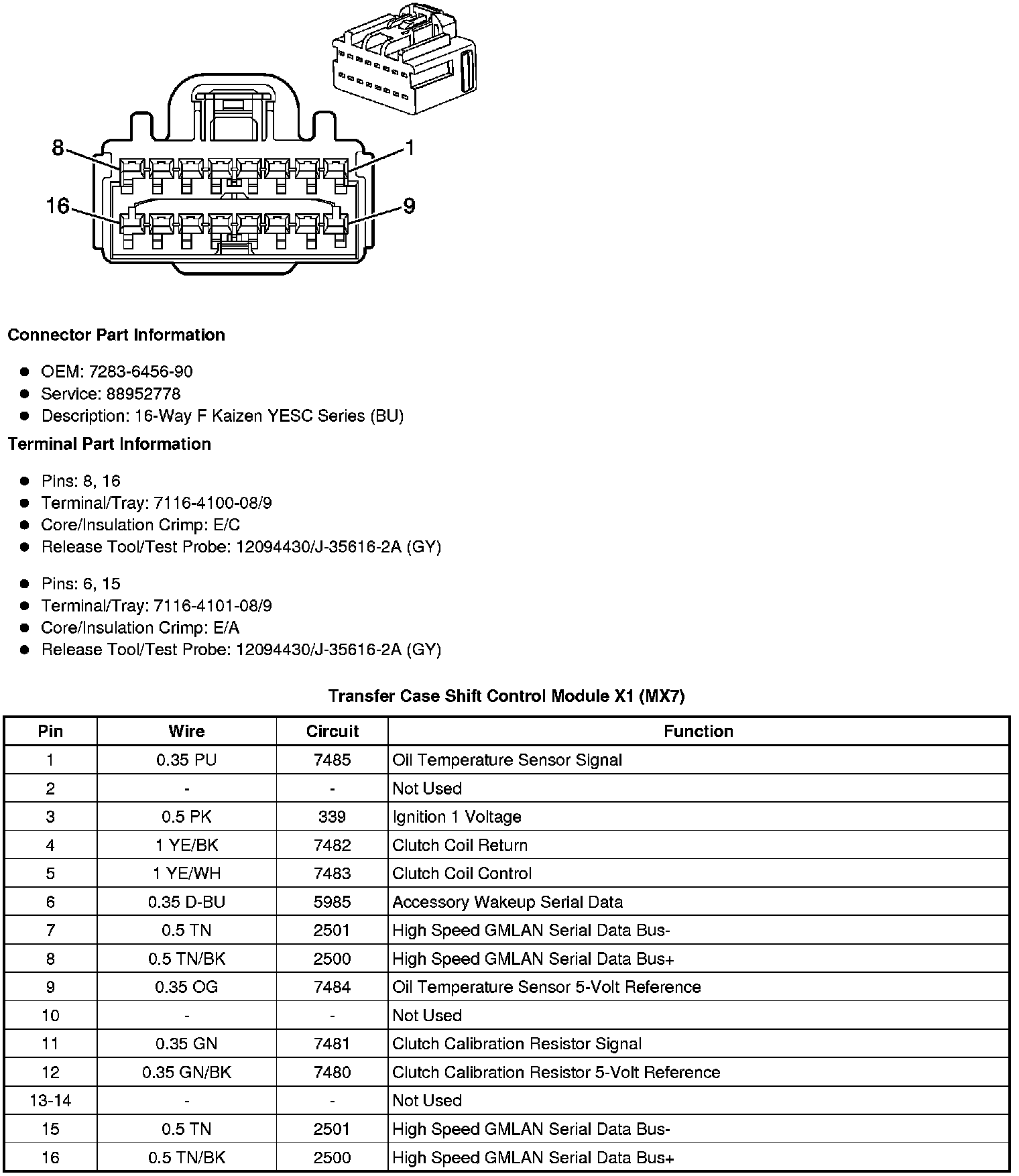

Transfer Case Shift Control Module X1 (MX7)

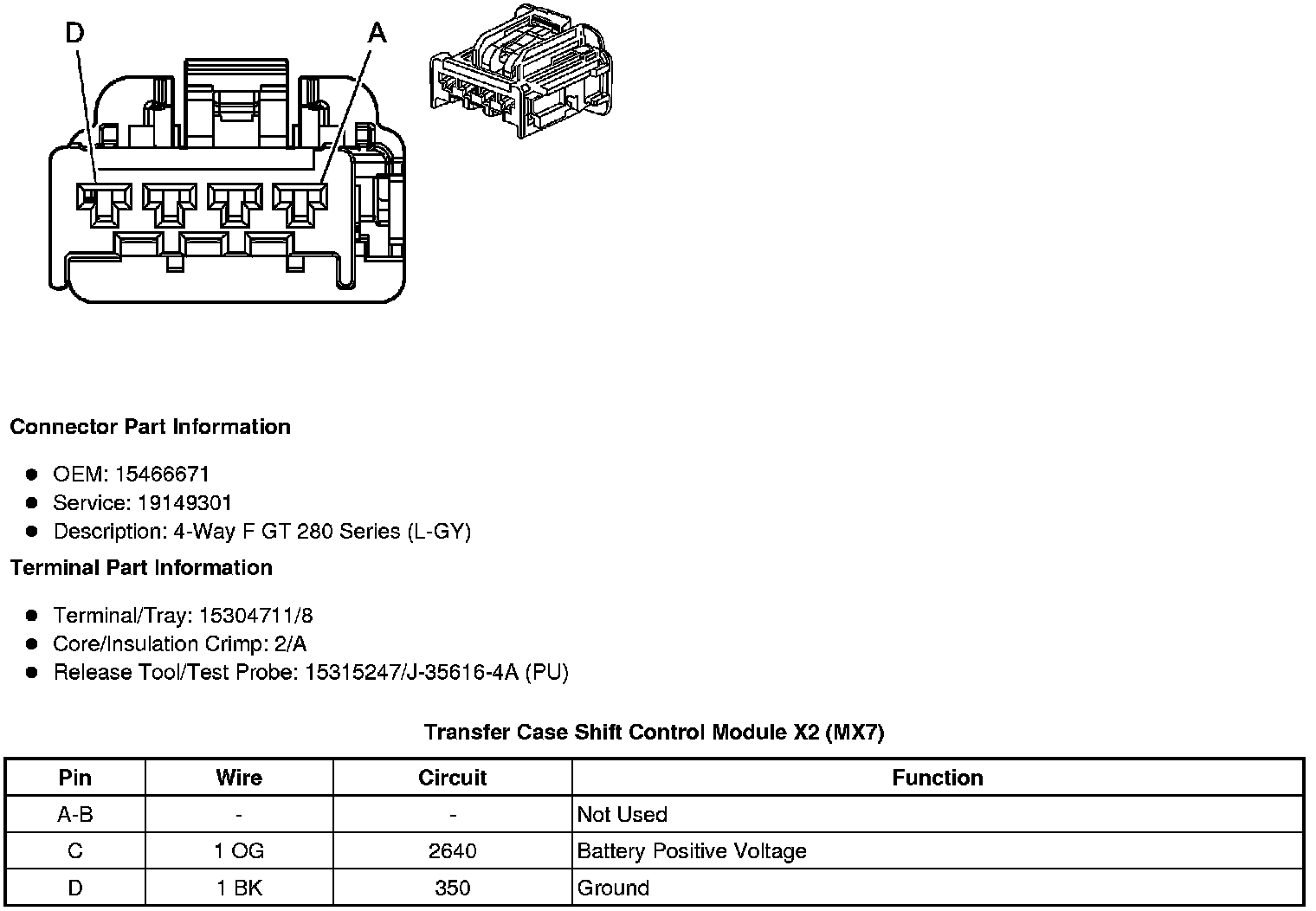

Transfer Case Shift Control Module X2 (MX7)
