Home
>>
Cadillac
>>
2008
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

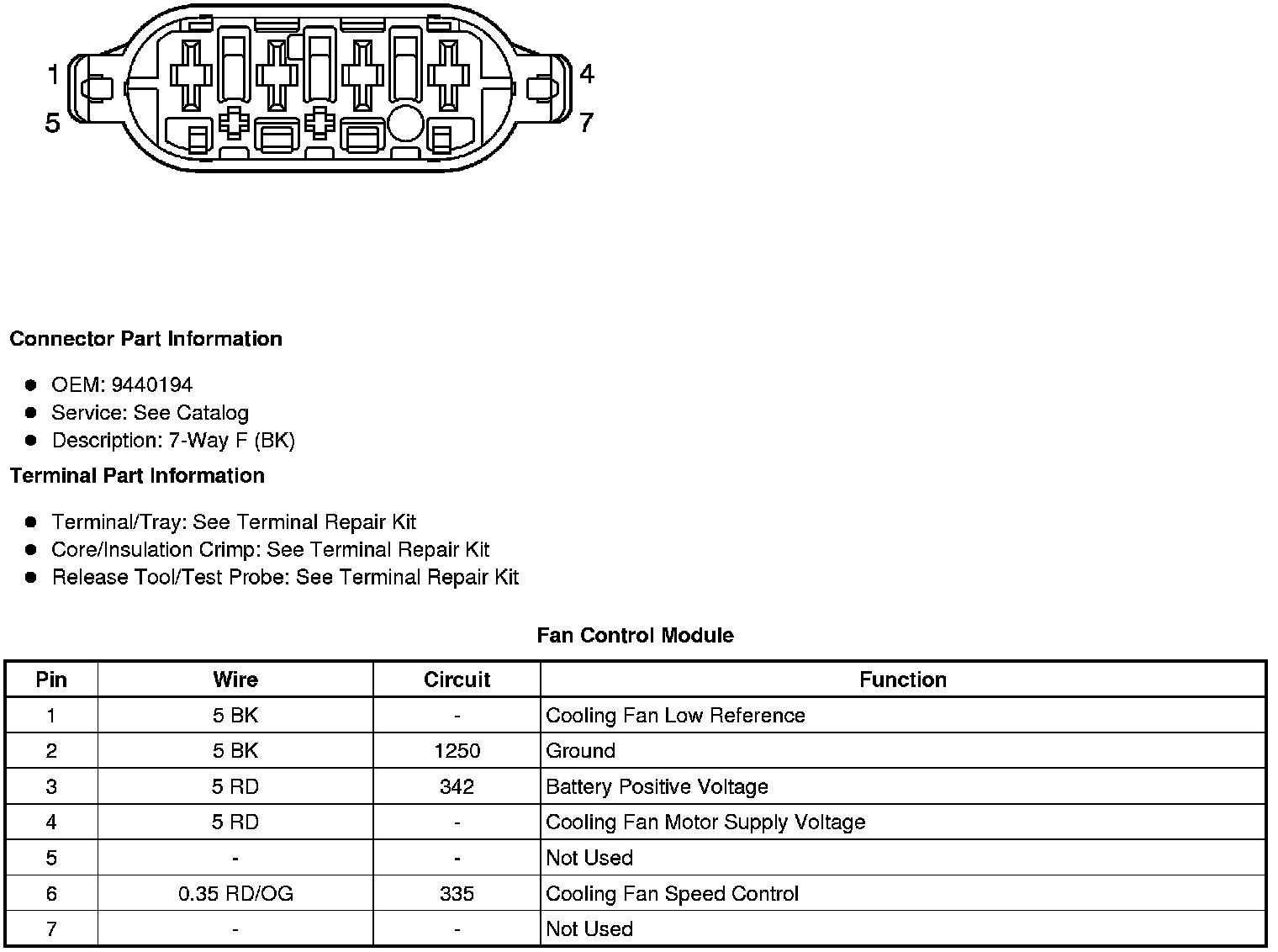

Component Connector End Views
Fan Control Module
