Home >> Cadillac >> 2008 >> XLR V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module



Component Connector End Views

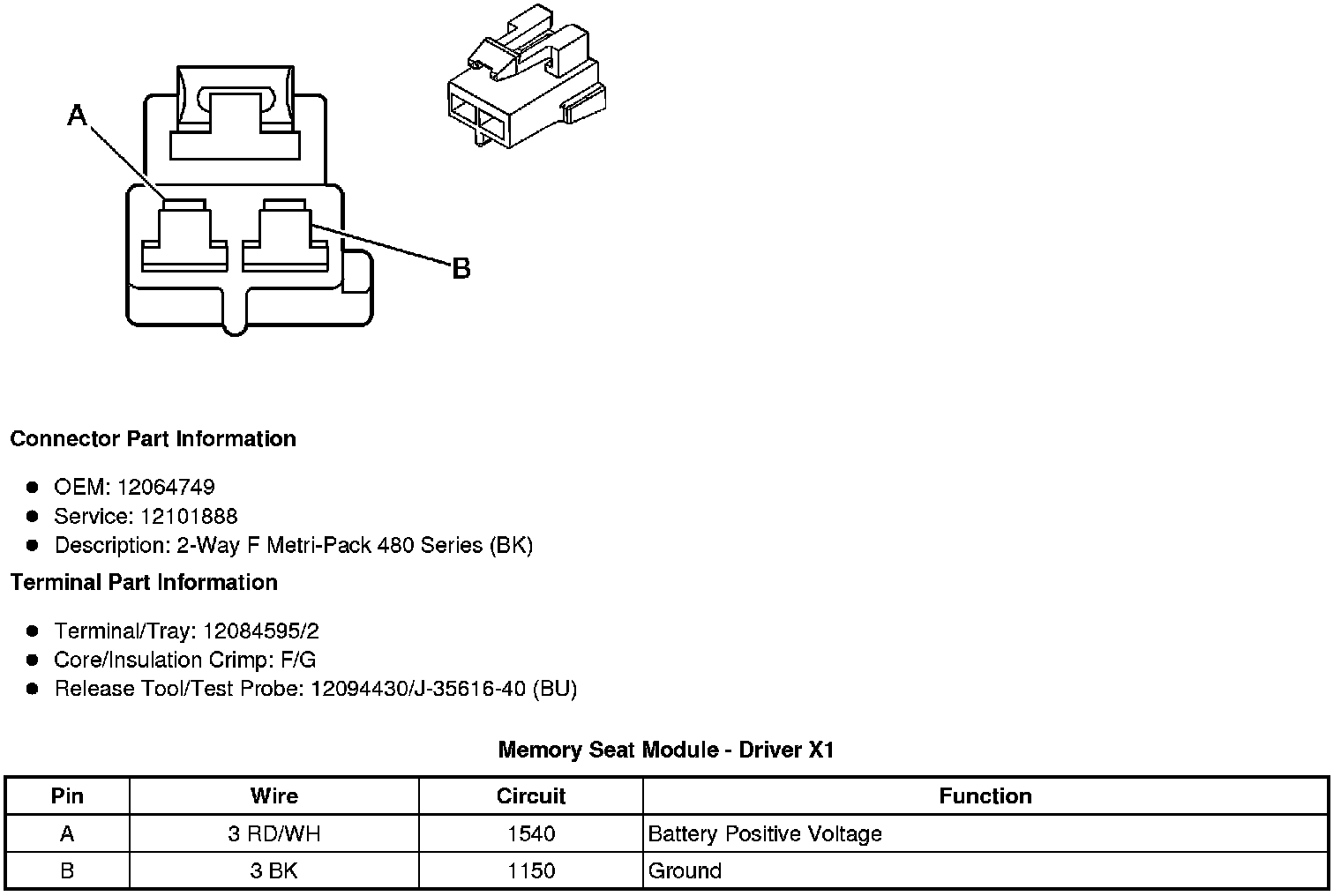

Memory Seat Module - Driver X1

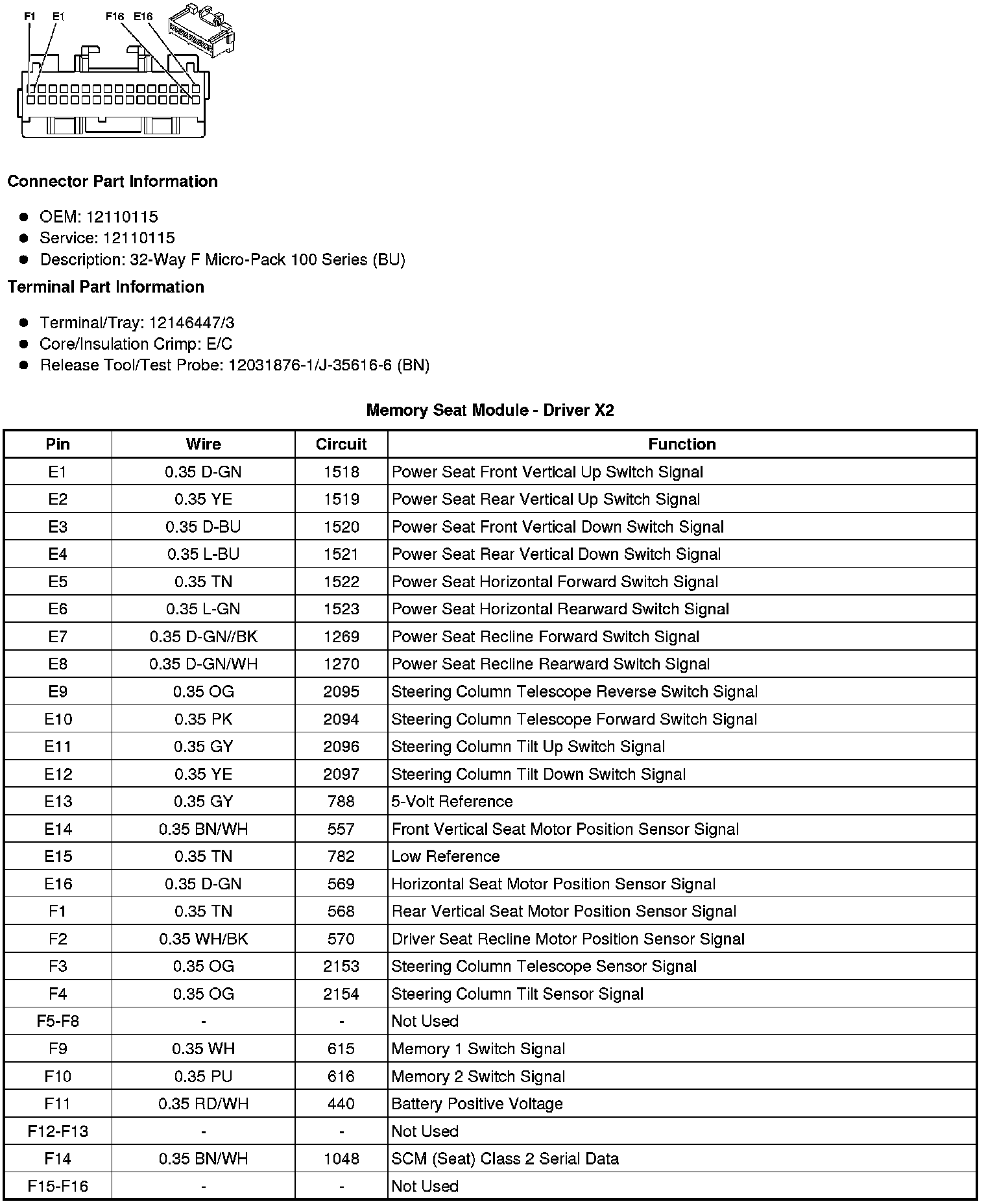

Memory Seat Module - Driver X2

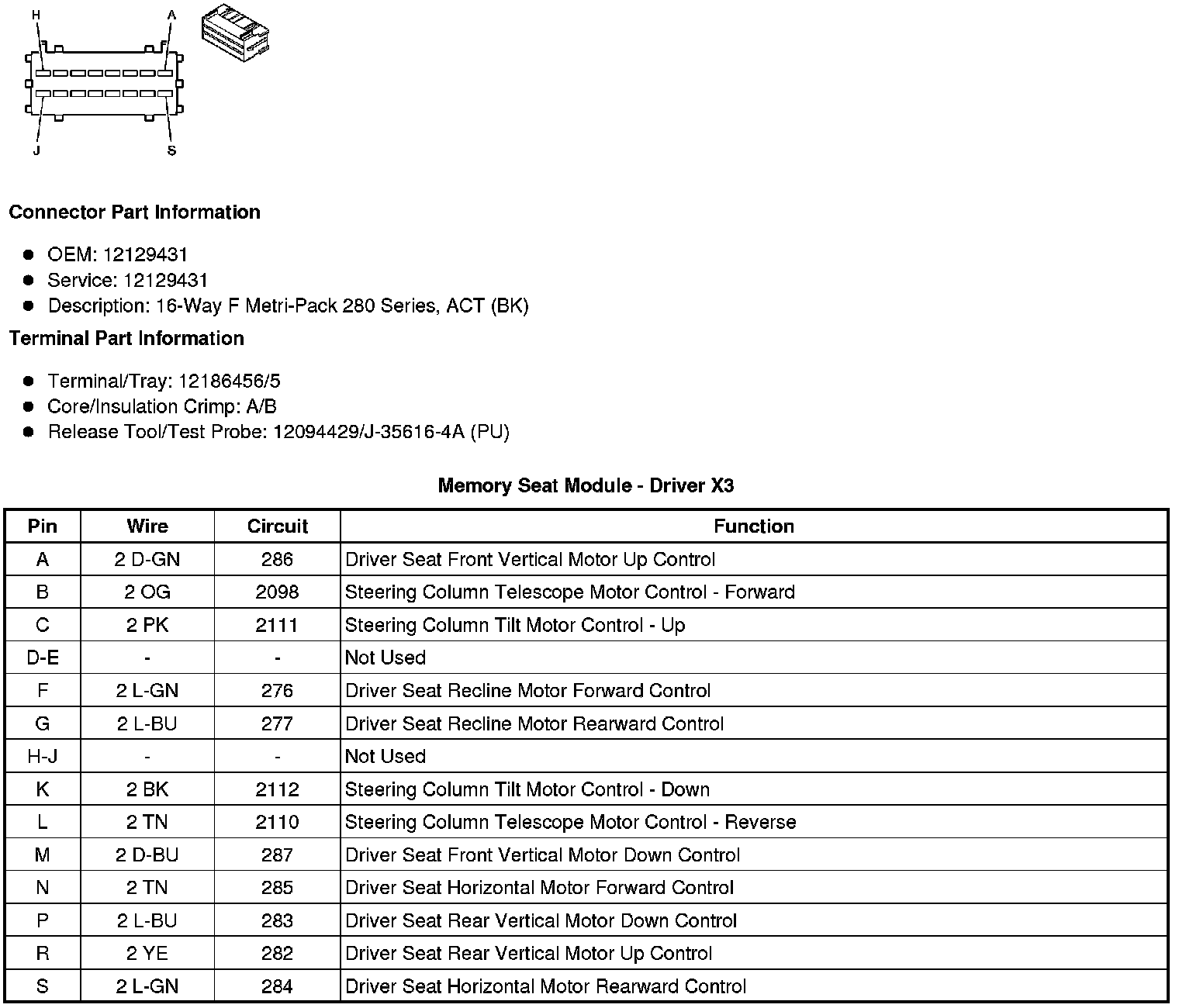

Memory Seat Module - Driver X3
