lemon-mirror
:
Home
>>
Cadillac
>>
2008
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Control Module
Headlamp Control Module

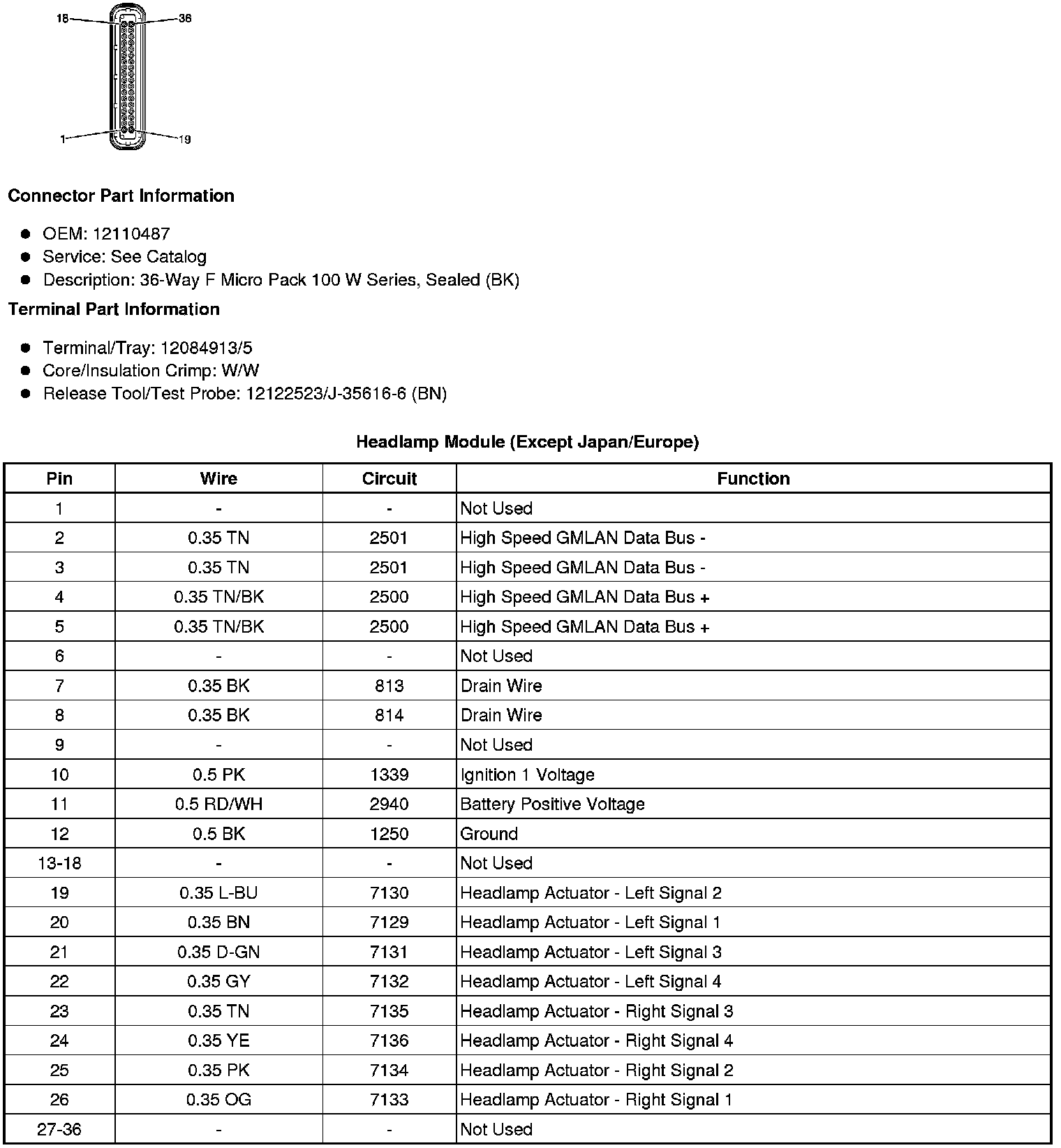

Component Connector End Views
Headlamp Module (Except Japan/Europe)
