Home >> Cadillac >> 2008 >> XLR V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module



Component Connector End Views

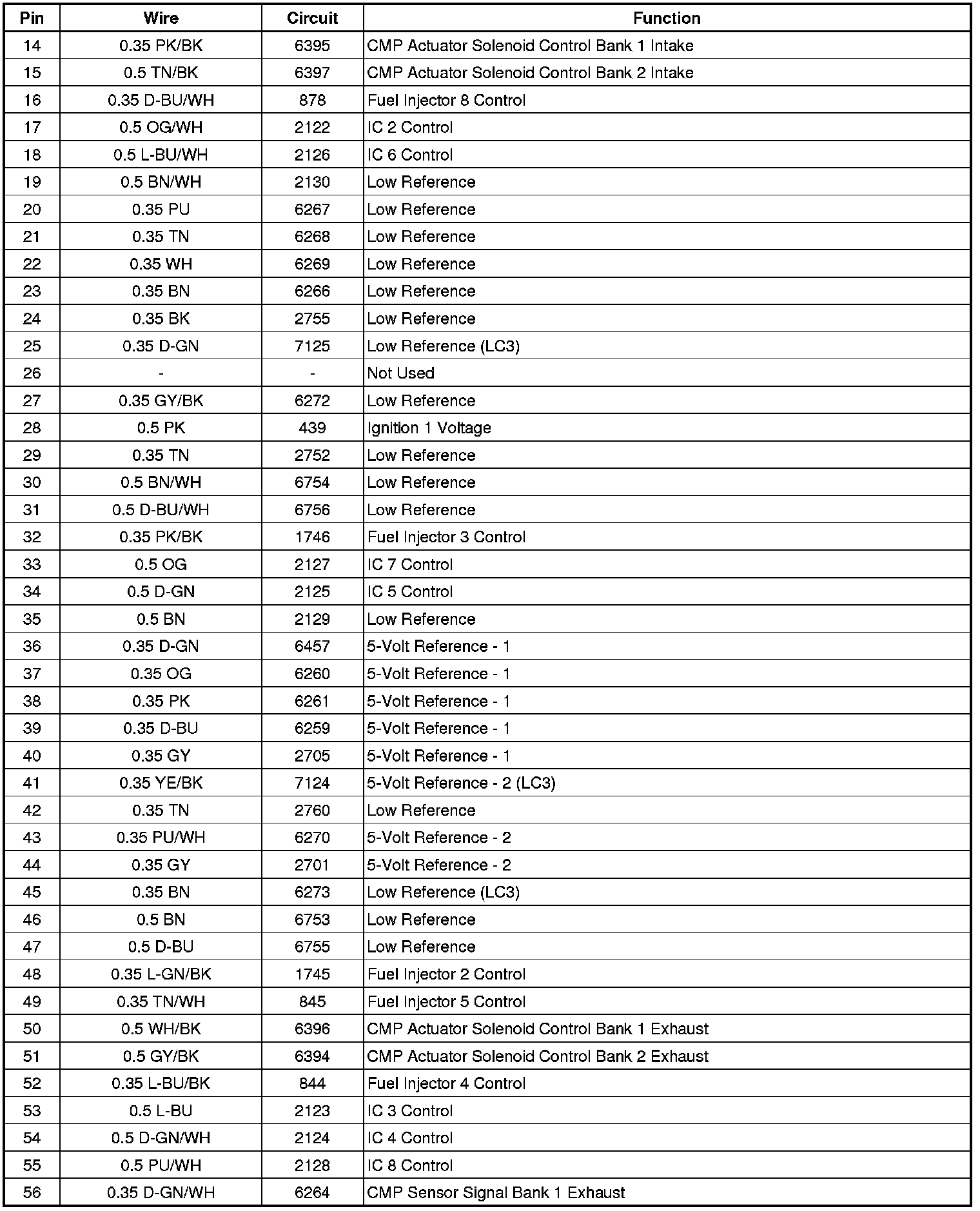

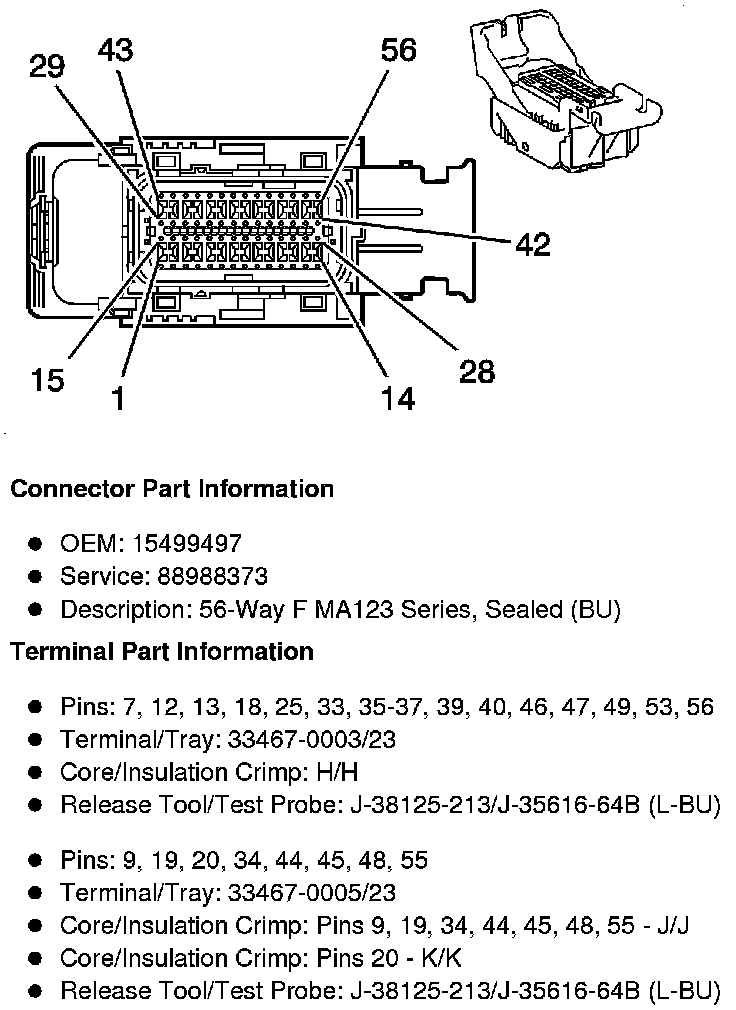

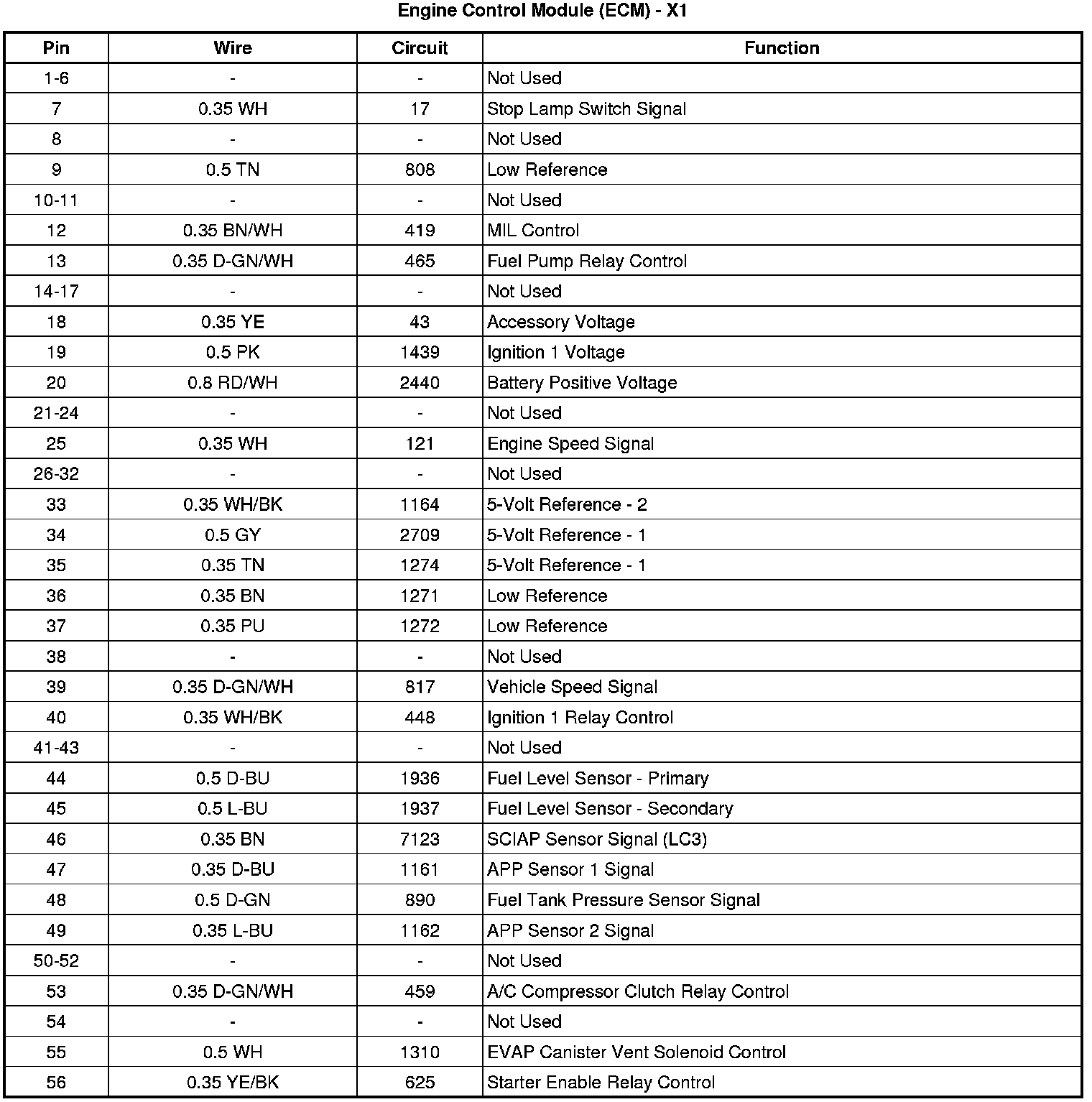

Engine Control Module (ECM) - X1

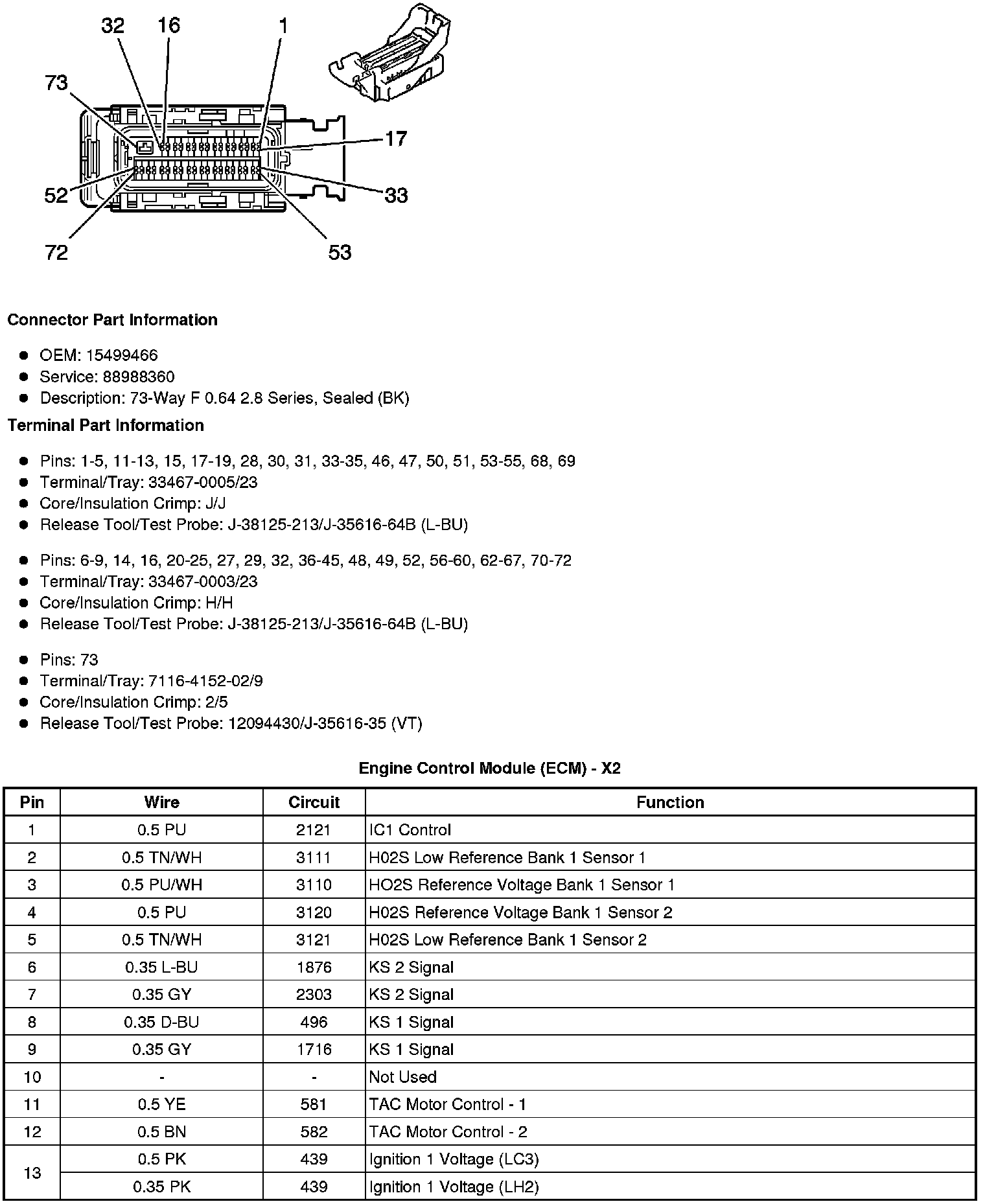

Engine Control Module (ECM) - X2

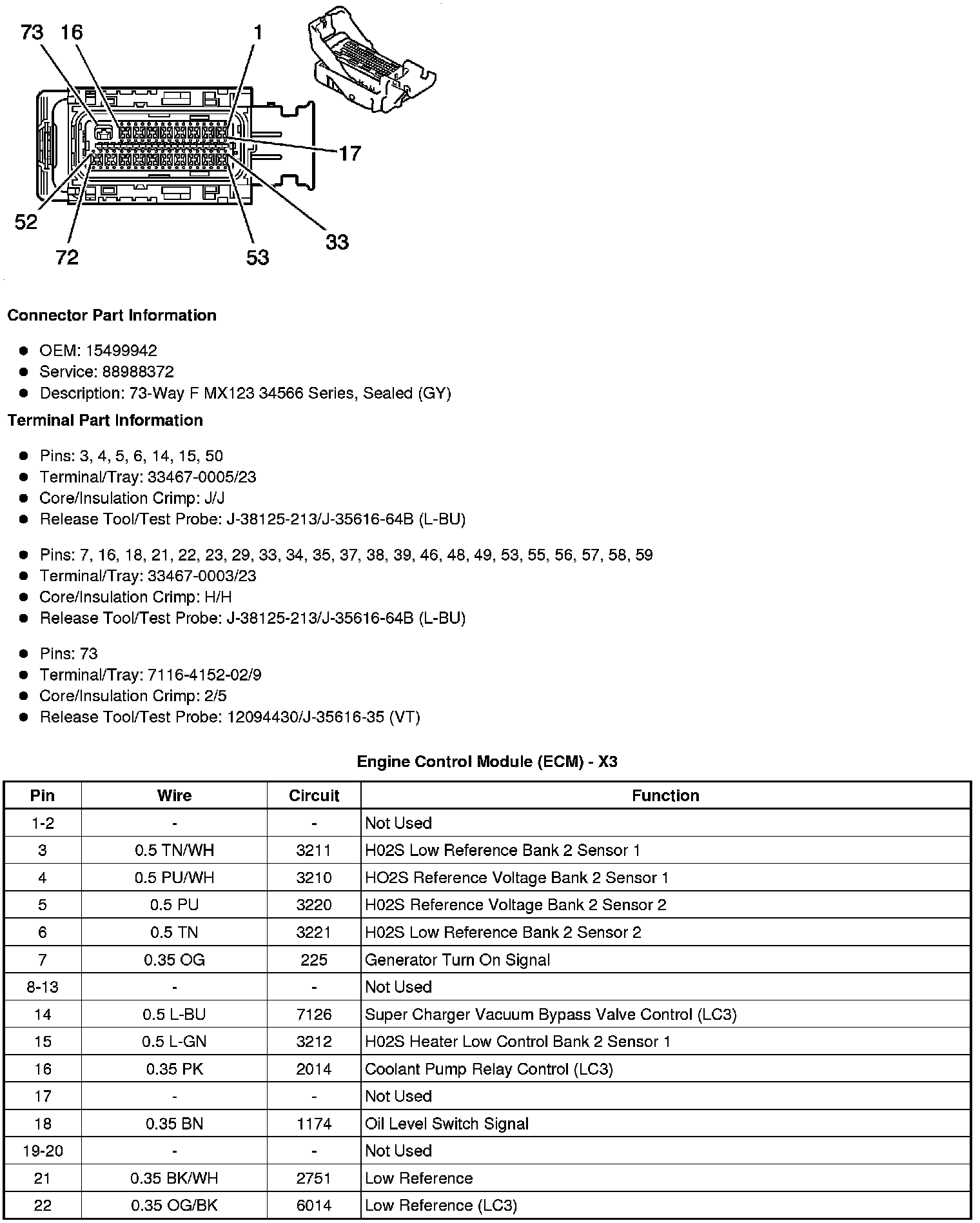

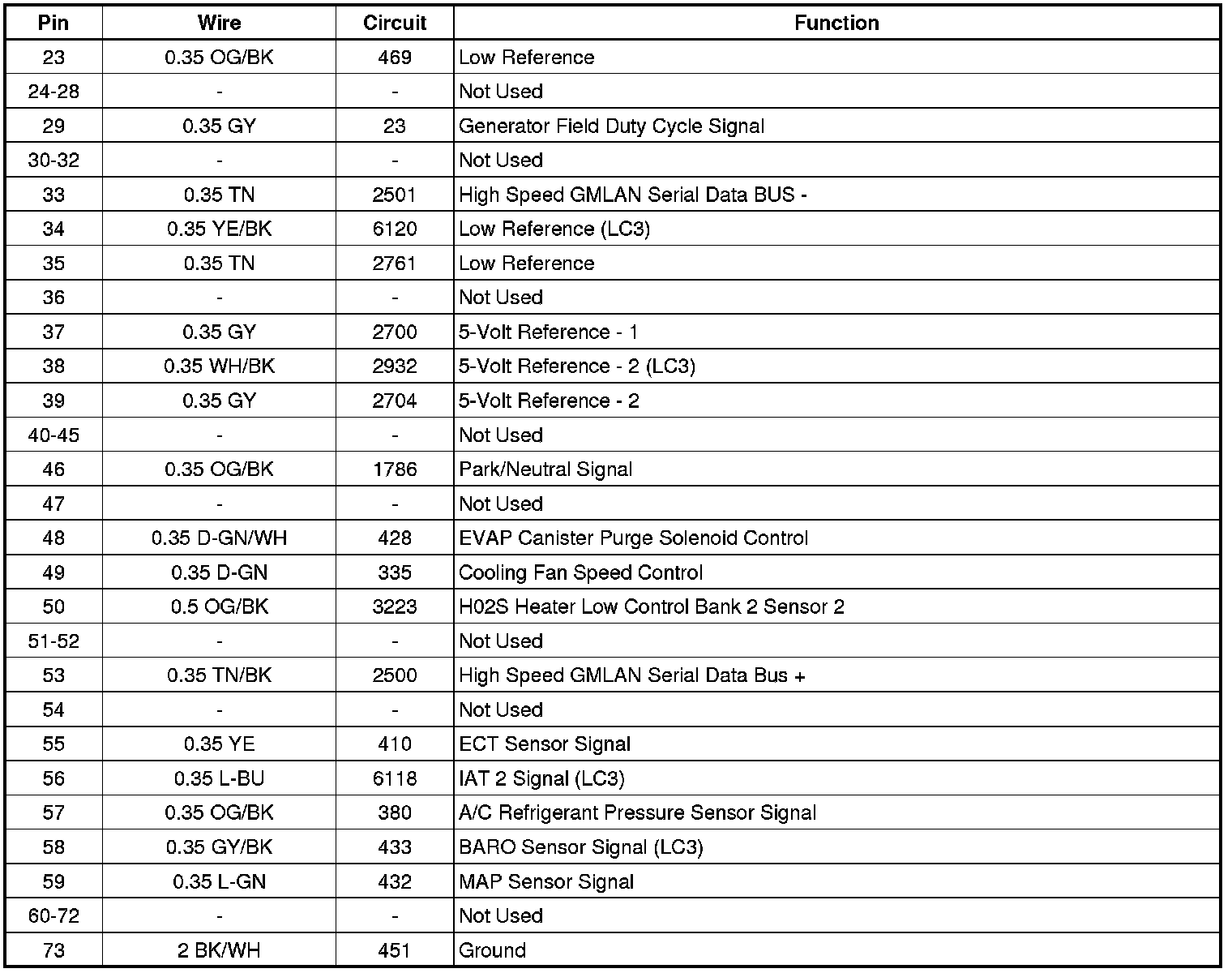

Engine Control Module (ECM) - X3
