Home >> Cadillac >> 2008 >> XLR V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC



Component Connector End Views

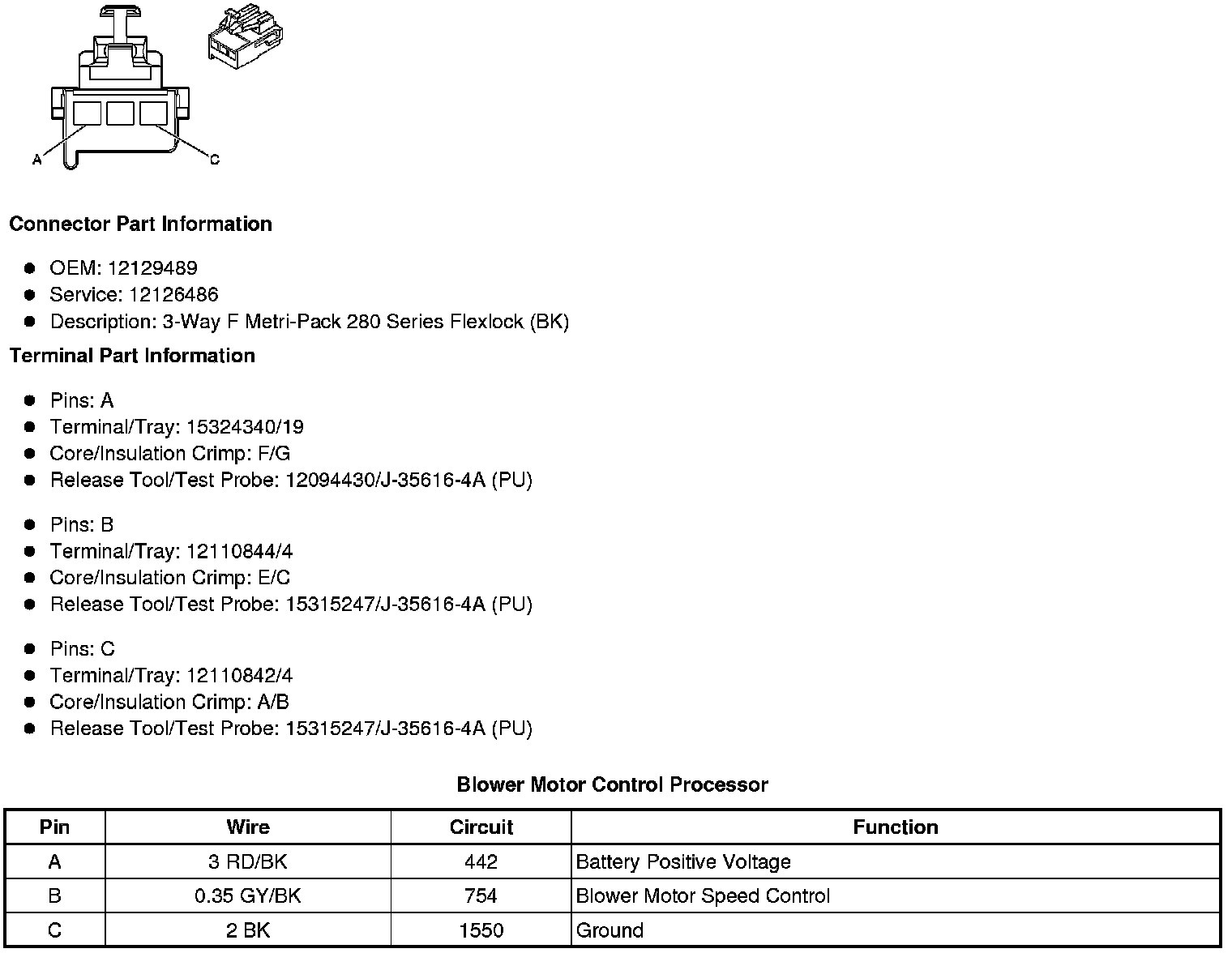

Blower Motor Control Processor

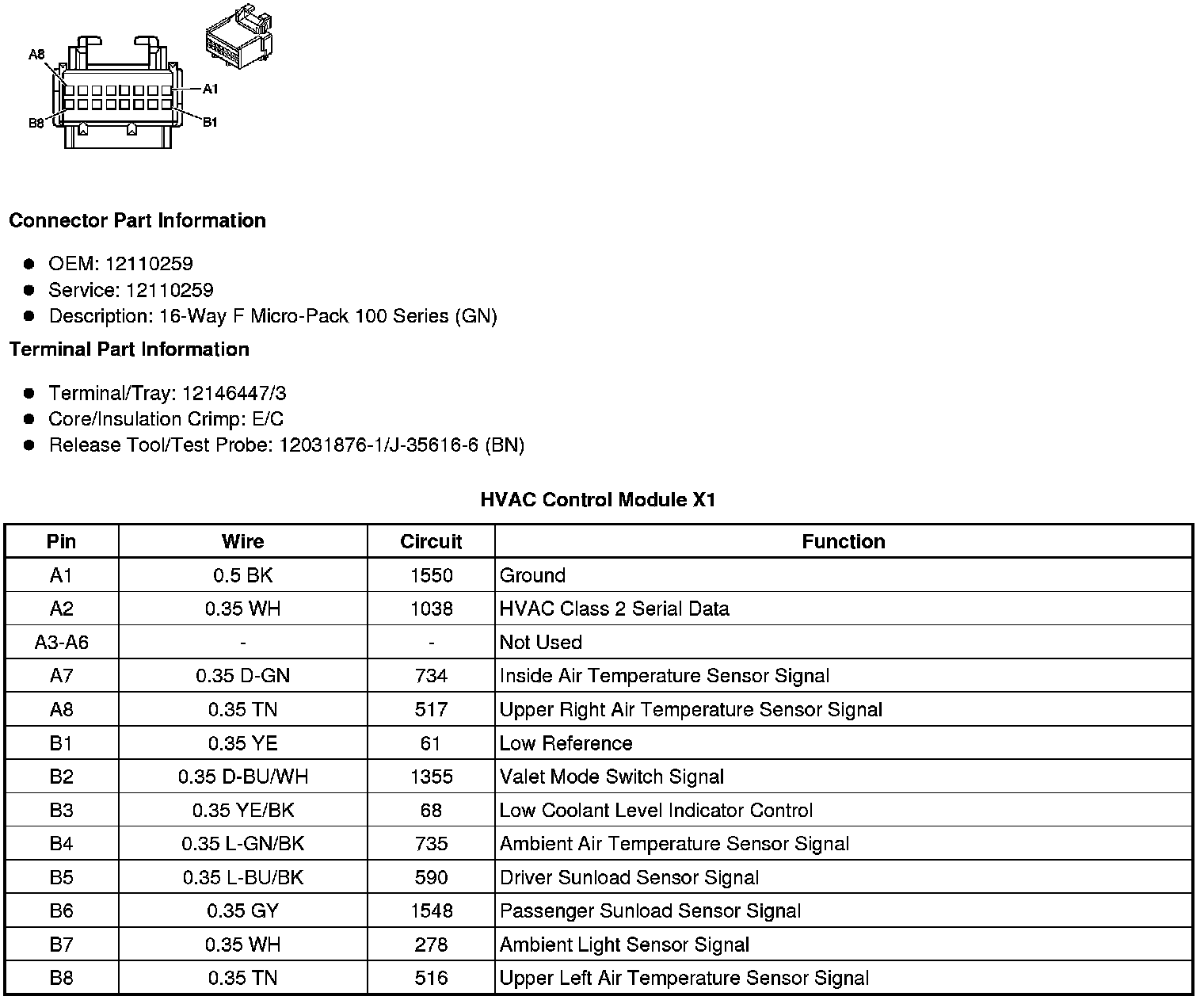

HVAC Control Module X1

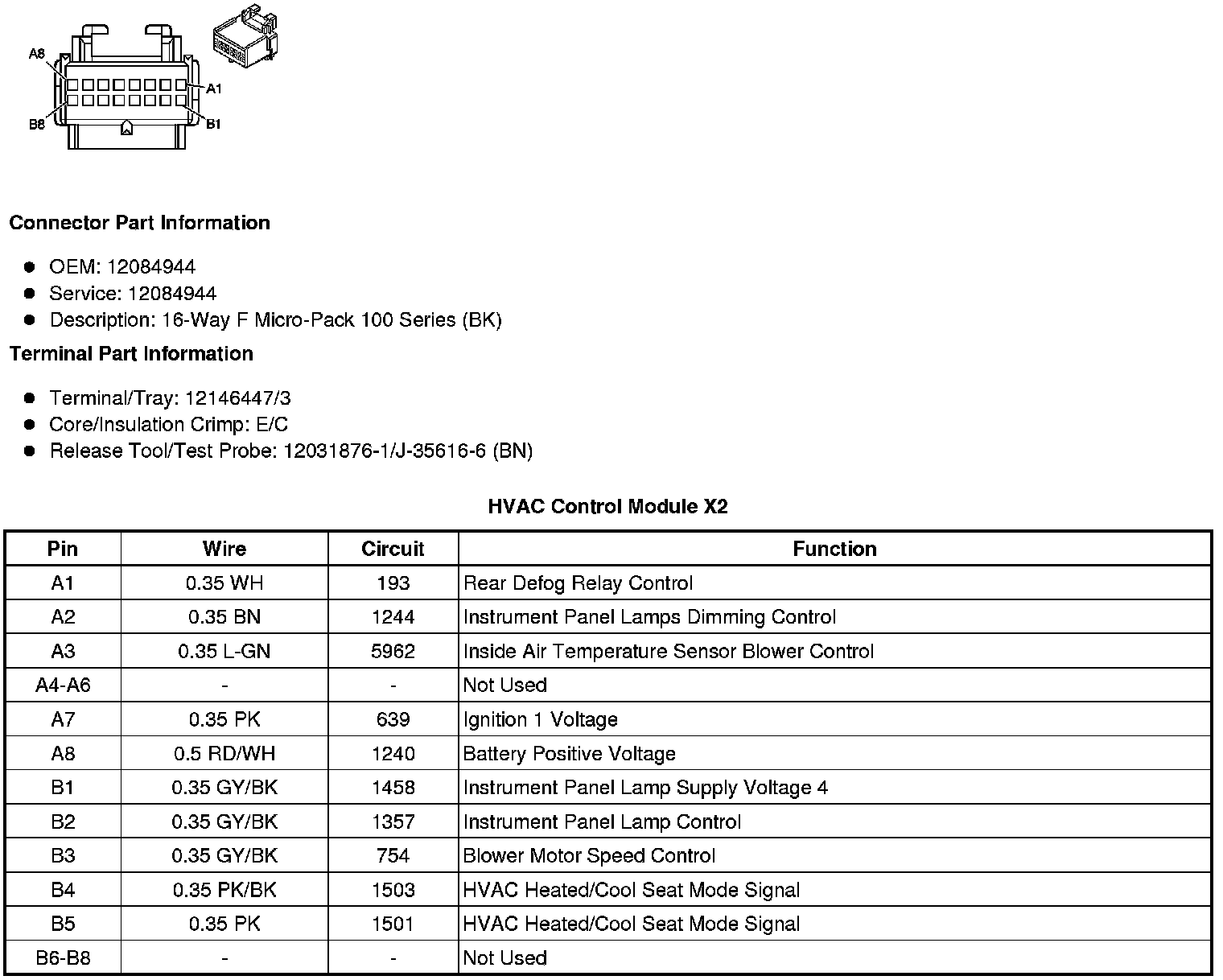

HVAC Control Module X2

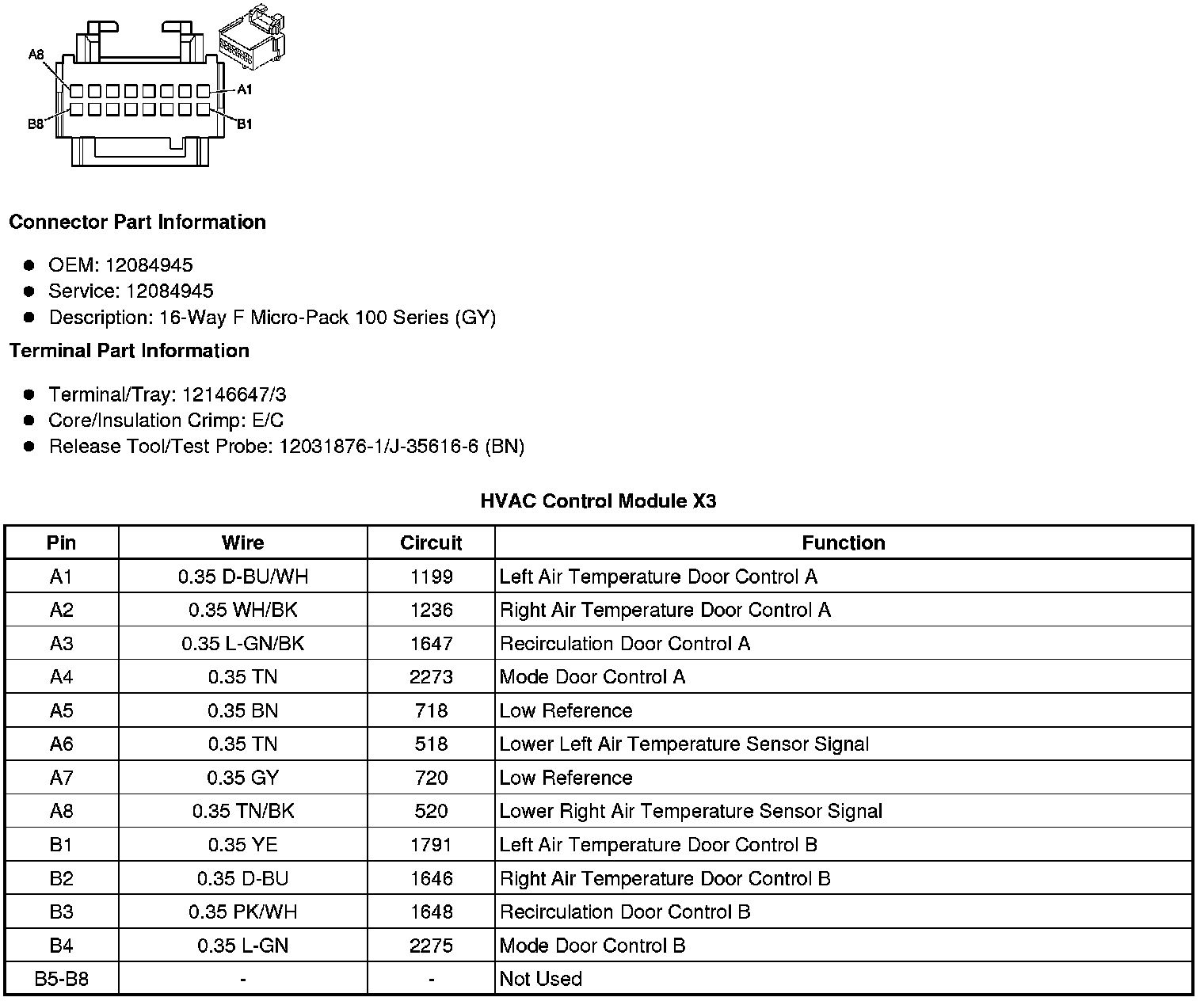

HVAC Control Module X3
