Active Exhaust System Control Module
Active Exhaust System Control Module
Component Connector End Views
Exhaust Flow Control Module X1

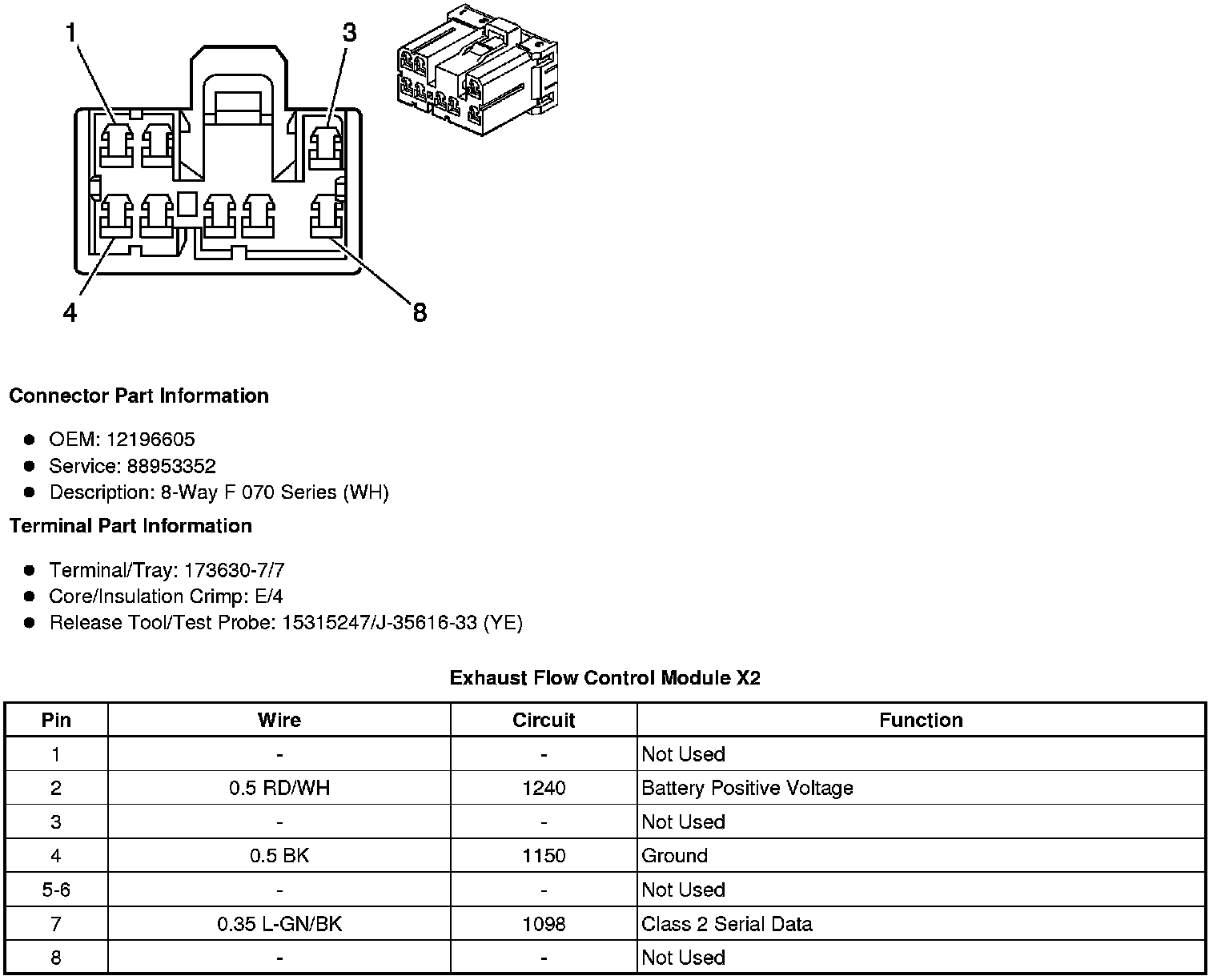

Exhaust Flow Control Module X2
