Home >> Cadillac >> 2008 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations

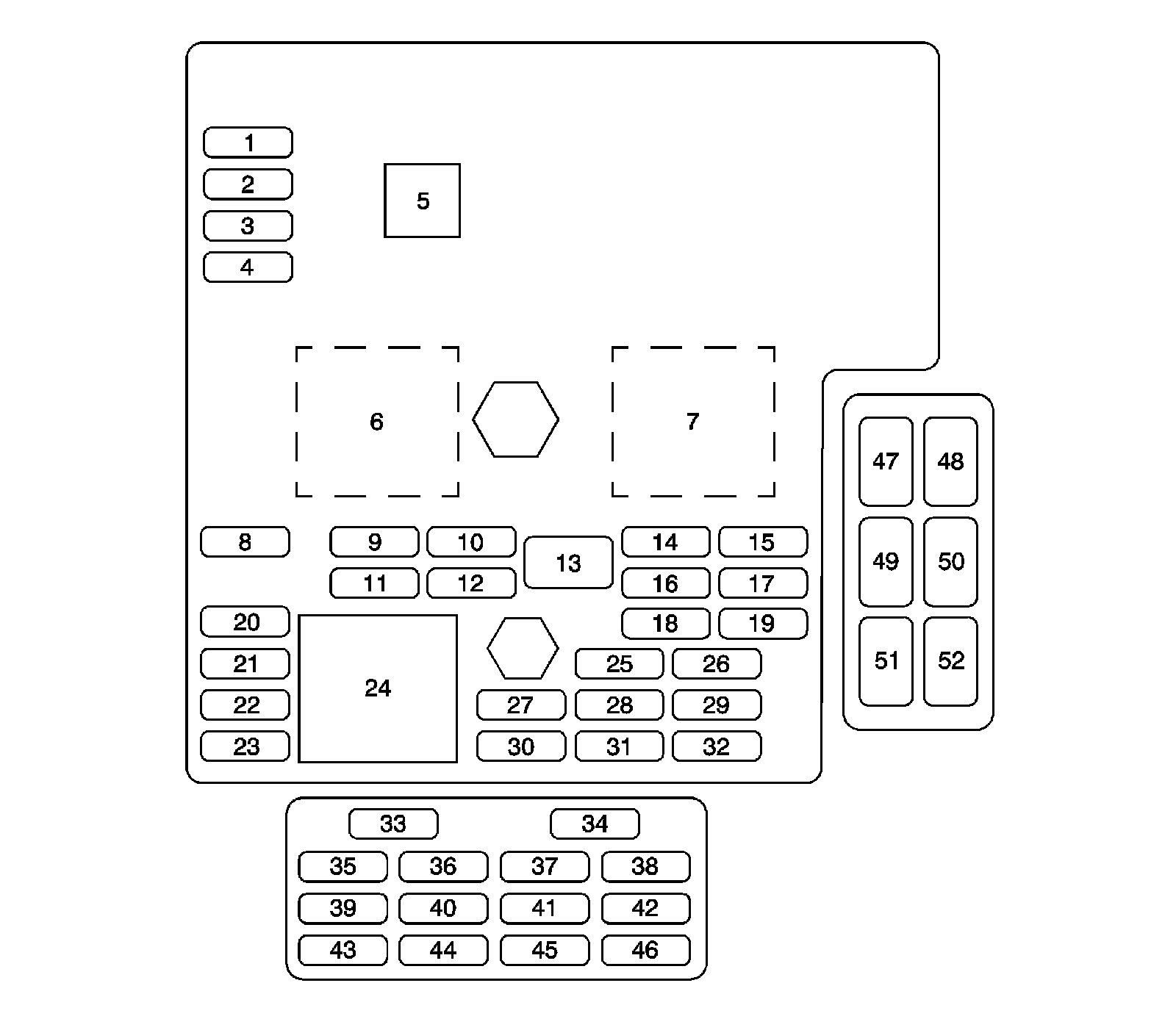

Electrical Center Identification Views

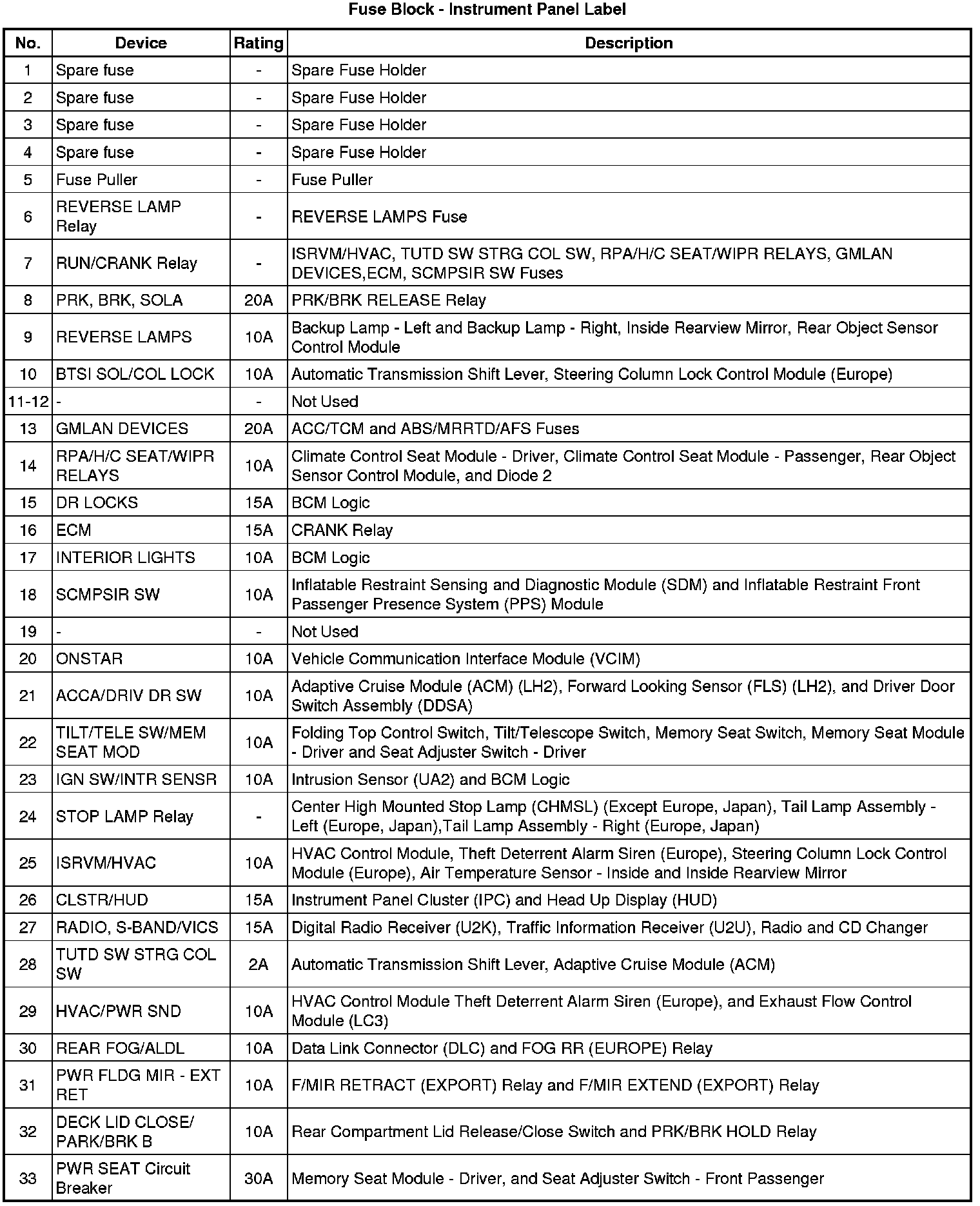

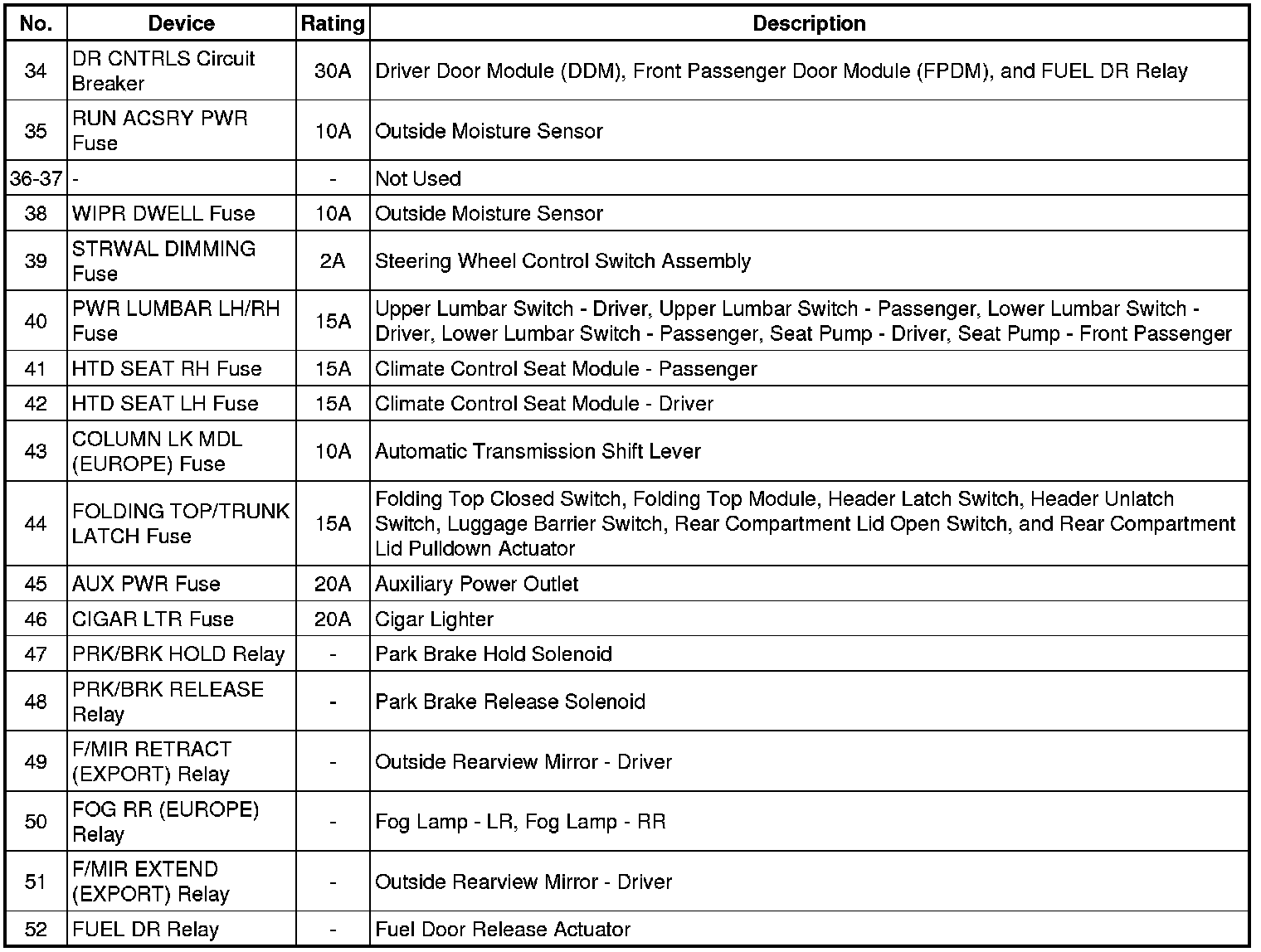

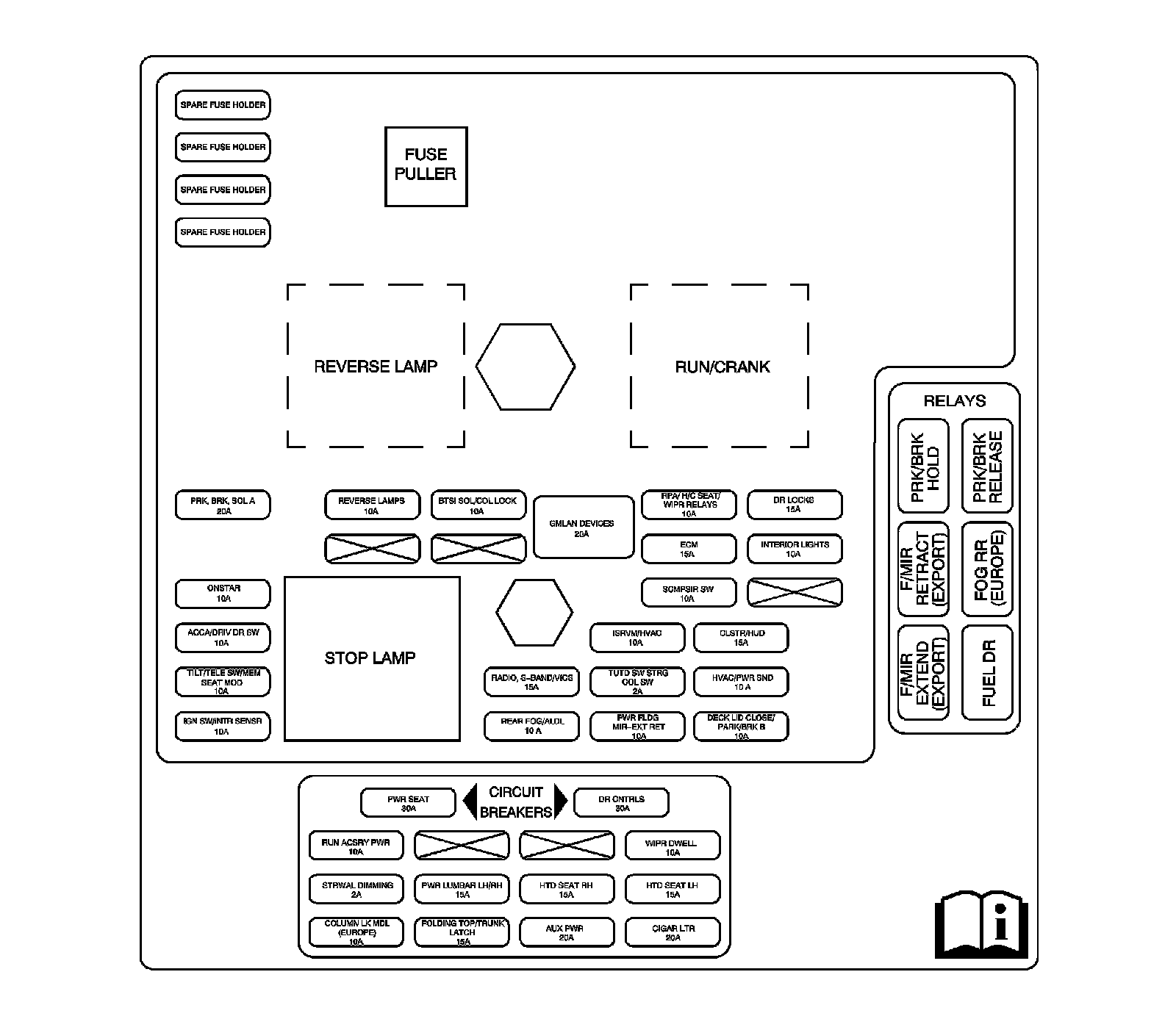

Fuse Block - Instrument Panel, Relay Block - Instrument Panel, and Body Control Module (BCM) Label
