Antitheft Motion Sensor
Antitheft Motion Sensor
Component Connector End Views

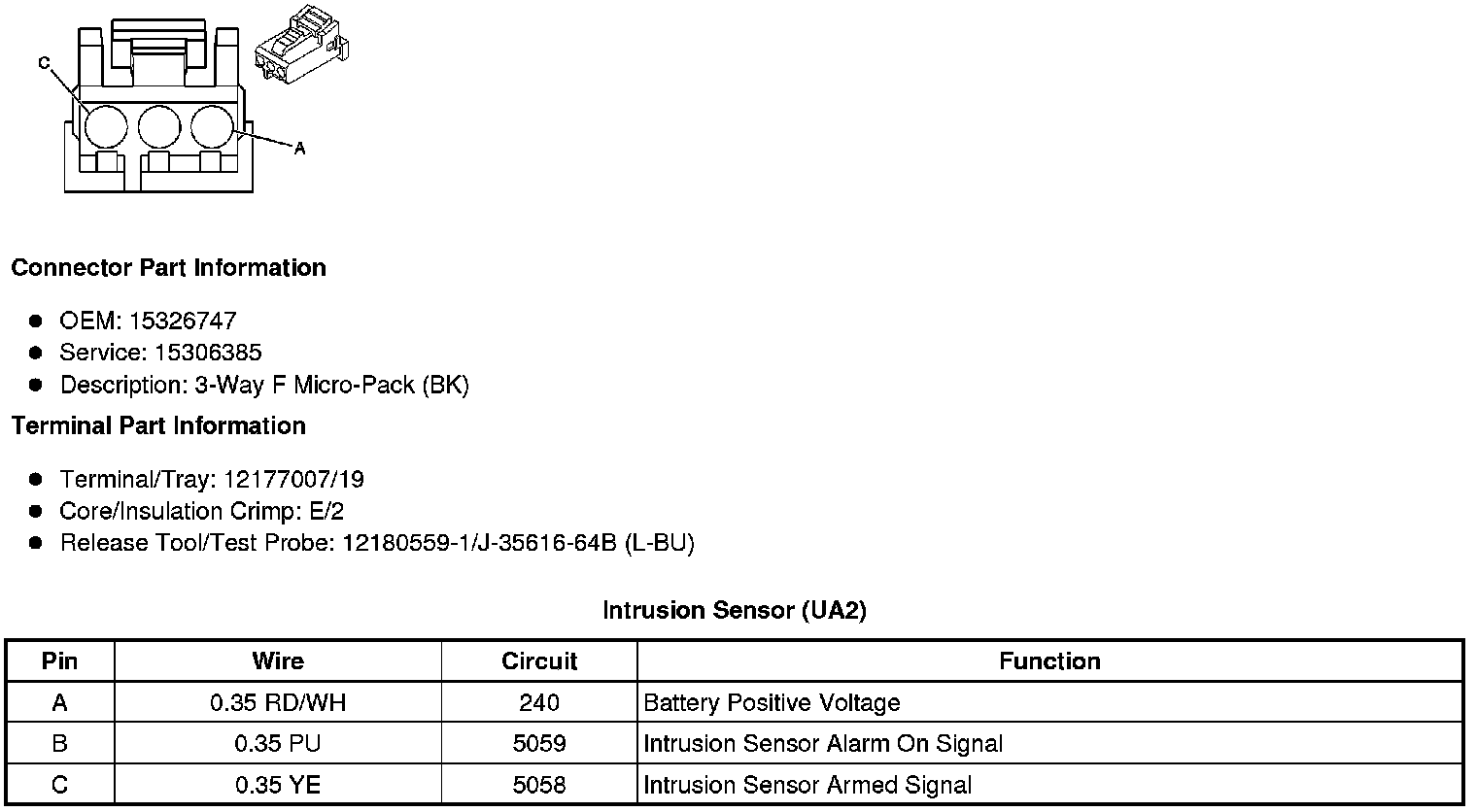

Intrusion Sensor (UA2)

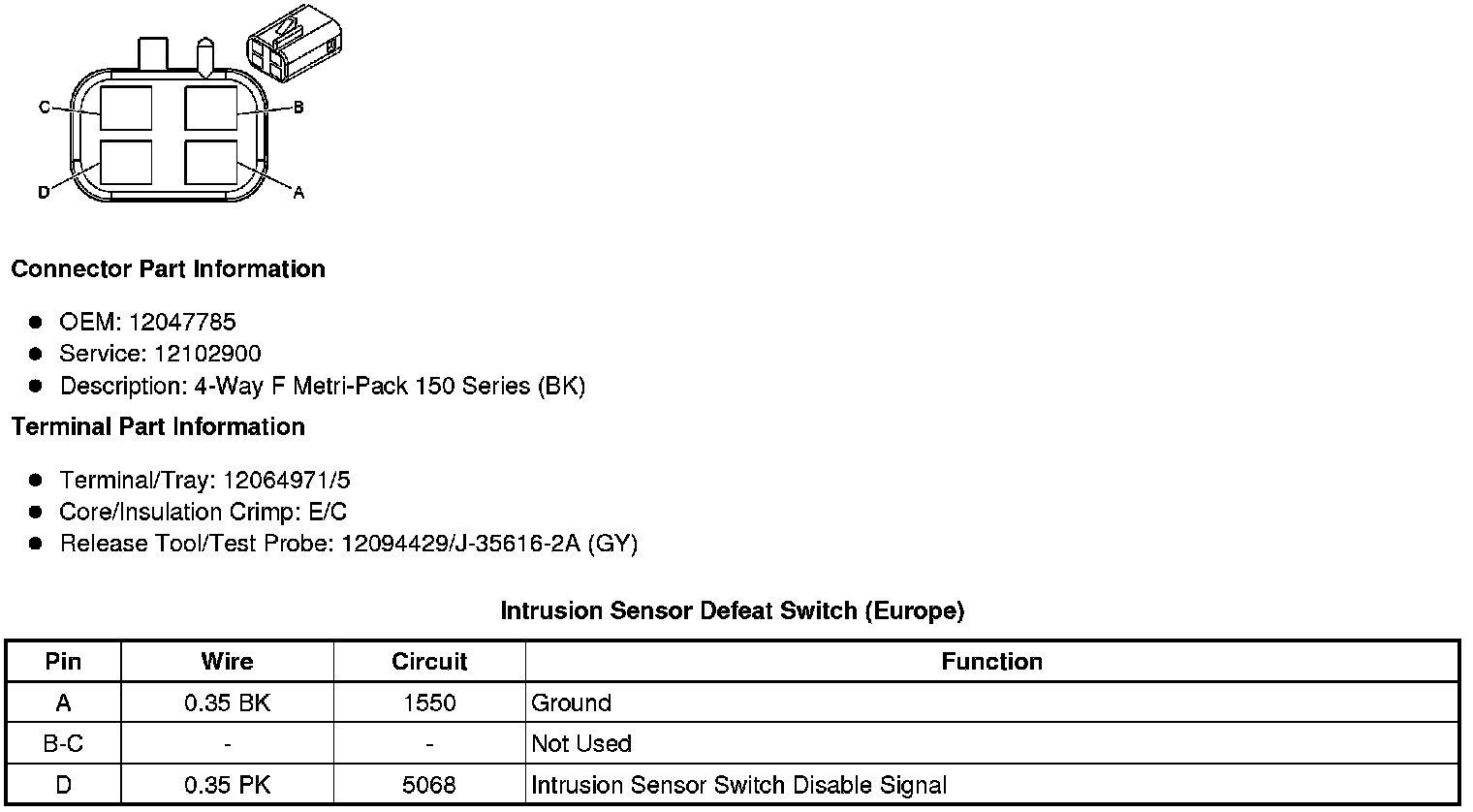

Intrusion Sensor Defeat Switch (Europe)
