Home >> Cadillac >> 2008 >> STS RWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module

Suspension Control Module

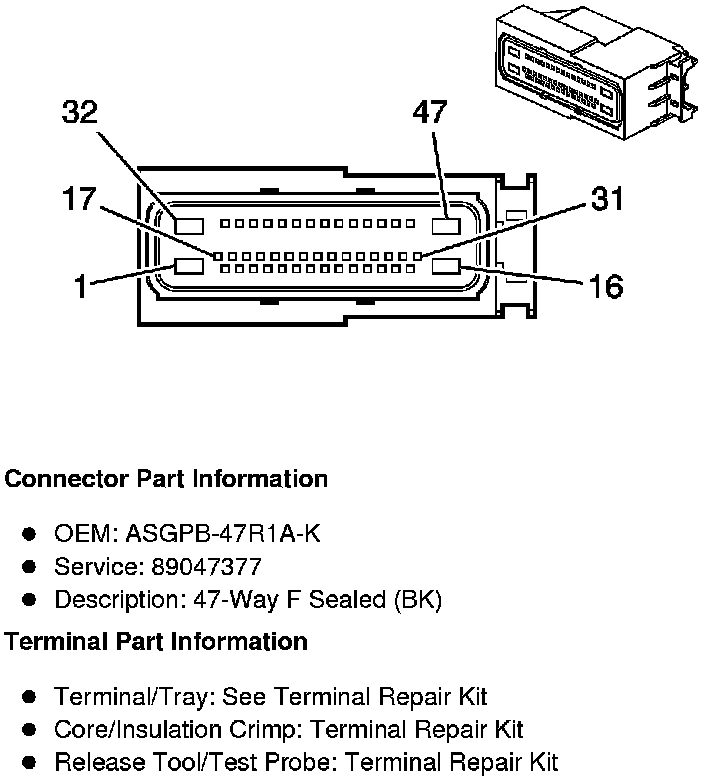

Component Connector End Views

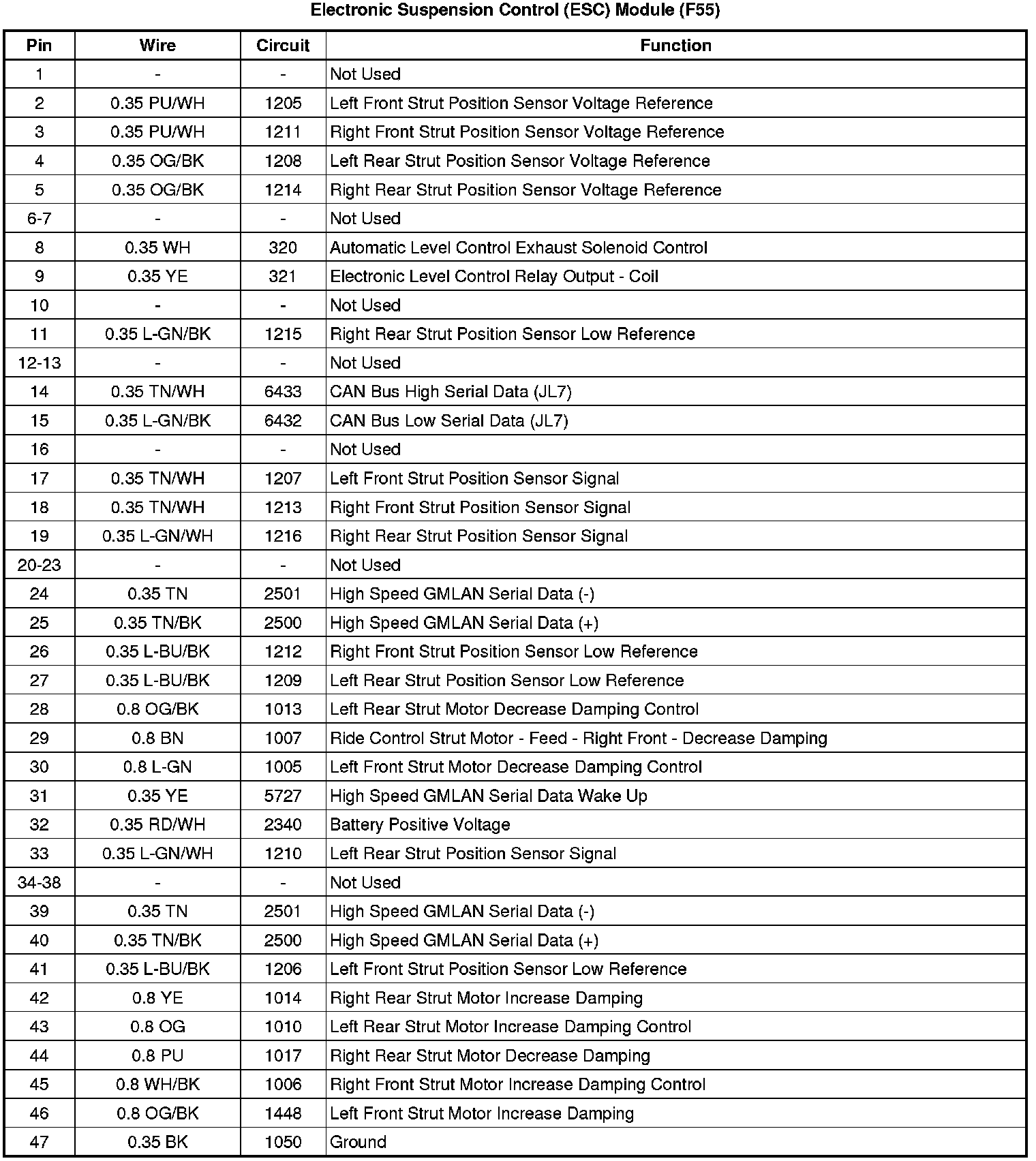

Electronic Suspension Control (ESC) Module (F55)
