Headlamp
>>
Headlamp Alignment Control Module
Headlamp Alignment Control Module
Component Connector End Views

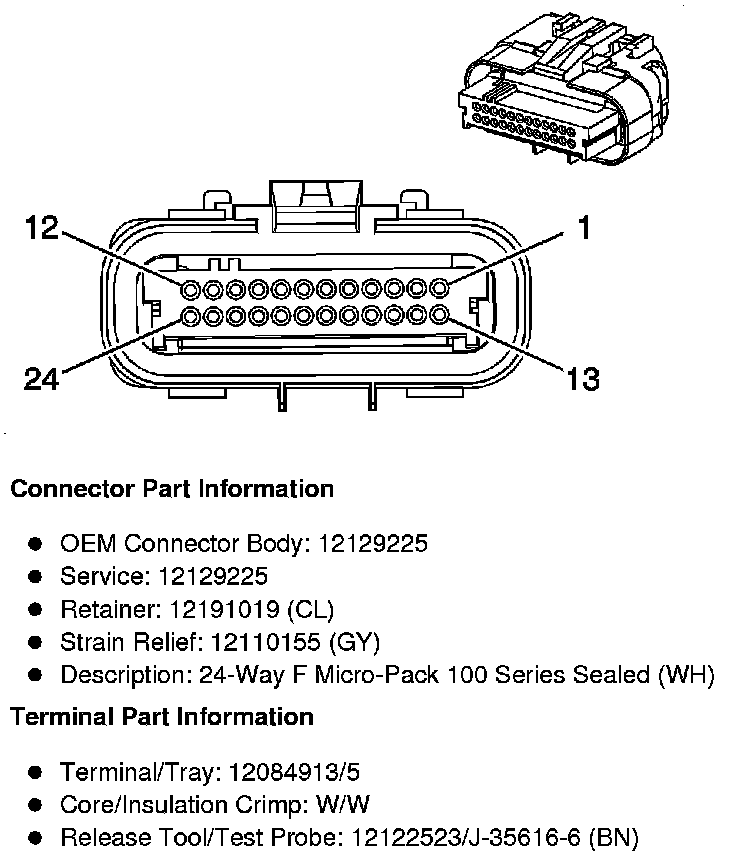

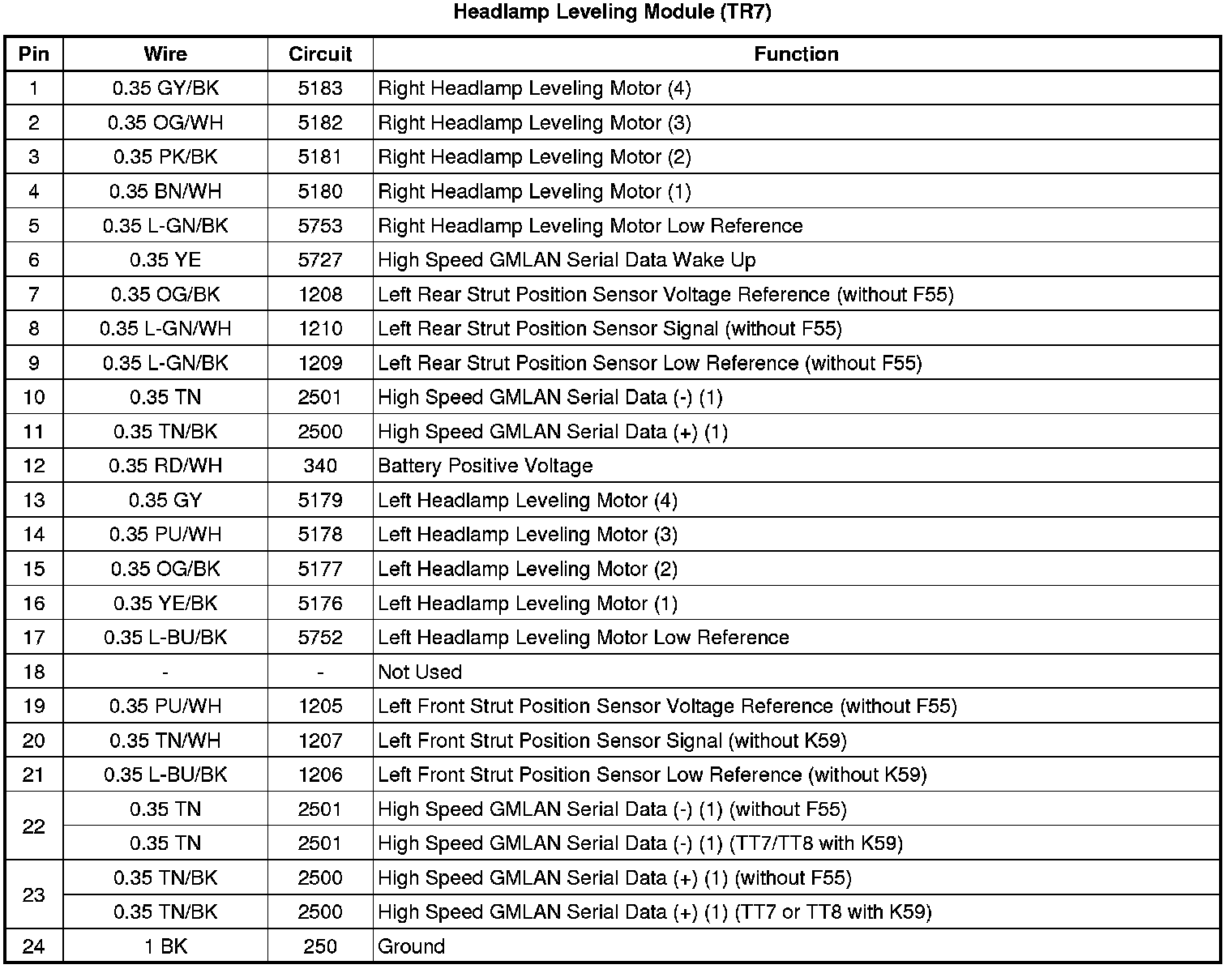

Headlamp Leveling Module (TR7)
