Home >> Cadillac >> 2008 >> STS RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module

Communications Control Module



Component Connector End Views

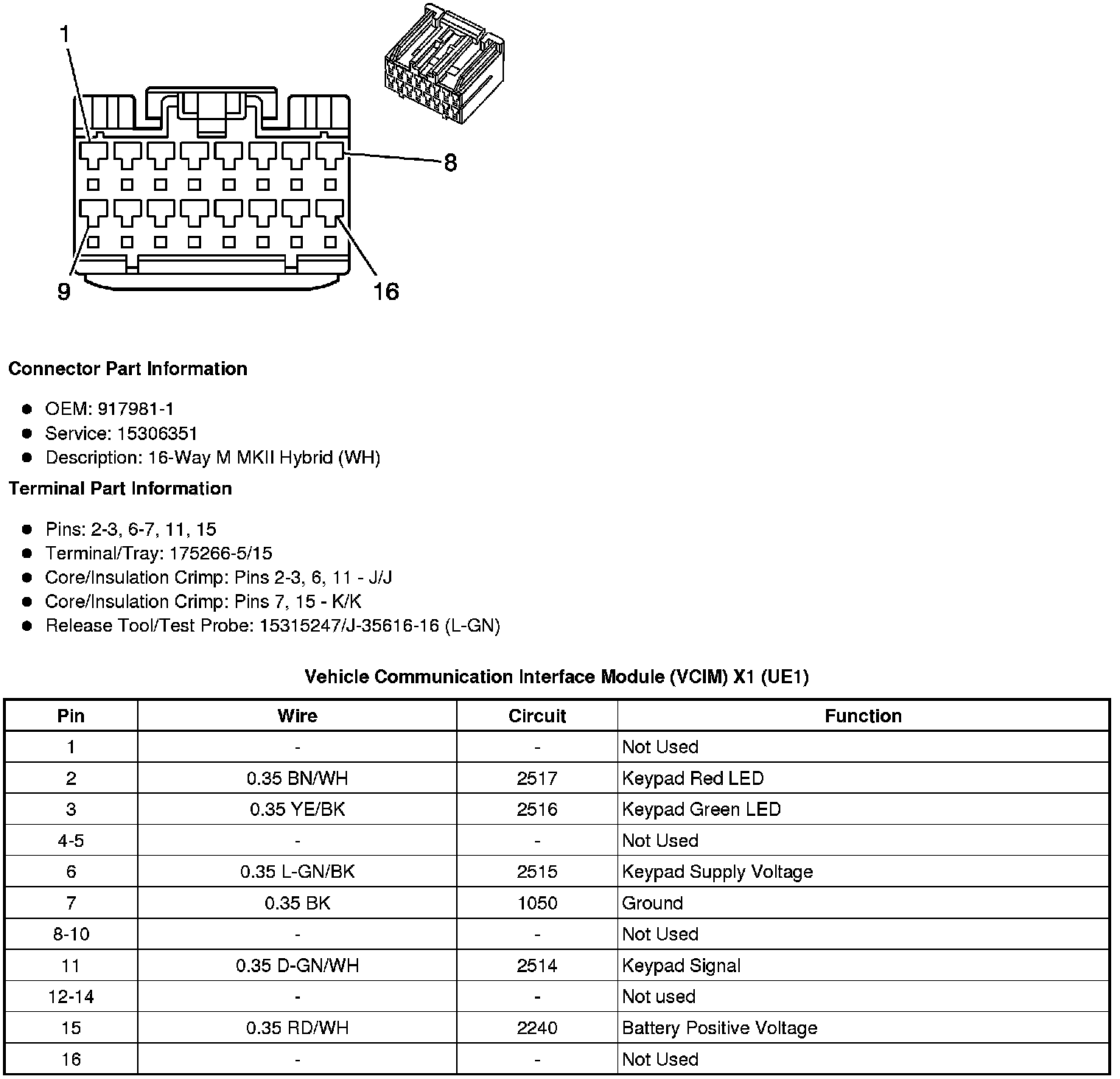

Vehicle Communication Interface Module (VCIM) X1 (UE1)

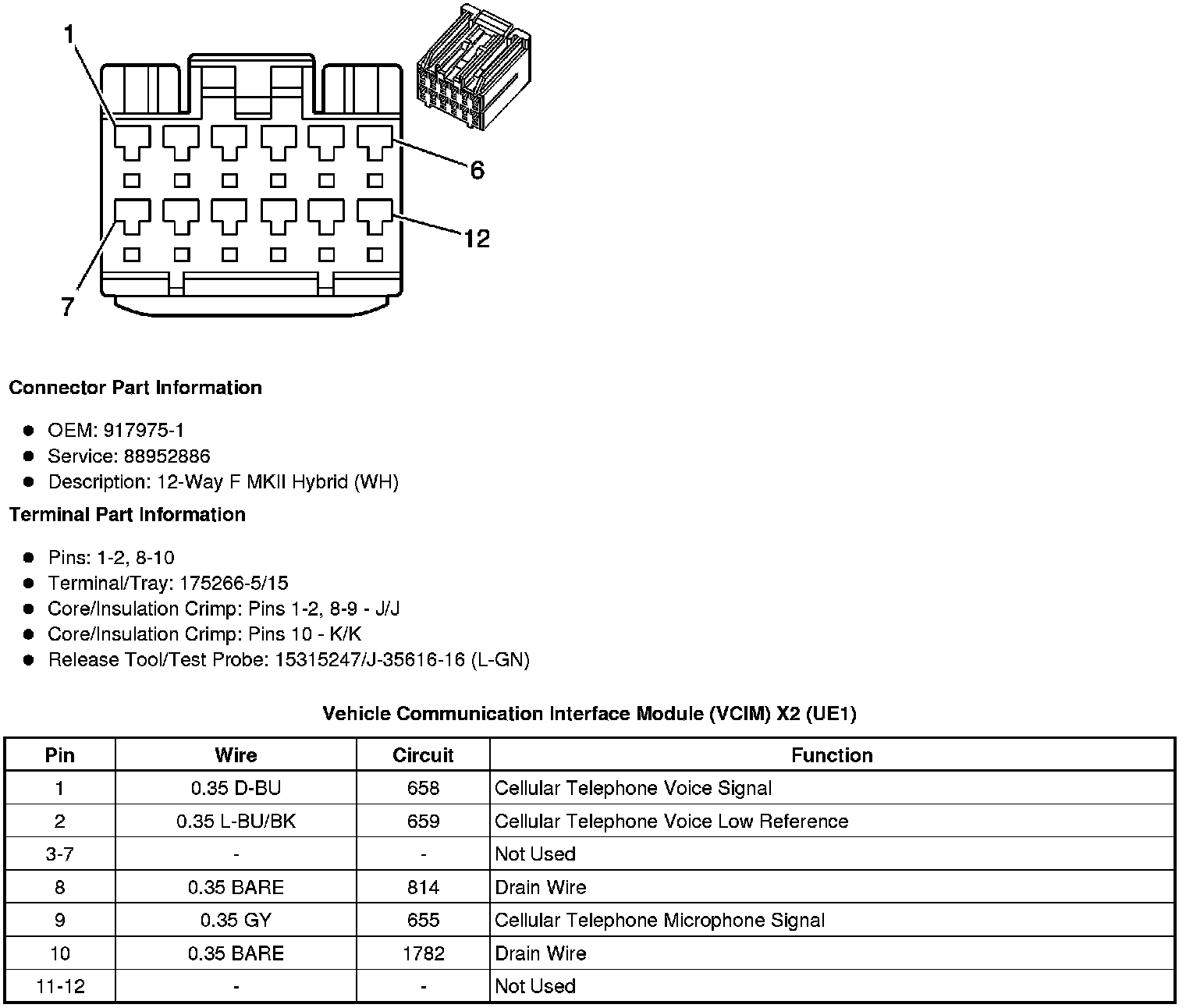

Vehicle Communication Interface Module (VCIM) X2 (UE1)

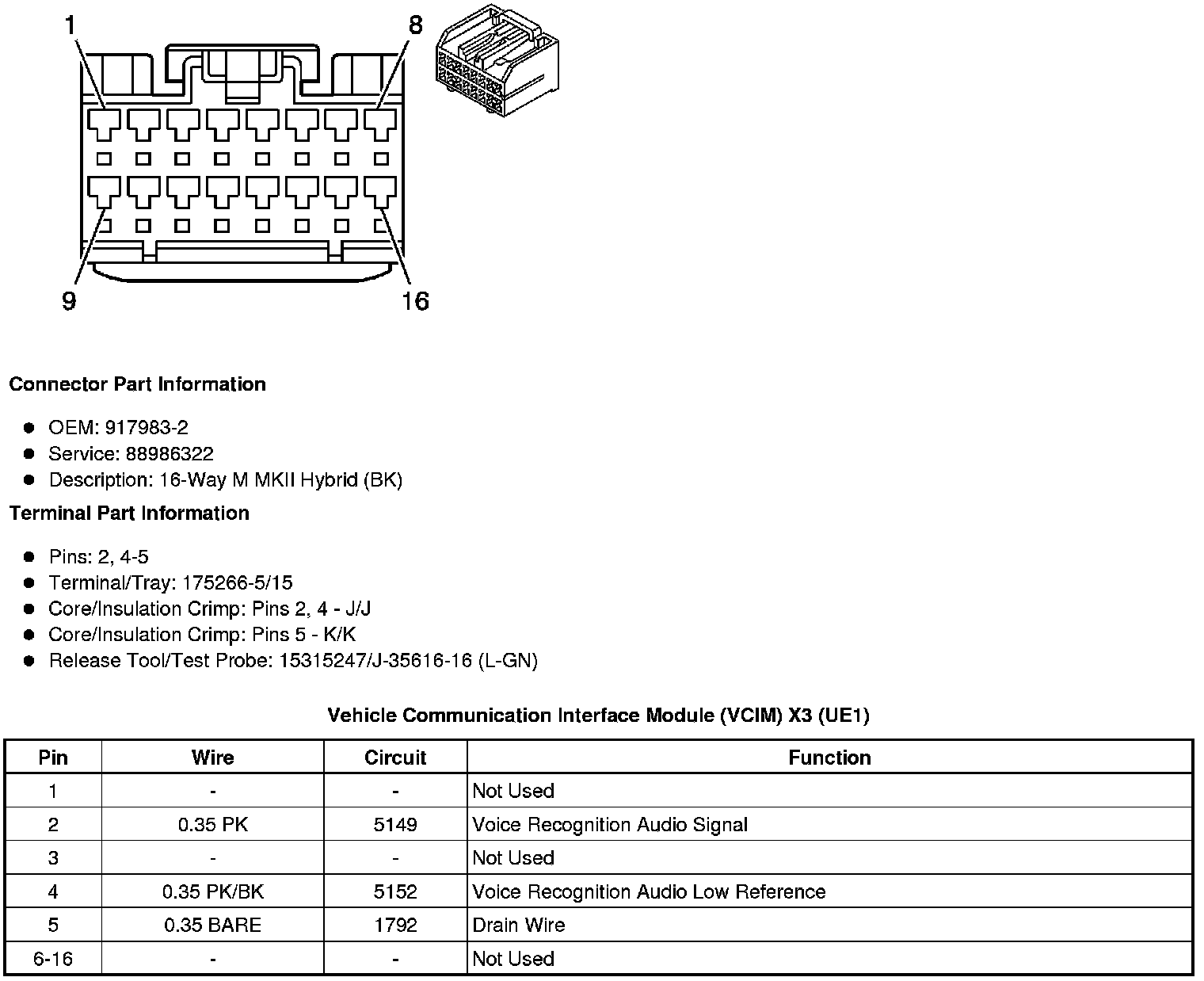

Vehicle Communication Interface Module (VCIM) X3 (UE1)

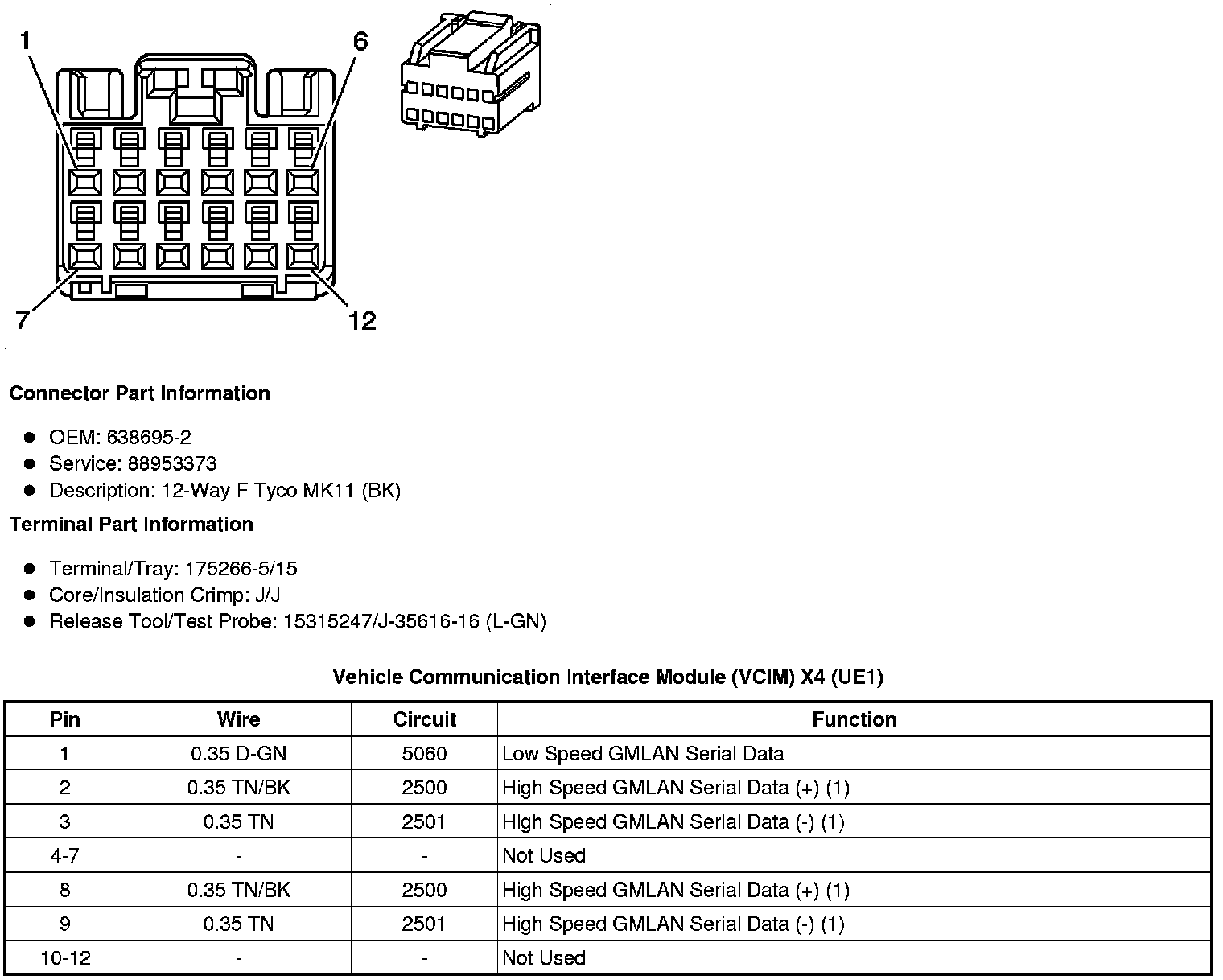

Vehicle Communication Interface Module (VCIM) X4 (UE1)
