Cadillac
>>
2008
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control
Component Connector End Views

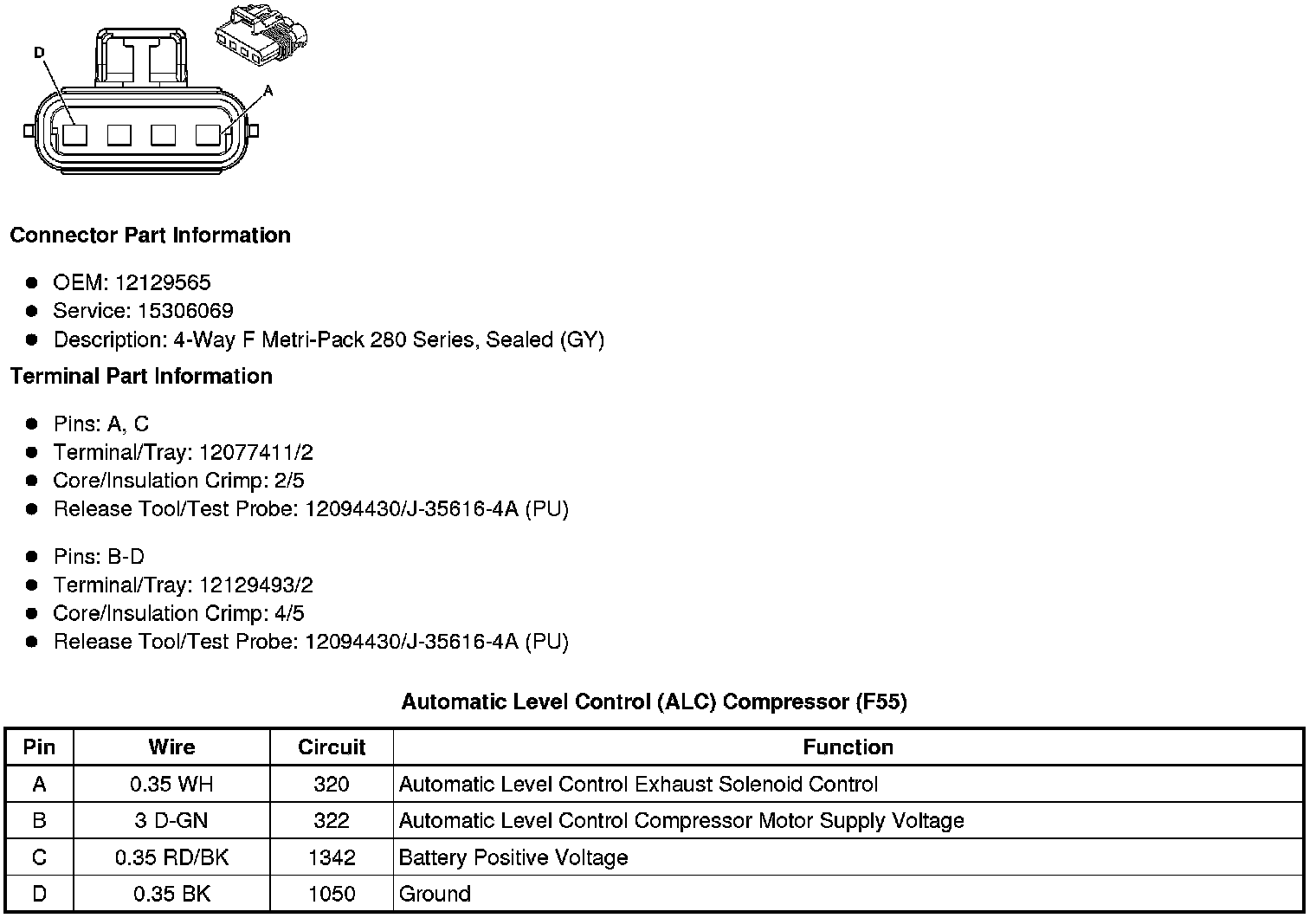

Automatic Level Control (ALC) Compressor (F55)
