Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module
Component Connector End Views

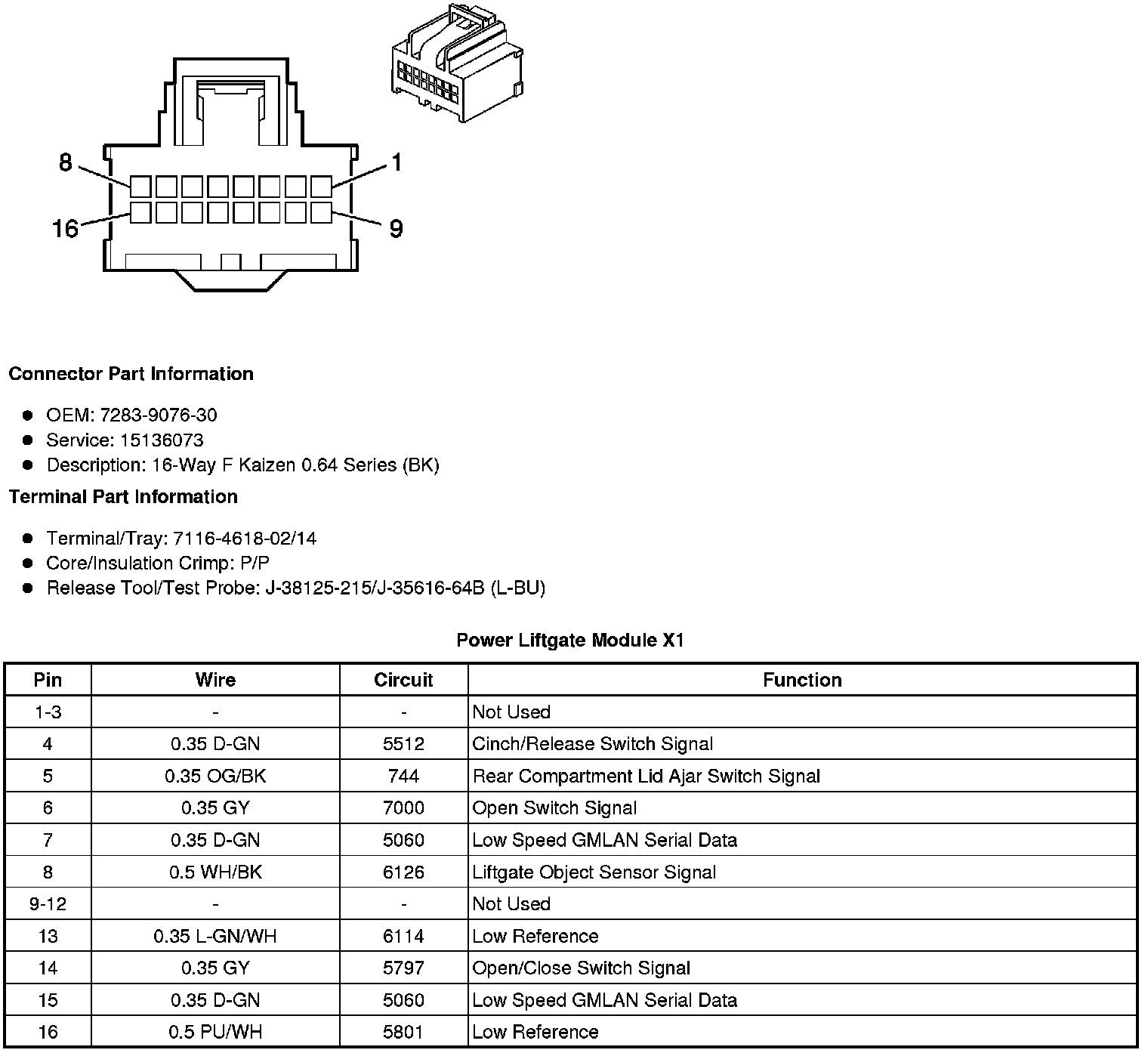

Power Liftgate Module X1

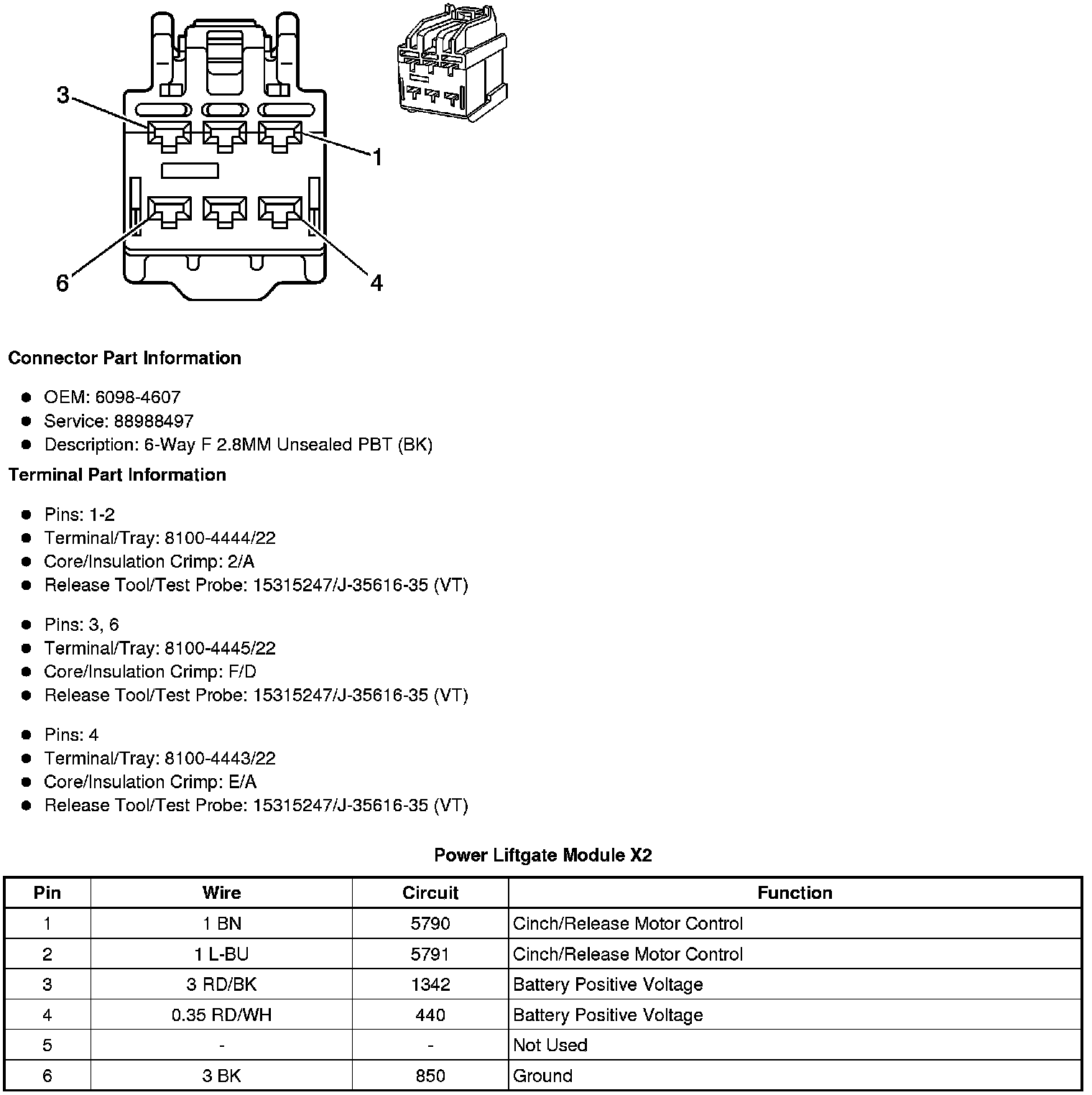

Power Liftgate Module X2

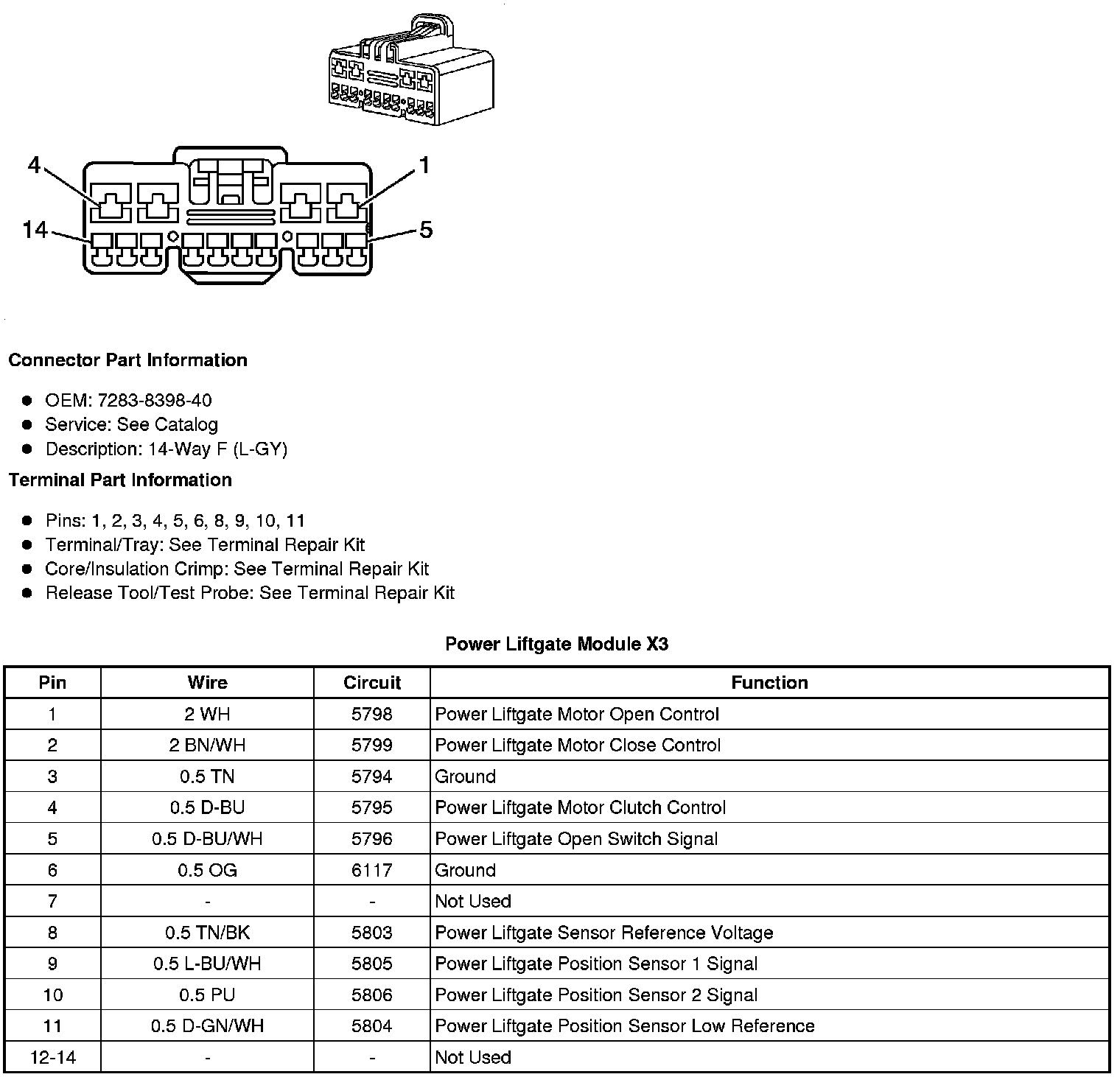

Power Liftgate Module X3
