Parking Assist Control Module
Parking Assist Control Module
Component Connector End Views

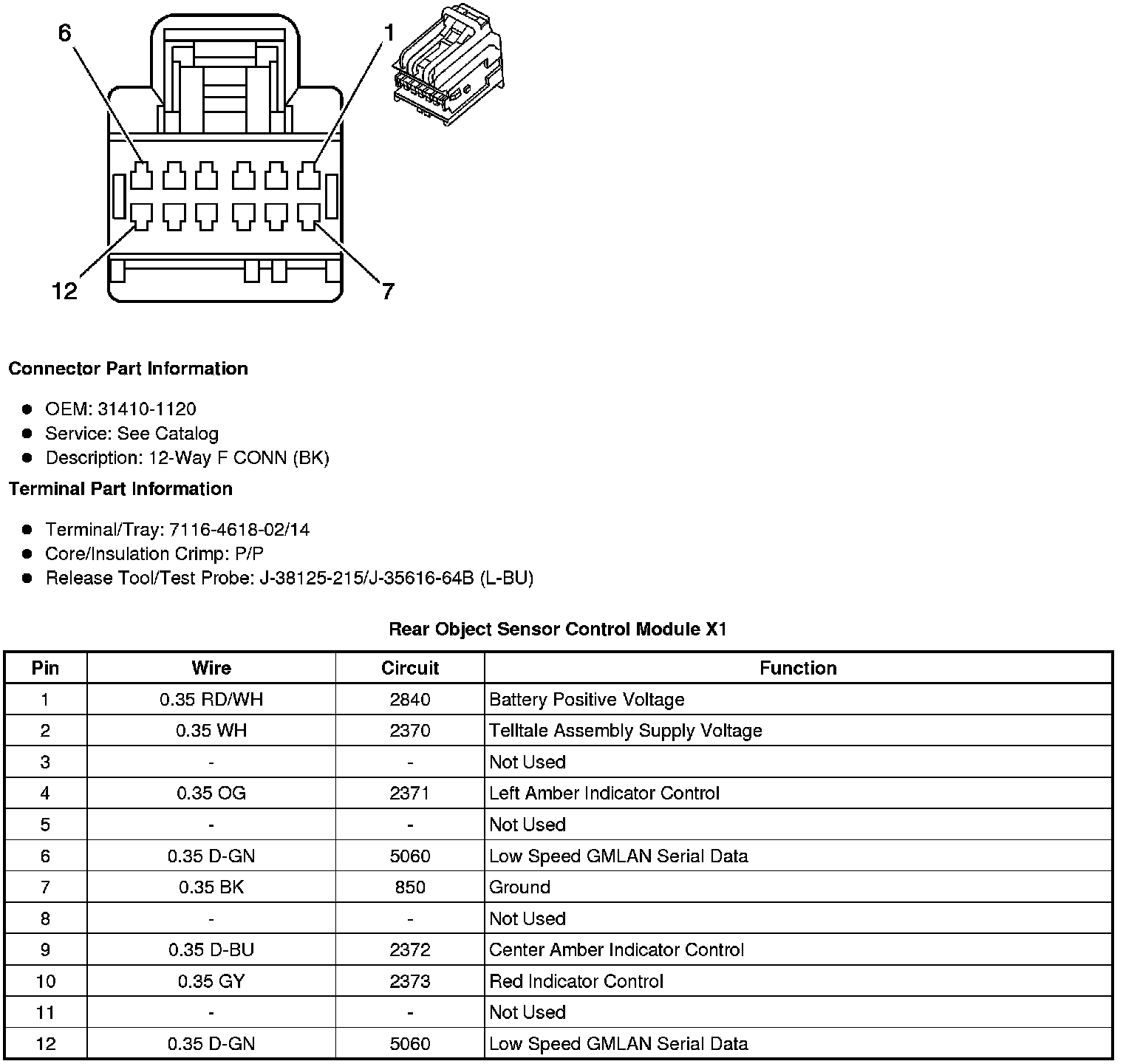

Rear Object Sensor Control Module X1

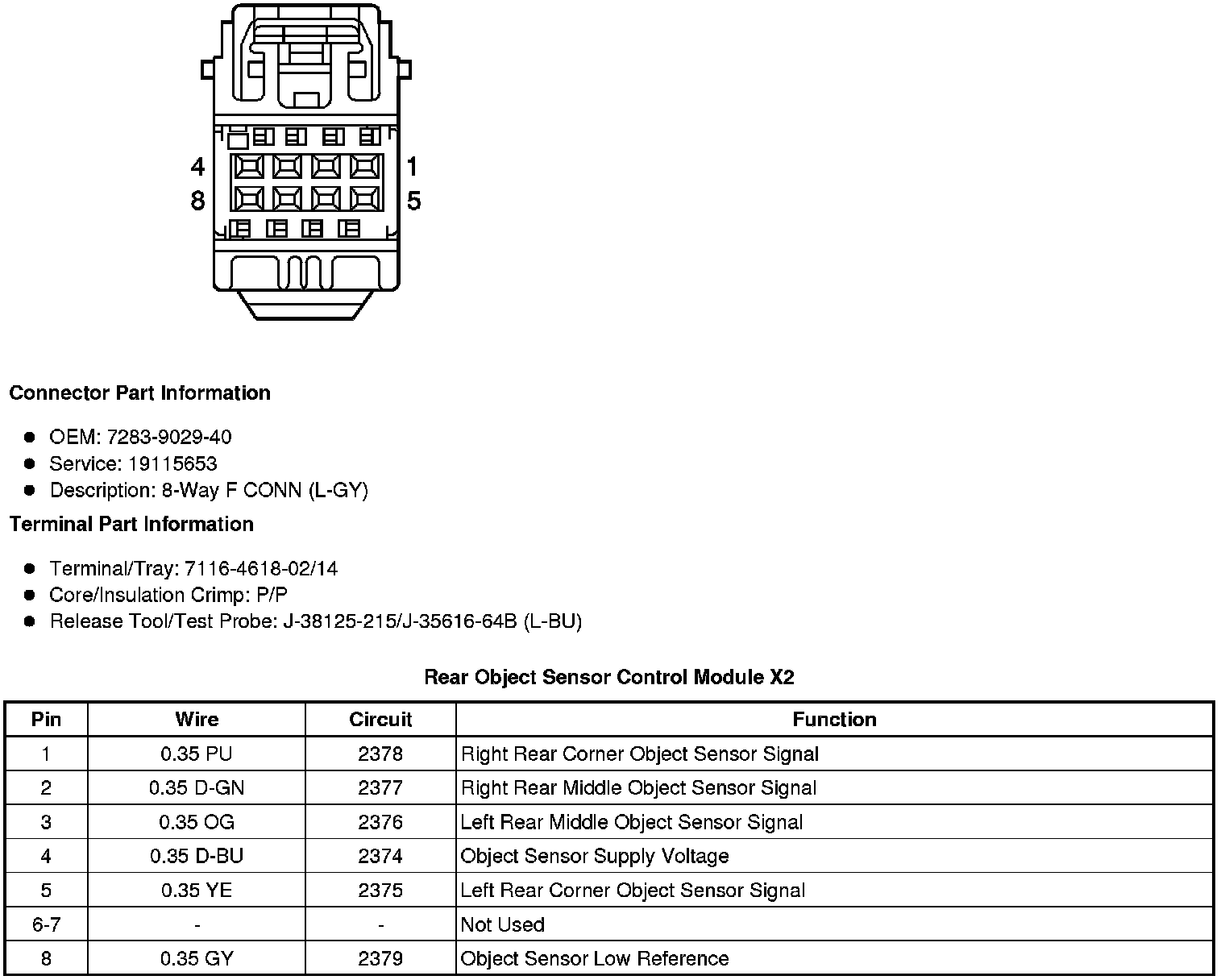

Rear Object Sensor Control Module X2
