Memory Positioning Module
>>
Memory Seat Module (MSM) X2 (A45/AM3/KB6)
Memory Seat Module (MSM) X2 (A45/AM3/KB6)

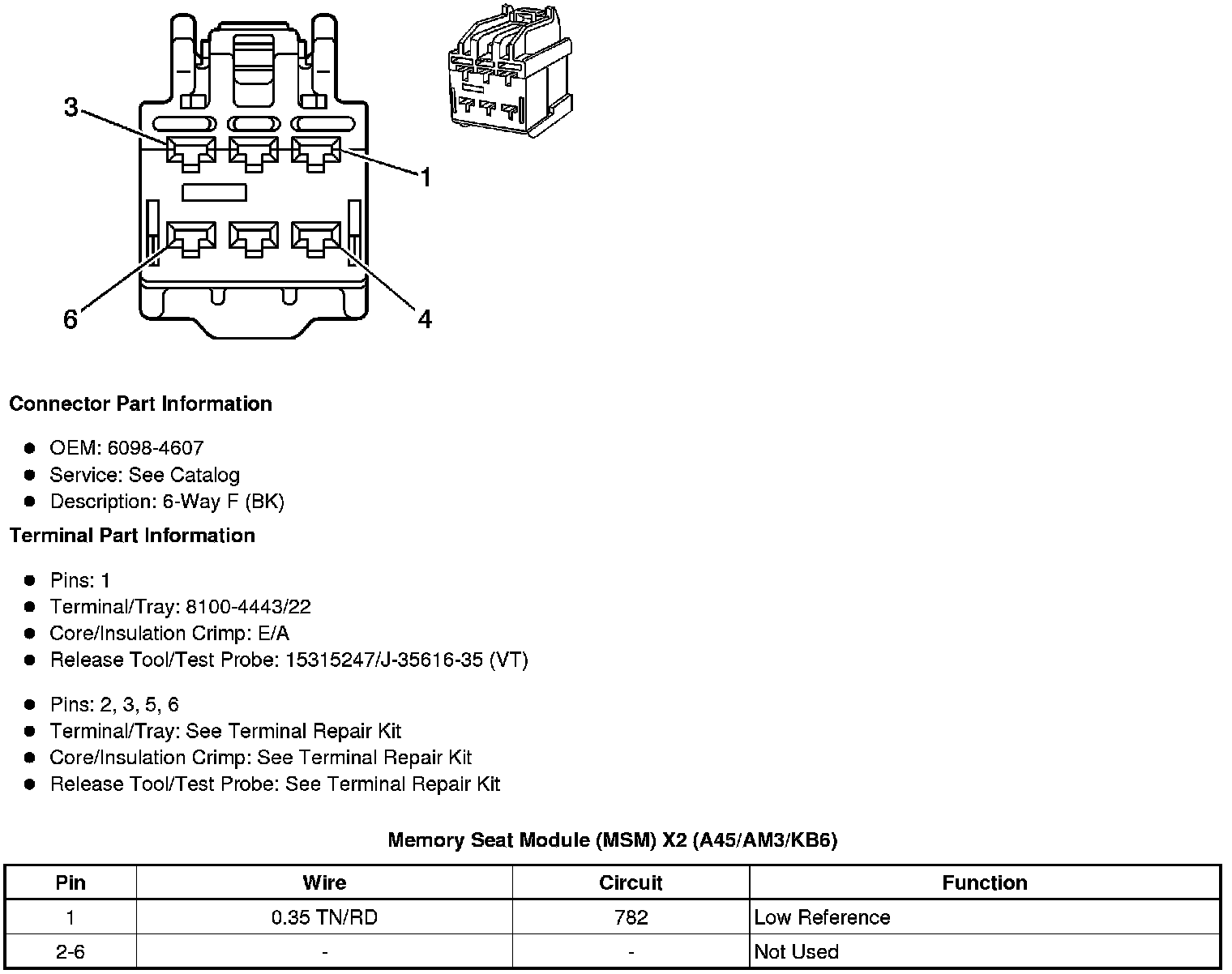

Component Connector End Views
Memory Seat Module (MSM) X2 (A45/AM3/KB6)
