Blower Motor Control Module X2 (CJ2)

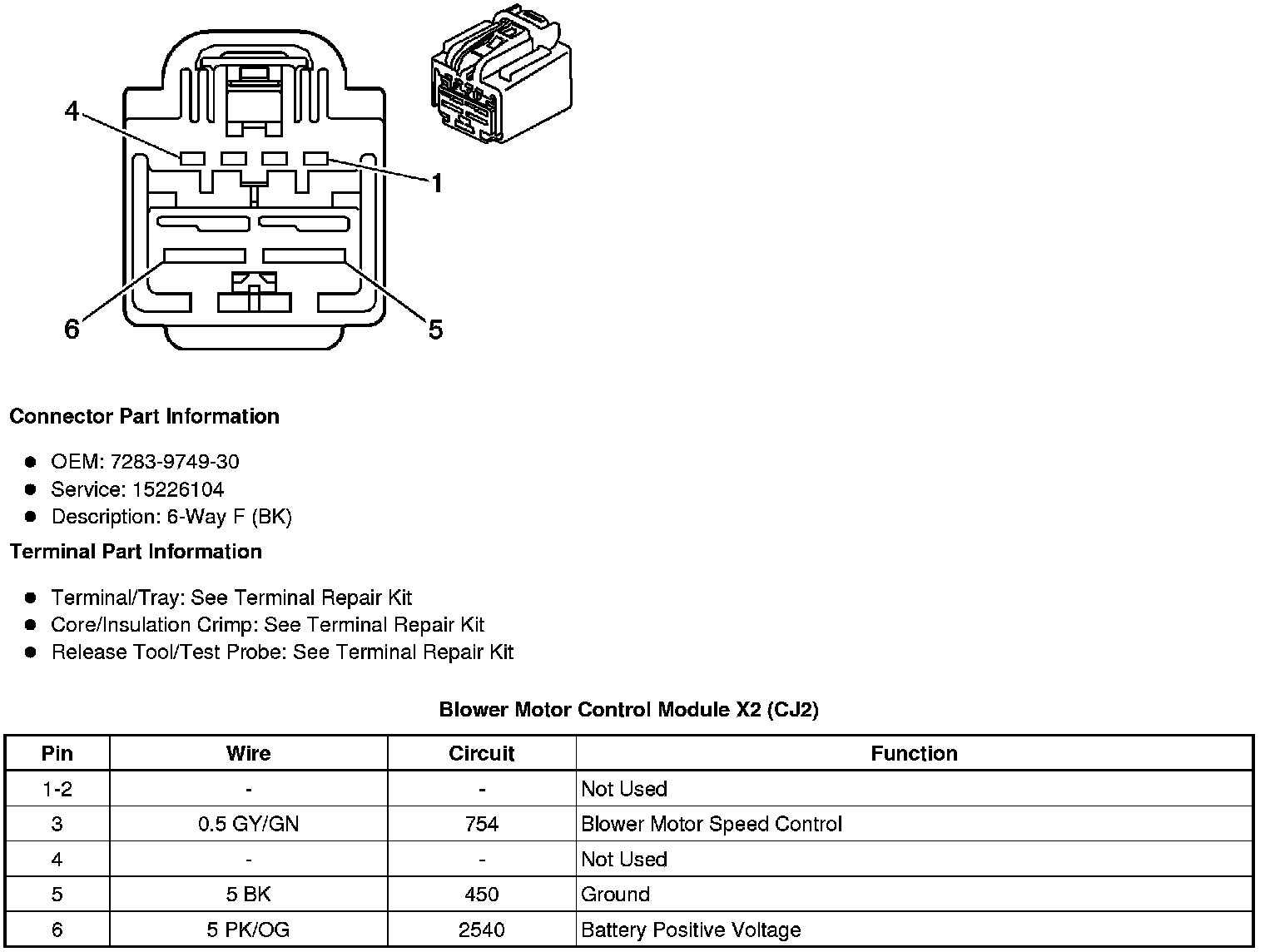

Component Connector End Views
Blower Motor Control Module X2 (CJ2)
