Combination Switch
>>
Turn Signal/Multifunction Switch X3
Turn Signal/Multifunction Switch X3

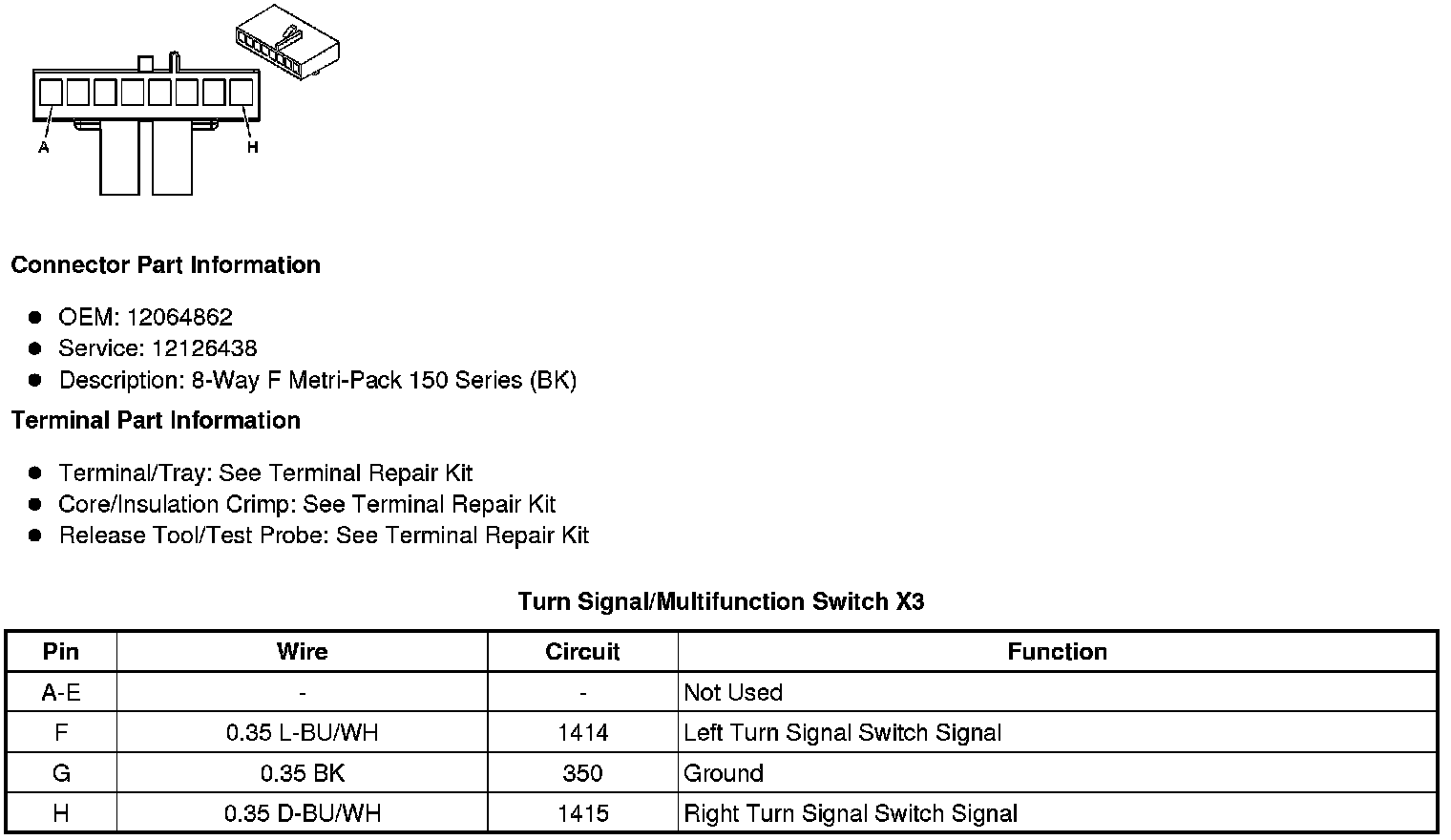

Component Connector End Views
Turn Signal/Multifunction Switch X3
