Cadillac
>>
2008
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Turn Signal/Multifunction Switch X2
Turn Signal/Multifunction Switch X2

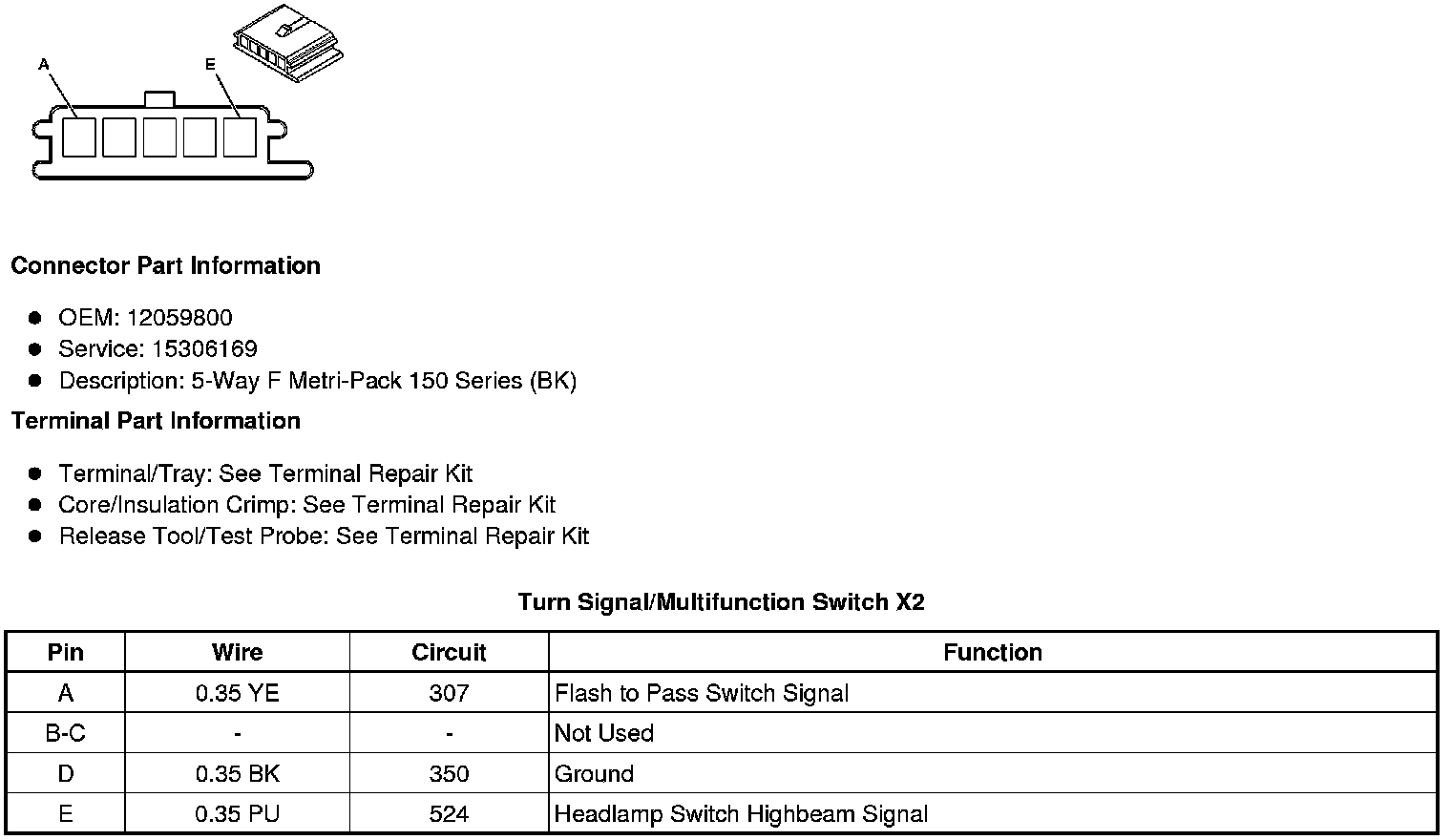

Component Connector End Views
Turn Signal/Multifunction Switch X2
