Connector Views
>>
Collision Avoidance Module
Collision Avoidance Module

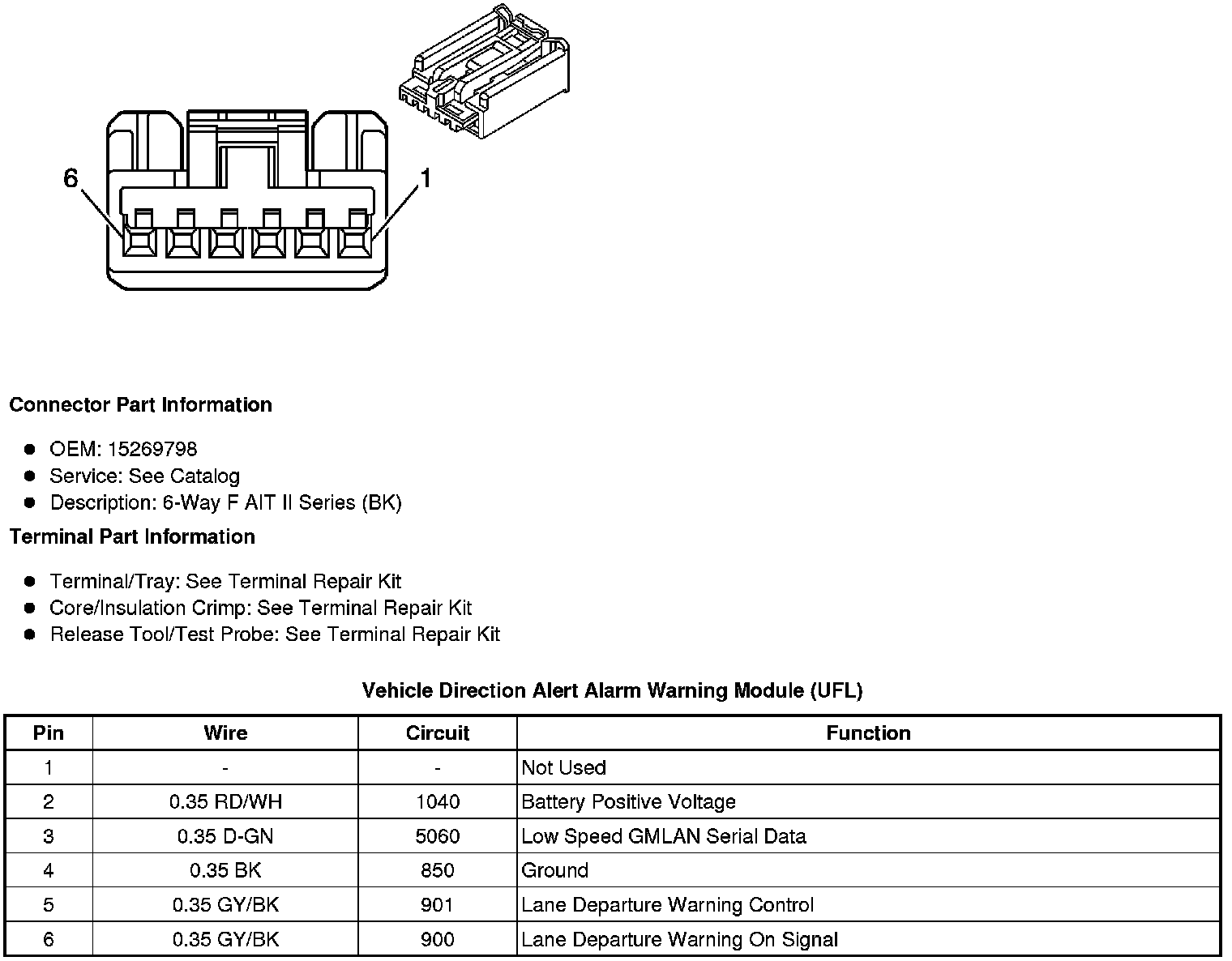

Component Connector End Views
Vehicle Direction Alert Alarm Warning Module (UFL)
