Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

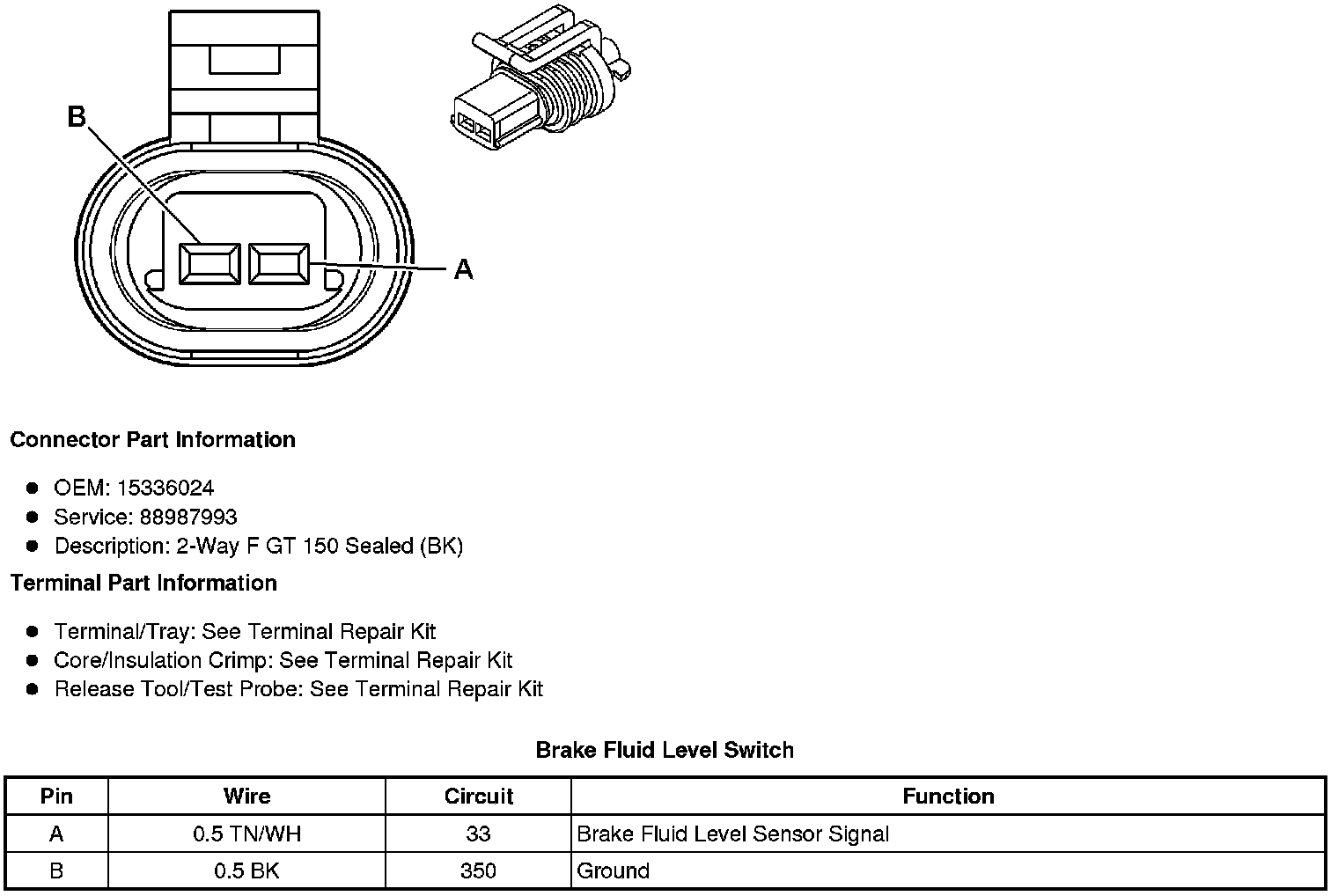

Component Connector End Views
Brake Fluid Level Switch
