Part 1
Thread Repair Specifications
Part 1 of 2

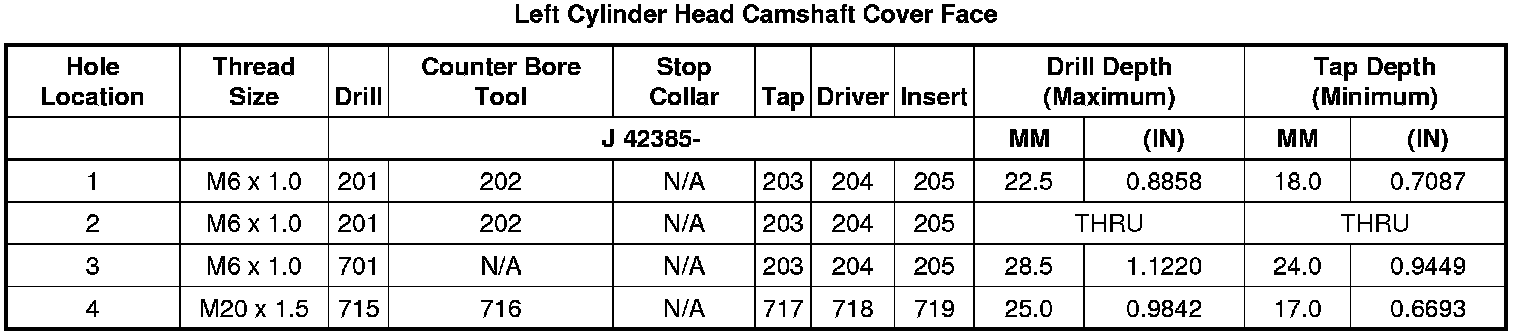

Left Cylinder Head Camshaft Cover Face
Left Cylinder Head Camshaft Cover Face:

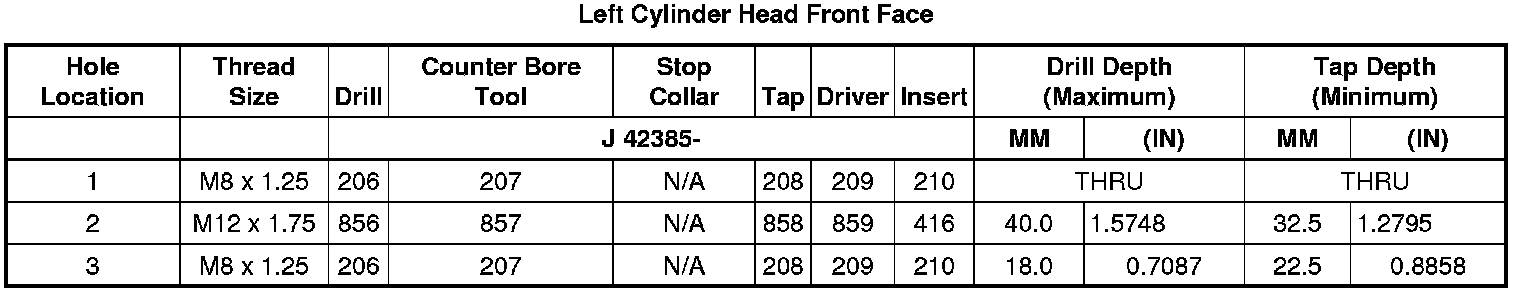

Left Cylinder Head Front Face
Left Cylinder Head Front Face:

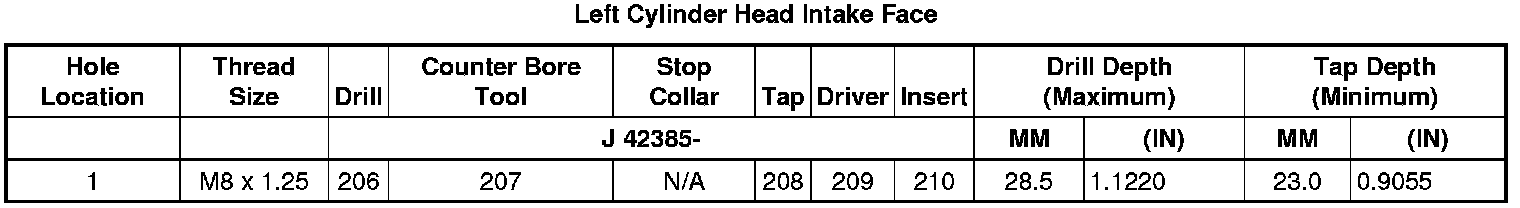

Left Cylinder Head Intake Face
Left Cylinder Head Intake Face:
Left Cylinder Head Exhaust Face
Left Cylinder Head Exhaust Face:

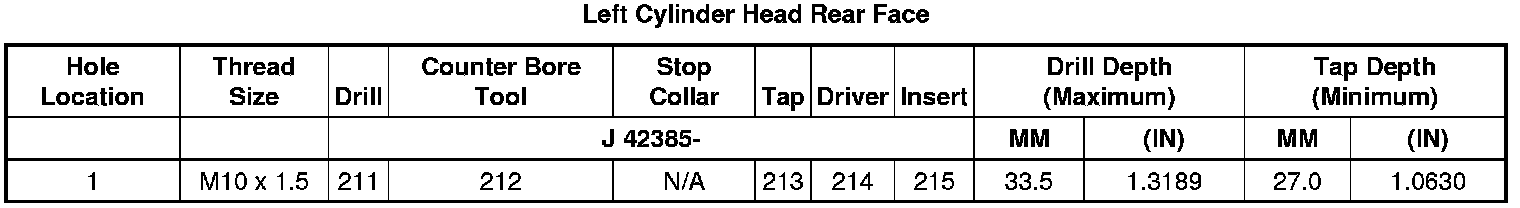

Left Cylinder Head Rear Face
Left Cylinder Head Rear Face:

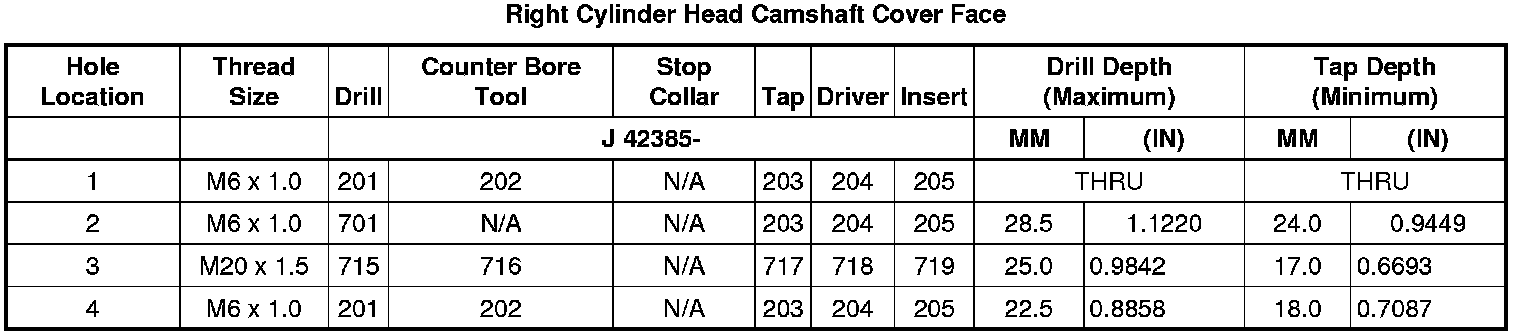

Right Cylinder Head Camshaft Cover Face
Right Cylinder Head Camshaft Cover Face:

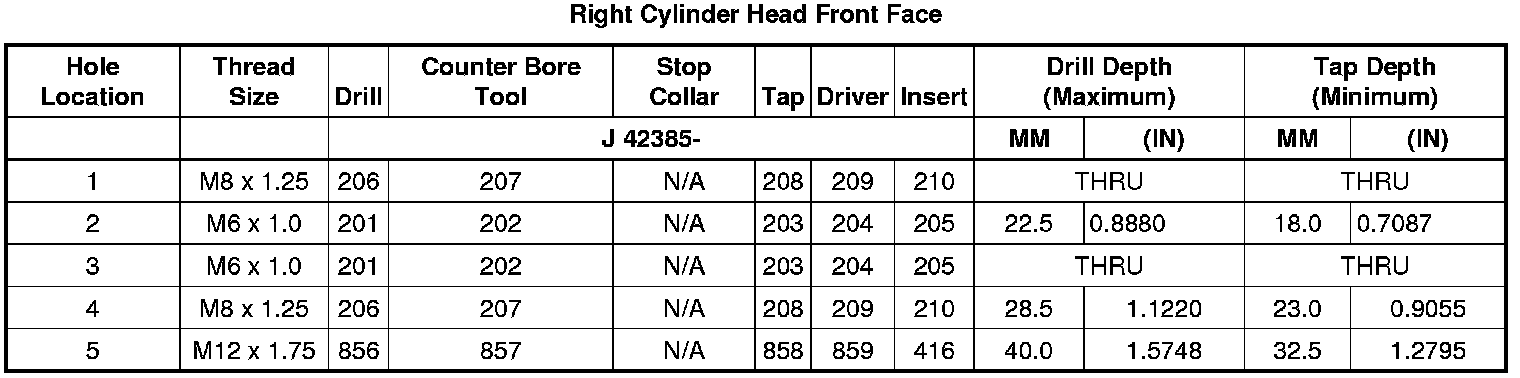

Right Cylinder Head Front Face
Right Cylinder Head Front Face:
Right Cylinder Head Intake Face
Right Cylinder Head Intake Face:

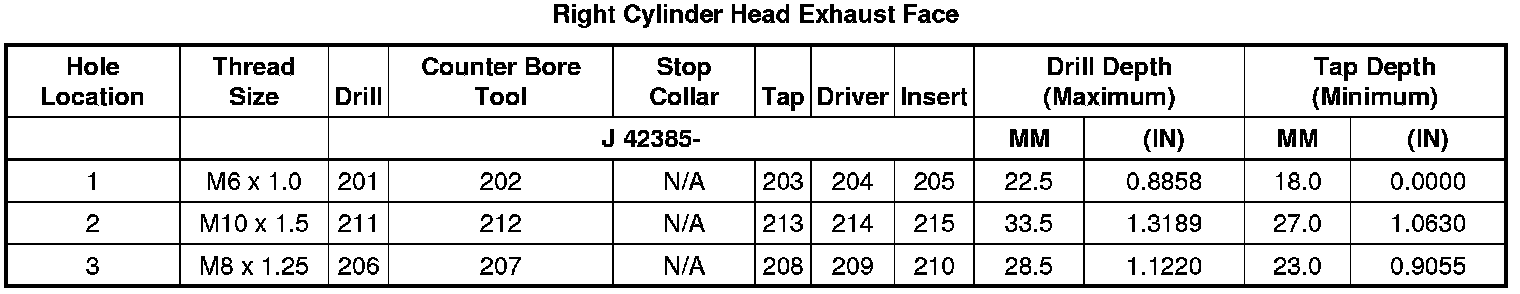

Right Cylinder Head Exhaust Face
Right Cylinder Head Exhaust Face:

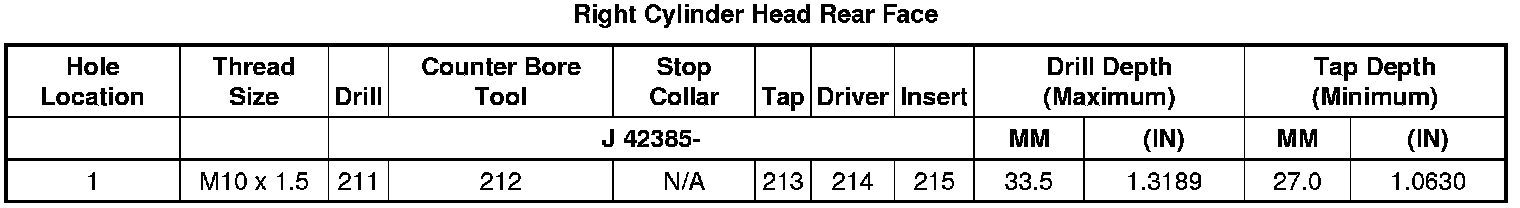

Right Cylinder Head Rear Face
Right Cylinder Head Rear Face:

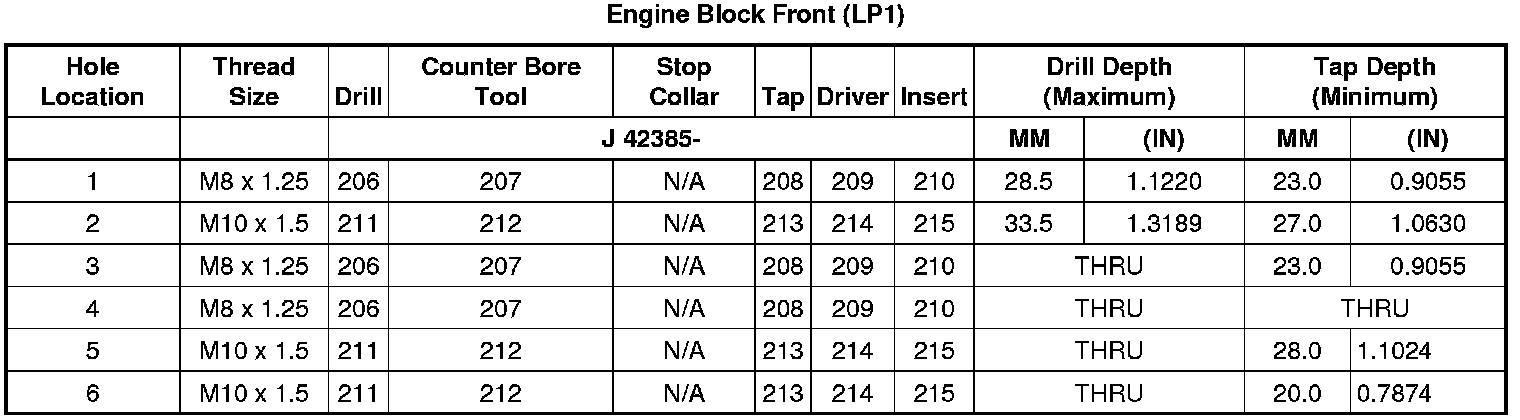

Engine Block Front (LP1)
Engine Block Front:

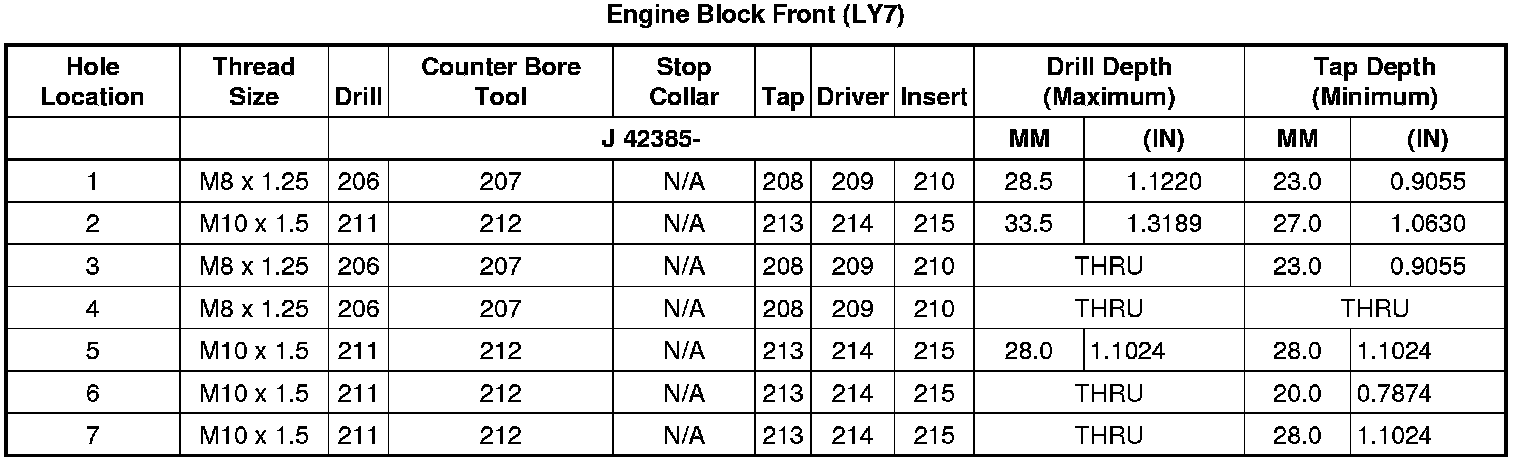

Engine Block Front (LY7)
Engine Block Front:

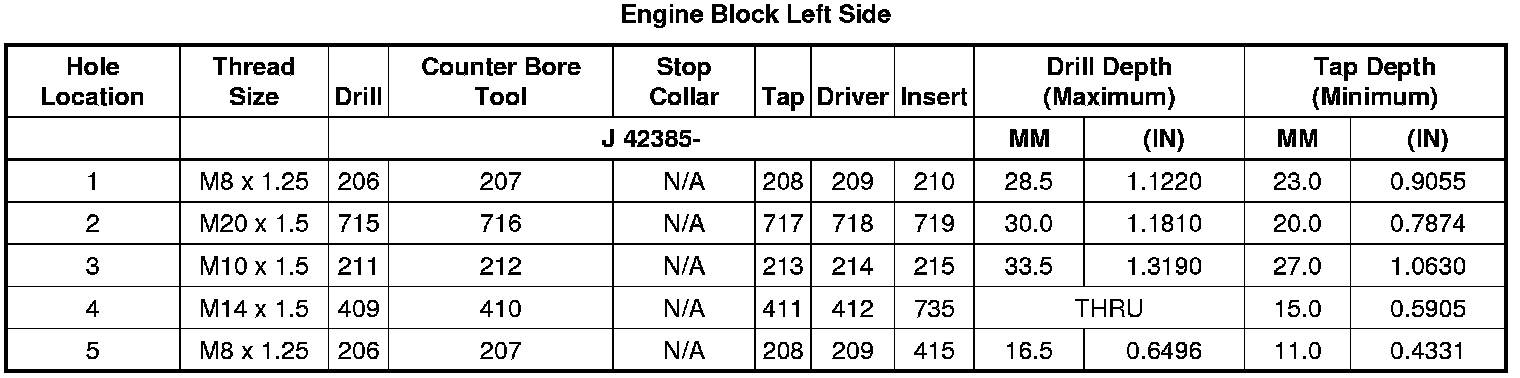

Engine Block Left Side
Engine Block Left Side:

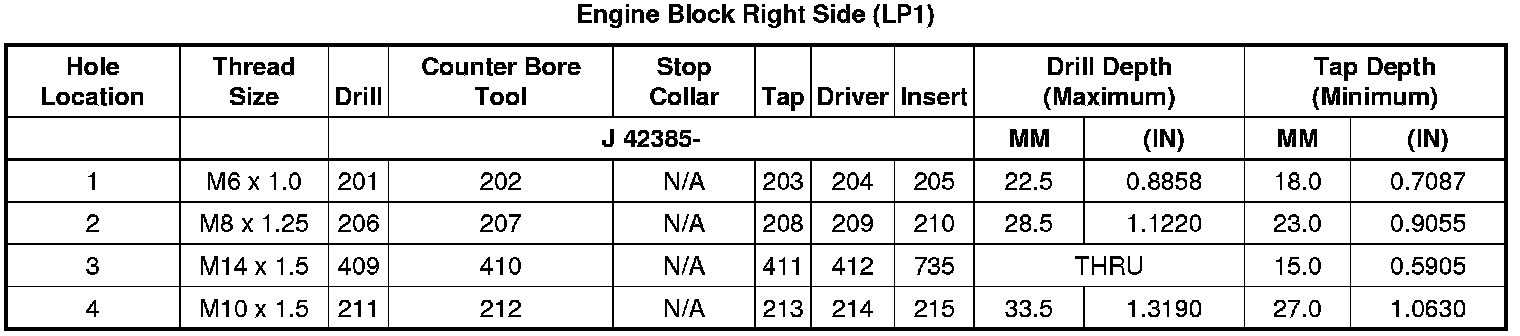

Engine Block Right Side (LP1)
Engine Block Right Side:
Engine Block Right Side (LY7)
Engine Block Right Side:

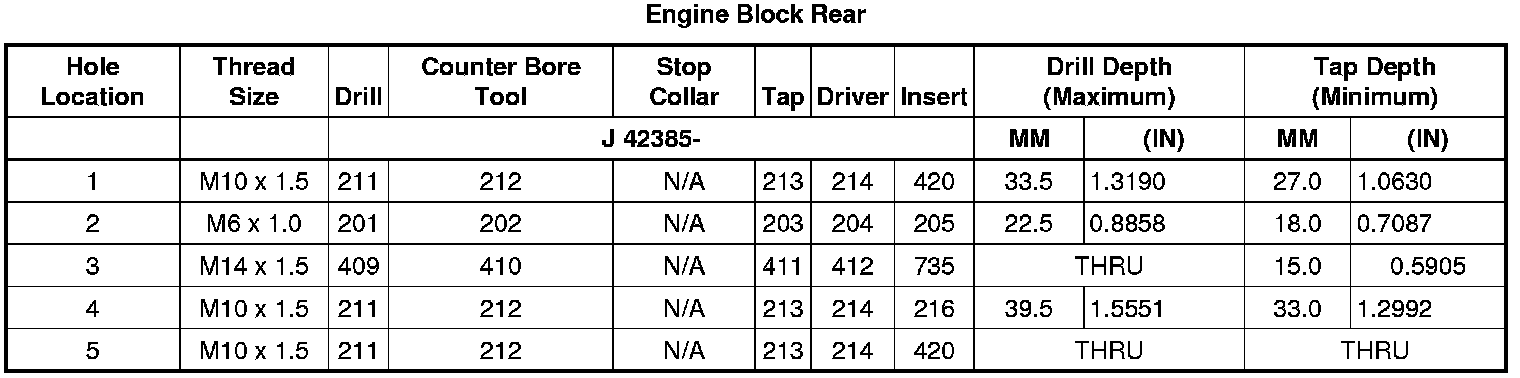

Engine Block Rear
Engine Block Rear:

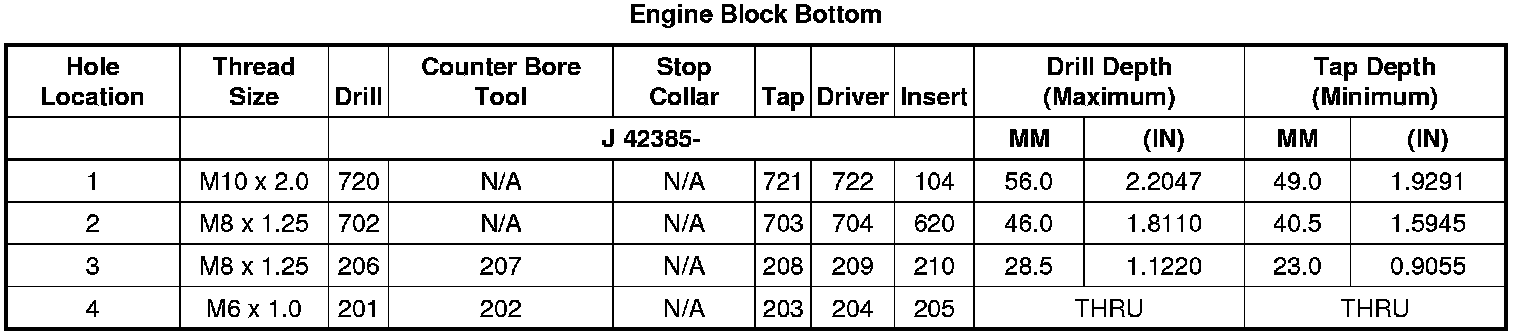

Engine Block Bottom
Engine Block Bottom:

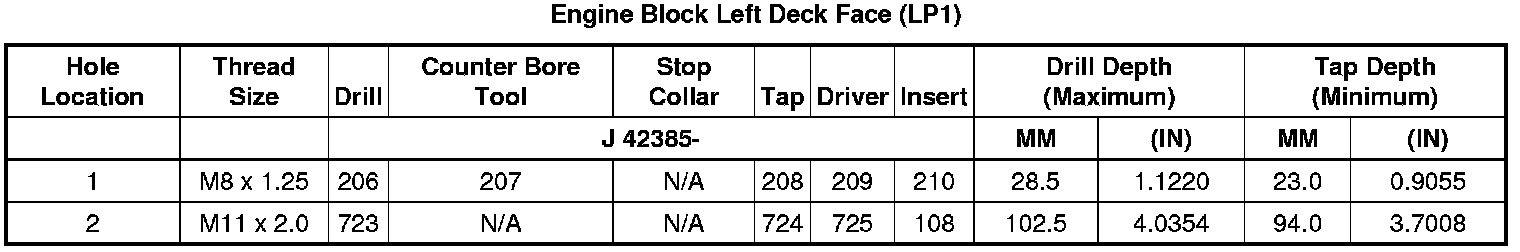

Engine Block Left Deck Face (LP1)
Engine Block Left Deck Face:
