Home >> Cadillac >> 2008 >> CTS RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

Keyless Entry Module

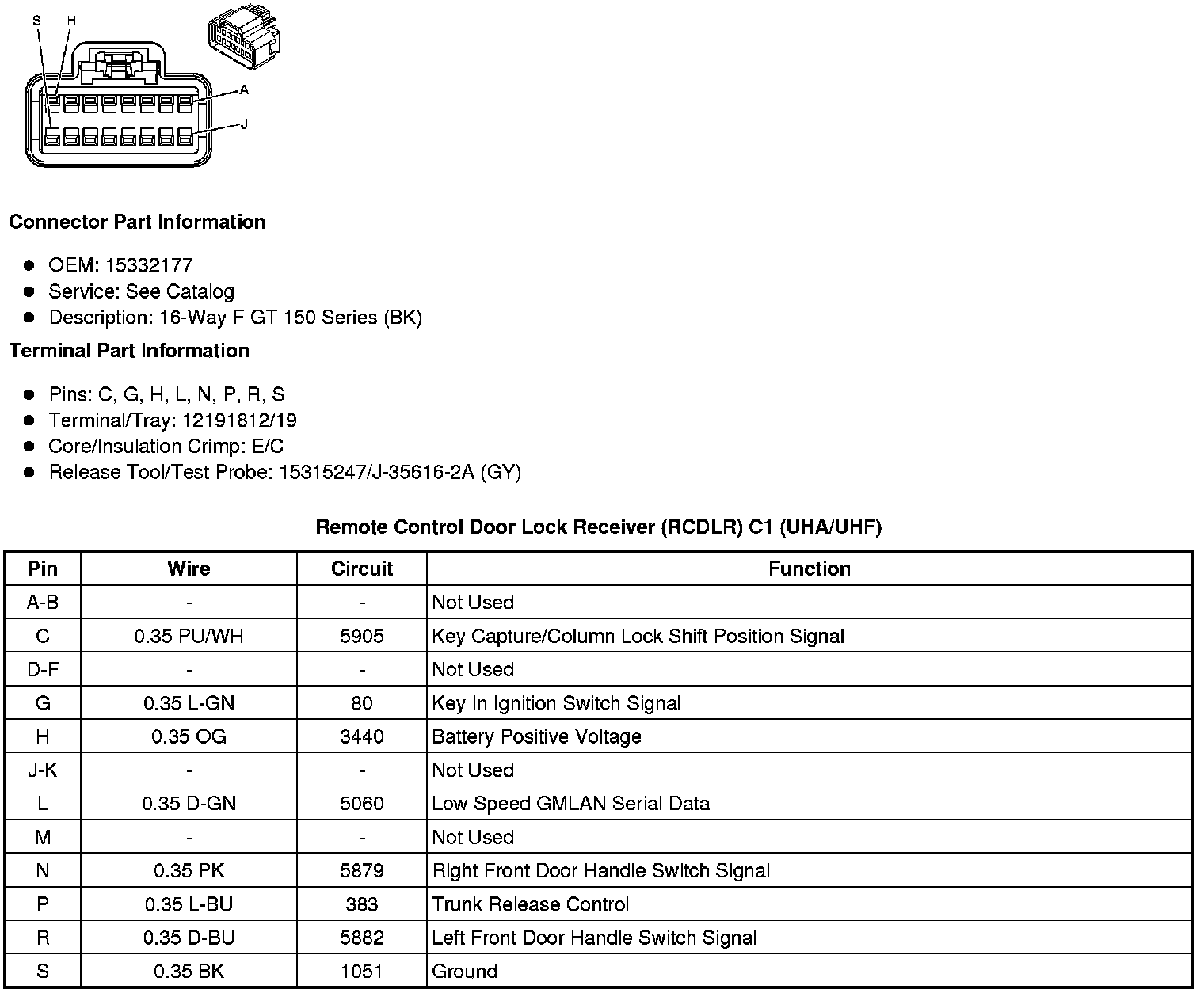

Remote Control Door Lock Receiver (RCDLR) C1 (UHA/UHF)

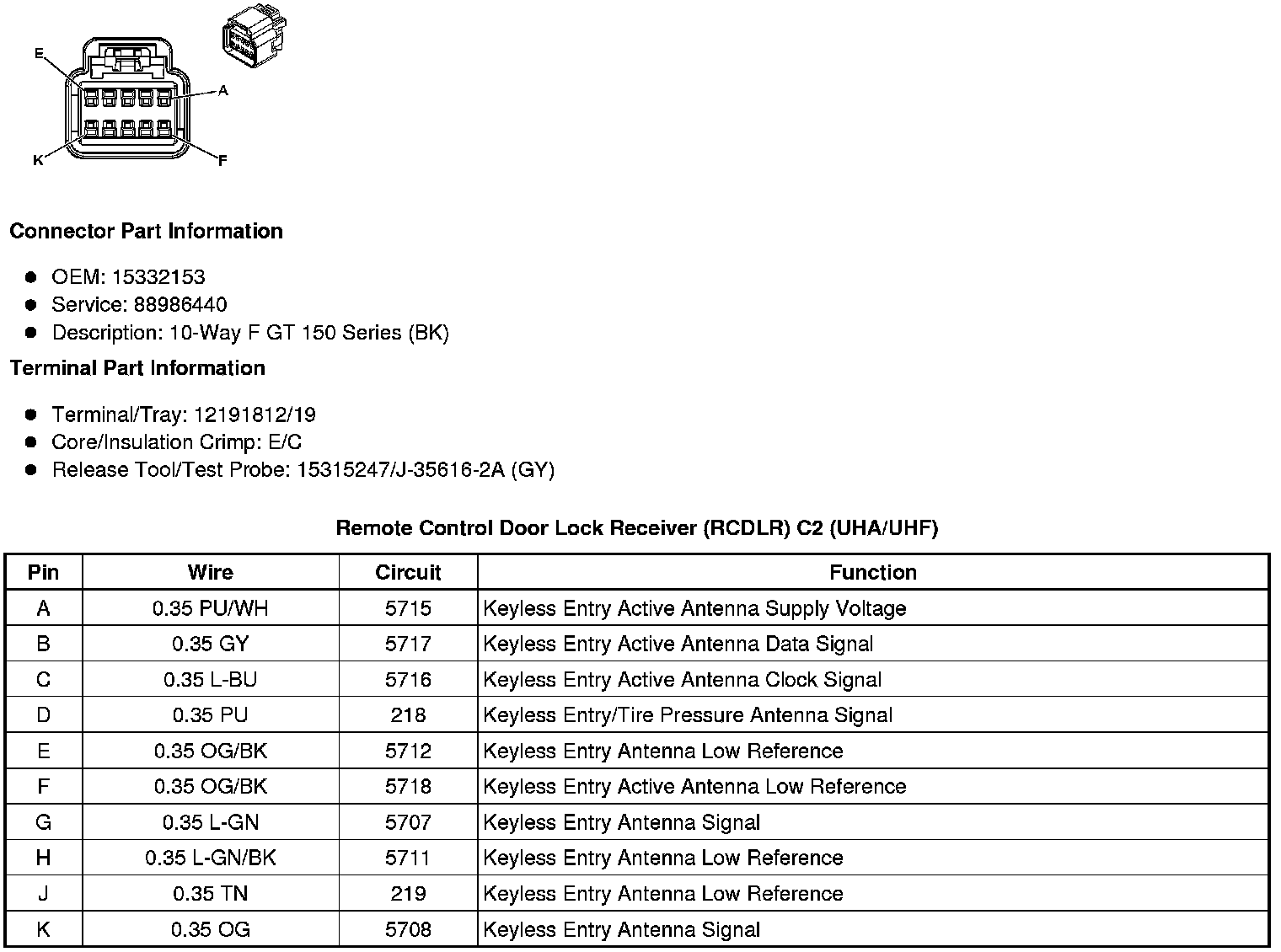

Remote Control Door Lock Receiver (RCDLR) C2 (UHA/UHF)

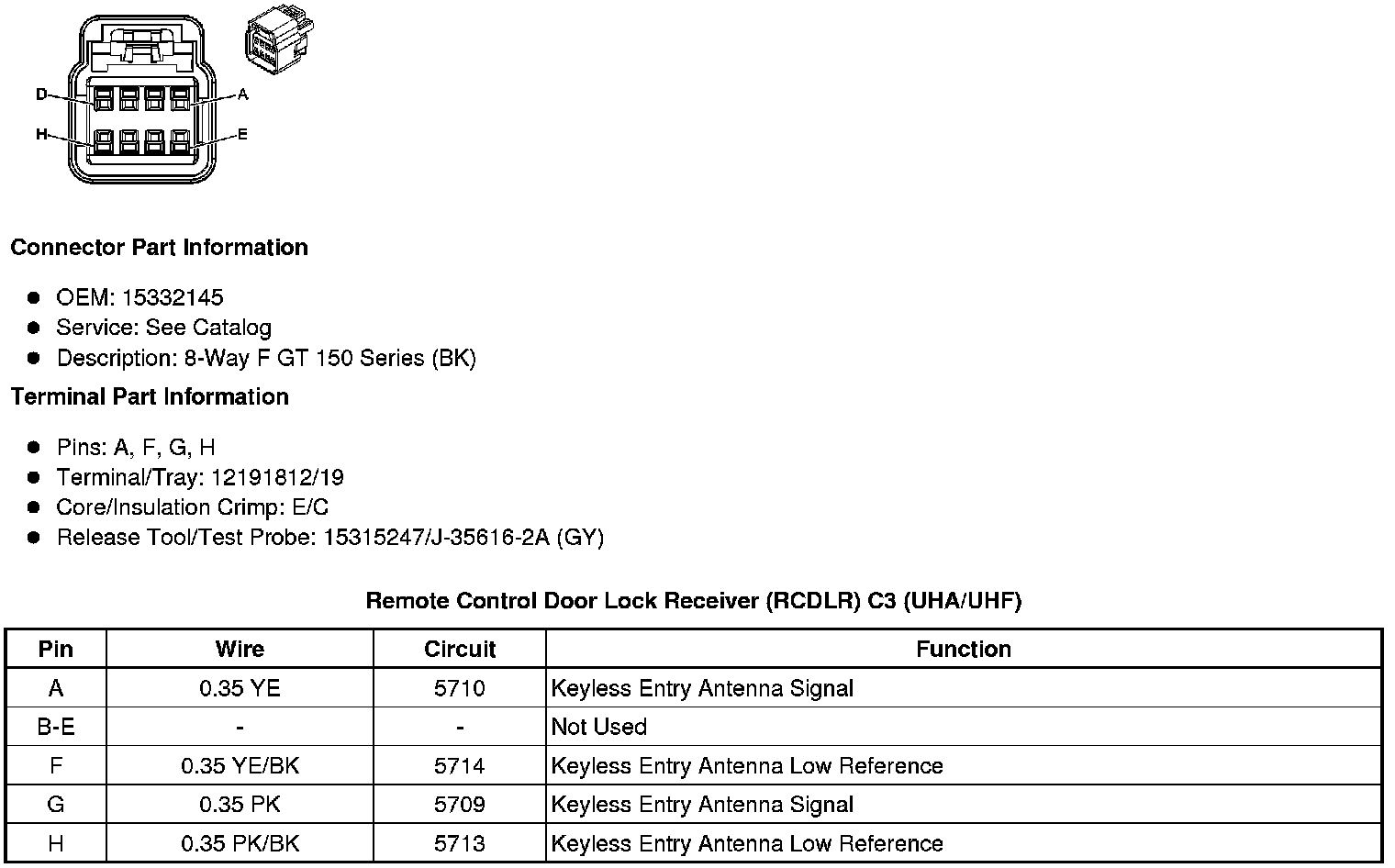

Remote Control Door Lock Receiver (RCDLR) C3 (UHA/UHF)
