Home >> Cadillac >> 2008 >> CTS RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

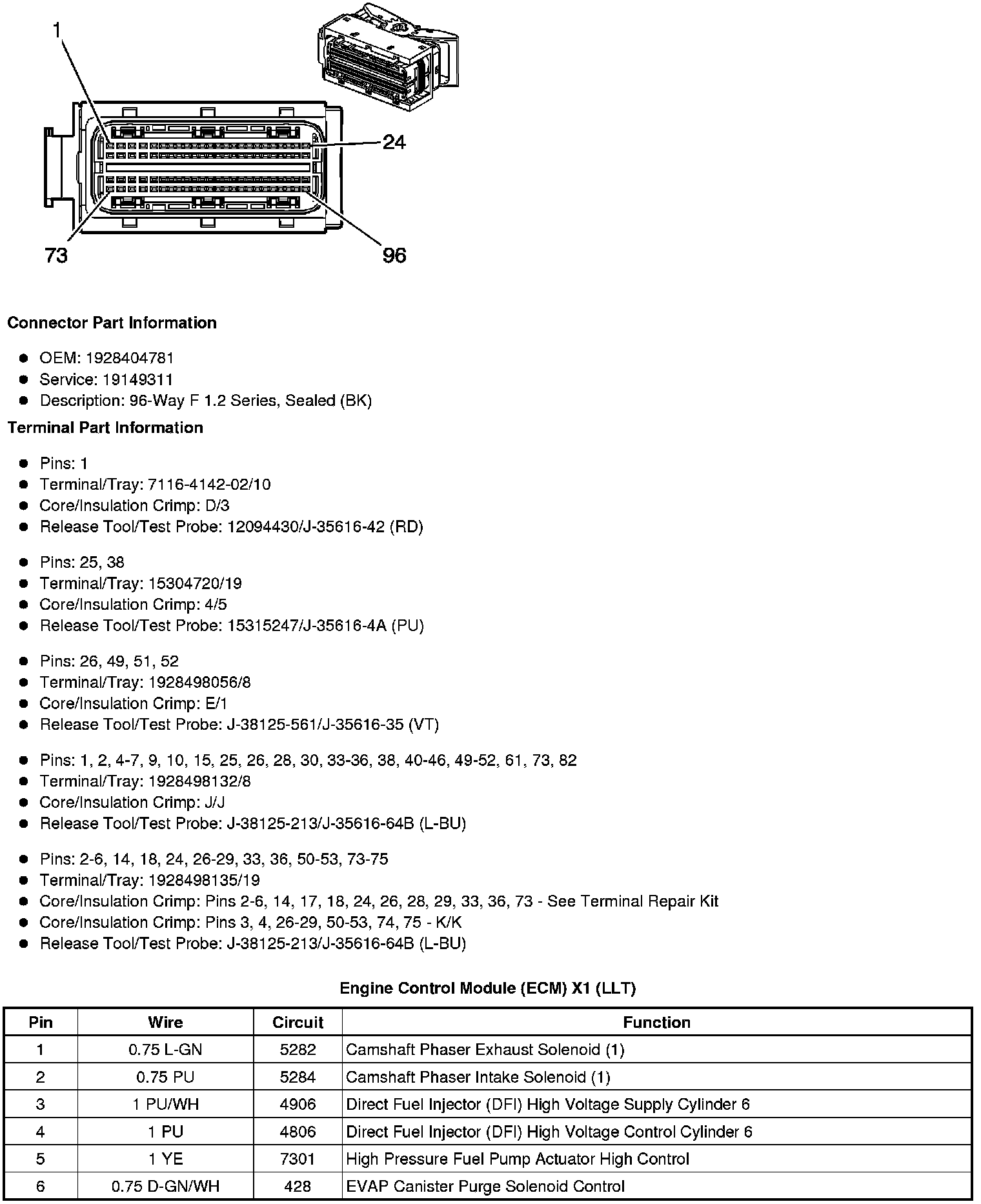

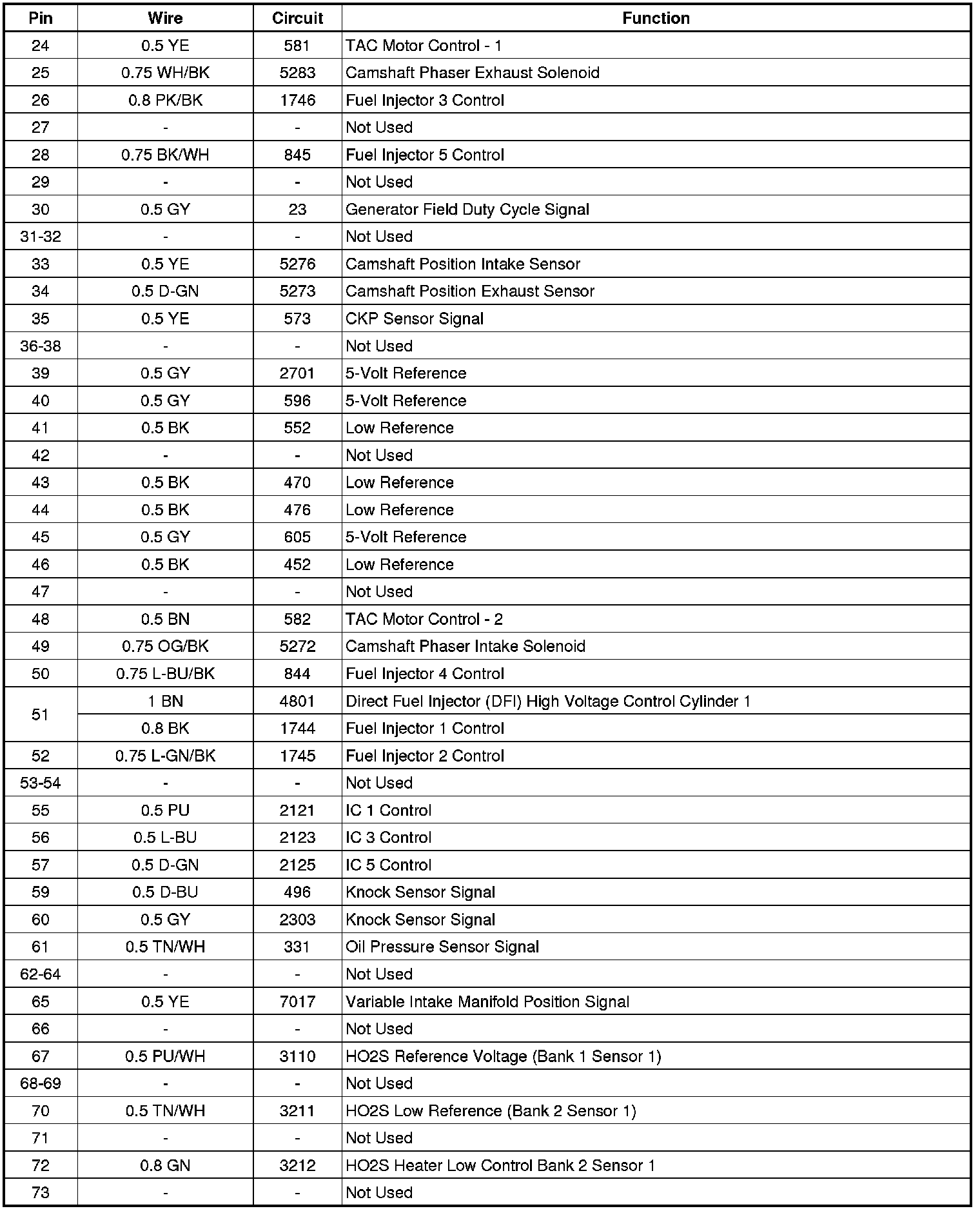

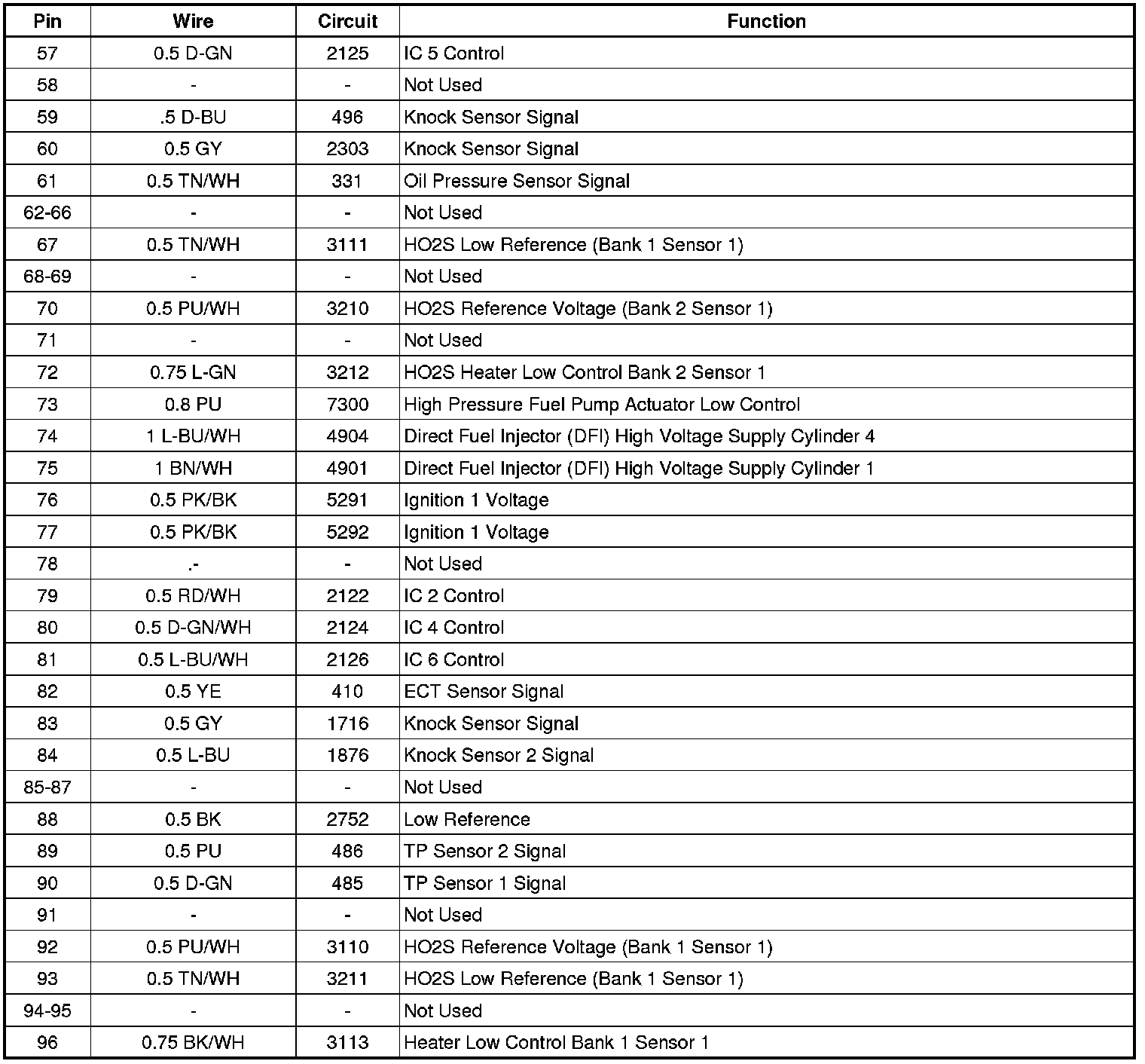

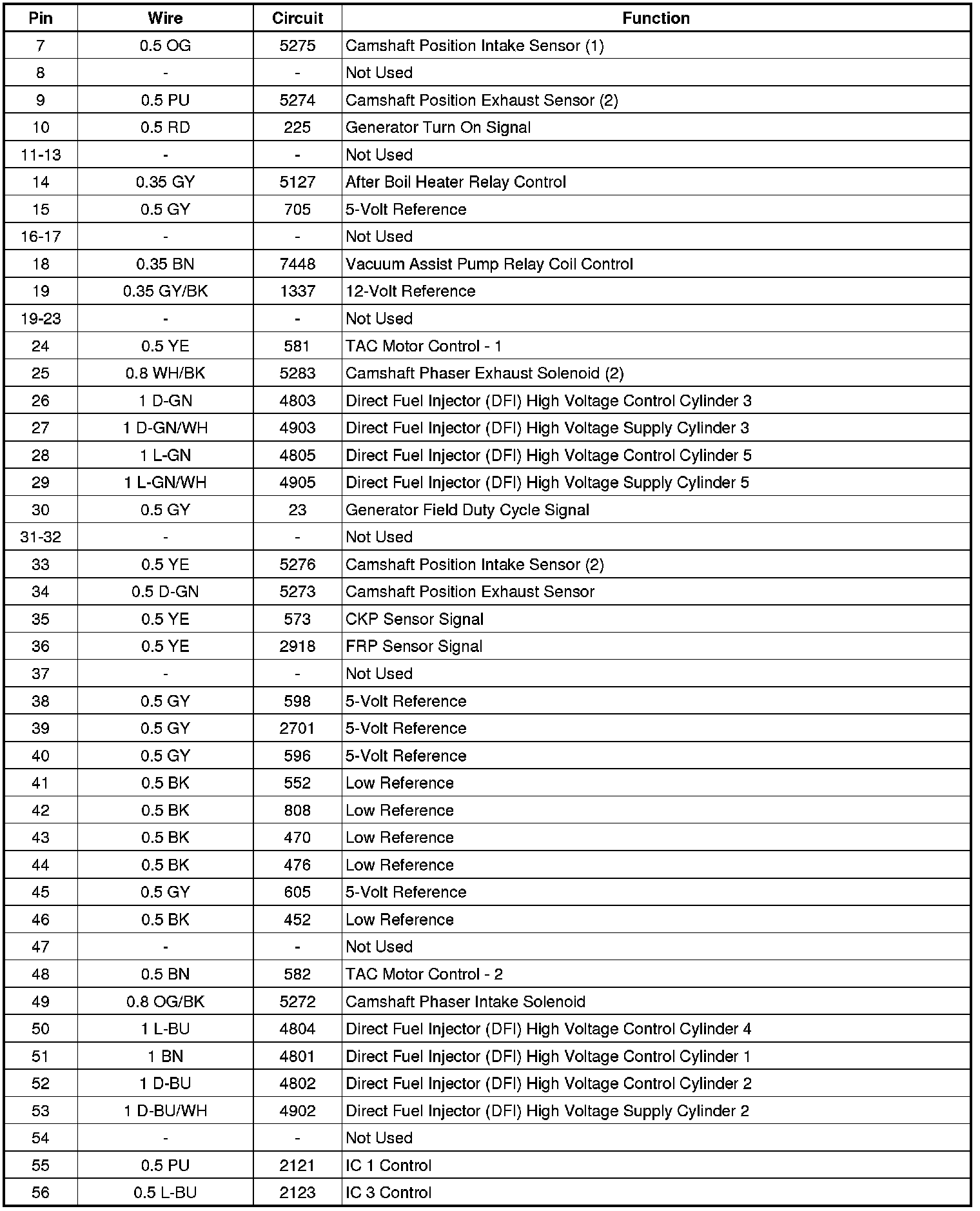

Engine Control Module (ECM) X1 (LLT)

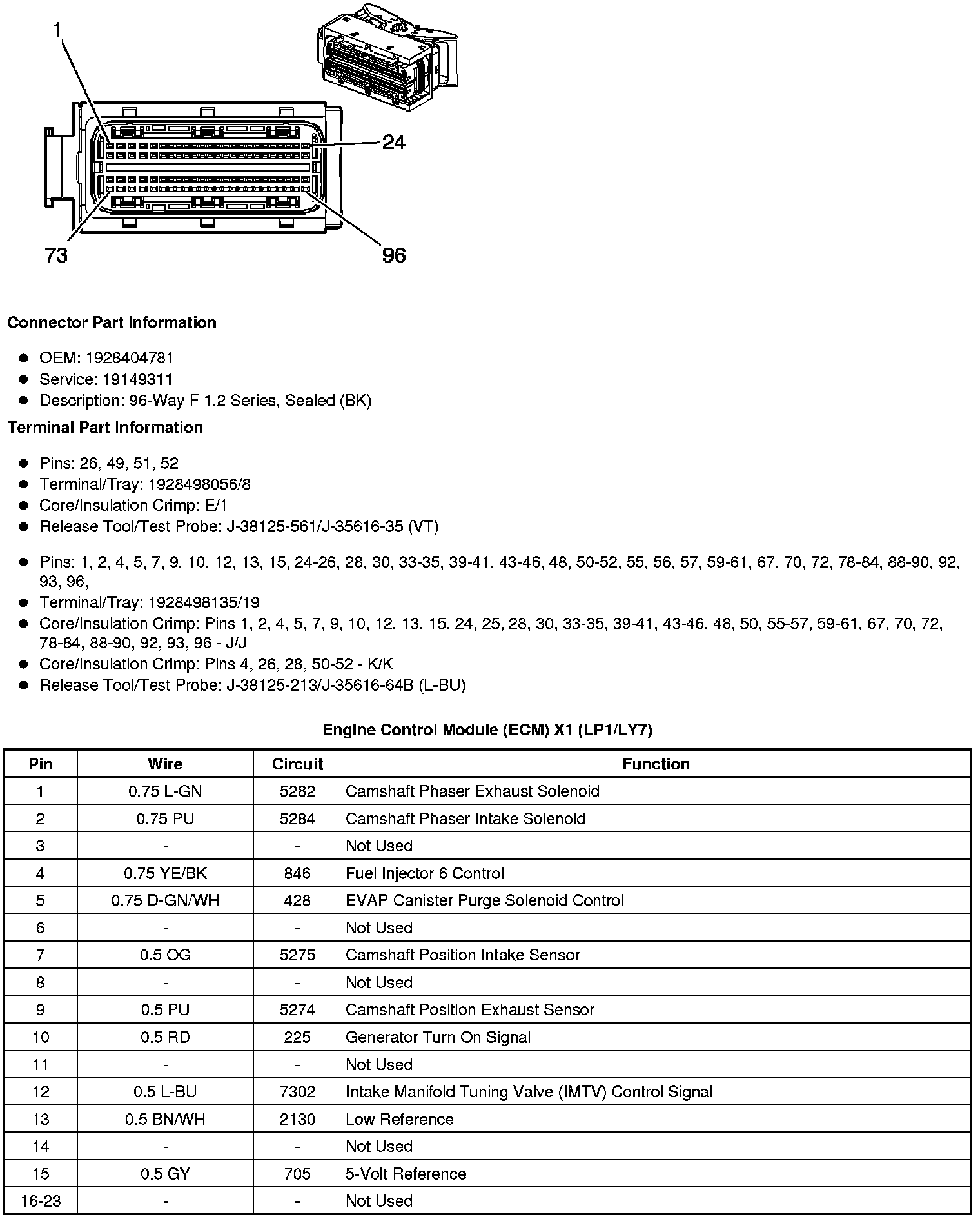

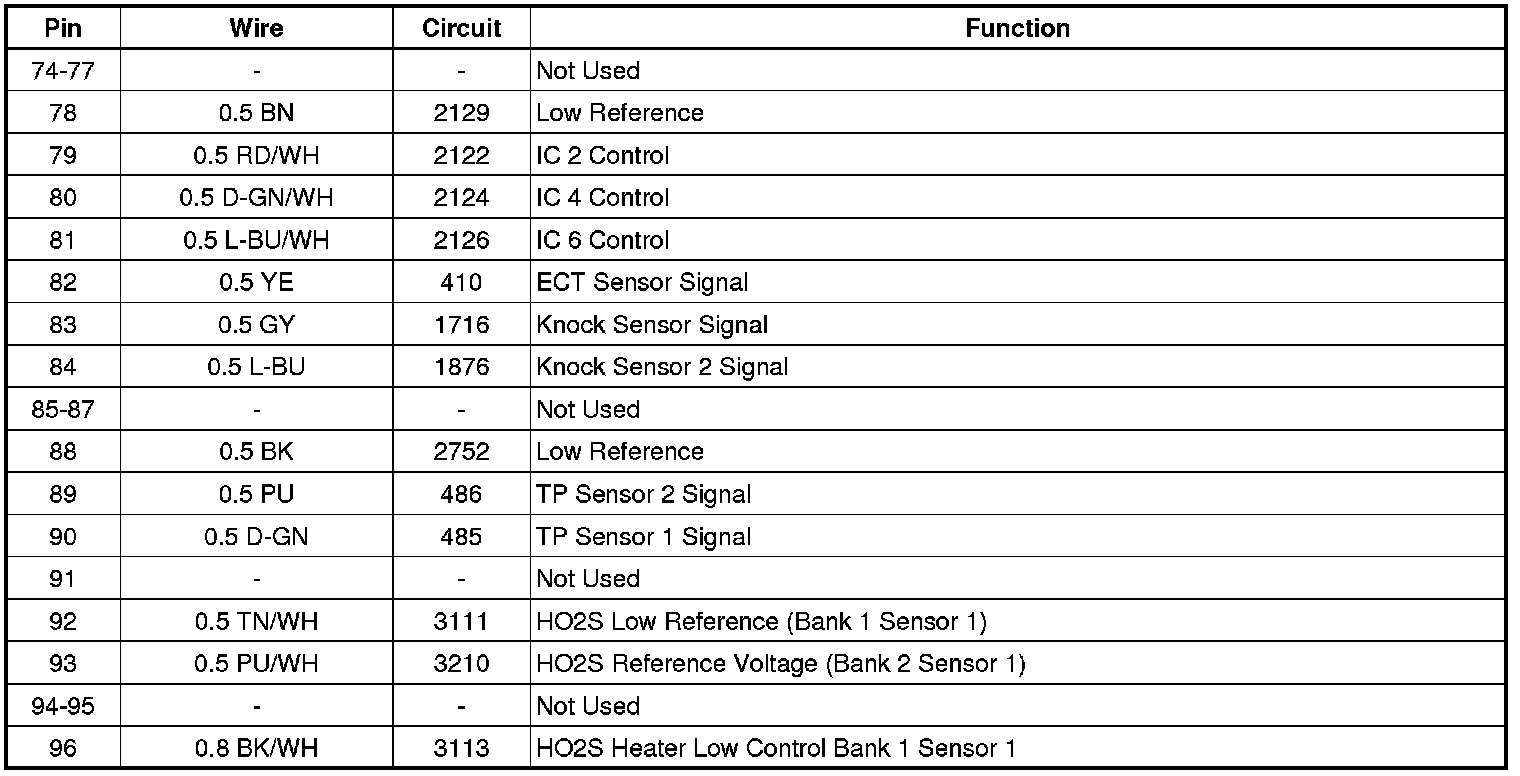

Engine Control Module (ECM) X1 (LP1/LY7)

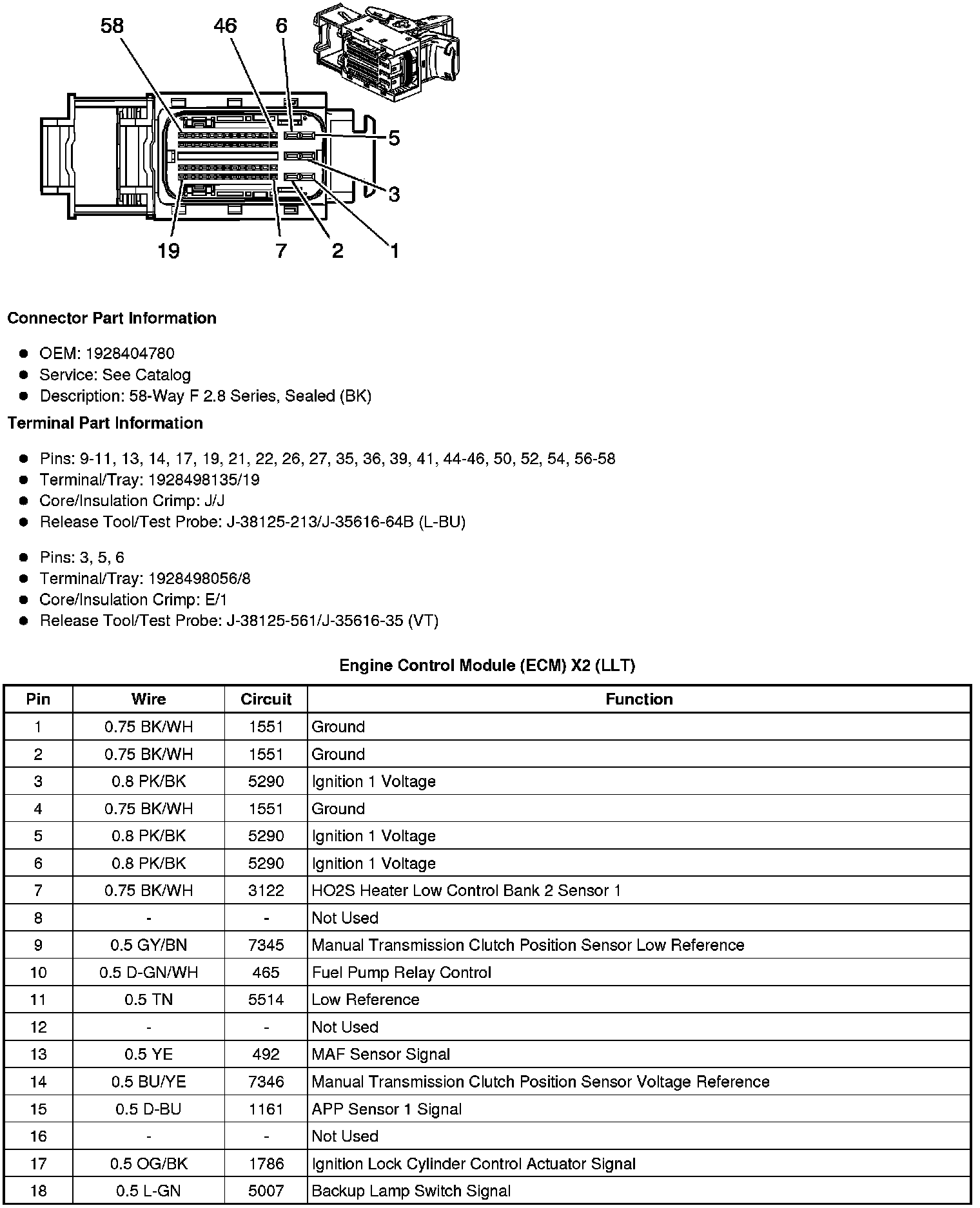

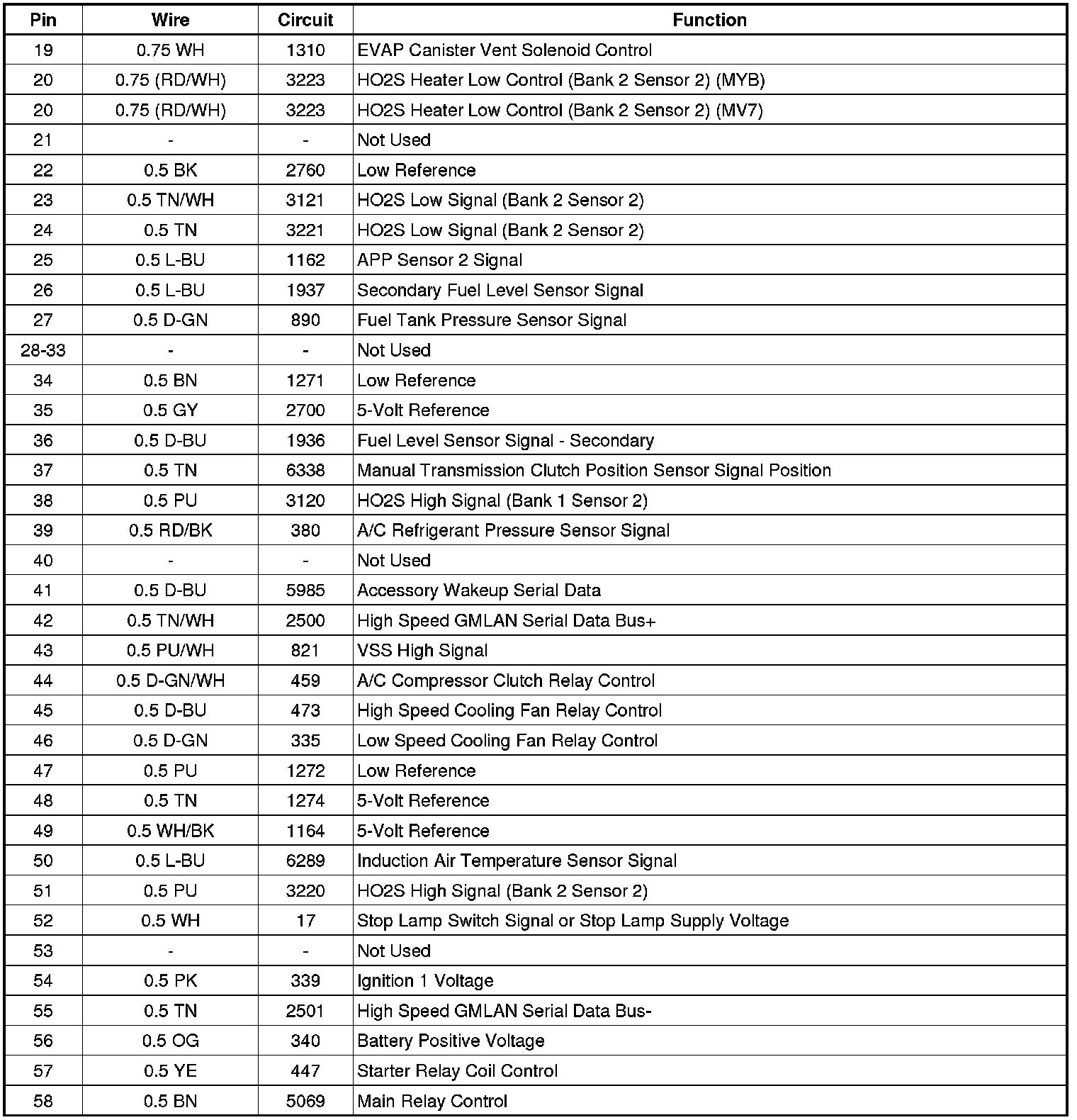

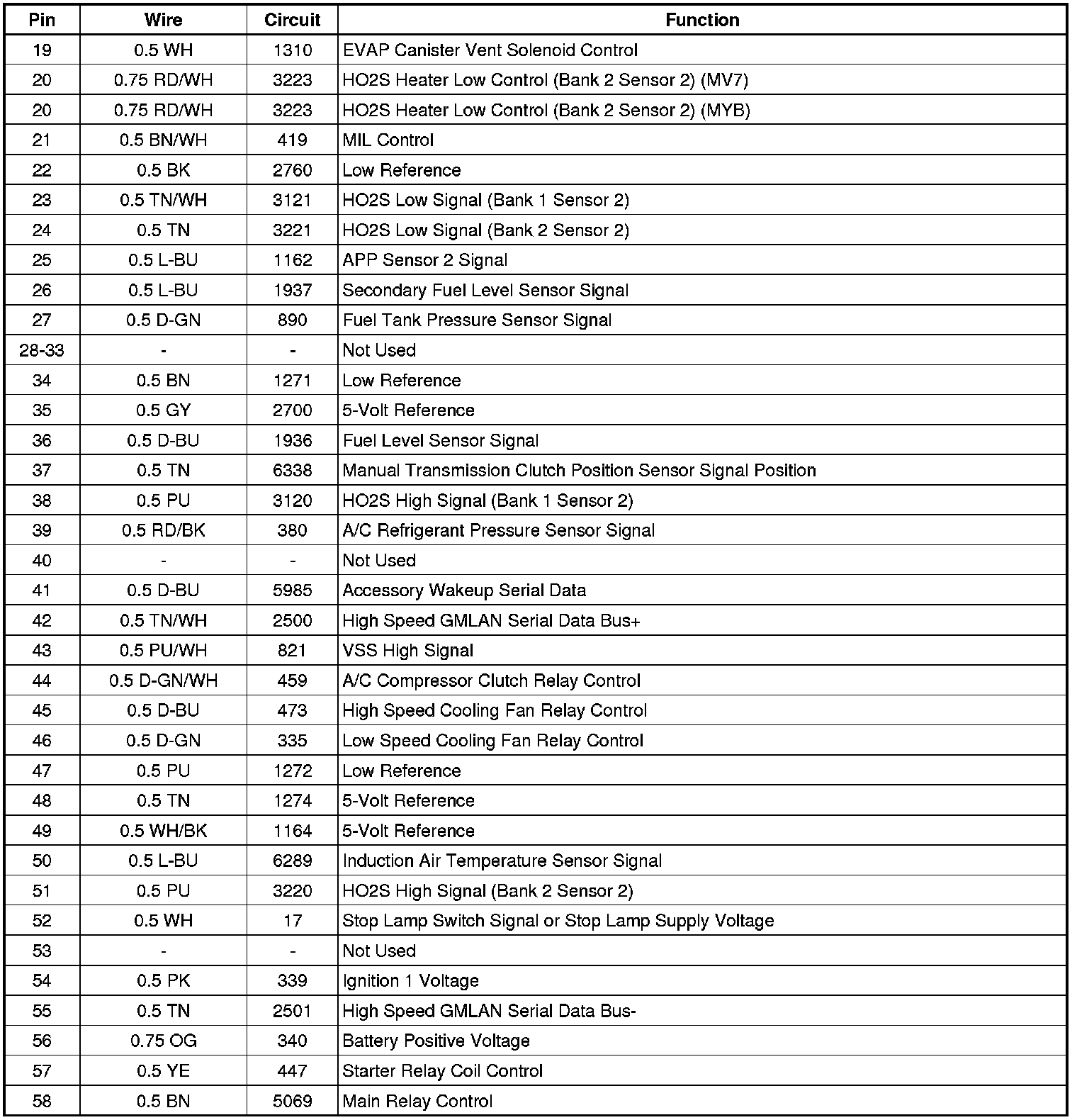

Engine Control Module (ECM) X2 (LLT)

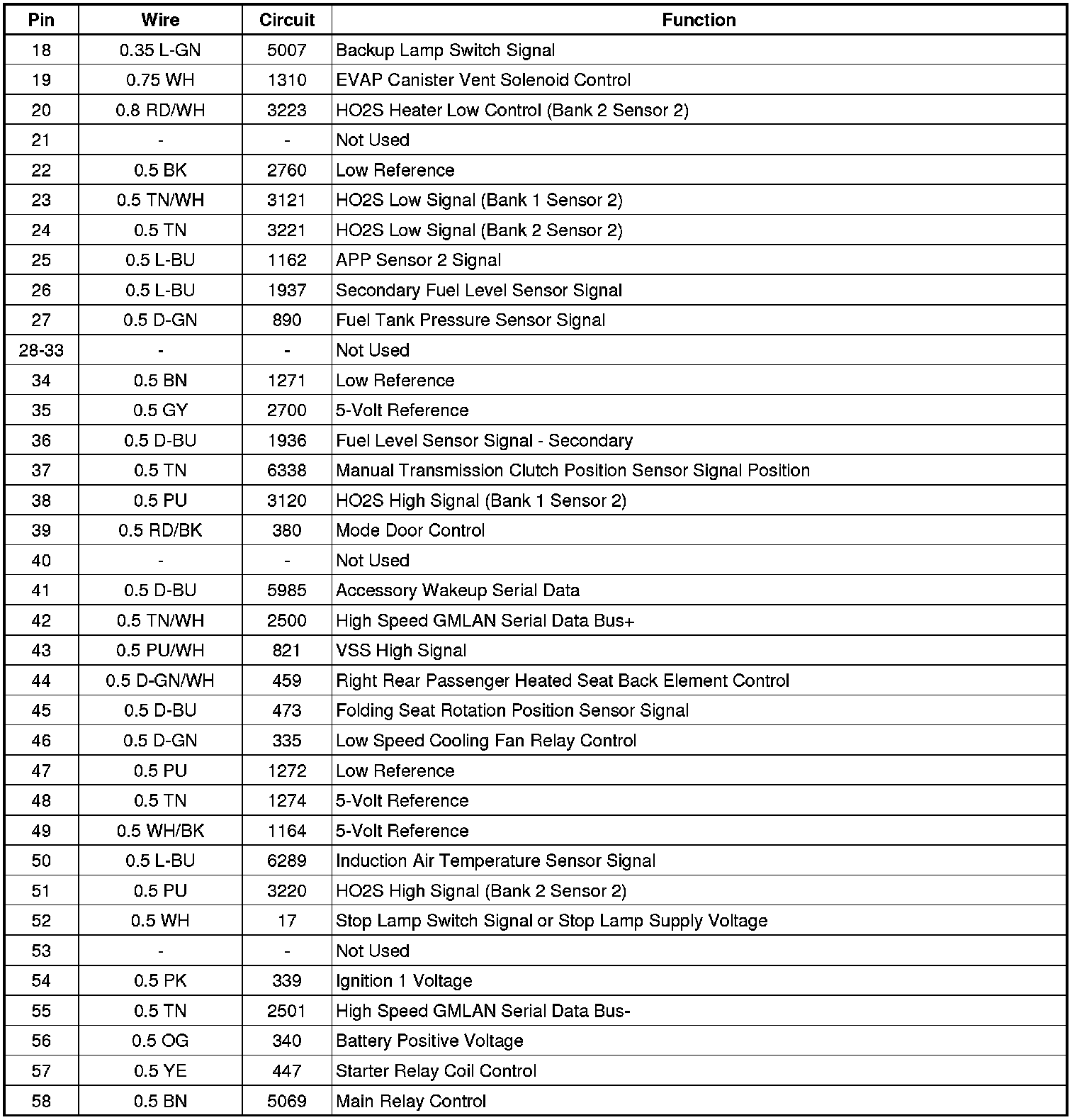

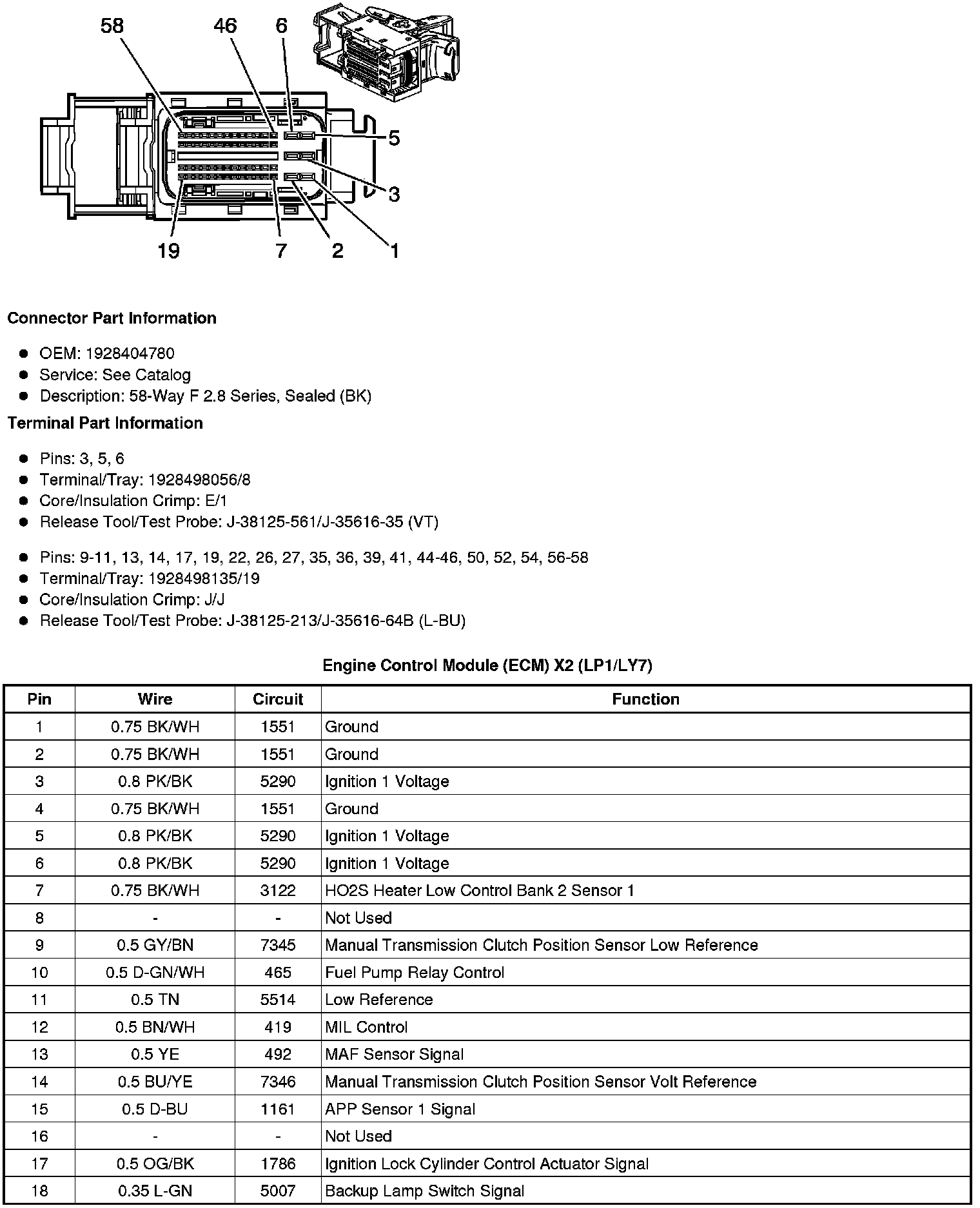

Engine Control Module (ECM) X2 (LP1/LY7)

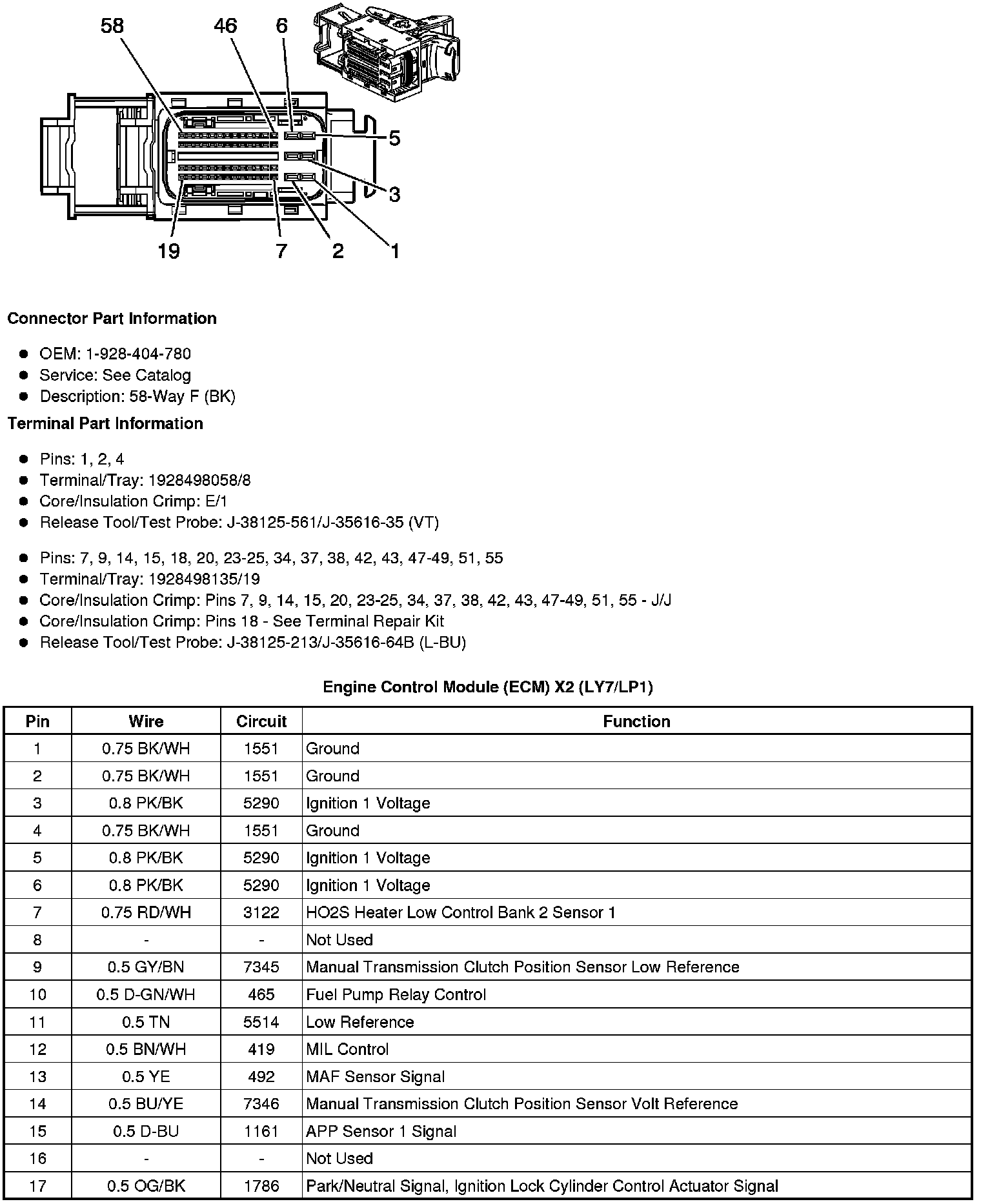

Engine Control Module (ECM) X2 (LY7/LP1)
