Control Module, Transfer Case
Control Module, Transfer Case

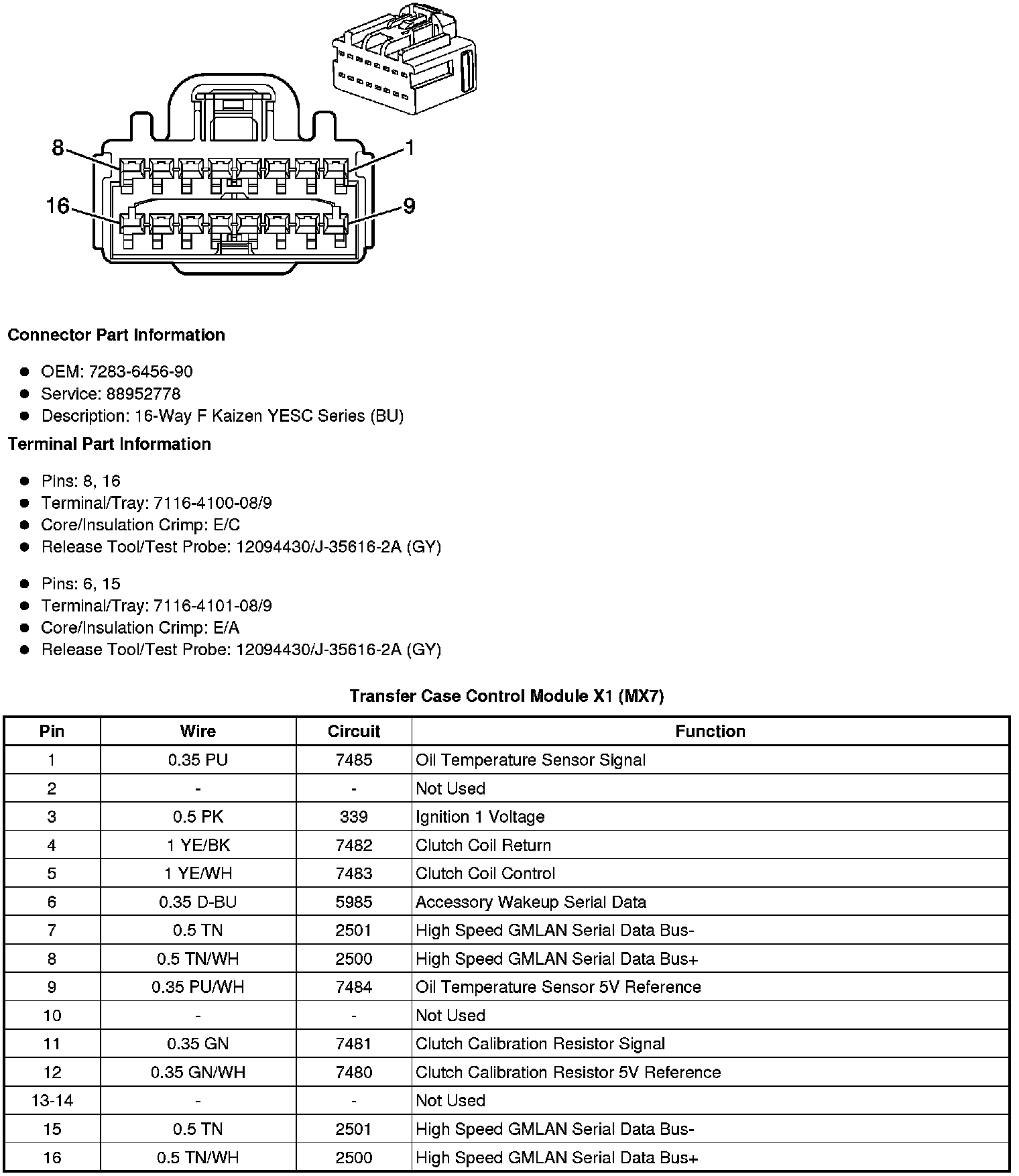

Transfer Case Control Module X1 (MX7)

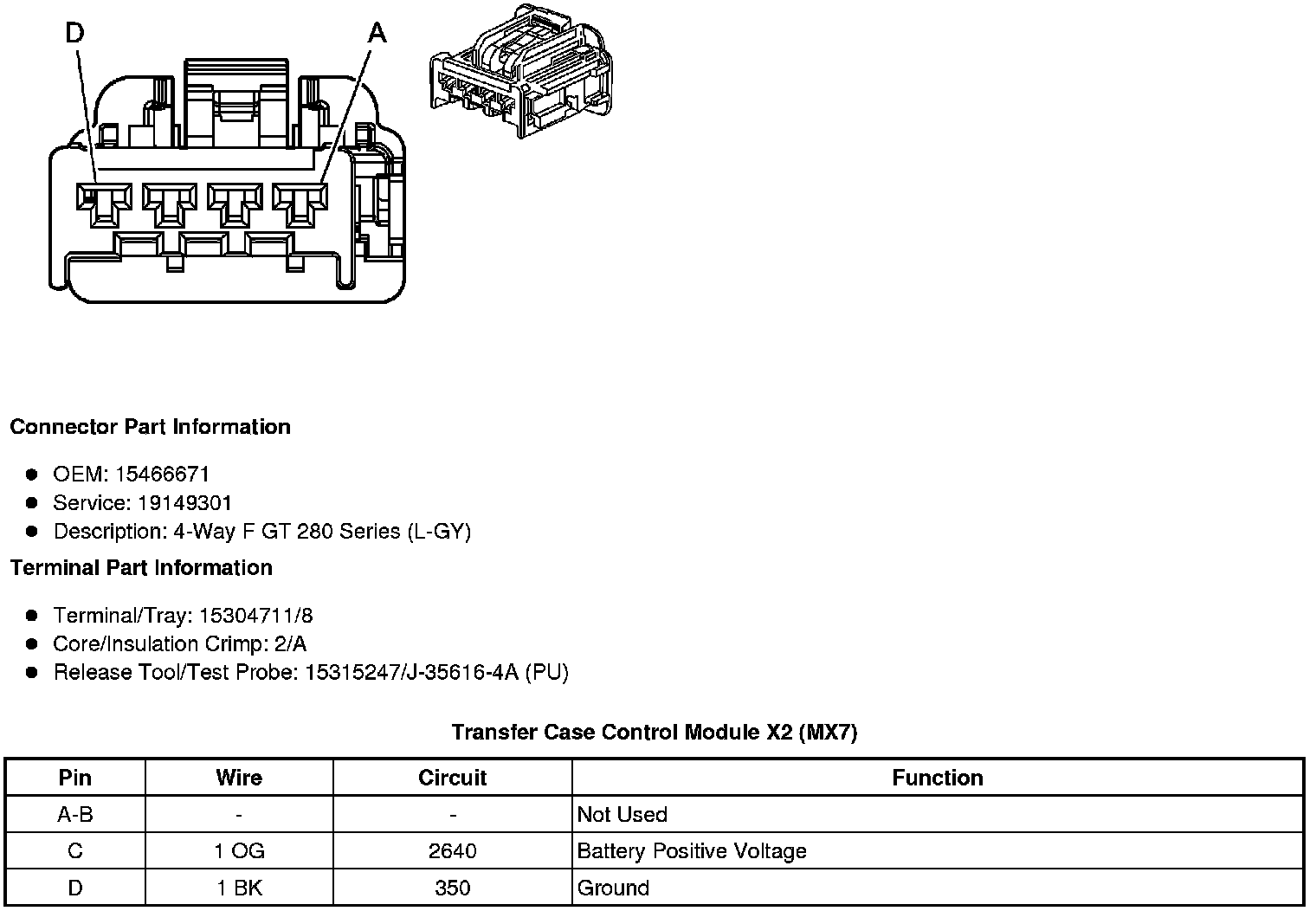

Transfer Case Control Module X2 (MX7)
