Air Bag Control Module
Air Bag Control Module

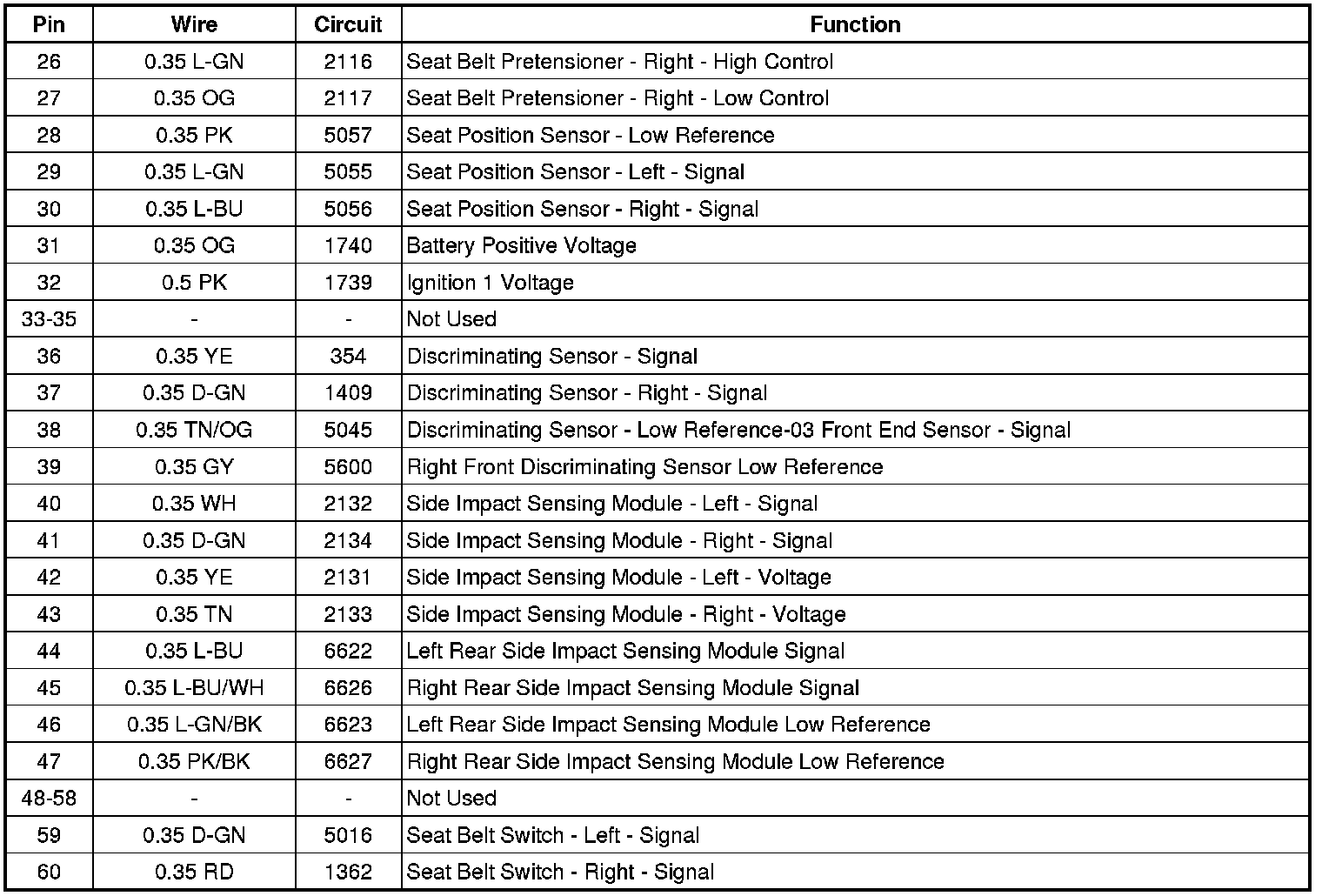

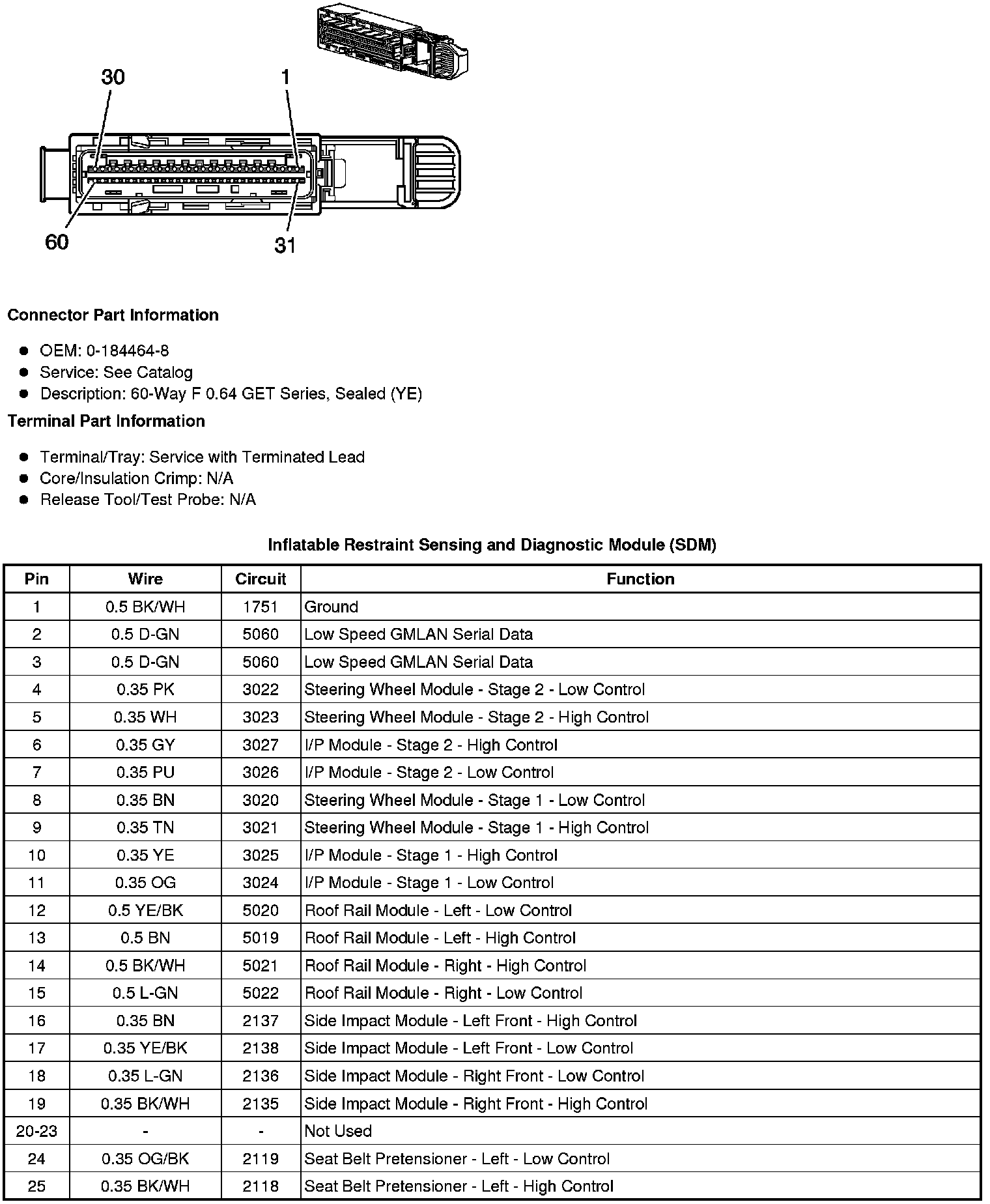

Inflatable Restraint Sensing and Diagnostic Module (SDM)
