Engine Control Module



Engine Control Module Connector End Views

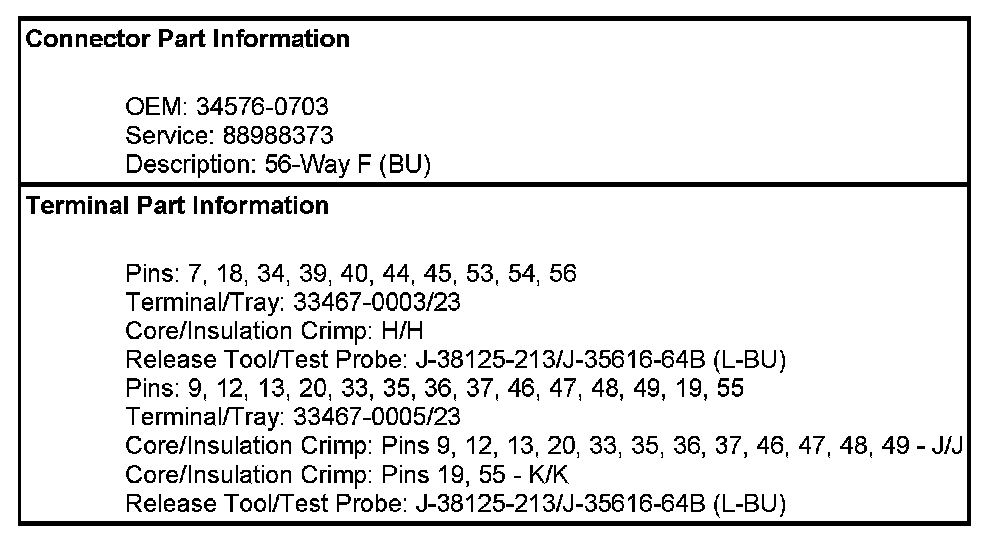

Engine Control Module (ECM) C1

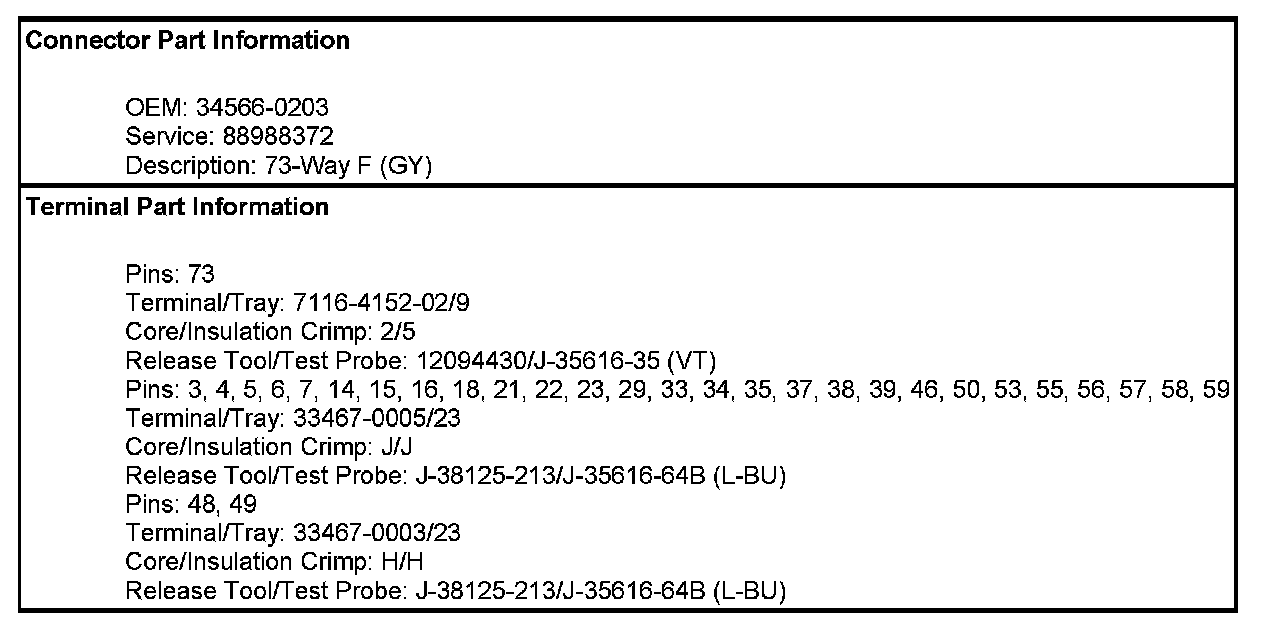

Engine Control Module (ECM) C2

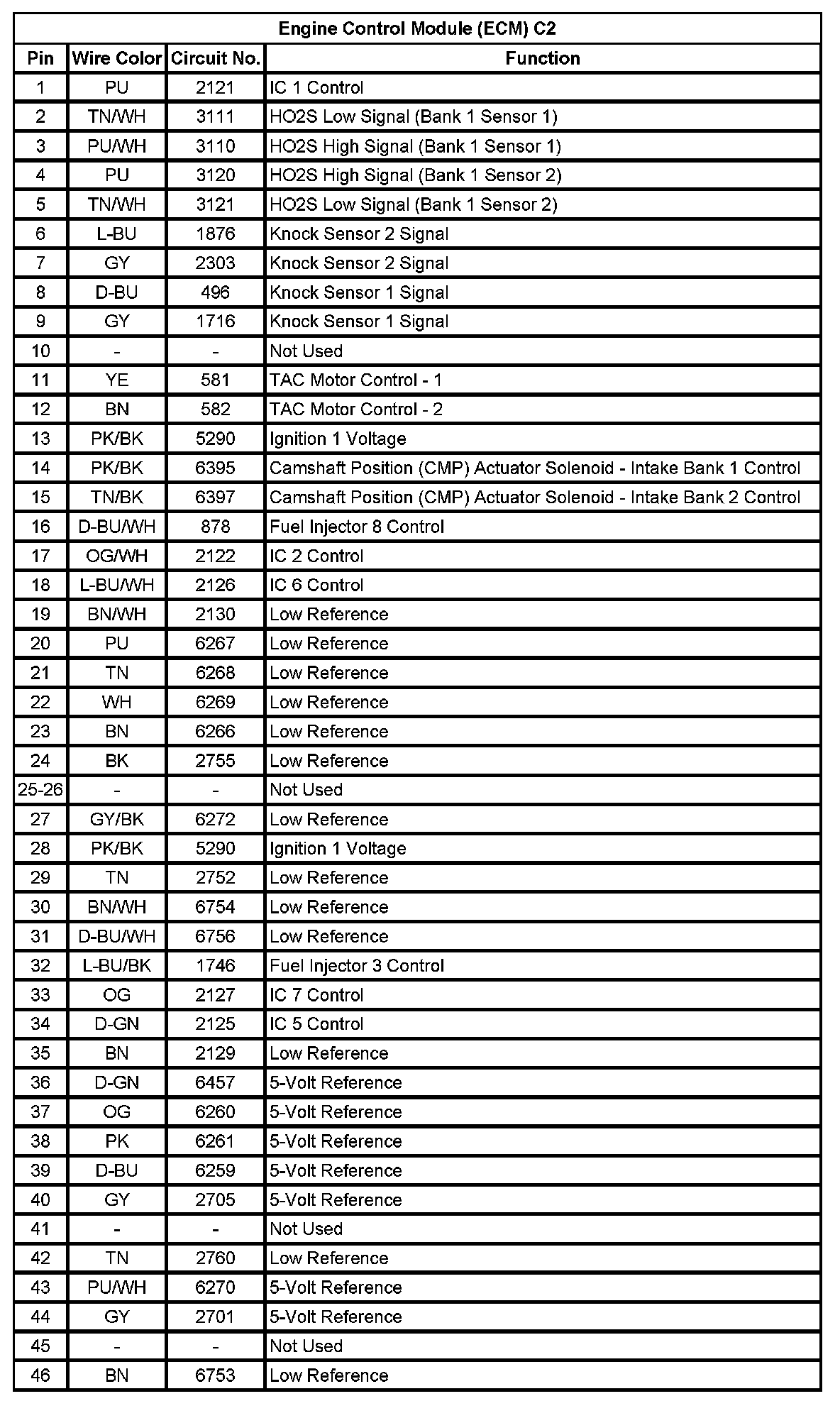

Engine Control Module (ECM) C2 (Pin 1 To 46):





Engine Control Module (ECM) C2 (Pin 47 To 73):

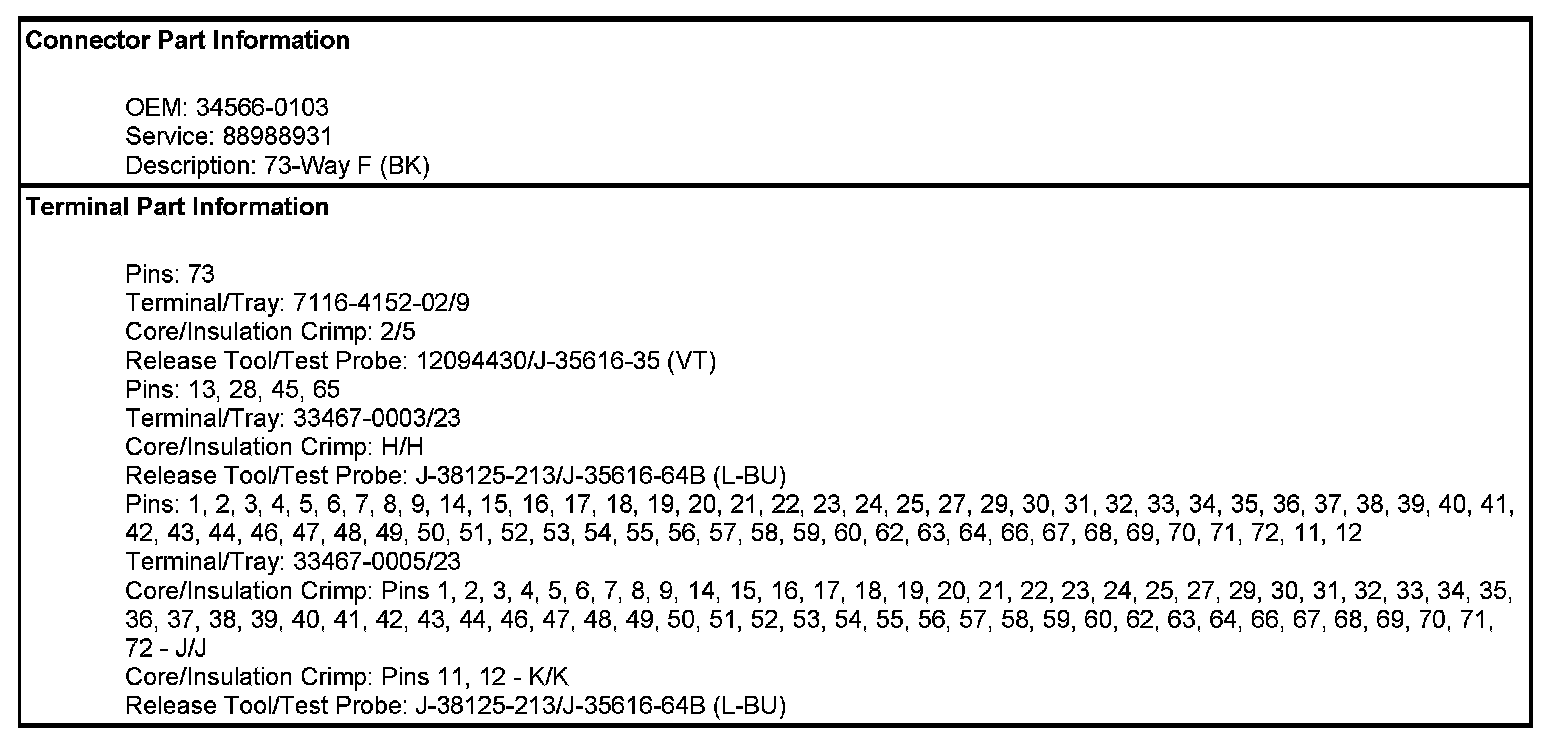

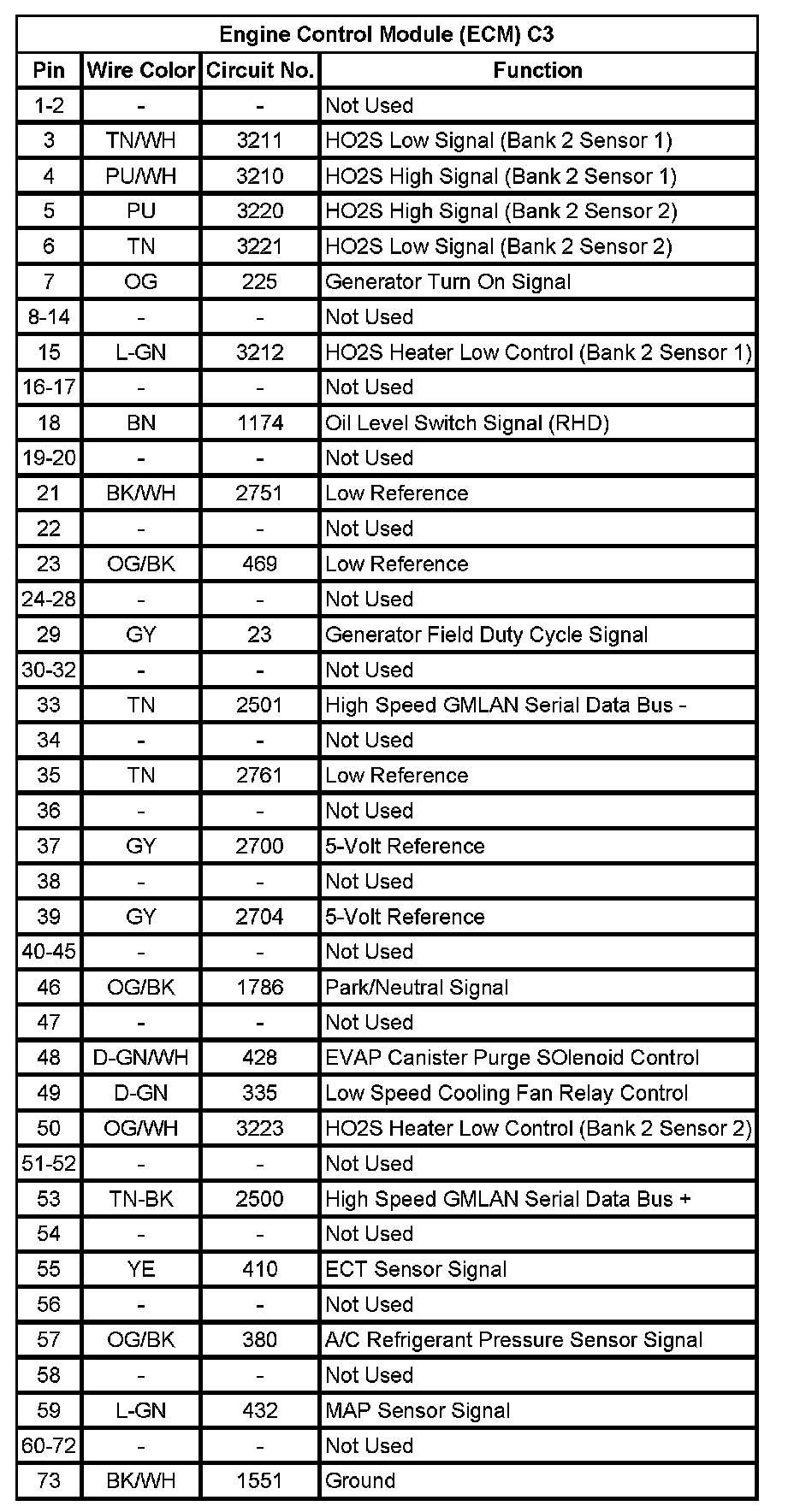

Engine Control Module (ECM) C3
