Air Flow Meter/Sensor: Locations



Engine Controls Component Views

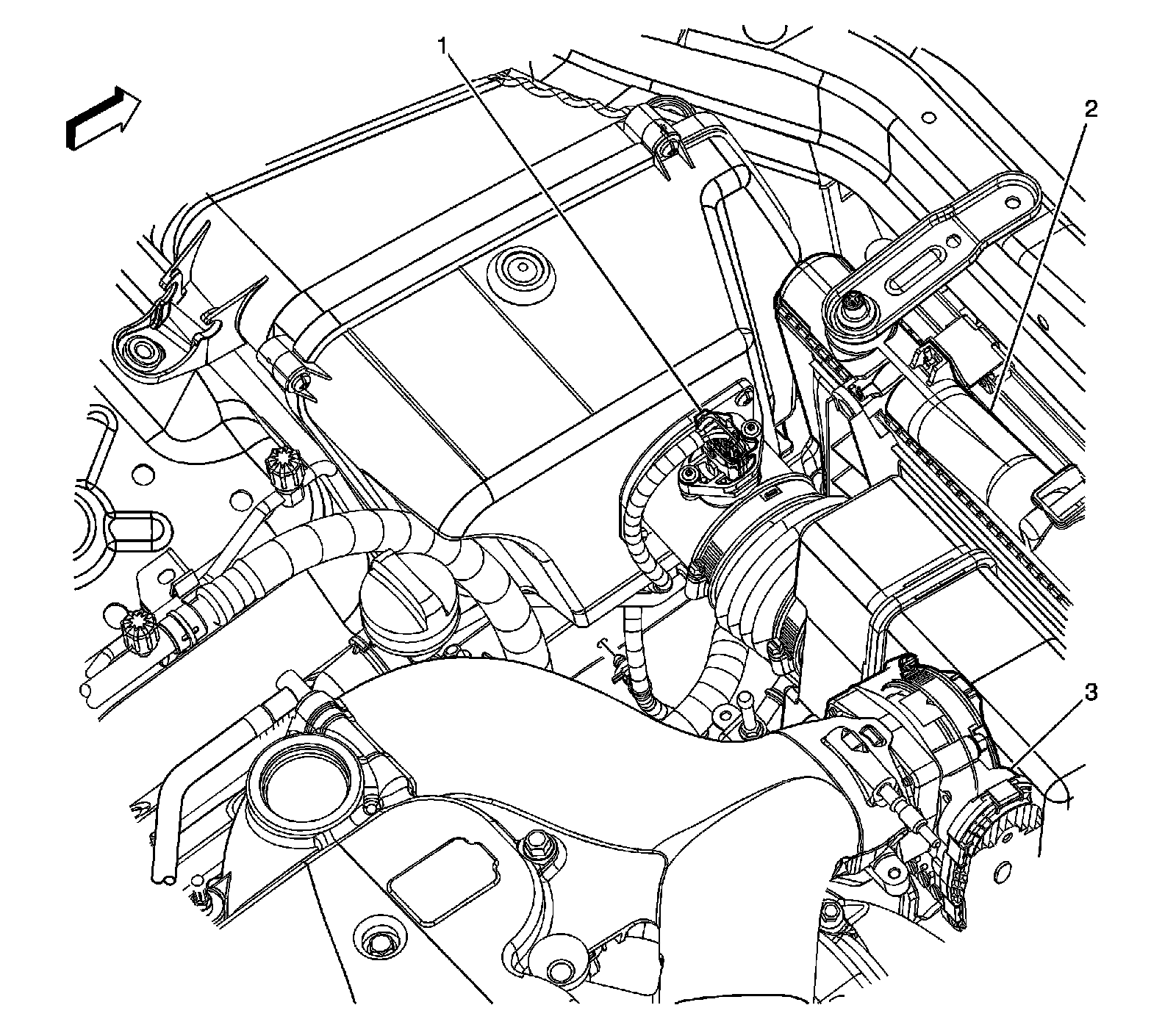

LF of Engine Compartment (LY7)




1 - Mass Air Flow (MAF) Sensor
2 - Radiator
3 - Throttle Body Assembly
