Engine Control Module: Locations

Engine Controls Component Views

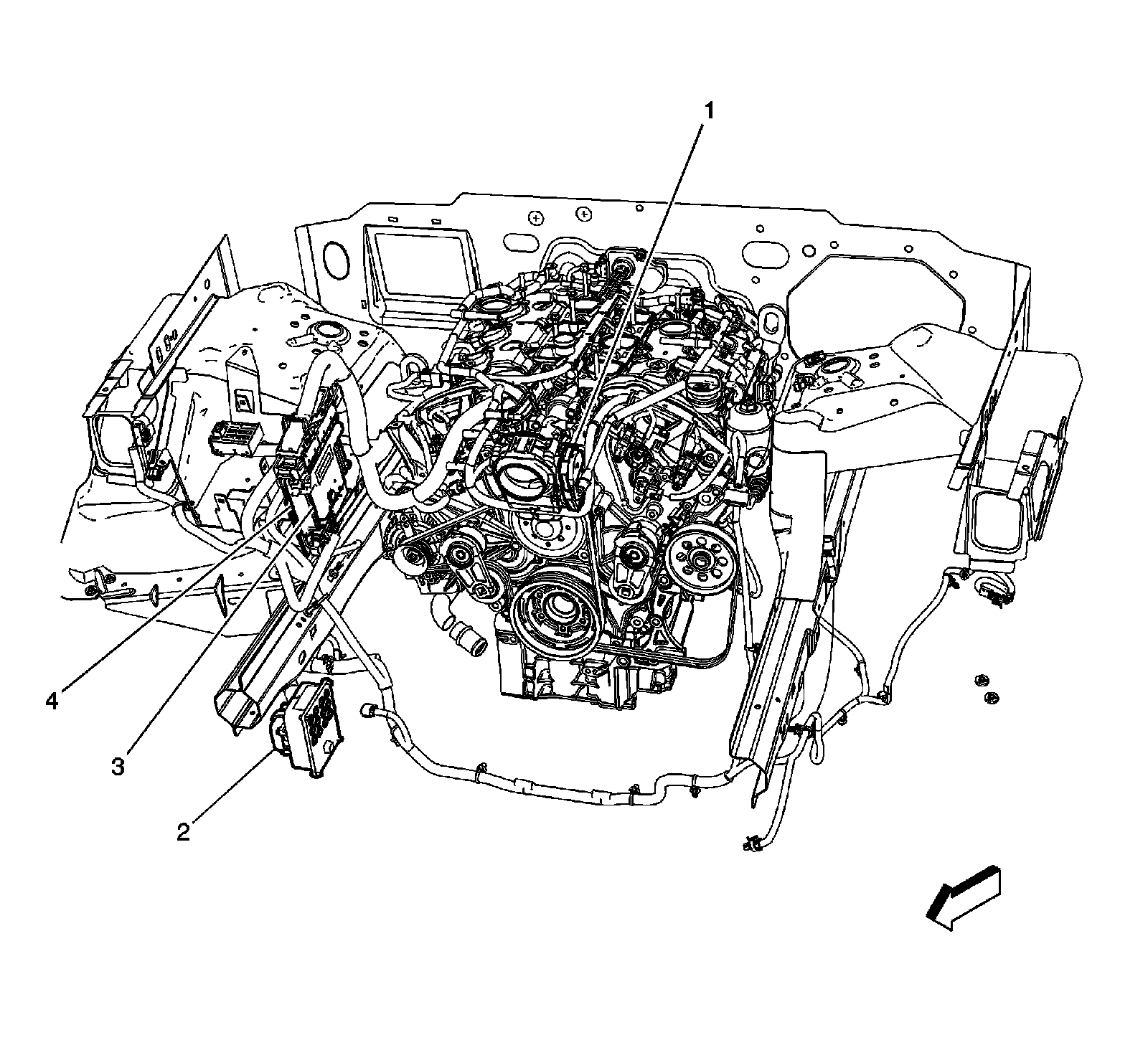

Right Front Engine Compartment - LY7




1 - Throttle Actuator Control (TAC) Module
2 - Electronic Brake Control Module (EBCM)
3 - Transmission Control Module (TCM)
4 - Engine Control Module (ECM)
