Air Flow Meter/Sensor: Locations

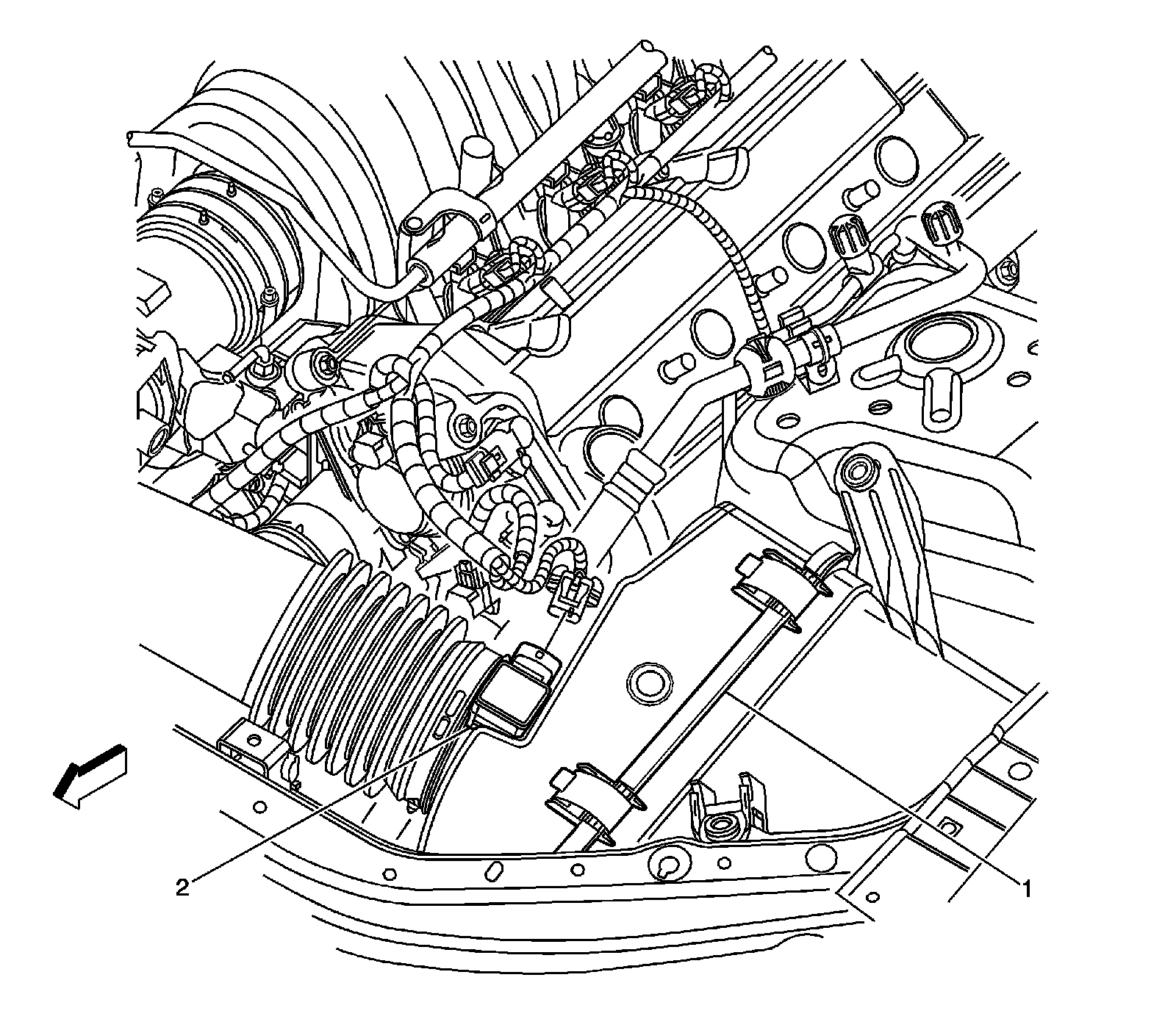

Engine Controls Component Views

Top Right of the Engine




1 - Air Cleaner
2 - Mass Air Flow (MAF) Sensor
