Suspension Control Module
Electronic Suspension Control Connector End Views
Electronic Suspension Control (ESC) Module:

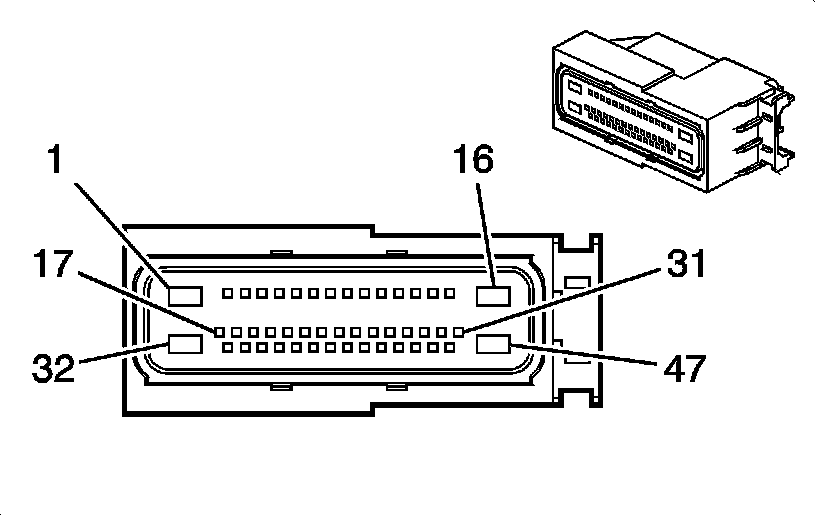

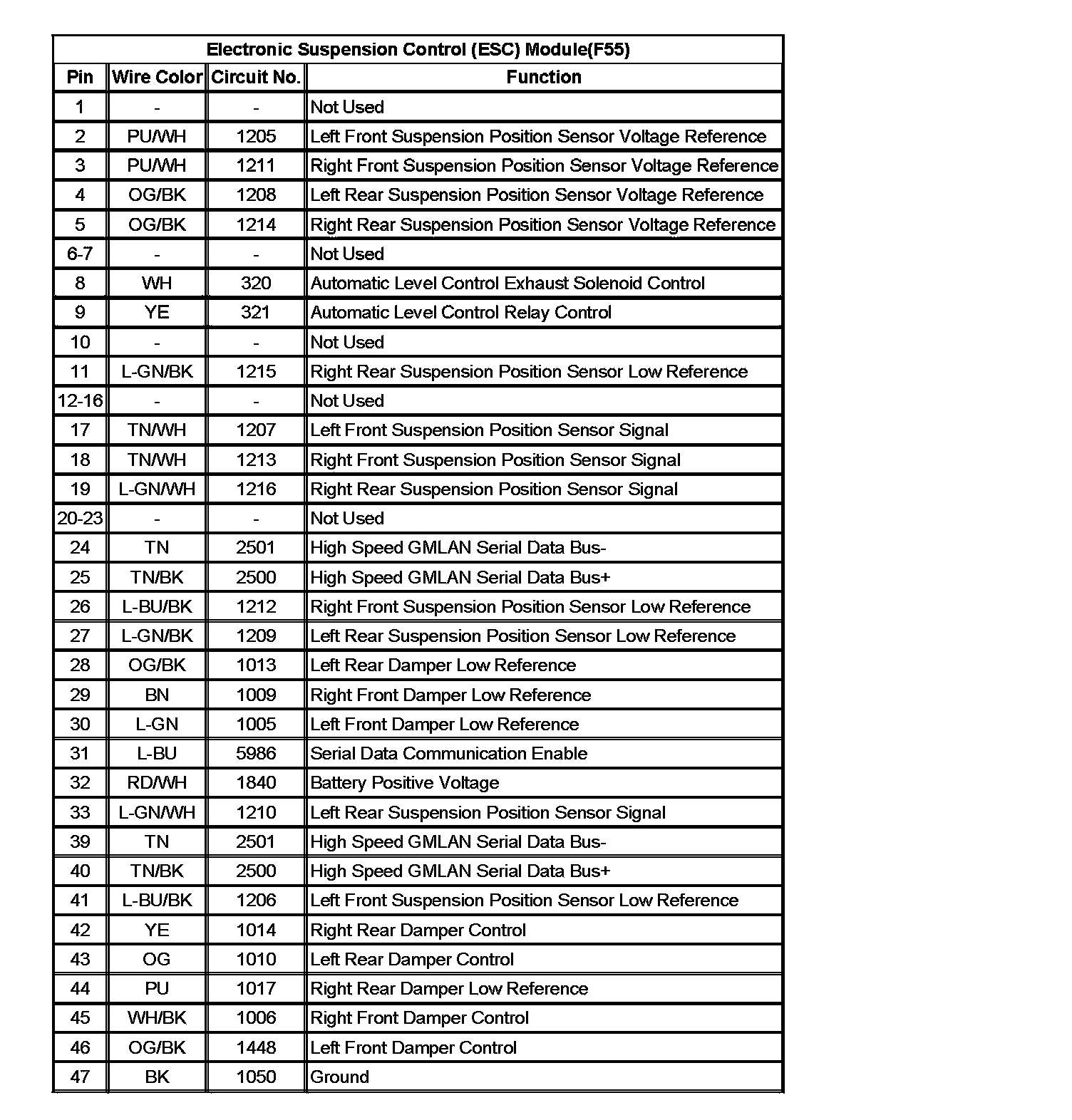

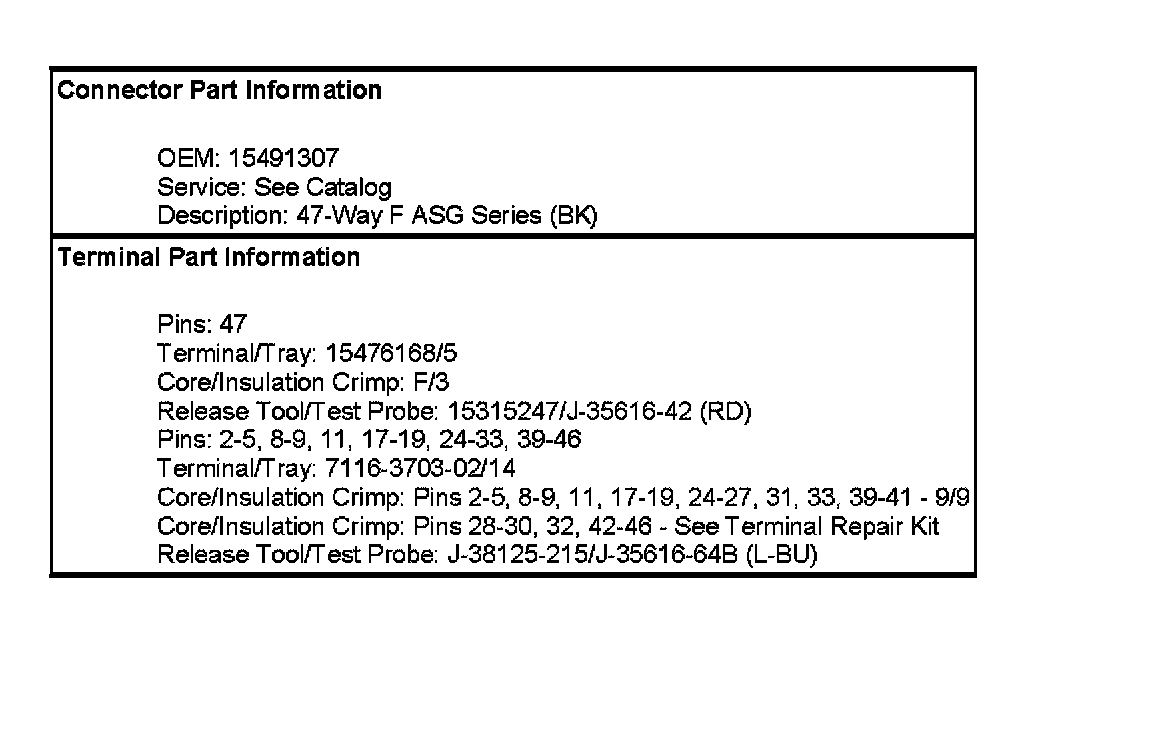

Electronic Suspension Control (ESC) Module (F55):
