Power Trunk / Liftgate Control Module



Vehicle Access Connector End Views

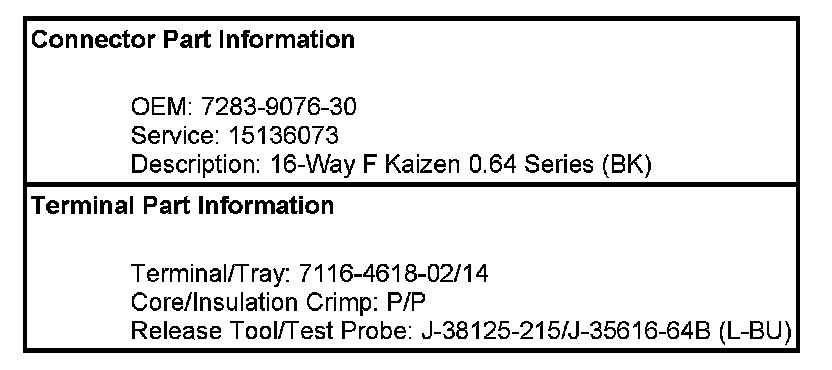

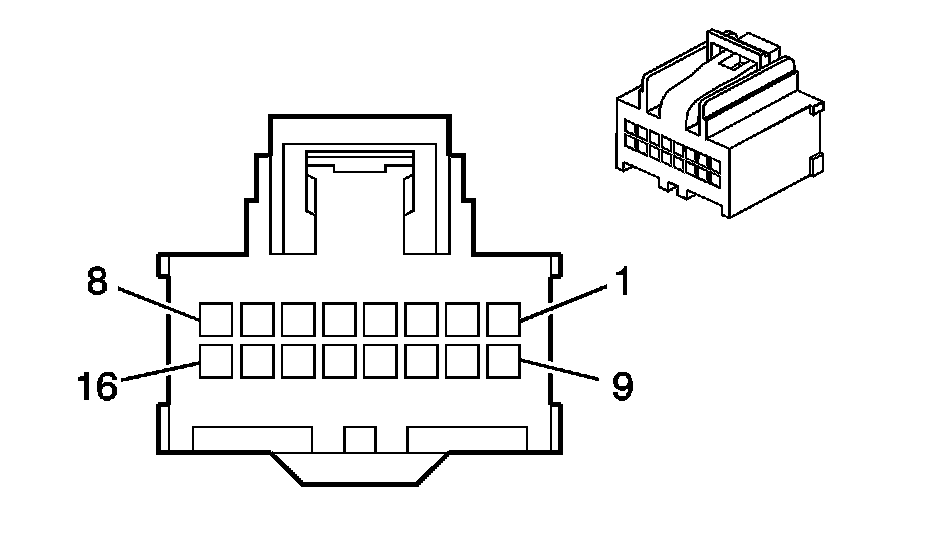

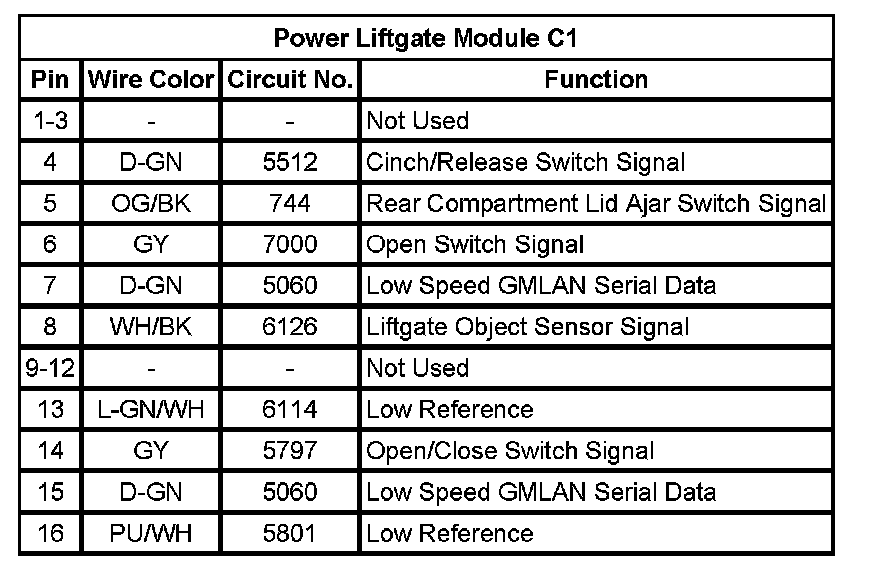

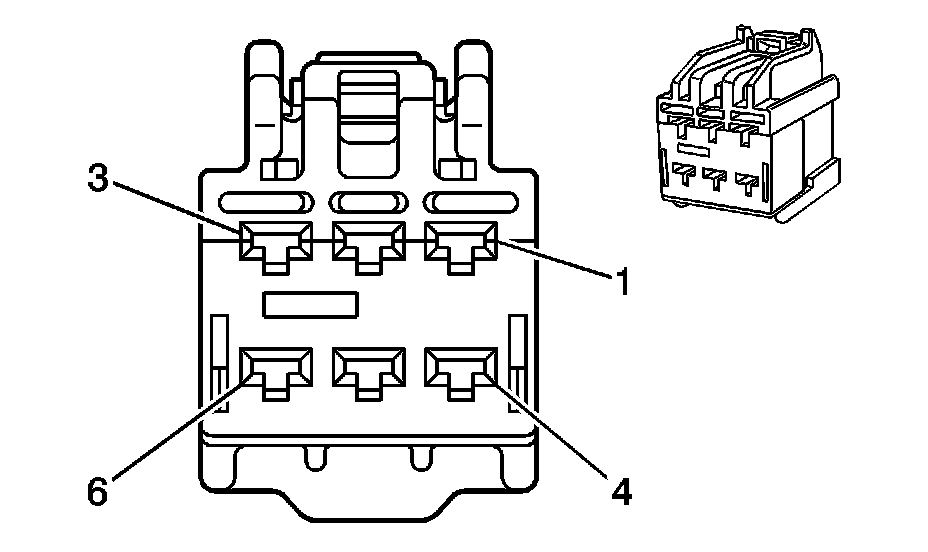

Power Liftgate Module C1

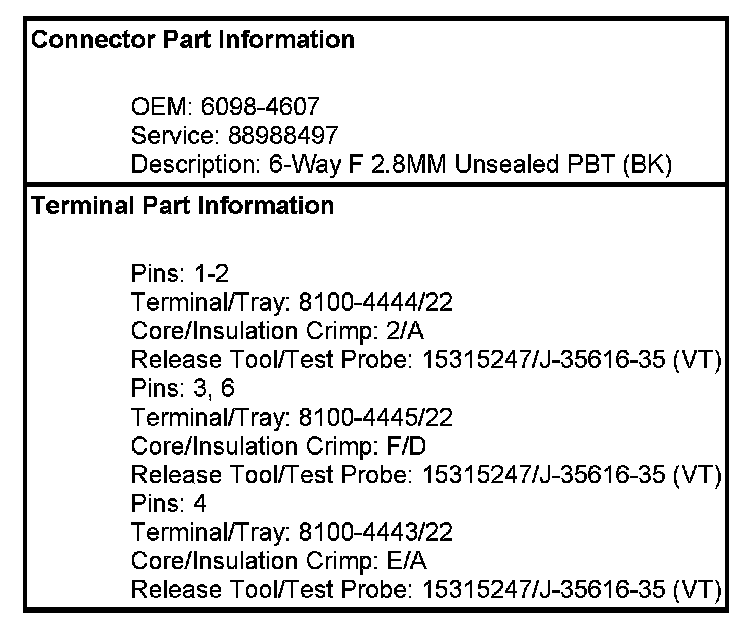

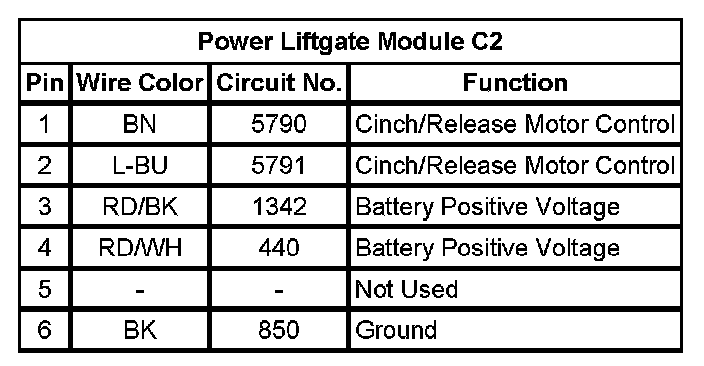

Power Liftgate Module C2

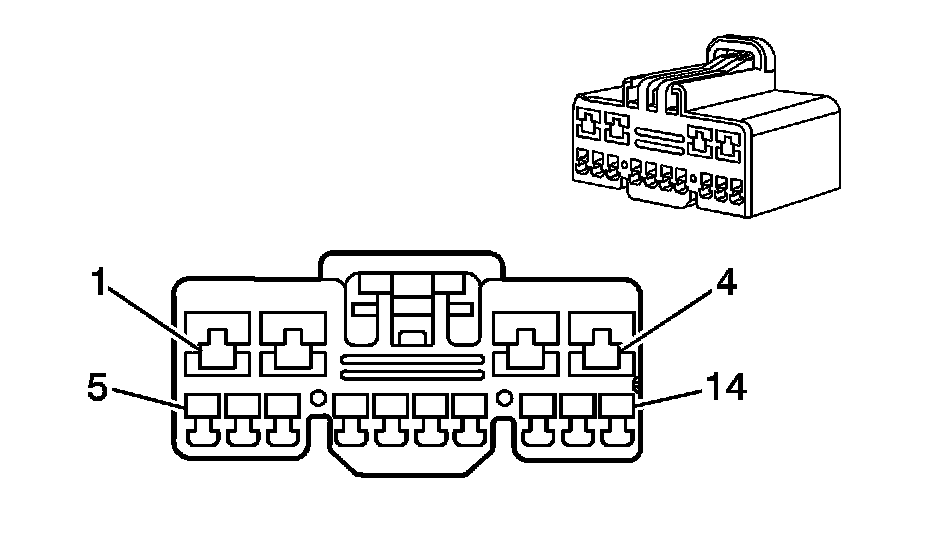

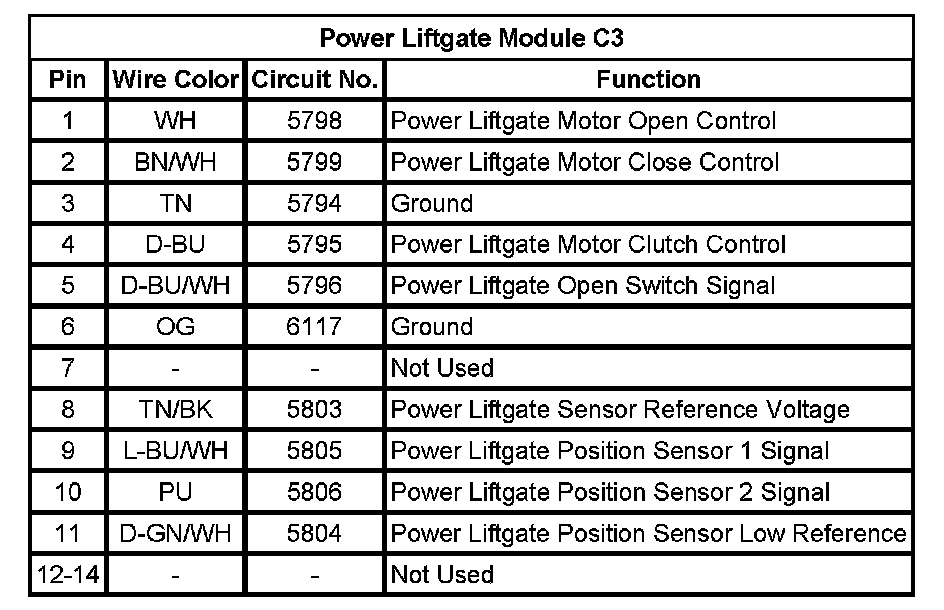

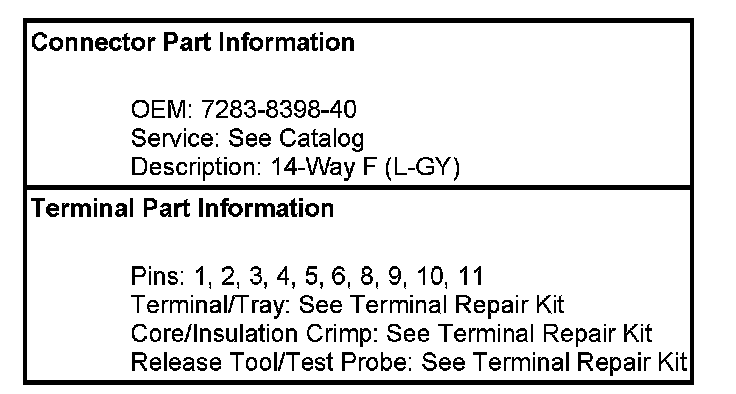

Power Liftgate Module C3
