Electronic Throttle Control Module
Electronic Throttle Control Module
Engine Controls Connector End Views

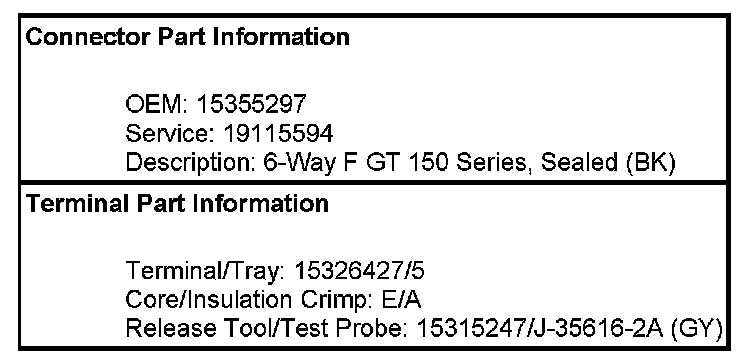

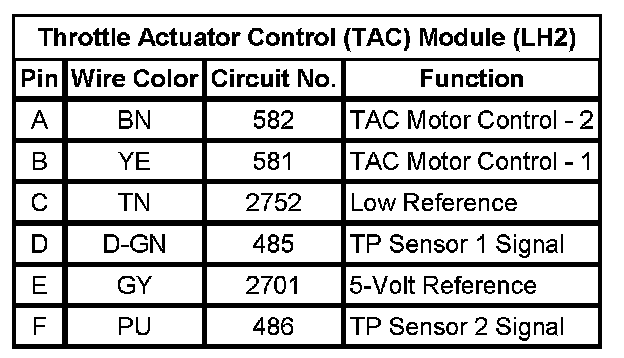

Throttle Actuator Control (TAC) Module (LH2)
