Home >> Cadillac >> 2007 >> SRX AWD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

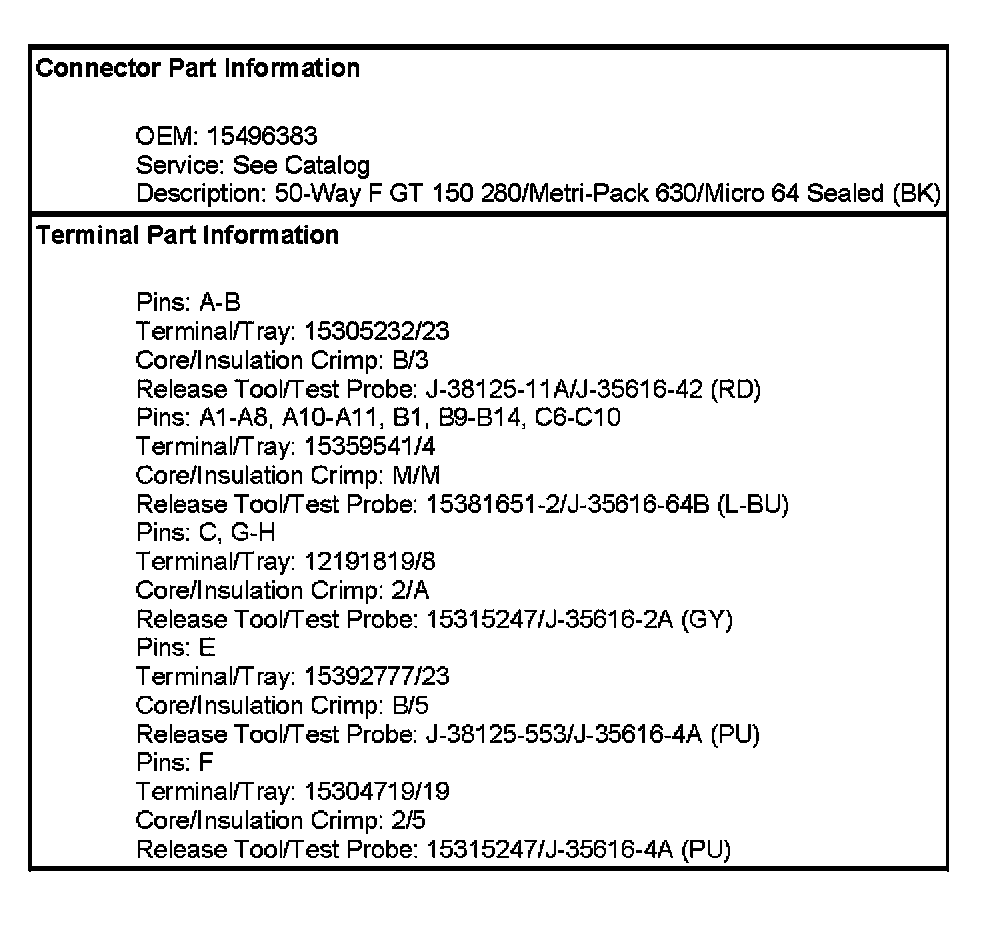

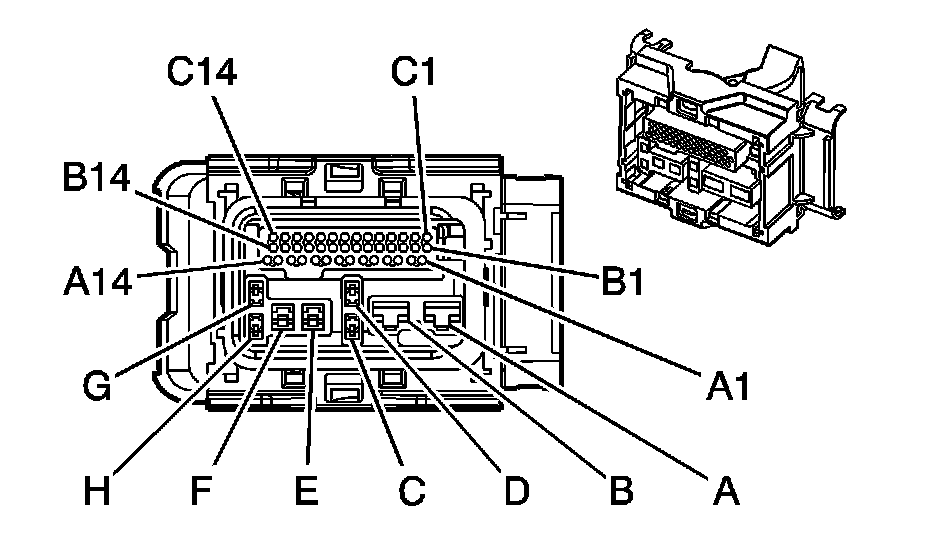

Electronic Brake Control Module (EBCM) (LH2)

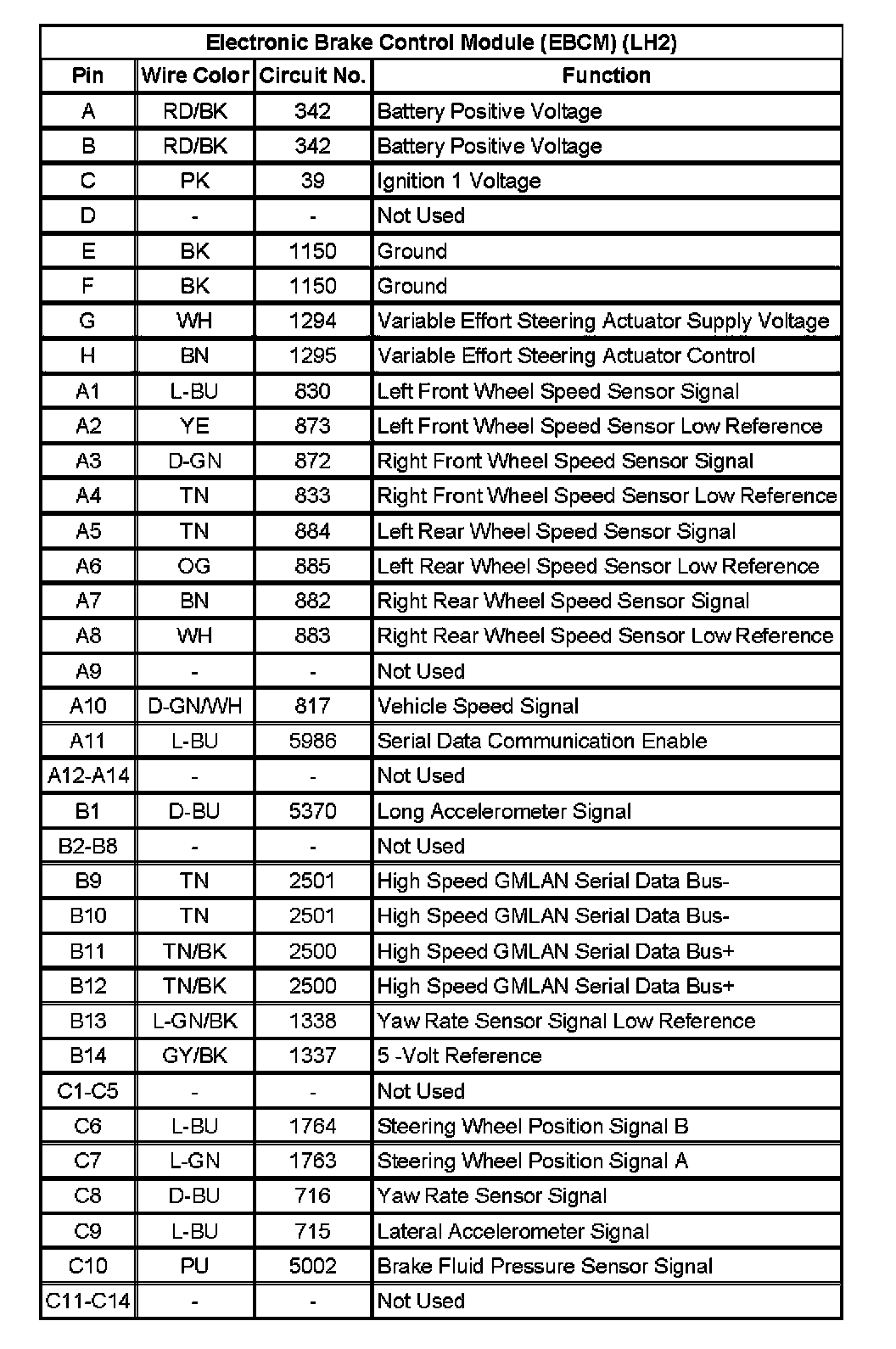

Electronic Brake Control Module (EBCM) (LH2):
