Home >> Cadillac >> 2007 >> Escalade AWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module

Parking Assist Control Module

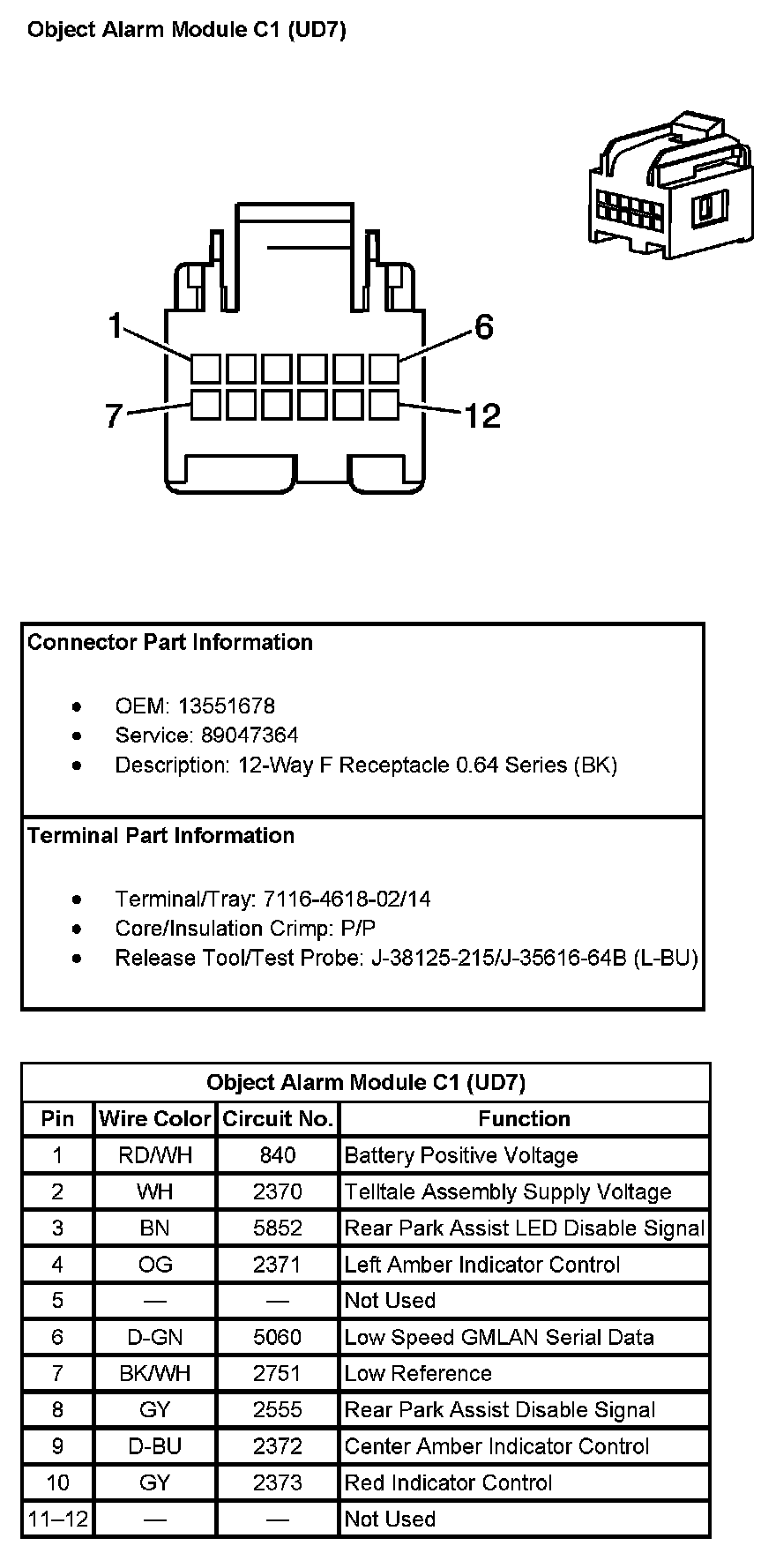

Object Alarm Module C1 (With RPO Code UD7):

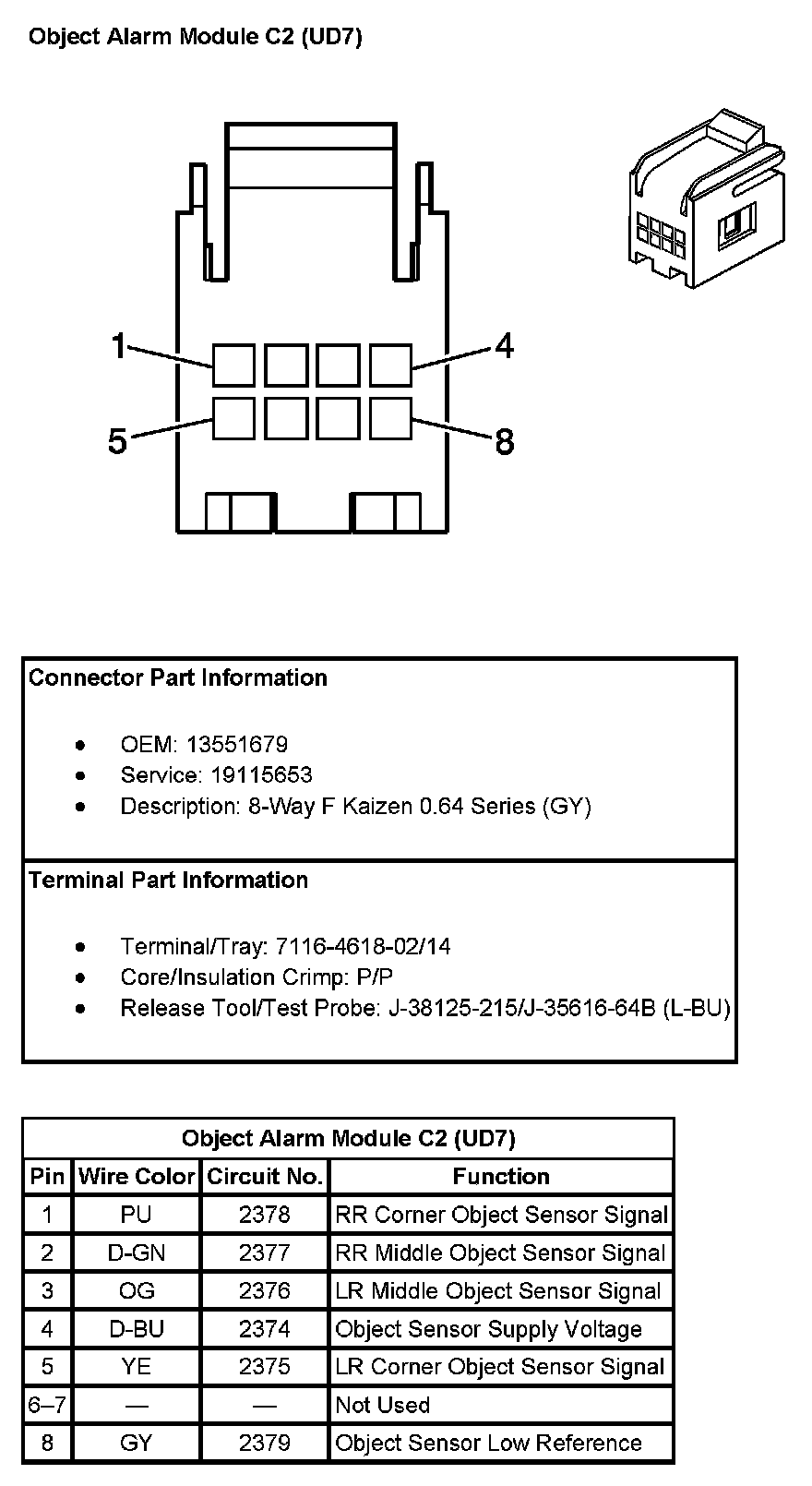

Object Alarm Module C2 (With RPO Code UD7):
