Battery Current Sensor: Locations

Engine Electrical Component Views

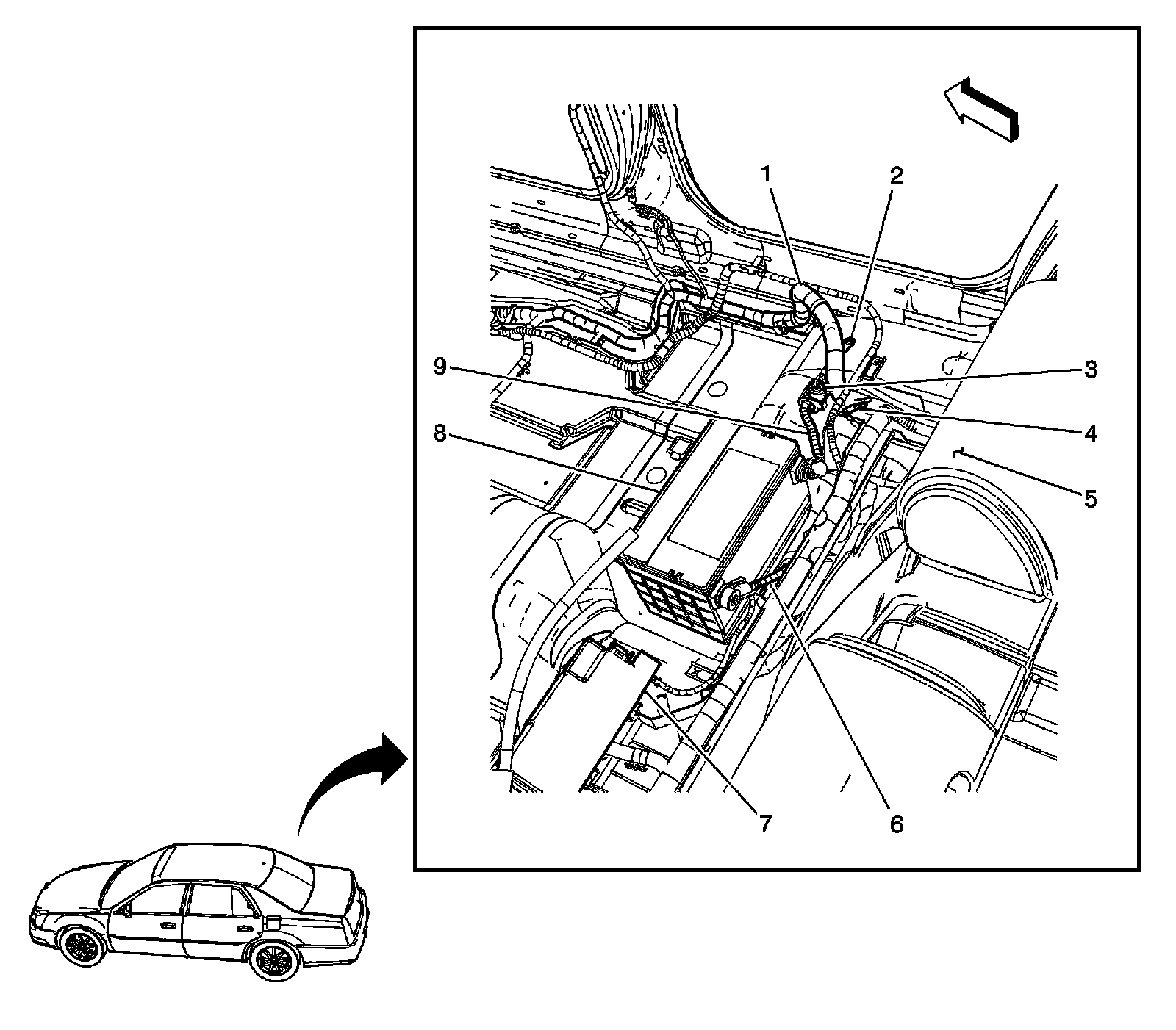

Under Passenger Seat - RR

Under Passenger Seat-RR:

1 - Body Harness
2 - G303
3 - Battery Current Sensor
4 - C124 Negative Battery Cable to Body Harness
5 - Rear Seat Back Cushion
6 - Battery Positive Cable
7 - Fuse Block - Rear
8 - Battery
9 - Negative Battery Cable
