Home >> Cadillac >> 2007 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light

Lighting Systems Connector End Views

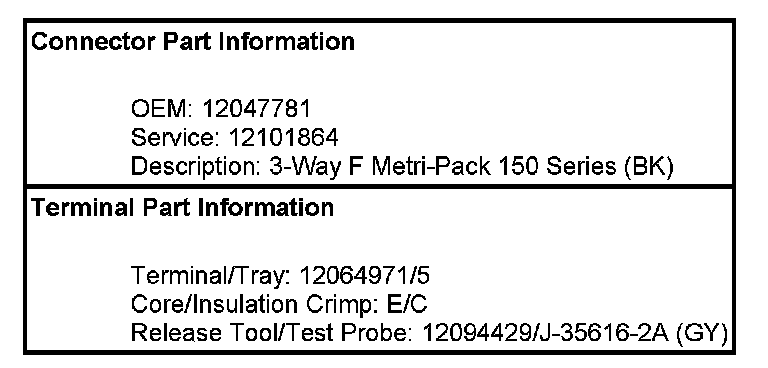

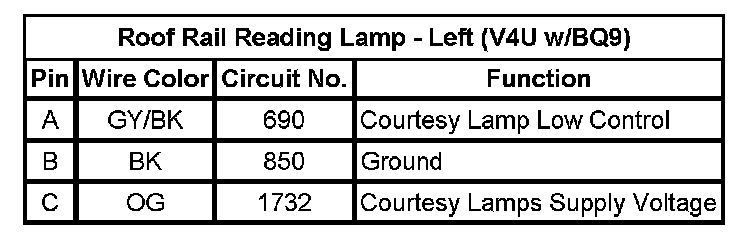

Roof Rail Reading Lamp - Left (V4U w/BQ9)

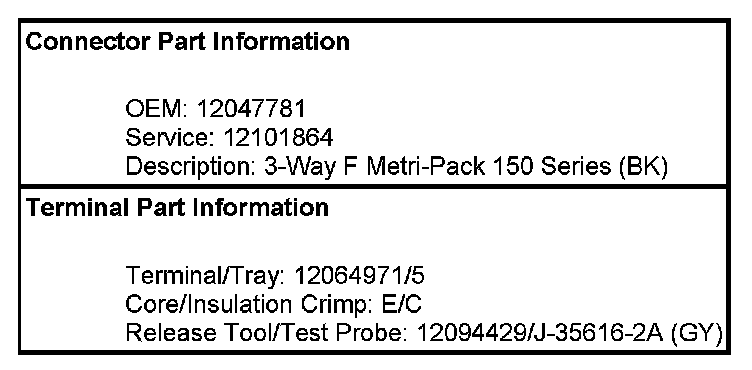

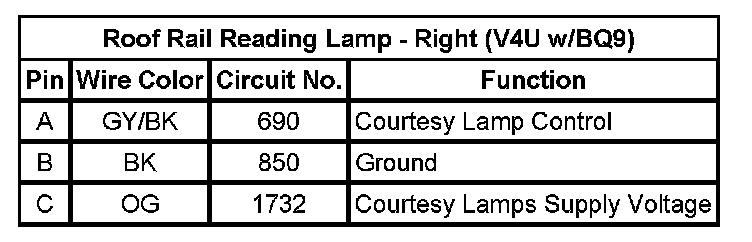

Roof Rail Reading Lamp - Right (V4U w/BQ9)
