Ignition Control Module

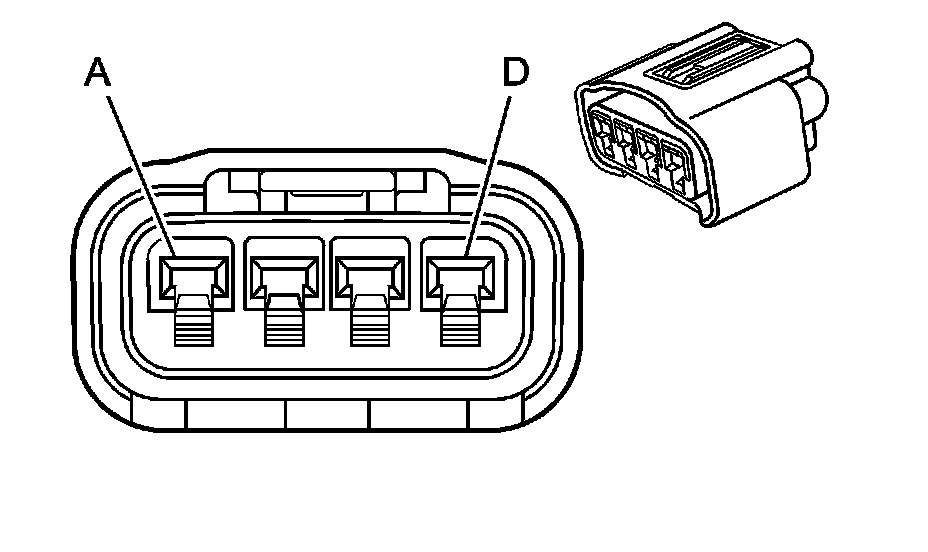

Engine Controls Connector End Views

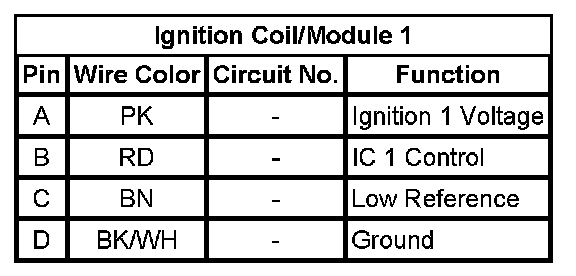

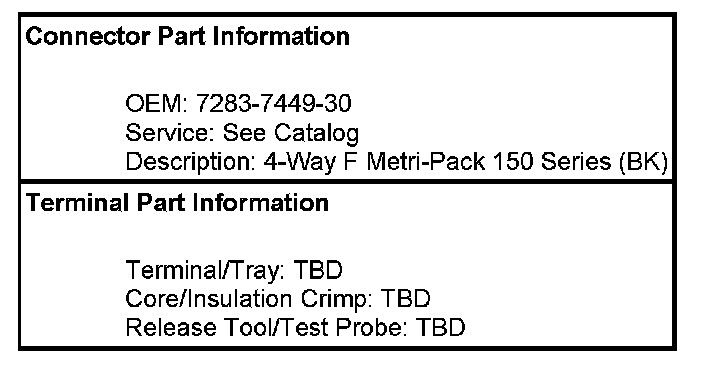

Ignition Coil/Module 1

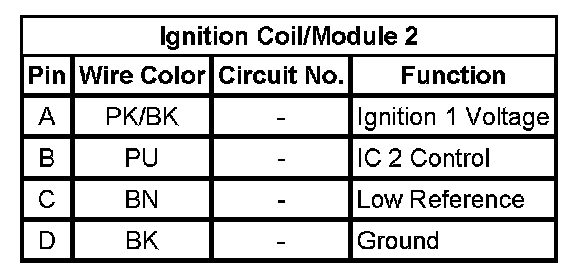

Ignition Coil/Module 2

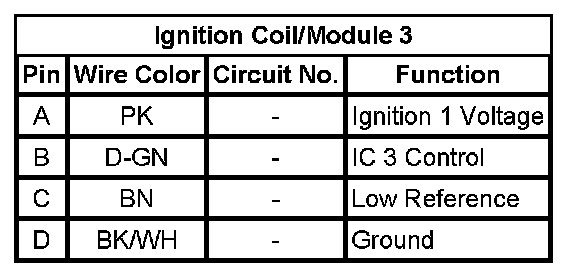

Ignition Coil/Module 3

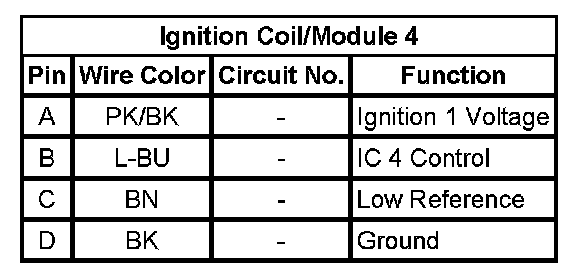

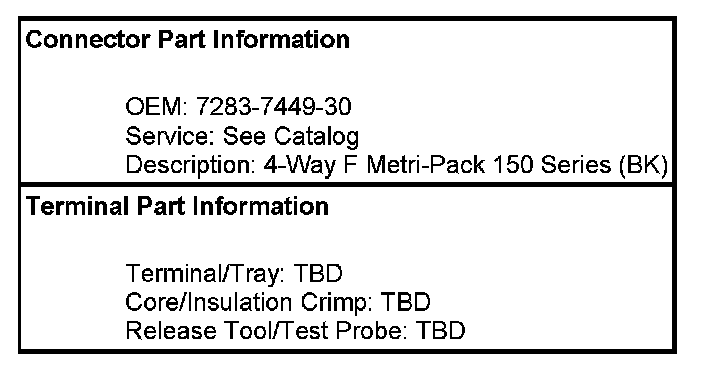

Ignition Coil/Module 4












Ignition Coil/Module 5

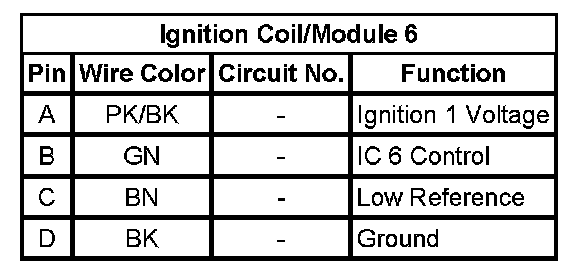

Ignition Coil/Module 6

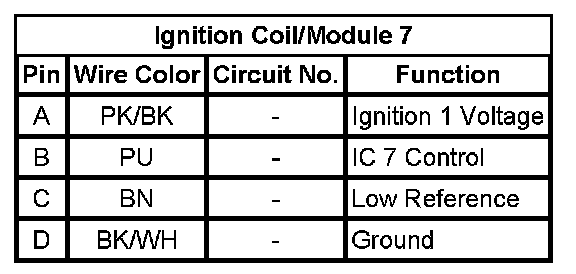

Ignition Coil/Module 7

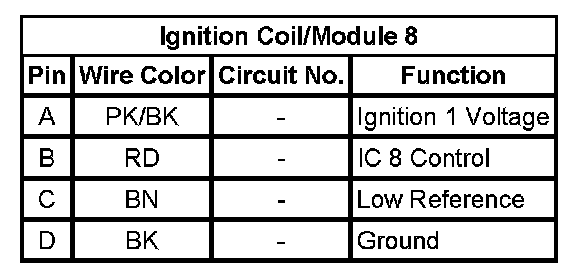

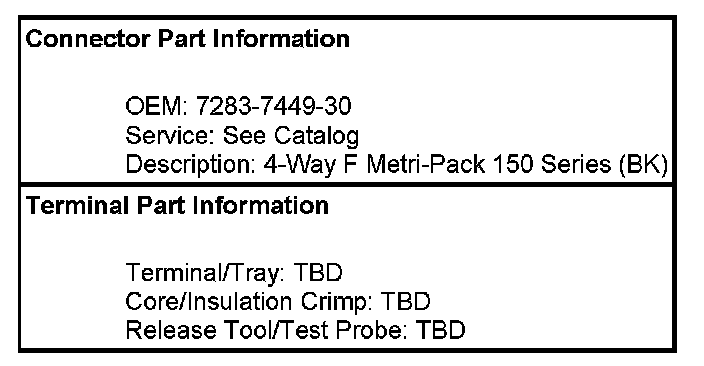

Ignition Coil/Module 8
