Home >> Cadillac >> 2007 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch



Brake Fluid Level Switch

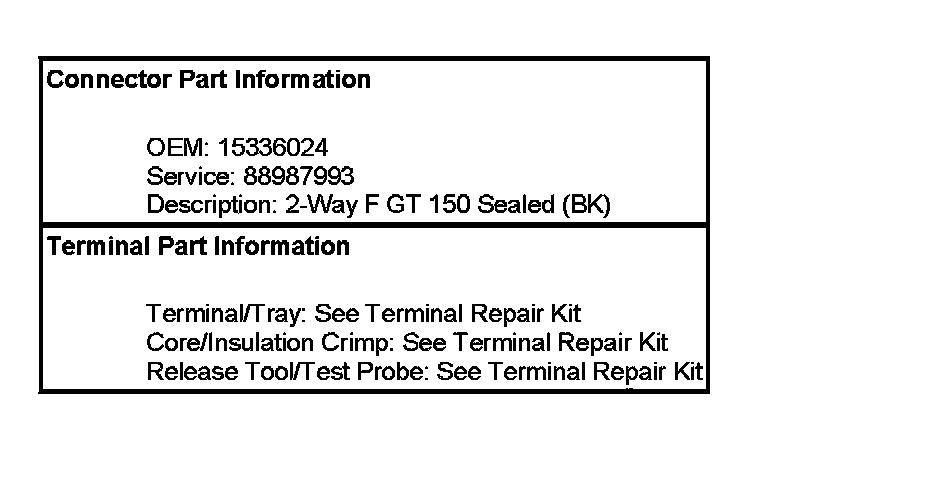

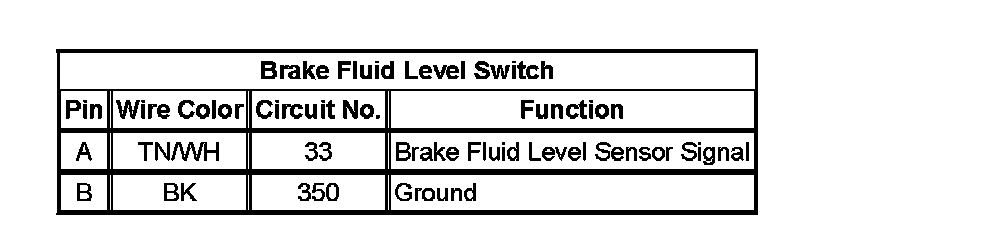

Brake Fluid Level Switch:
