Components

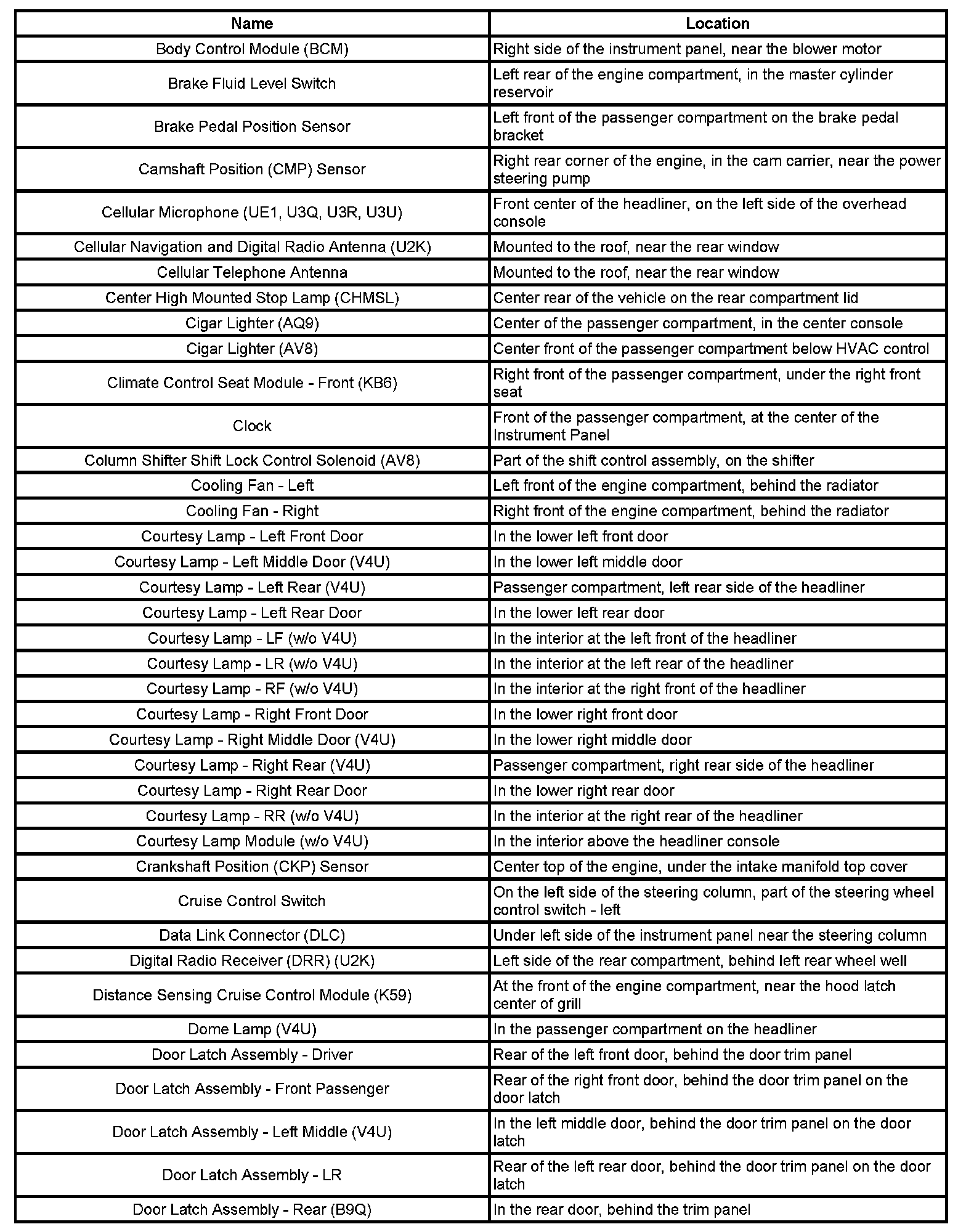

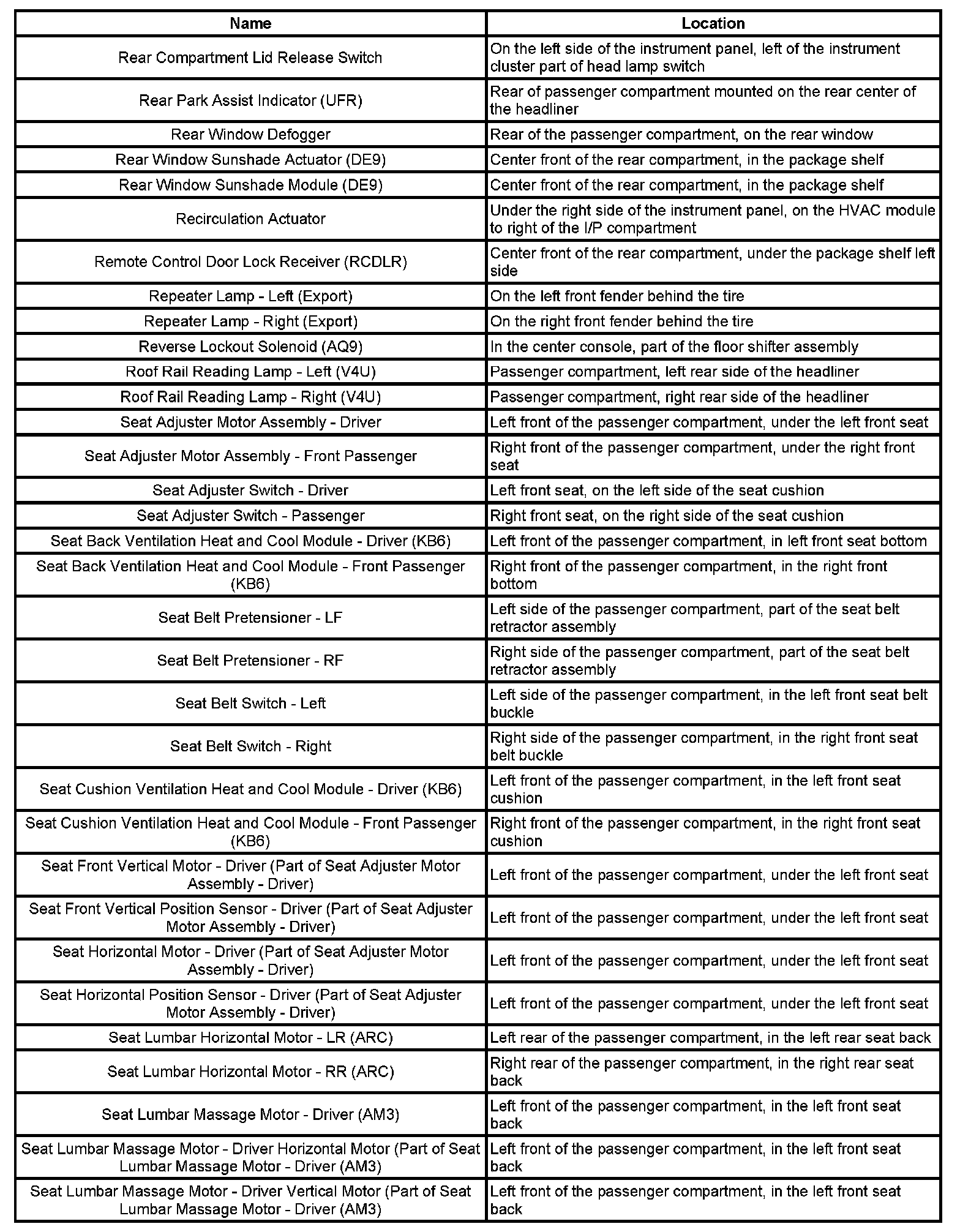

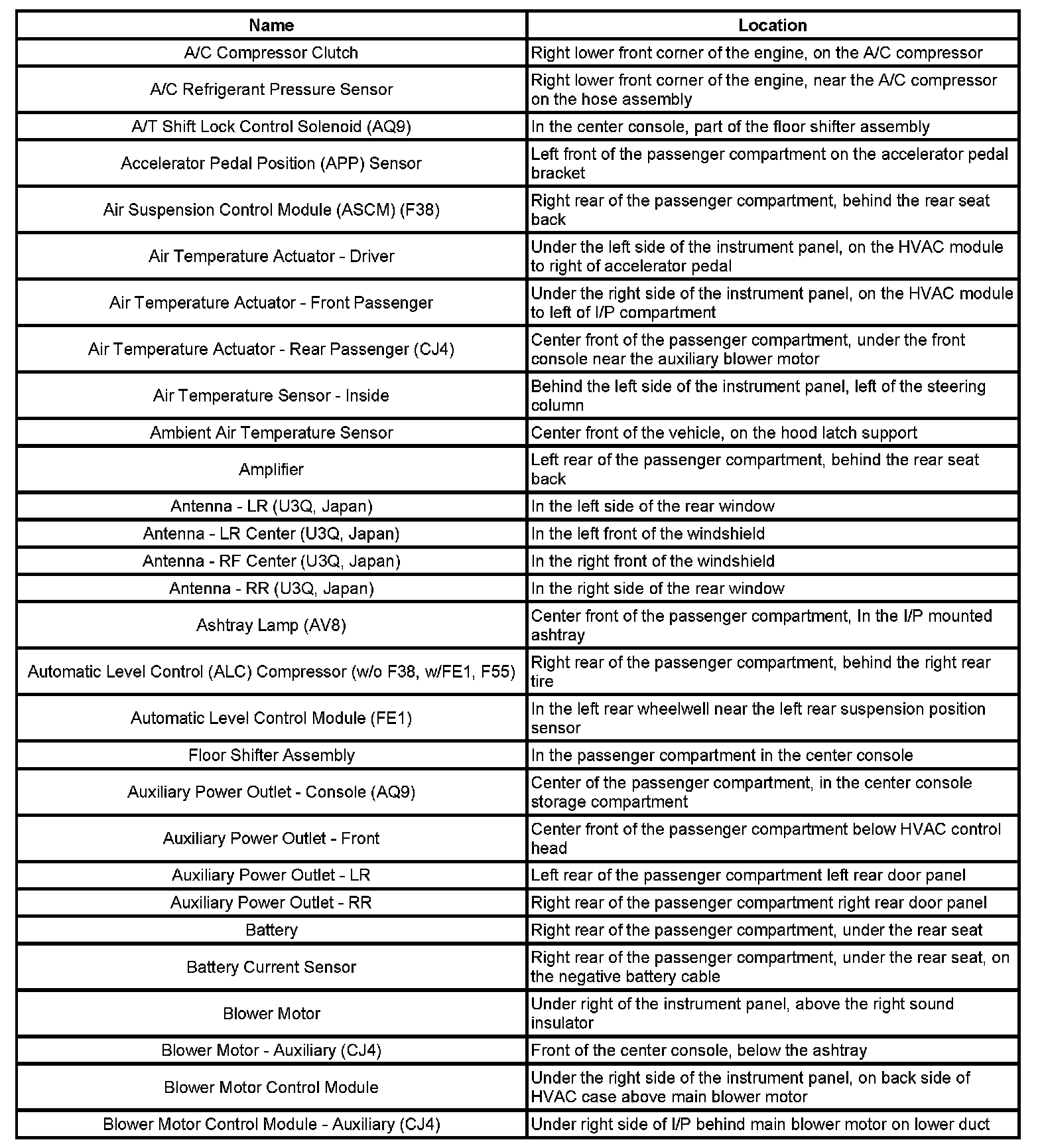

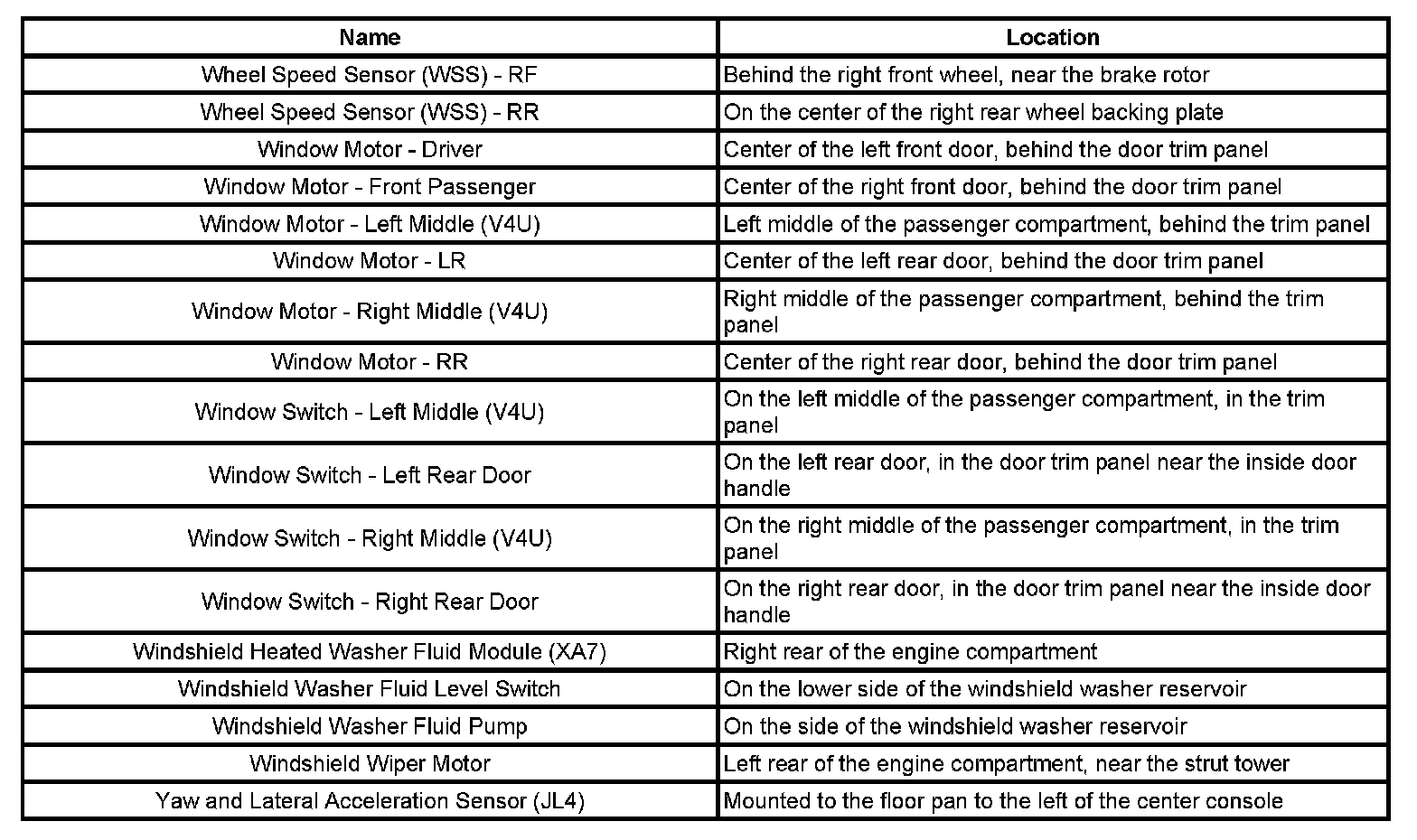

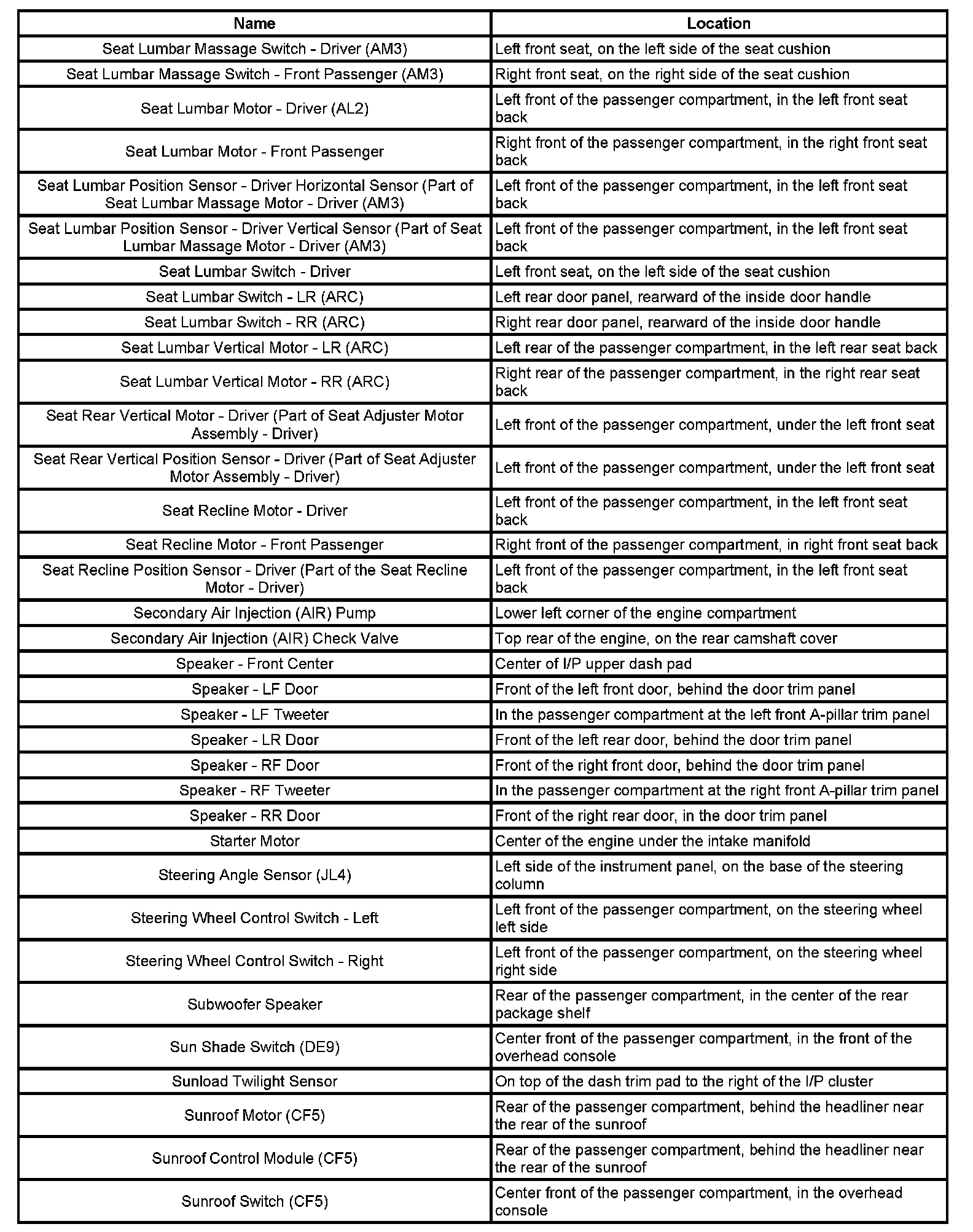

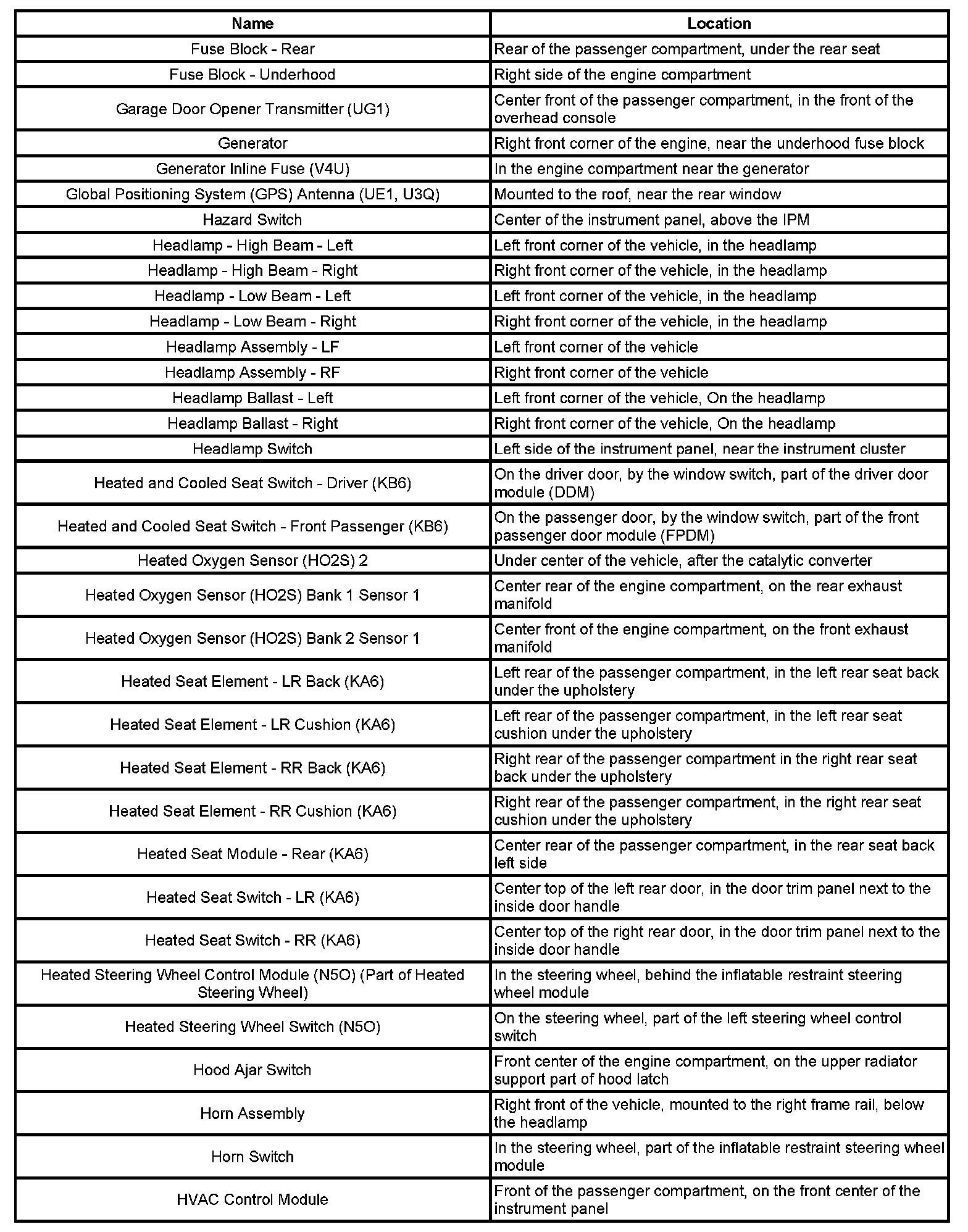

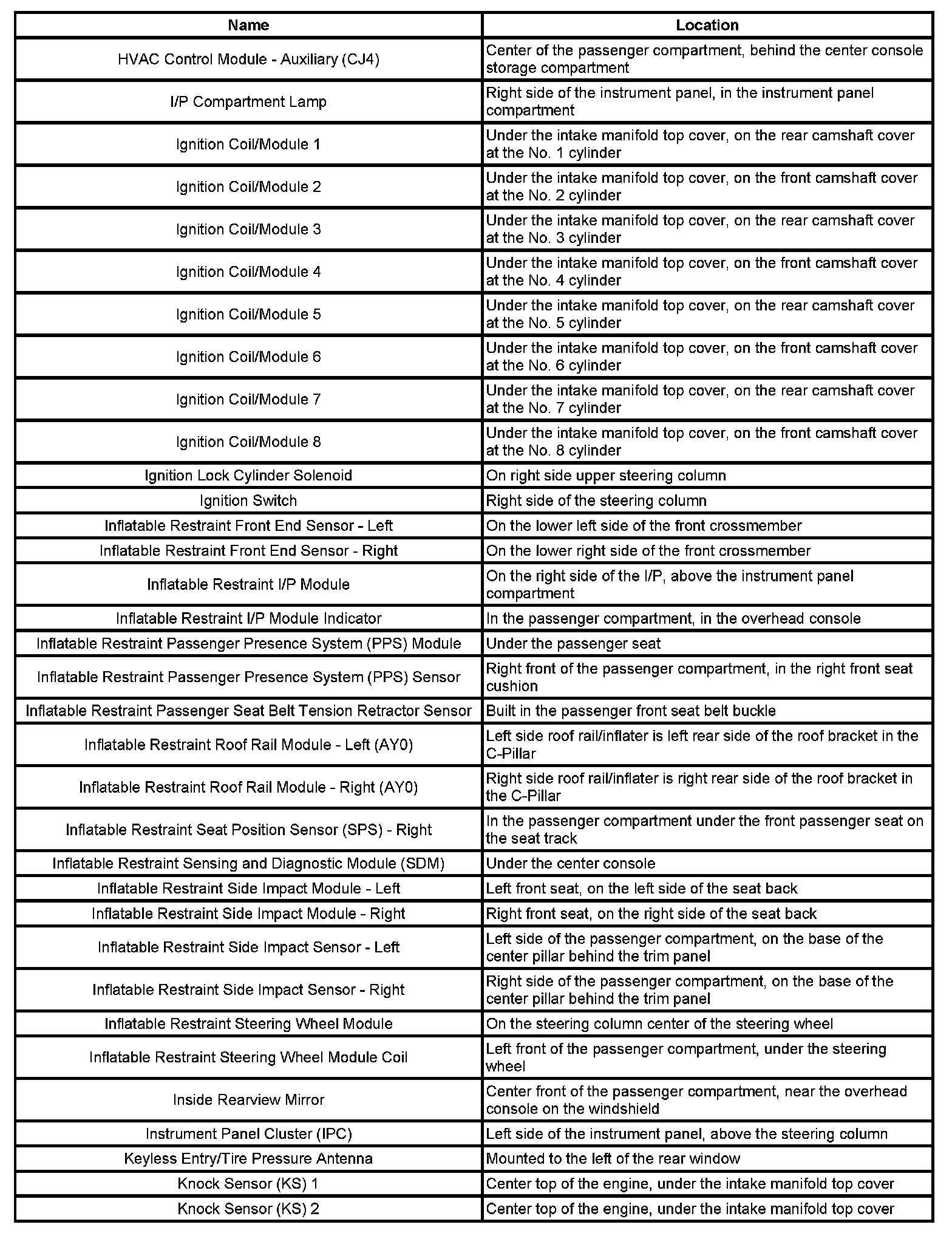

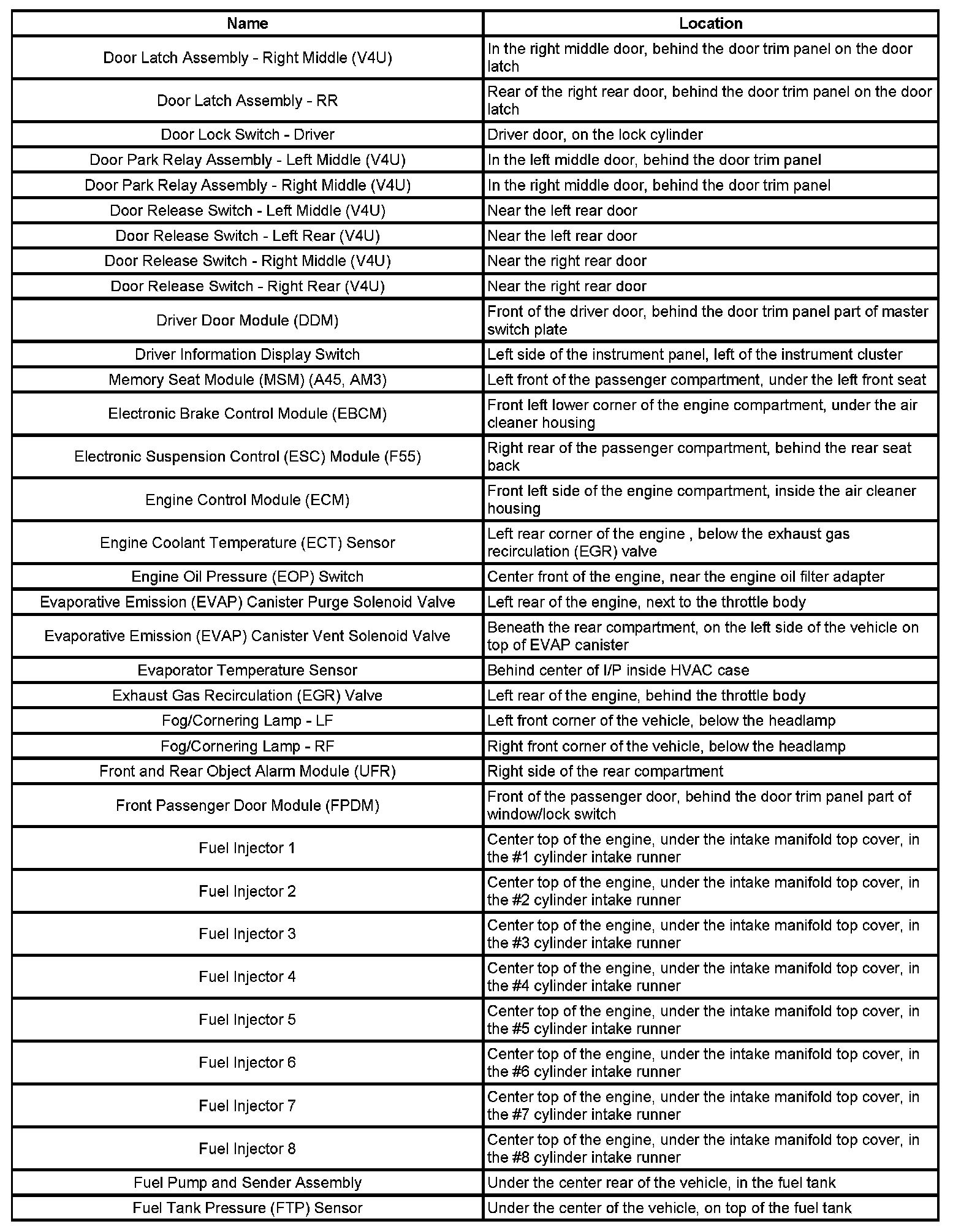

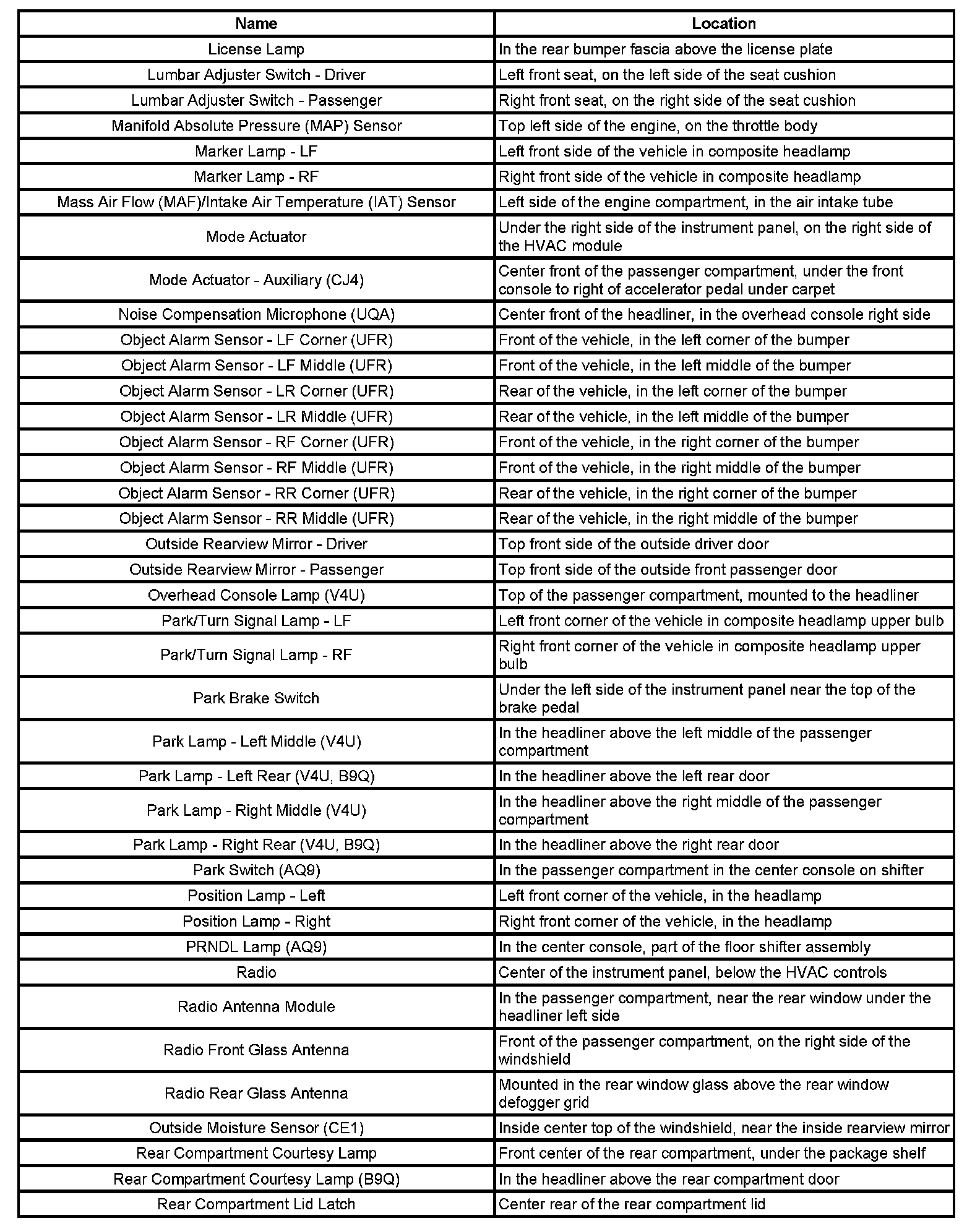

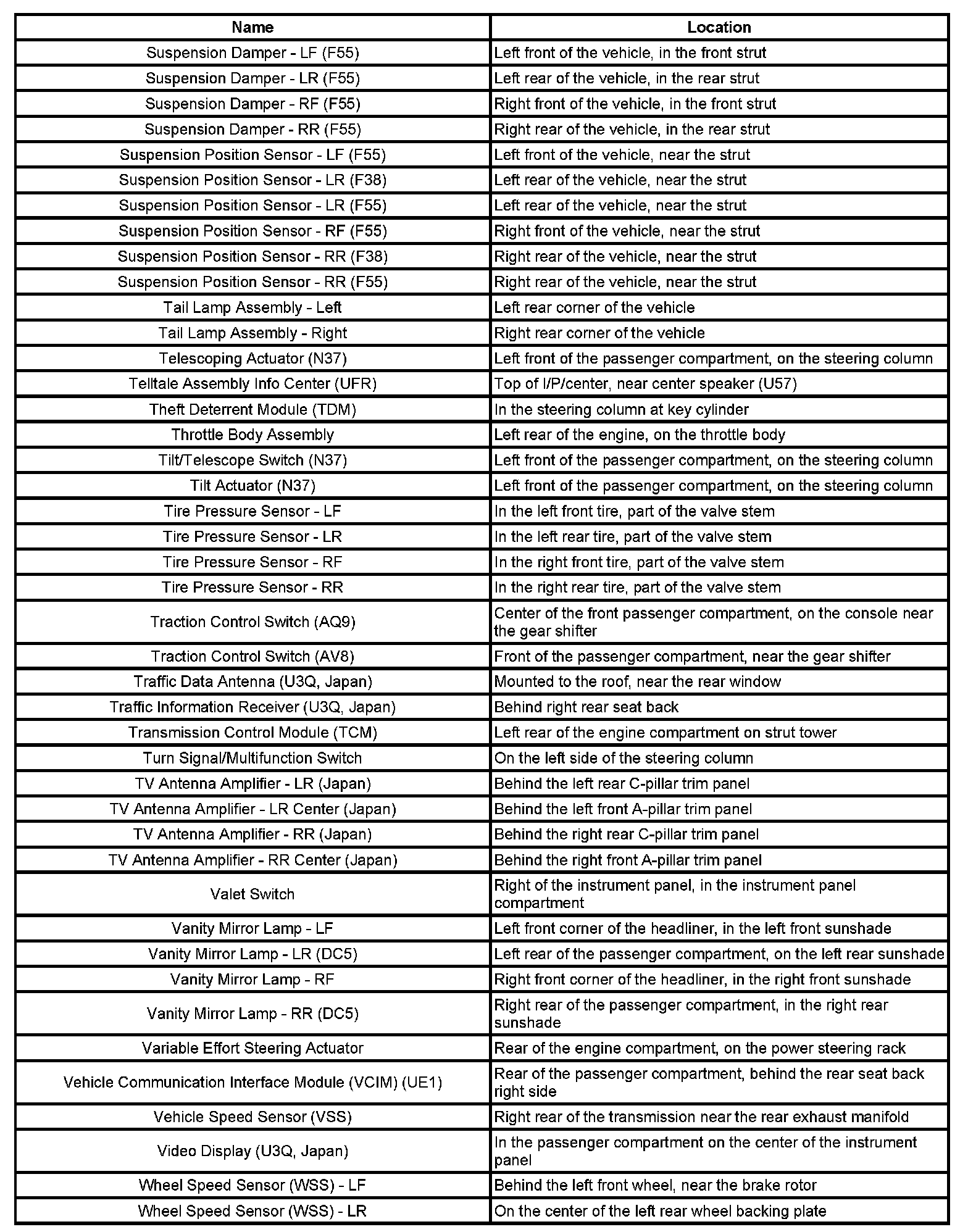

Master Electrical Component List

A/C - Bl:





Bo - Do:





Do - Fu:





Fu - HV:





HV - Kn:





Li - Re:





Re - Se:





Se - Su:





Su - Wh:





Wh - Ya:
