Engine Control Module

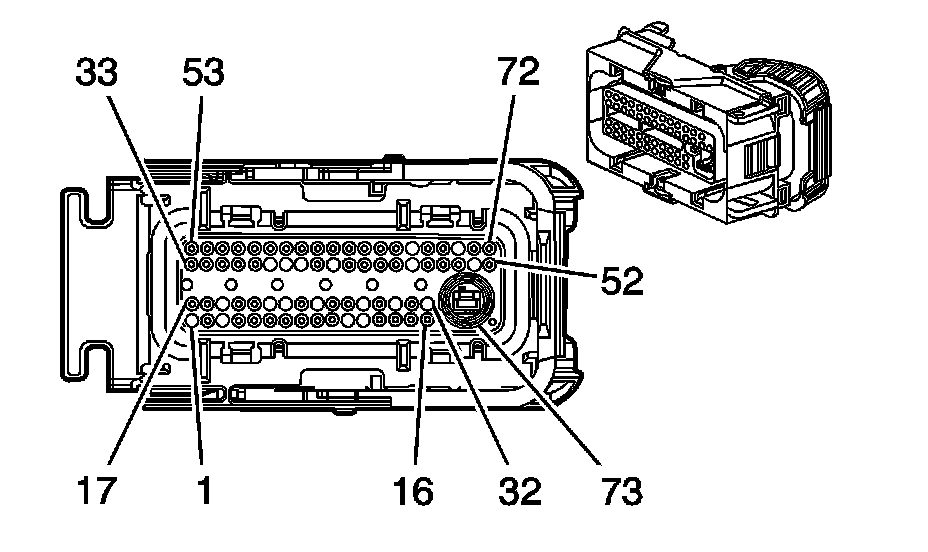

Engine Control Module Connector End Views

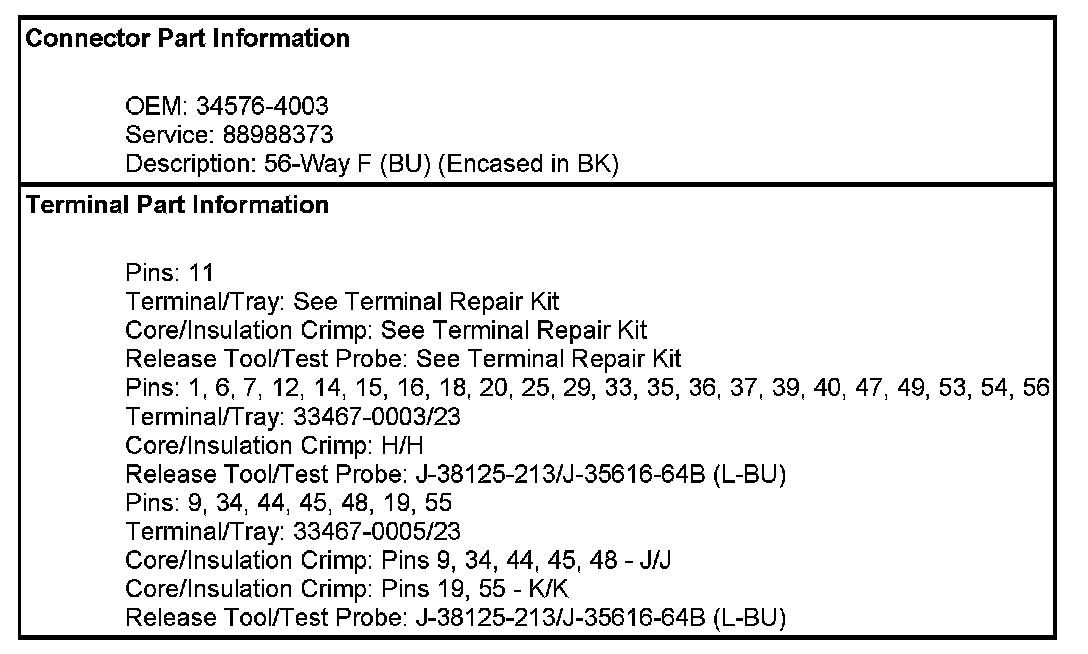

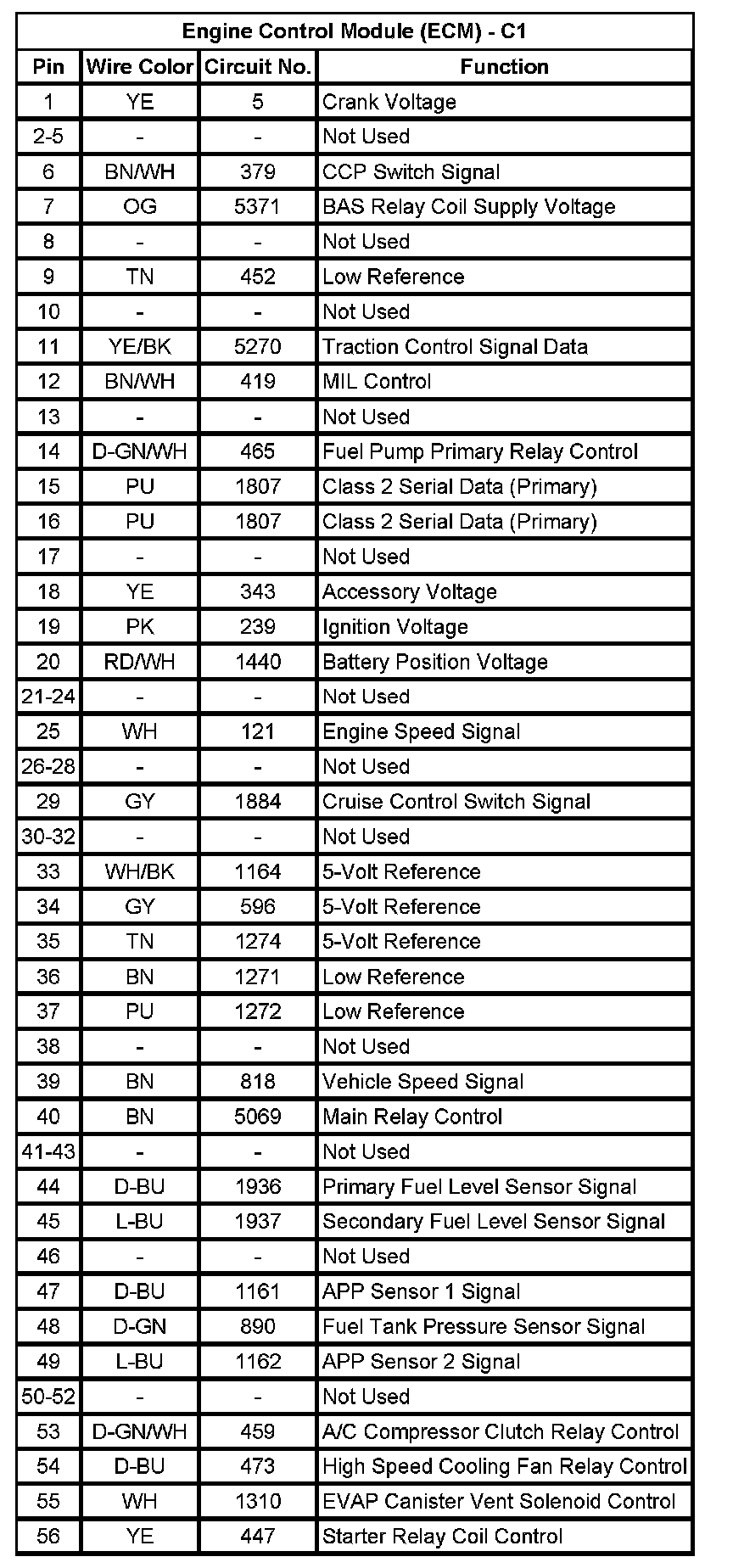

Engine Control Module (ECM) - C1
Engine Control Module (ECM) - C2

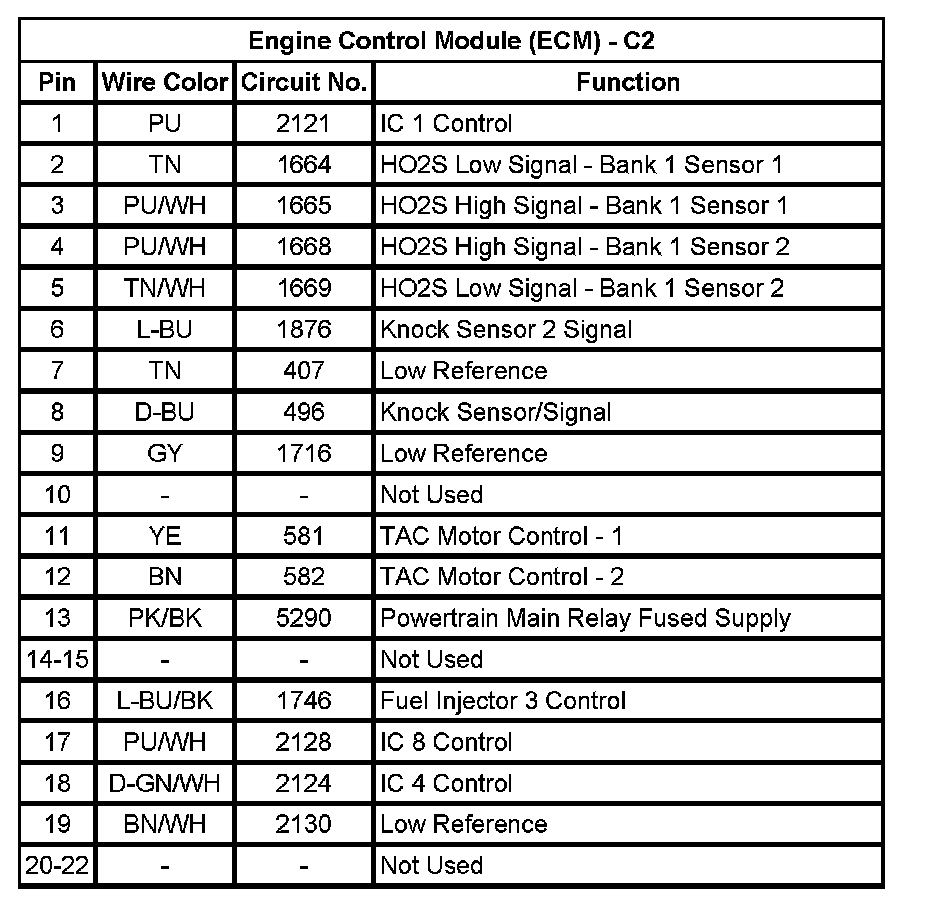

Engine Control Module (ECM) - C2 (Pin 1 To 22):

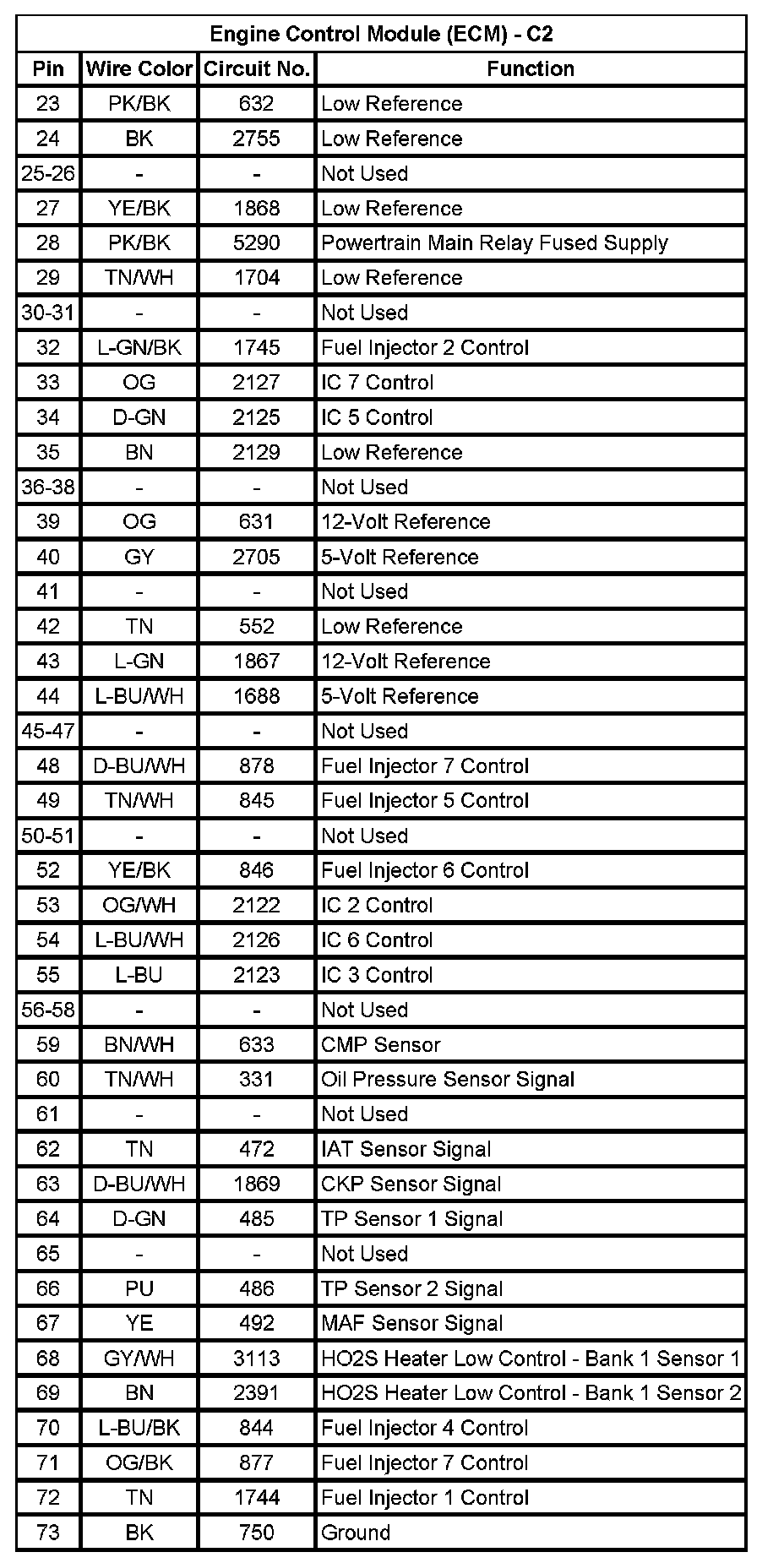

Engine Control Module (ECM) - C2 (Pin 23 To 73):
Engine Control Module (ECM) - C3

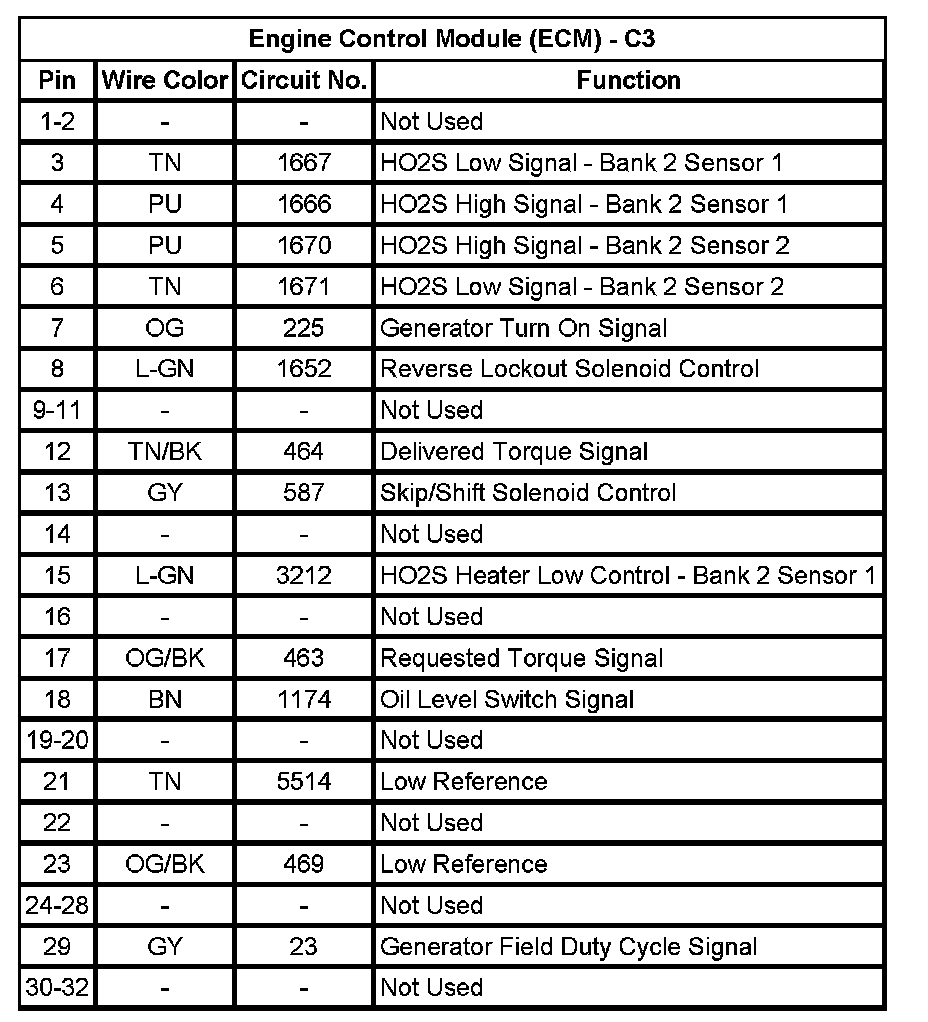

Engine Control Module (ECM) - C3 (Pin 1 To 32):

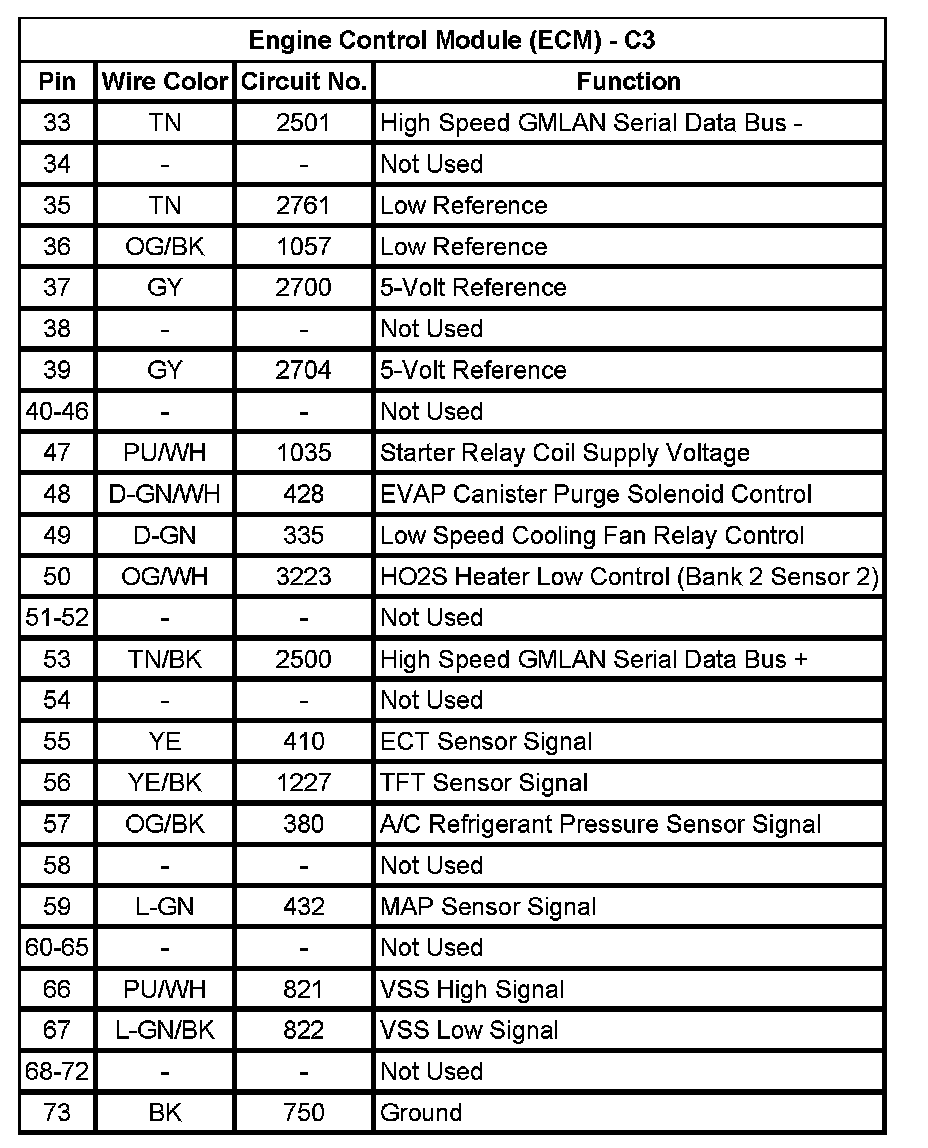

Engine Control Module (ECM) - C3 (Pin 33 To 73):
